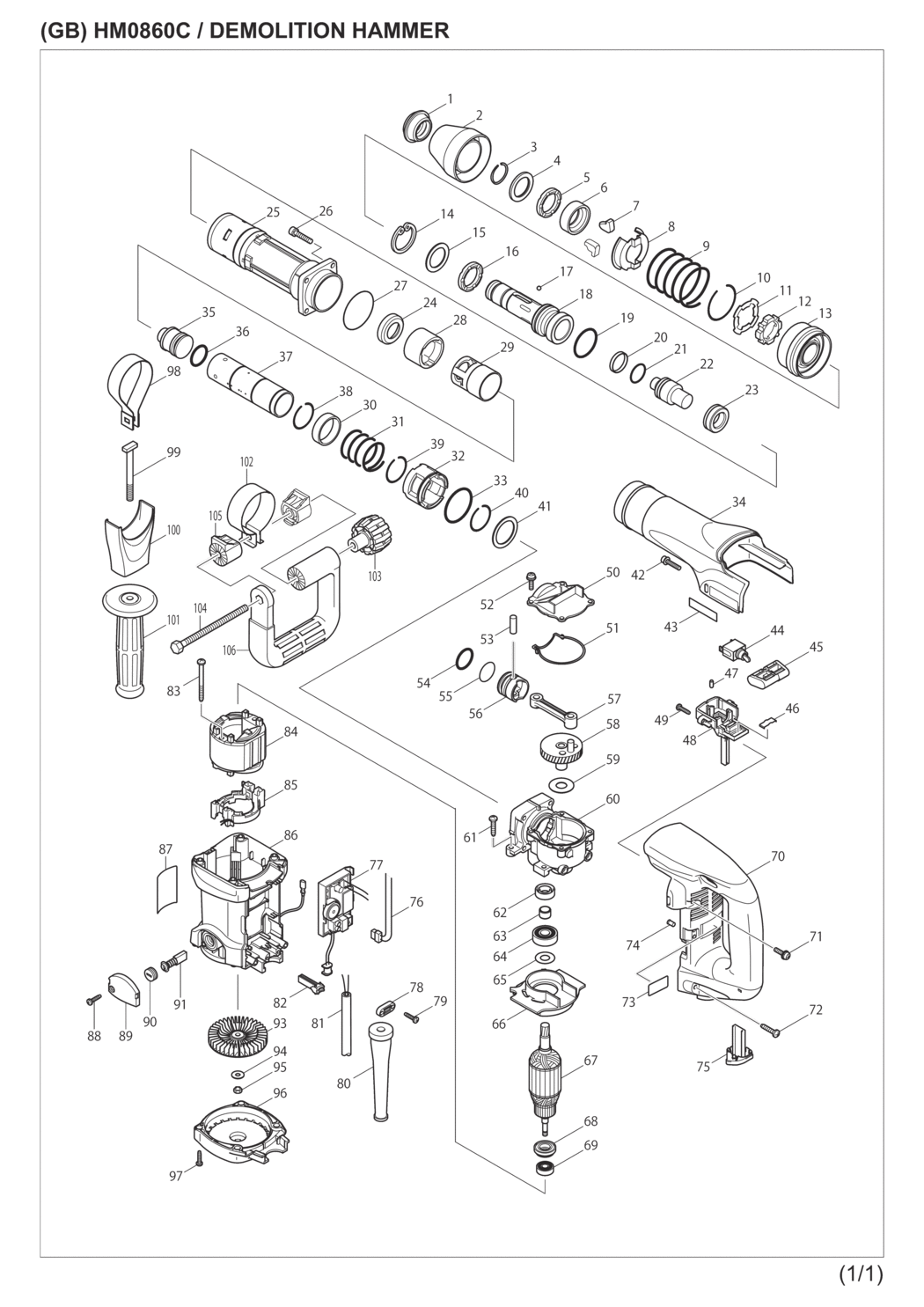

1 - TOOL HOLDER CAP HM0860C/HR354
MSP-286269-2.A0
286269-2
|
£2.49
|
£2.99
|
|
|
2 - CHUCK COVER HM0860C
MSP-418351-1
418351-1
|
£2.49
|
£2.99
|
|
|
3 - RING SPRING 25 HR5001C/HM1202
MSP-231984-3.A2
231984-3
|
£1.66
|
£1.99
|
|
|
4 - FLAT WASHER 28 HM0860C
MSP-267272-2.A0
267272-2
|
£2.49
|
£2.99
|
|
|
5-1 - RUBBER RING 28 HM0870C/781C
MSP-424261-2.A3
424261-2
|
£2.49
|
£2.99
|
|
|
6 - CHUCK RING HM0860C/870C/871C
MSP-331659-5.A1
331659-5
|
£5.46
|
£6.55
|
|
|
7 - TOOL RETAINER HM0860C/0870C
MSP-310108-5.A2
310108-5
|
£5.07
|
£6.08
|
|
|
8-1 - SPRING GUIDE HM0860C/870C/871
MSP-346677-0.A1
346677-0
|
£12.22
|
£14.66
|
|
|
9 - COMPRESSION SPRING 52 HM0860C
MSP-233387-7.A1
233387-7
|
£1.66
|
£1.99
|
|
|
11-1 - PLATE HM0870C/871C
MSP-346141-1.A1
346141-1
|
£2.49
|
£2.99
|
|
|
12 - LOCK RING HM0860C/0870C/0871C
MSP-310145-9.A0
310145-9
|
£10.79
|
£12.95
|
|
|
13 - CHANGE RING HM0860C
MSP-418357-9
418357-9
|
£2.49
|
£2.99
|
|
|
14 - RETAINING RING R-42 HR3000C
MSP-962211-4.A0
962211-4
|
£2.49
|
£2.99
|
|
|
14-1 - RETAINING RING/INT ROUND R-42
MSP-257960-9.A1
257960-9
|
£4.94
|
£5.93
|
|
|
15 - FLAT WASHER 29 HM0860C
MSP-267273-0.A2
267273-0
|
£1.66
|
£1.99
|
|
|
16-1 - RUBBER RING 28 HM0870C/781C
MSP-424261-2.A2
424261-2
|
£2.49
|
£2.99
|
|
|
17 - STEEL BALL 4.8 TW100D/TD0101F
MSP-216002-8.A39
216002-8
|
£1.66
|
£1.99
|
|
|
18 - TOOL HOLDER HM0860C/870C/871C
MSP-324387-9.A2
324387-9
|
£54.43
|
£65.32
|
|
|
19 - O RING 38 HM0860C
MSP-213527-3.A1
213527-3
|
£1.66
|
£1.99
|
|
|
20 - FLUORIDE RING 28 HM1202C/HR50
MSP-213431-6.A4
213431-6
|
£12.61
|
£15.13
|
|
|
21 - O RING 23 HM1202C/HR5001C
MSP-213394-6.A3
213394-6
|
£1.66
|
£1.99
|
|
|
22 - IMPACT BOLT HM0860C/870C/871C
MSP-324389-5.A1
324389-5
|
£10.14
|
£12.17
|
|
|
23 - RUBBER RING 20 HM0860C
MSP-421852-0
421852-0
|
£6.24
|
£7.49
|
|
|
24 - CUP WASHER 23 HM0860C
MSP-267780-3
267780-3
|
£2.49
|
£2.99
|
|
|
25-1 - BARREL HM0860C
MSP-318052-0
318052-0
|
£58.75
|
£70.50
|
|
|
26 - CAP HD SCREW M6X30 8900N/LF10
MSP-922351-0.A2
922351-0
|
£1.66
|
£1.99
|
|
|
27 - O RING 53 BO3710/3711/HM0860C
MSP-213656-2.A9
213656-2
|
£2.49
|
£2.99
|
|
|
28-2 - GUIDE RING HM0870/71C
MSP-451639-6.A1
451639-6
|
£3.25
|
£3.90
|
|
|
29-2 - SLIDE SLEEVE HM0860C/870C/871
MSP-450098-1.A0
450098-1
|
£2.49
|
£2.99
|
|
|
30 - RING 36 HM0860C/870C/871C
MSP-331660-0.A1
331660-0
|
£7.54
|
£9.05
|
|
|
31 - COMPRESSION SPRING 37 HM0860
MSP-233386-9.A1
233386-9
|
£1.66
|
£1.99
|
|
|
32 - CYLINDER GUIDE HM0860C
MSP-317719-7.A1
317719-7
|
£7.41
|
£8.89
|
|
|
33 - O RING GD0810C/GD0811C
MSP-213611-4.A4
213611-4
|
£1.66
|
£1.99
|
|
|
34 - CRANK HOUSING COVER HM0860C
MSP-183719-7
183719-7
|
£10.66
|
£12.79
|
|
|
35 - STRIKER HM0860C/870C/871C
MSP-324388-7.A0
324388-7
|
£7.54
|
£9.05
|
|
|
36 - O RING 24 HM0860C
MSP-213958-6.A1
213958-6
|
£2.49
|
£2.99
|
|
|
37 - CYLINDER 32 HM0860C/870C/871
MSP-331658-7.A1
331658-7
|
£30.58
|
£36.70
|
|
|
38 - RING SPRING 34 HM0860C
MSP-233927-1.A6
233927-1
|
£1.66
|
£1.99
|
|
|
39 - RING SPRING 34 HM0860C
MSP-233927-1.A7
233927-1
|
£1.66
|
£1.99
|
|
|
40 - RING SPRING 34 HM0860C
MSP-233927-1.A8
233927-1
|
£1.66
|
£1.99
|
|
|
41 - FLAT WASHER 34 HM0860C
MSP-267079-6.A2
267079-6
|
£9.49
|
£11.39
|
|
|
42 - CAP HD SCREW M5X25 HM0870/71C
MSP-922243-3.A5
922243-3
|
£1.66
|
£1.99
|
|
|
43 - LABEL/MAKITA 500 4305HR160DW
MSP-819063-3.A22
819063-3
|
£1.66
|
£1.99
|
|
|
44 - SWITCH BTM/3707F/3708F/DTM51
MSP-651423-1.A0
651423-1
|
£9.49
|
£11.39
|
|
|
45 - SWITCH LEVER HM0860C
MSP-418360-0
418360-0
|
£1.66
|
£1.99
|
|
|
46 - LEAF SPRING HM1110/HM1317C/CB
MSP-232209-8.A5
232209-8
|
£1.66
|
£1.99
|
|
|
47 - RUBBER PIN 4 HM1317C-CB/HM086
MSP-263027-3.A9
263027-3
|
£1.66
|
£1.99
|
|
|
48 - SWITCH BOX HM0860C
MSP-418361-8
418361-8
|
£2.49
|
£2.99
|
|
|
49 - PT SCREW 4X18 UH4570/55/65/55
MSP-265995-6.A243
265995-6
|
£1.66
|
£1.99
|
|
|
50 - CRANK CAP HM0860C
MSP-418358-7
418358-7
|
£2.49
|
£2.99
|
|
|
51 - SEAL RING HM0860C
MSP-421851-2
421851-2
|
£1.66
|
£1.99
|
|
|
52 - PAN HD SCREW M5X20 W/CP WASHE
MSP-911233-1.A14
911233-1
|
£1.66
|
£1.99
|
|
|
53 - PIN 8 HM0860C
MSP-268104-6.A2
268104-6
|
£1.66
|
£1.99
|
|
|
54 - O RING 24 HM0860C
MSP-213958-6.A2
213958-6
|
£2.49
|
£2.99
|
|
|
55 - O RING 26/6960DZ OIL UNIT COM
MSP-213432-4.A0
213432-4
|
£1.66
|
£1.99
|
|
|
56 - PISTON HM0860C
MSP-418349-8.A2
418349-8
|
£2.49
|
£2.99
|
|
|
57 - CONNECTING ROD HM0860C/870C/7
MSP-418350-3.A0
418350-3
|
£1.66
|
£1.99
|
|
|
58 - CRANKSHAFT HM0860C
MSP-153676-3
153676-3
|
£41.58
|
£49.90
|
|
|
59 - FLAT WASHER 14 HM1317C-CB/HM
MSP-267166-1.A0
267166-1
|
£1.66
|
£1.99
|
|
|
60 - NEEDLE BEARING 1412 HM0860C
MSP-212157-7
212157-7
|
£3.38
|
£4.06
|
|
|
60 - CRANK HOUSING HM0860C
MSP-153678-9
153678-9
|
£58.75
|
£70.50
|
|
|
60 - NEEDLE BEARING 1412
MSP-212151-9
212151-9
|
£9.88
|
£11.86
|
|
|
61 - PT SCREW 5X25 KP0810C KP0810
MSP-266041-8.A87
266041-8
|
£1.66
|
£1.99
|
|
|
62 - OIL SEAL 15 BHR262/HM1203/BHR
MSP-213231-4.A9
213231-4
|
£6.37
|
£7.64
|
|
|
63 - SLEEVE 12 HR4500C/4511C/BHR26
MSP-331596-3.A6
331596-3
|
£4.55
|
£5.46
|
|
|
64 - BALL BEARING 6201LLU HM0860C
MSP-211137-0.A4
211137-0
|
£4.16
|
£4.99
|
|
|
65 - THIN HARD WASHER 12 JN3200
MSP-253759-0.A8
253759-0
|
£1.66
|
£1.99
|
|
|
66 - BAFFLE PLATE HM0860C
MSP-418355-3
418355-3
|
£2.49
|
£2.99
|
|
|
67 - ARMATURE ASS 240V HM0860C
MSP-513563-2
513563-2
|
£51.04
|
£61.25
|
|
|
67 - ARMATURE ASS 110V HM0860C
MSP-513561-6
513561-6
|
£51.04
|
£61.25
|
|
|
68 - INSULATION WASHER HM0870/71C
MSP-681650-6.A4
681650-6
|
£5.46
|
£6.55
|
|
|
69 - BALL BEARING 608DDW GA5020
MSP-210005-4.A90
210005-4
|
£7.02
|
£8.42
|
|
|
70 - HANDLE HM0860C
MSP-418366-8
418366-8
|
£16.72
|
£20.06
|
|
|
71 - PAN HD SCREW M5X20 W/CP WASHE
MSP-911233-1.A15
911233-1
|
£1.66
|
£1.99
|
|
|
72 - PT SCREW 5X25 KP0810C KP0810
MSP-266041-8.A86
266041-8
|
£1.66
|
£1.99
|
|
|
73 - LABEL/SERIAL NO. HM0860C
MSP-815954-6
815954-6
|
£1.66
|
£1.99
|
|
|
74 - ACRYLIC PIN 5 HR4000C/HR3000C
MSP-416285-2.A1
416285-2
|
£1.66
|
£1.99
|
|
|
75 - HANDLE CAP HM0860C
MSP-418359-5
418359-5
|
£1.66
|
£1.99
|
|
|
76 - LEAD UNIT HM0860C
MSP-638294-3
638294-3
|
£2.49
|
£2.99
|
|
|
77 - CONTROLLER 110V HM0860C
MSP-631555-0
631555-0
|
£41.69
|
£50.03
|
|
|
77 - CONTROLLER 240V HM0860C
MSP-631554-2
631554-2
|
-
|
|
|
|
78 - STRAIN RELIEF 110V UK360/HS61
MSP-687053-2.A16
687053-2
|
£1.66
|
£1.99
|
|
|
79 - PT SCREW 4X18 UH4570/55/65/55
MSP-265995-6.A242
265995-6
|
£1.66
|
£1.99
|
|
|
80 - CORD GUARD 10 HM1317C/CB/HR30
MSP-682560-0.A23
682560-0
|
£2.49
|
£2.99
|
|
|
81 - POWER SUPPLY CORD 1.5-2-4.0
MSP-692623-4.A18
692623-4
|
£24.97
|
£29.96
|
|
|
82 - FIX ROD HM0860C
MSP-418353-7
418353-7
|
£1.66
|
£1.99
|
|
|
83 - PT SCREW 5X60 HS7100/HM1317C
MSP-266044-2.A33
266044-2
|
£2.49
|
£2.99
|
|
|
84 - FIELD ASS 110V HM0860C
MSP-634506-2
634506-2
|
£12.43
|
£14.92
|
|
|
84 - FIELD ASS 240V HM0860C
MSP-634508-8
634508-8
|
£12.43
|
£14.92
|
|
|
85 - SUPPORT HM0860C
MSP-638293-5
638293-5
|
£3.90
|
£4.68
|
|
|
86 - BRUSH HOLDER 5X11 HR3000C
MSP-643757-6.A2
643757-6
|
£7.28
|
£8.74
|
|
|
86 - BRUSH HOLDER HM1100C/HR3000C
MSP-643754-2.A7
643754-2
|
£4.16
|
£4.99
|
|
|
86 - MOTOR HOUSING HM0860C
MSP-153677-1
153677-1
|
£23.65
|
£28.38
|
|
|
87 - NAME PLATE HM0860C
MSP-850965-4
850965-4
|
£1.66
|
£1.99
|
|
|
88 - PT SCREW 4X18 UH4570/55/65/55
MSP-265995-6.A241
265995-6
|
£1.66
|
£1.99
|
|
|
89 - BRUSH HOLDER COVER HM0860C
MSP-418362-6
418362-6
|
£1.66
|
£1.99
|
|
|
90 - BRUSH HOLDER CAP 4100KB HS7611
MSP-643750-0.A40
643750-0
|
£1.66
|
£1.99
|
|
|
90-1 - HOLDER CAP 7-11 2107F/4131
MSP-643515-0.A6
643515-0
|
£1.66
|
£1.99
|
|
|
91-2 - AC CARBON BRUSH CB-327
MSP-194285-9.A0
194285-9
|
£7.28
|
£8.74
|
|
|
93 - FAN 76 ASSY HM0860C
MSP-135058-1
135058-1
|
£4.55
|
£5.46
|
|
|
94 - WASHER 6 HR3000C/LF1000
MSP-253047-5.A3
253047-5
|
£1.66
|
£1.99
|
|
|
95 - HEX NUT M6 9564/65CV/DZ&H
MSP-931303-0.A4
931303-0
|
£1.66
|
£1.99
|
|
|
96 - REAR COVER HM0860C
MSP-418354-5
418354-5
|
£3.90
|
£4.68
|
|
|
97 - PT SCREW 4X18 UH4570/55/65/55
MSP-265995-6.A240
265995-6
|
£1.66
|
£1.99
|
|
|
98 - GRIP SPRING 60 HM0860C
MSP-345361-4
345361-4
|
£5.07
|
£6.08
|
|
|
99 - SQUARE BOLT M8X80 HM0860C
MSP-266322-0.A0
266322-0
|
£2.49
|
£2.99
|
|
|
99-1 - SQUARE BOLT M8X80 HM0860C
MSP-266322-0.A1
266322-0
|
£2.49
|
£2.99
|
|
|
100 - SIDE GRIP BASE 60 HM0860C
MSP-418363-4
418363-4
|
£2.49
|
£2.99
|
|
|
102 - HANDLE BASE HM1100C
MSP-152620-7.A4
152620-7
|
£12.43
|
£14.92
|
|
|
103 - WING NUT M8 HM1100C/HM1200K
MSP-252640-2.A11
252640-2
|
£4.94
|
£5.93
|
|
|
104 - HEX HD BOLT M8X150/HR5212C
MSP-265439-6.A12
265439-6
|
£2.49
|
£2.99
|
|
|
105 - SIDE HANDLE CAM HR4511/5211C
MSP-417002-3.A17
417002-3
|
£1.66
|
£1.99
|
|
|
106 - SIDE HANDLE HR4500/4511/5211
MSP-417003-1.A7
417003-1
|
£10.27
|
£12.32
|
|
|
A02 - HANDLE HM0860C
MSP-416549-4.A0
416549-4
|
£2.49
|
£2.99
|
|
|
A02 - LATCH HM0860C
MSP-162202-7.A2
162202-7
|
£1.66
|
£1.99
|
|
|
A02 - PLASTIC CASE HM0860C
MSP-824708-0
824708-0
|
£25.11
|
£30.13
|
|
|
A02 - COVER HM0860C
MSP-416556-7.A2
416556-7
|
£1.66
|
£1.99
|
|
|
A02 - LABEL/MAKITA LOGO
MSP-819140-1.A5
819140-1
|
£4.81
|
£5.77
|
|
|
E02 - *NON INSULATED TERMINAL GD0801
MSP-654091-9.A211
654091-9
|
£1.66
|
£1.99
|
|
