Makita HK1820L Power Scraper Spare Parts

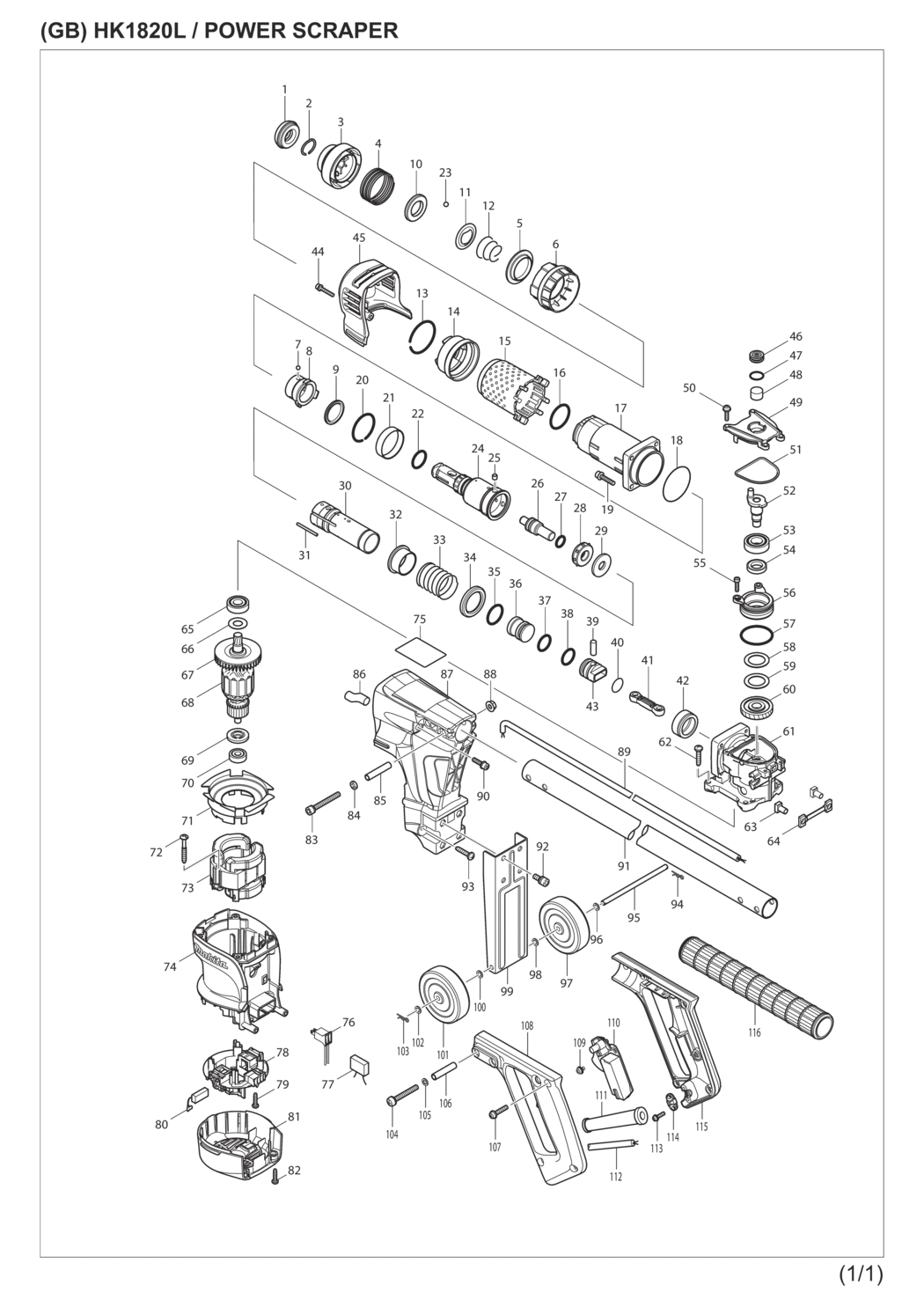

An exploded drawing and spare parts listing for the Makita HK1820L Power Scraper

	Ex VAT	Inc VAT
1 - CAP 38 HK1820/L MSP-286283-8.A1 286283-8	£1.44	£1.73
2 - RING SPRING 19 HK1820 MSP-233966-1.A0 233966-1	£2.18	£2.62
3 - CHUCK COVER HK1820/L MSP-450275-5.A0 450275-5	£2.81	£3.37
4 - COMPRESSION SPRING 42 HK1820 MSP-234039-3.A0 234039-3	£1.44	£1.73
5 - STEEL BALL GUIDE HK1820 MSP-345874-5.A1 345874-5	£5.92	£7.11
6 - CHANGE RING HK1820/L MSP-450274-7.A1 450274-7	£2.81	£3.37
7 - STEEL BALL 4.8 TW100D/TD0101F MSP-216002-8.A23 216002-8	£1.44	£1.73
8 - RING 25 HK1820/L MSP-331796-5.A1 331796-5	£11.86	£14.23
9 - URETHAN RING 26 HK1820/L MSP-262142-0.A0 262142-0	£1.44	£1.73
10 - RING 21 HR3210CT/FCT/HK1820L MSP-257288-5.A1 257288-5	£11.23	£13.48
11 - WASHER HR3210CT/FCT/HK1820 MSP-345873-7.A0 345873-7	£1.66	£1.99
12 - CONICAL SPRING 21-29 DHR MSP-233916-6.A9 233916-6	£1.66	£1.99
13 - RING SPRING 43 HR5001C/HR182 MSP-231985-1.A2 231985-1	£1.44	£1.73
14 - BARREL COVER SUPPORT HK1820/L MSP-450273-9.A0 450273-9	£2.34	£2.81
15 - BARREL COVER HK1820/L MSP-424066-0.A0 424066-0	£3.59	£4.31
16 - O RING 31 HK1820 MSP-213465-9.A0 213465-9	£1.44	£1.73
17-2 - BARREL HK1820/L MSP-318196-6.A1 318196-6	£12.95	£15.54
17-1 - BARREL HK1820/L MSP-318196-6.A2 318196-6	£12.95	£15.54
17 - BARREL HK1820/L MSP-318196-6.A5 318196-6	£12.95	£15.54
18 - O RING 48 HM1110/1110/1HR2510 MSP-213606-7.A4 213606-7	£1.44	£1.73
19 - CAP HD SCREW M5X25 HM0870/71C MSP-922243-3.A11 922243-3	£1.44	£1.73
20 - RING SPRING 37 HR4511C/HR1820 MSP-233956-4.A2 233956-4	£1.44	£1.73
21-1 - RING 39 HK1820/L MSP-257296-6.A0 257296-6	£18.72	£22.46
22 - O RING 22.4 HR140D/HR171D MSP-213008-7.A28 213008-7	£1.44	£1.73
23 - STEEL BALL 7.0 M3601/M8701 MSP-216022-2.A100 216022-2	£1.66	£1.99
24 - TOOL HOLDER HK1820/L MSP-324837-4.A1 324837-4	£81.40	£97.68
25 - PIN 6 HR3210CT/FCT/HK1820/L MSP-256266-2.A3 256266-2	£1.44	£1.73
25-1 - PIN 6 HK1820/L DHR242/DHR243 MSP-268226-2.A5 268226-2	£5.46	£6.55
26 - IMPACT BOLT HK1820/L MSP-324844-7.A0 324844-7	£7.64	£9.17
27 - O RING 12 HR2020/2440/2450 MSP-213128-7.A18 213128-7	£1.44	£1.73
28 - RUBBER RING 13 HK1820 MSP-424065-2.A1 424065-2	£7.80	£9.36
29 - FLAT WASHER 12 HK1820 MSP-267363-9.A1 267363-9	£3.28	£3.93
30-1 - CYLINDER HK1820/L MSP-331849-0.A1 331849-0	£53.07	£63.68
31-1 - ROD 2.5 HK1820/L MSP-256862-6.A0 256862-6	£1.44	£1.73
32 - RING 29 HK1820/L MSP-331799-9.A0 331799-9	£12.79	£15.35
33 - COMPRESSION SPRING 32 HK1820 MSP-234041-6.A0 234041-6	£1.44	£1.73
34 - CUP WASHER 29 HK1820/L MSP-345872-9.A1 345872-9	£2.65	£3.18
35 - O RING 26 CC300D/HR3000/BSS50 MSP-213435-8.A16 213435-8	£1.44	£1.73
36 - STRIKER HK1820/L MSP-324847-1.A0 324847-1	£7.18	£8.61
37 - O RING 18 HR3210CT/FCT/HK1800 MSP-213283-5.A2 213283-5	£2.18	£2.62
38 - O RING 18 HR3210CT/FCT/HK1800 MSP-213283-5.A9 213283-5	£2.18	£2.62
39 - PIN 7 HR3210CT/FCT/HK1820/L MSP-256087-2.A4 256087-2	£1.44	£1.73
40 - O RING 16 BFS440/AN942/BFR540 MSP-213262-3.A14 213262-3	£1.44	£1.73
41 - CONNECTING ROD HK1820/L MSP-450278-9.A1 450278-9	£1.44	£1.73
42 - SLEEVE 29 HK1820/L MSP-331797-3.A0 331797-3	£4.83	£5.80
43 - PISTON HK1820/L MSP-450298-3.A0 450298-3	£4.37	£5.24
44 - HEX SOCKET HD BOLT M4X25 HR52 MSP-922148-7.A18 922148-7	£1.44	£1.73
45 - CRANK HOUSING COVER HK1820/L MSP-450277-1.A0 450277-1	£5.62	£6.74
46 - FILTER CAP HR2811FT/HK1820L MSP-419988-7.A2 419988-7	£1.44	£1.73
47 - O RING 16 2414K/HK1820L MSP-213218-6.A10 213218-6	£1.44	£1.73
48 - FILTER HR2811FT/HK1820L/HM087 MSP-443129-3.A0 443129-3	£1.44	£1.73
49 - CRANK CAP HK1820/L MSP-450276-3.A1 450276-3	£3.59	£4.31
50 - PAN HD SCREW M4X18 KP0810C MSP-911133-5.A30 911133-5	£1.44	£1.73
51 - SEAL RING HK1820/L MSP-424067-8.A1 424067-8	£1.44	£1.73
52 - CRANK SHAFT HK1820/L MSP-324845-5.A1 324845-5	£9.82	£11.79
53 - BALL BEARING 6002LLU HK1800 MSP-211232-6.A5 211232-6	£5.92	£7.11
54 - OIL SEAL 15 HK1800/HK1820L MSP-213219-4.A1 213219-4	£4.06	£4.87
55 - HEX SOCKET HD BOLT M4X16 MSP-265490-6.A19 265490-6	£1.44	£1.73
56 - BEARING BOX HK1820/L MSP-318202-7.A0 318202-7	£3.28	£3.93
57 - O RING 39 AG125/HR1820 MSP-213513-4.A5 213513-4	£1.44	£1.73
58 - BLUE WASHER 22 5603R MSP-267126-3.A11 267126-3	£1.44	£1.73
59 - BLUE WASHER 22 5603R MSP-267126-3.A12 267126-3	£1.44	£1.73
60 - HELICAL GEAR 36 HK1820/L MSP-226675-9.A1 226675-9	£15.29	£18.35
61 - CRANK HOUSING HK1820/L MSP-158523-3.A0 158523-3	£51.61	£61.93
61-1 - CRANK HOUSING HK1820/L MSP-158523-3.A3 158523-3	£51.61	£61.93
61 - O RING 28 HM1110/1111/1110C MSP-213415-4.A11 213415-4	£1.44	£1.73
61-1 - O RING 28 HM1110/1111/1110C MSP-213415-4.A12 213415-4	£1.44	£1.73
62 - PT SCREW 5X25 KP0810C KP0810 MSP-266041-8.A6 266041-8	£1.44	£1.73
63 - FIX GUIDE HK1820/L MSP-331798-1.A1 331798-1	£5.62	£6.74
64 - CUSHION PLATE HK1820/L MSP-424068-6.A0 424068-6	£1.44	£1.73
65 - BALL BEARING 6001DDW HS7100 MSP-211131-2.A48 211131-2	£7.80	£9.36
66 - *HARD WASHER 12 HK1820 MSP-253748-5.A0 253748-5	£1.44	£1.73
67 - FAN 60 HK1820/L MSP-241879-2.A1 241879-2	£3.28	£3.93
68 - ARMATURE 110V HK1820L MSP-513741-4 513741-4	£55.97	£67.16
69 - INSULATED WASHER GA5020/GA501 MSP-681644-1.A10 681644-1	£1.44	£1.73
70 - BALL BEARING 608DDW GA5020 MSP-210005-4.A40 210005-4	£8.42	£10.11
71 - BAFFLE PLATE HK1820/L MSP-450265-8.A0 450265-8	£2.18	£2.62
72 - PT SCREW 5X40 M6600 MSP-266211-9.A3 266211-9	£1.44	£1.73
73 - FIELD 110V HK1820L MSP-625806-1 625806-1	£18.72	£22.46
74 - MOTOR HOUSING HK1820/L MSP-450263-2.A0 450263-2	£21.89	£26.27
75 - NAME PLATE HK1820L MSP-864991-7 864991-7	£1.44	£1.73
76 - LEAD UNIT HK1820L MSP-638607-8 638607-8	£2.50	£3.00
77 - NOISE SUPPRESSOR 4100KB HS7611 MSP-645141-1.A97 645141-1	£3.21	£3.85
78 - BRUSH HOLDER UNIT 110V HK1820 MSP-638576-3.A1 638576-3	£15.29	£18.35
79 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A810 265995-6	£1.44	£1.73
80 - CARBON BRUSH CB-350 HR4013C MSP-195004-6.A10 195004-6	£3.90	£4.68
81 - REAR COVER HK1820/L MSP-450264-0.A1 450264-0	£5.92	£7.11
82 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A809 265995-6	£1.44	£1.73
83 - CAP HD SCREW M6X50 HM0810 MSP-922371-4.A3 922371-4	£1.44	£1.73
84 - FLAT WASHER 6 DIN125-B BHS630 MSP-941151-9.A94 941151-9	£1.44	£1.73
85 - SLEEVE HK1820L MSP-257734-8 257734-8	£2.34	£2.81
86-1 - POLYETHYLENE TUBE HK1820L MSP-683247-7 683247-7	£1.44	£1.73
87 - HANDLE BASE HK1820L MSP-450467-6 450467-6	£69.93	£83.92
88 - HEX SOCKET HEAD BOLT M6 HK182 MSP-252115-1 252115-1	£2.18	£2.62
90 - HEX SOCKET HAED BOLT HK1820L MSP-266439-9 266439-9	£4.06	£4.87
91 - PIPE 29-900 HK1820L MSP-331839-3 331839-3	£25.20	£30.24
92 - HEX SOCKET BOLT M6X16 2012NB MSP-922323-5.A1 922323-5	£1.44	£1.73
93 - PT SCREW 5X25 KP0810C KP0810 MSP-266041-8.A11 266041-8	£1.44	£1.73
94 - SNAP PIN HK1820L MSP-259011-4.A0 259011-4	£1.44	£1.73
95 - ROD H1K820L MSP-321962-2 321962-2	£2.34	£2.81
96 - FLAT WASHER 6 DIN125-A HR3500 MSP-941152-7.A24 941152-7	£1.44	£1.73
97 - CASTER 75 HK1820L MSP-421310-6.A0 421310-6	£8.58	£10.30
98 - FLAT WASHER 6 DIN125-A HR3500 MSP-941152-7.A27 941152-7	£1.44	£1.73
99 - SUPPORTER HK1820L MSP-345890-7 345890-7	£15.75	£18.90
100 - FLAT WASHER 6 DIN125-A HR3500 MSP-941152-7.A28 941152-7	£1.44	£1.73
101 - CASTER 75 HK1820L MSP-421310-6.A1 421310-6	£8.58	£10.30
102 - FLAT WASHER 6 DIN125-A HR3500 MSP-941152-7.A26 941152-7	£1.44	£1.73
103 - SNAP PIN HK1820L MSP-259011-4.A1 259011-4	£1.44	£1.73
104 - PAN HD SCREW M6X45 LS1030 MSP-911366-2.A0 911366-2	£1.44	£1.73
105 - FLAT WASHER 6 DIN125-A HR3500 MSP-941152-7.A25 941152-7	£1.44	£1.73
106 - SLEEVE 6 HK1820L MSP-257632-6 257632-6	£1.44	£1.73
107 - PAN HD SCREW M5X25 W/CP WASHE MSP-911243-8.A28 911243-8	£1.44	£1.73
108 - HANDLE SET HK1820L MSP-181954-1.A0 181954-1	£23.62	£28.34
109 - PAN HEAD SCREW M4 X 8 BHS630 MSP-911109-2.A11 911109-2	£1.44	£1.73
110 - SWITCH HPAHR2-3S 9217SPC MSP-651018-0.A1 651018-0	£11.86	£14.23
111 - CORD GUARD 10-90 HS6100/7100 MSP-682505-8.A20 682505-8	£1.44	£1.73
113 - PAN HEAD SCREW M4X16 BHX2501 MSP-911128-8.A57 911128-8	£1.44	£1.73
114 - STRAIN RELIEF HK1820L/3601B MSP-687031-2.A9 687031-2	£1.44	£1.73
115 - HANDLE SET HK1820L MSP-181954-1.A1 181954-1	£23.62	£28.34
116 - GRIP COVER HK1820L MSP-424091-1 424091-1	£12.95	£15.54
117 - CUSHION PLATE HK1800 MSP-423122-3.A0 423122-3	£1.44	£1.73
118 - O RING 35 HK1820/L MSP-213142-3.A2 213142-3	£1.44	£1.73
A01 - HEX WRENCH 5 BHS630/PC5000/01C MSP-783203-8.A20 783203-8	£1.20	£1.44
E02 - *NON INSULATED TERMINAL GD0801 MSP-654091-9.A127 654091-9	£1.44	£1.73

Attribute Name	Value
Brand	Makita
