Makita GA4540C Angle Grinder Spare Parts

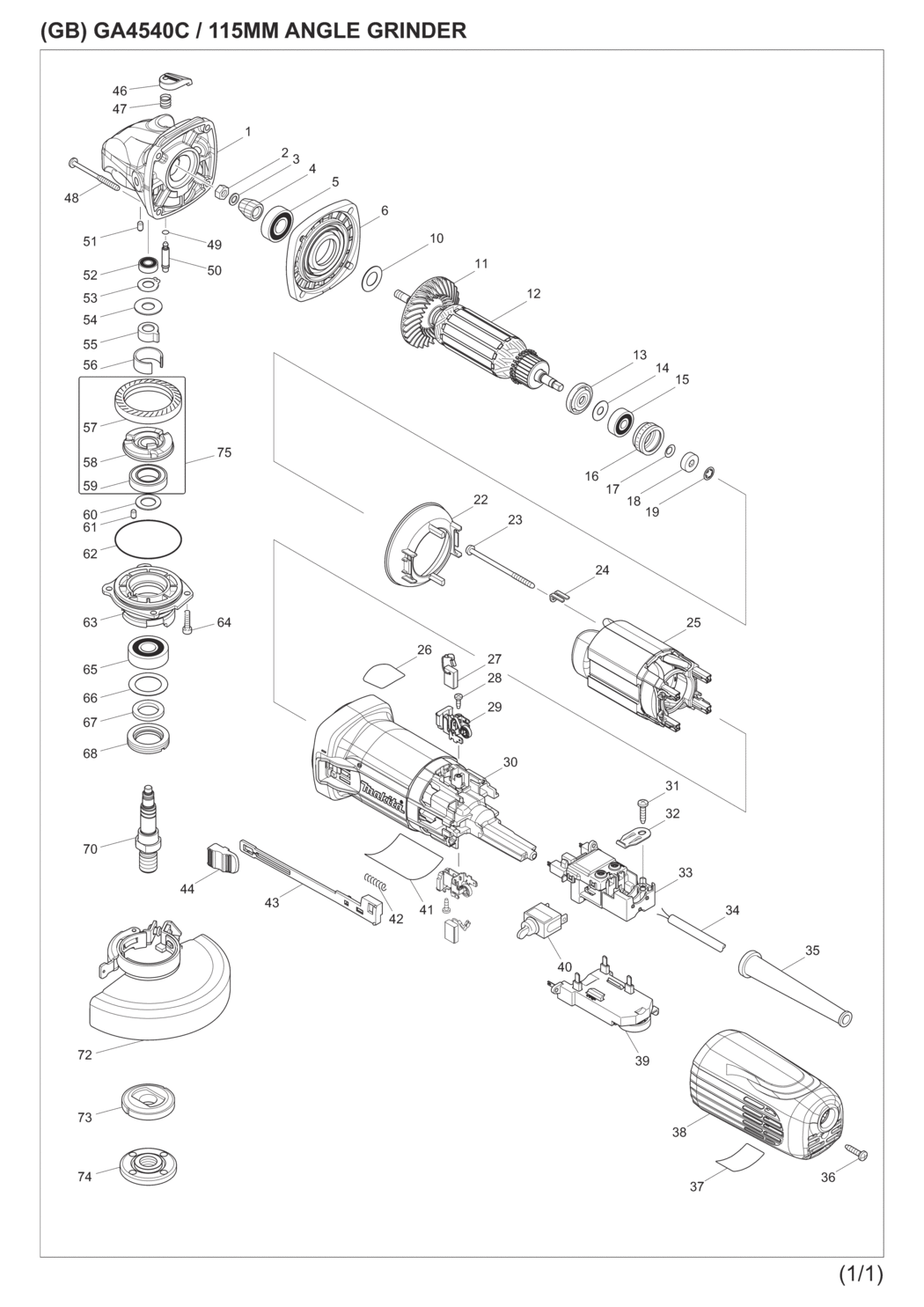

An exploded drawing and spare parts listing for the Makita GA4540C Angle Grinder

	Ex VAT	Inc VAT
1-1 - *GEAR HOUSING GA4540/5040 MSP-319310-7.A5 319310-7	£15.70	£18.84
2 - HEX NUT M6 BUC250/GA4034/9553 MSP-252186-8.A2 252186-8	£1.44	£1.73
3 - NARROW WASHER 6 4300BV/9564DZ MSP-253077-6.A32 253077-6	£1.44	£1.73
4 - SPIRAL BEVEL GEAR 10 GA5040/G MSP-227591-8.A8 227591-8	£9.20	£11.04
5 - BALL BEARING 6001LLB 9565H/CV MSP-211142-7.A25 211142-7	£6.08	£7.30
6-1 - GEAR HOUSING COVER GA5040/GA4 MSP-141981-0.A7 141981-0	£14.67	£17.60
10 - THIN WASHER 12 8419B/9565H MSP-253084-9.A23 253084-9	£1.44	£1.73
11 - FAN 60 GA5040/GA4540/GA4540C/ MSP-240134-9.A1 240134-9	£2.02	£2.43
12 - *ARMATURE ASS'Y 220-240V GA454 MSP-510377-0.A1 510377-0	£61.18	£73.42
12-1 - ARMATURE ASS'Y 100-115V PC5010 MSP-510511-2.A0 510511-2	£61.18	£73.42
12 - *ARMATURE ASS'Y 110V GA4540/C MSP-510511-2.A3 510511-2	£61.18	£73.42
13 - INSULATION WASHER/PO6000C MSP-681656-4.A1 681656-4	£1.44	£1.73
14 - THIN BLUE WASHER BHS630/JS160 MSP-253823-7.A8 253823-7	£1.44	£1.73
15 - BALL BEARING 627DDW BO6040 MSP-210027-4.A10 210027-4	£3.28	£3.93
16 - LABYRINTH RUBBER RING 22 BO60 MSP-421738-8.A21 421738-8	£9.05	£10.86
17 - WAVE WASHER TM3000C/9564&65CV MSP-267756-0.A29 267756-0	£1.44	£1.73
18 - MAGNET SLEEVE GD0801C/GD0811 MSP-688117-5.A2 688117-5	£4.18	£5.02
19 - SELF LOCK 6 GD0801C/811C MSP-259039-2.A38 259039-2	£1.44	£1.73
22 - BUFFLE PLATE GA5040/GA4540/SA MSP-453367-9.A7 453367-9	£1.44	£1.73
23 - TAPPING SCREW 4X70 9564/65CV& MSP-266258-3.A7 266258-3	£1.44	£1.73
24 - RETAINER GD0801C/811C/MT814 MSP-344871-8.A26 344871-8	£1.44	£1.73
25 - FIELD 110V GA4540C/SA5040C MSP-626651-7.A0 626651-7	£36.72	£44.06
25 - FIELD 220-240V GA4540C/SA5040 MSP-626653-3.A5 626653-3	£38.30	£45.96
26 - LABEL/SJS2 MARK GA4541/GA9061R MSP-898443-6.A9 898443-6	£1.44	£1.73
27 - CARBON BRUSH CB-318 AC/PO6000C MSP-191978-9.A15 191978-9	£10.92	£13.10
28 - PT SCREW 3X10 TRILOBULAR/MS248 MSP-266007-8.A42 266007-8	£1.44	£1.73
29-1 - BRUSH HOLDER GA5040/GA4540/GA MSP-643770-4.A9 643770-4	£1.44	£1.73
30 - MOTOR HOUSING GA5040/GA4540/G MSP-453366-1.A0 453366-1	£8.58	£10.30
31 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A431 266326-2	£1.44	£1.73
32 - STRAIN RELIEF GA/GD/SG125 MSP-687169-3.A64 687169-3	£1.44	£1.73
33-1 - SWITCH BLOCK GA4540C/GA4540R/ MSP-632K98-1.A2 632K98-1	£14.98	£17.97
34 - POWER SUPPLY CORD HS6100/7100 MSP-695217-4.A49 695217-4	£12.48	£14.98
34 - LEAD WIRE HS7100/GD0801C/HP16 MSP-692527-0.A79 692527-0	£29.38	£35.25
35 - CORD GUARD 10 GD0801C/GD0811C MSP-682566-8.A119 682566-8	£1.60	£1.92
36 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A432 266326-2	£1.44	£1.73
37 - LABEL/INDICATION GA4540C MSP-898444-4.A1 898444-4	£1.44	£1.73
38 - REAR COVER C GA4540C/SA5040C MSP-453365-3.A7 453365-3	£2.97	£3.56
39-1 - CONTROLLER GA4540/SA5040 110V MSP-620733-7.A0 620733-7	£63.63	£76.36
39-1 - CONTROLLER GA4540/SA5040 240V MSP-620734-5.A3 620734-5	£62.18	£74.61
40 - SWITCH ST115A-40 GA4540/5450R MSP-651418-4.A2 651418-4	£9.82	£11.79
42 - COMPRESSION SPRING 4 9542 MSP-233071-4.A9 233071-4	£1.44	£1.73
43 - SWITCH LEVER GA5040/GA4540/GA MSP-453847-5.A6 453847-5	£1.44	£1.73
44 - SWITCH KNOB GA5040/GA4540/GA4 MSP-453368-7.A0 453368-7	£1.88	£2.25
46 - PIN CAP GA5040/GA4540/GA4540C MSP-453369-5.A7 453369-5	£1.44	£1.73
47 - COMPRESSION SPRING 7 PC5000/0 MSP-234057-1.A22 234057-1	£1.66	£1.99
48 - TAPPING SCREW 4X30 BGA454/504 MSP-266361-0.A74 266361-0	£1.44	£1.73
49 - O RING 5 GA4030/GA4034/GA4530 MSP-213032-0.A9 213032-0	£1.44	£1.73
50 - SHOULDER PIN 6 GA5040/GA4540/ MSP-256535-1.A4 256535-1	£1.66	£1.99
51 - RUBBER PIN 4 GA7050/9050/5021 MSP-263002-9.A159 263002-9	£1.44	£1.73
52 - BALL BEARING 696ZZ GA4541/BU MSP-210006-2.A21 210006-2	£3.28	£3.93
53 - EXT DIN 471 CIRCLIP-9 BGA450 MSP-961005-4.A14 961005-4	£1.44	£1.73
54 - WASHER 10 6906/BO3710/3711 MSP-253180-3.A1 253180-3	£1.44	£1.73
55-2 - JOINT SLEEVE GA4540/5041/SA50 MSP-310683-1.A11 310683-1	£3.74	£4.49
56 - C TYPE PLATE GA5040/GA4540/GA MSP-346556-2.A1 346556-2	£2.81	£3.37
57 - SPIRAL BEVEL GEAR 38 GA5040/G MSP-227592-6.A1 227592-6	£7.64	£9.17
58 - COUPLING GA5040/GA4540/GA4540 MSP-313228-4.A0 313228-4	£8.11	£9.73
59 - BALL BEARING 6903ZZ GA5040/45 MSP-210302-8.A10 210302-8	£15.13	£18.16
60 - HARD WASHER 12 2414/BGA450 MSP-253744-3.A15 253744-3	£1.44	£1.73
61 - RUBBER PIN 4 GA7050/9050/5021 MSP-263002-9.A160 263002-9	£1.44	£1.73
62 - O RING 51 GA5040/GA4540/GA454 MSP-213641-5.A10 213641-5	£1.44	£1.73
63 - *BEARING BOX GA5040/GA4540/GA4 MSP-136012-8.A6 136012-8	£5.46	£6.55
64 - HEX SOCKET HD BOLT M4X16 MSP-265490-6.A28 265490-6	£1.44	£1.73
65 - BALL BEARING 6201DDW BPJ140/8 MSP-211129-9.A31 211129-9	£10.14	£12.17
66 - FLAT WASHER 21 HR2450T/GA4540 MSP-267279-8.A13 267279-8	£1.44	£1.73
67 - FELT RING BDG800/GD0600 MSP-443124-3.A14 443124-3	£1.44	£1.73
68 - BEARING RETAINER 20-33 GA5040 MSP-285854-8.A4 285854-8	£1.44	£1.73
70 - SPINDLE GA5040/GA4540/GA4540C MSP-326130-2.A6 326130-2	£7.96	£9.55
72 - PAN HD SCREW M5X16 GA5021/955 MSP-911224-2.A64 911224-2	£1.44	£1.73
72 - O RING 4 DGA463-DGA517/KP0810 MSP-213009-5.A25 213009-5	£1.44	£1.73
72 - TOOLLESS WHEEL COVER 115AK A MSP-123144-0.A10 123144-0	£13.26	£15.91
74 - LOCKNUT PC5000/01C/GA5020/21 MSP-224554-5.A44 224554-5	£5.50	£6.60
75 - COUPLING ASSY GA4541/C/5041 MSP-135555-7.A8 135555-7	£42.62	£51.15
76 - LABEL/CLEAR GA4540R/GA7090S MSP-804Y42-4.A10 804Y42-4	£1.44	£1.73
A01 - GRIP 36 BGA450/9553-9558 MSP-153489-2.A16 153489-2	£3.42	£4.11
A02-1 - LOCK NUT WRENCH 35 SMA910/M90 MSP-197610-3.A27 197610-3	£3.42	£4.11
A03-1 - GRINDING WHEEL A24R115X6X22.2 MSP-D-18459.A3 D-18459	£1.20	£1.44
E02 - *NON INSULATED TERMINAL GD0801 MSP-654091-9.A80 654091-9	£1.44	£1.73

Attribute Name	Value
Brand	Makita
