Makita VC2201MX1 Vacuum Cleaner Spare Parts

Home Details Reviews Delivery

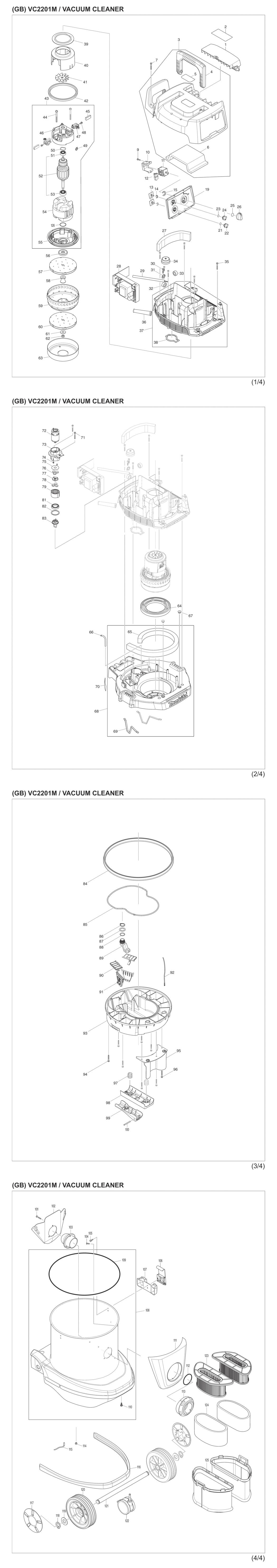

An exploded drawing and spare parts listing for the Makita VC2201MX1 Vacuum Cleaner

	Ex VAT	Inc VAT
1 - BASE HOOK VC3210L/2510/1310 MSP-452451-7.A0 452451-7	£3.77	£4.52
2 - LABEL/CAUTION VC3211M MSP-800W80-2.A0 800W80-2	£1.66	£1.99
3 - COWLING VC3211M MSP-141915-3.A3 141915-3	£47.96	£57.55
4 - GRIP VC3211M MSP-451340-3.A3 451340-3	£6.76	£8.11
5 - LABEL/CAUTION VC3211M/DVC863L MSP-891977-8.A4 891977-8	£1.66	£1.99
7 - PT SCREW 4X35 VC3211M/BSS501 MSP-266053-1.A47 266053-1	£1.66	£1.99
9 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A298 265995-6	£1.66	£1.99
10 - SWITCH HOLDER VC3211M/3210L/2 MSP-451343-7.A3 451343-7	£1.66	£1.99
11 - SWITCH VC2201M/DVC862L/DVC863L MSP-650622-2.A0 650622-2	£10.01	£12.01
12 - RECEPTACLE SLEEVE VC1310/321 MSP-686023-8.A6 686023-8	£1.66	£1.99
13 - SUB CONTROLLER VC3211M MSP-620185-2.A3 620185-2	£16.17	£19.40
14 - EXT E-RING JIS JE-7 VC3211M MSP-961013-5.A14 961013-5	£1.66	£1.99
15 - EXT E-RING JIS JE-12 VC3211M MSP-961062-2.A7 961062-2	£1.66	£1.99
21 - O RING 9 VC3211/HR2210/AN635H MSP-213054-0.A11 213054-0	£1.66	£1.99
22 - SWITCH DIAL VC3211M/VC3210L/2 MSP-451344-5.A7 451344-5	£1.66	£1.99
23 - O RING 9 VC3211/HR2210/AN635H MSP-213054-0.A12 213054-0	£1.66	£1.99
24 - SWITCH DIAL VC3211M/VC3210L/2 MSP-451344-5.A6 451344-5	£1.66	£1.99
25 - O RING 14 VC3211M/AN942/HR321 MSP-213176-6.A12 213176-6	£1.66	£1.99
26 - SWITCH LEVER VC3211M/3210L/25 MSP-451342-9.A2 451342-9	£1.66	£1.99
27 - REAR BLOCK FILTER VC3211M MSP-423450-6.A4 423450-6	£3.25	£3.90
28 - CONTROLLER VC2201M MSP-620474-5 620474-5	£271.36	£325.63
30 - PT SCREW 4X25 VC3211M/BSS500 MSP-265999-8.A77 265999-8	£1.66	£1.99
31 - STRAIN RELIEF M9001/DVC/RP0900 MSP-687124-5.A88 687124-5	£1.66	£1.99
32 - LINE FILTER VC3211M/TD0101F MSP-688131-1.A62 688131-1	£1.66	£1.99
33 - LINE FILTER VC3211M/TD0101F MSP-688131-1.A69 688131-1	£1.66	£1.99
34 - BUZZER CIRCUIT VC3211M MSP-620186-0.A1 620186-0	£11.44	£13.73
35 - PT SCREW 4X35 VC3211M/BSS501 MSP-266053-1.A46 266053-1	£1.66	£1.99
36 - CORD GUARD 10-90 110V GA7050 MSP-682574-9.A7 682574-9	£1.66	£1.99
37 - SEPARATOR VC3211M MSP-141917-9.A3 141917-9	£33.66	£40.39
38 - DC MOTOR SEAL VC3211M MSP-423462-9.A3 423462-9	£1.66	£1.99
39 - SEAL RING VC3211M MSP-423279-0.A2 423279-0	£2.49	£2.99
40 - MOTOR COVER VC3211M/3210L/251 MSP-451338-0.A2 451338-0	£2.49	£2.99
41 - FAN 62 VC3211M MSP-241512-6.A0 241512-6	£1.66	£1.99
42 - RUBBER RING 120 VC3211M/3210L MSP-424228-0.A2 424228-0	£4.68	£5.62
43 - MOTOR ASSY 110V VC3211M/3210L MSP-125873-1.A2 125873-1	£93.10	£111.72
44 - PAN HD SCREW M5X60/EB7650TH MSP-911283-6.A2 911283-6	£1.66	£1.99
45 - CARBON BRUSH CB-172 VC2201M MSP-195101-8 195101-8	£9.49	£11.39
46 - ENDBELL VC3211M/VC1310L MSP-452106-4.A5 452106-4	£8.06	£9.67
47 - BRUSH HOLDER 6.5X13.5 VC3211M MSP-643663-5.A2 643663-5	£2.49	£2.99
48 - PAN HEAD SCREW M4X12 VC3211M MSP-911118-1.A20 911118-1	£1.66	£1.99
49 - BAND VC3211M/HR4110C/LF1000 MSP-687010-0.A11 687010-0	£1.66	£1.99
50 - WAVE WASHER 20 VC3211M/9403 MSP-267715-4.A1 267715-4	£1.66	£1.99
51 - BALL BEARING VC3211M/3612/C/ MSP-211092-6.A39 211092-6	£7.15	£8.58
52 - ARMATURE ASSY 110V VC3211M/32 MSP-517845-4.A0 517845-4	£38.61	£46.33
53 - BALL BEARING VC3211M/KP0810/C MSP-211087-9.A50 211087-9	£8.06	£9.67
54 - FIELD ASSY 110V VC3211M/3210L MSP-526201-7.A0 526201-7	£31.13	£37.36
54 - RECEPTACLE DCO180/VC1310L MSP-654304-8.A3 654304-8	£1.66	£1.99
55 - BASE VC3211./VC3210L/2510/131 MSP-454480-6.A0 454480-6	£10.40	£12.48
56 - FLANGE VC3211M MSP-316795-8.A3 316795-8	£1.66	£1.99
57 - FAN 125 VC3211M/3210L/2510/13 MSP-241910-4.A0 241910-4	£2.49	£2.99
58 - SPACER VC3211M/3210L/2510/131 MSP-325747-8.A1 325747-8	£2.49	£2.99
59 - RETURN VANE VC3211M/3210L/251 MSP-346114-4.A1 346114-4	£5.07	£6.08
60 - FAN 125 VC3211M/3210L/2510/13 MSP-241910-4.A1 241910-4	£2.49	£2.99
61 - FLAT WASHER 10 VC3211M MSP-316799-0.A2 316799-0	£2.49	£2.99
62 - HEX HALFNUT M8 VC3211M MSP-931403-6.A10 931403-6	£1.66	£1.99
63 - FAN COVER VC3211M/VC3210L/251 MSP-346115-2.A4 346115-2	£2.49	£2.99
64 - SUPPORT RING VC3211M MSP-424229-8.A0 424229-8	£3.90	£4.68
65 - BAND DAMPER VC3211M MSP-423451-4.A3 423451-4	£5.07	£6.08
68 - TANK COVER VC3211M MSP-141916-1.A1 141916-1	£56.59	£67.91
69 - VALVE SEAL VC3211M MSP-423455-6.A3 423455-6	£1.66	£1.99
70 - NAME PLATE VC2201M MSP-851L74-4 851L74-4	£1.66	£1.99
71 - PT SCREW 4X35 VC3211M/BSS501 MSP-266053-1.A50 266053-1	£1.66	£1.99
72 - DC MOTOR VC3211M MSP-629981-5.A2 629981-5	£8.06	£9.67
73 - GEAR CASE VC3211M MSP-454207-4.A2 454207-4	£3.25	£3.90
74 - PAN HD SCREW M3X6 VC3211M/ MSP-911003-8.A20 911003-8	£1.66	£1.99
75 - FLAT WASHER 12 VC3211M/4602/0 MSP-267067-3.A6 267067-3	£1.66	£1.99
76 - SPUR GEAR 15 VC3211M/6222DW MSP-226283-6.A4 226283-6	£1.66	£1.99
77 - SPUR GEAR 9 6222DW VC3211M MSP-153228-0.A2 153228-0	£7.02	£8.42
78 - SPUR GEAR 15 6222DW VC3211M MSP-226284-4.A0 226284-4	£1.66	£1.99
79 - INTERNAL GEAR 42 6222DW VC321 MSP-226285-2.A4 226285-2	£11.96	£14.35
81 - BALL BEARING VC3211M/BHR162/ MSP-211375-4.A1 211375-4	£14.96	£17.95
82 - FLAT WASHER 34 VC3211M MSP-267464-3.A4 267464-3	£1.66	£1.99
83 - SPINDLE ASSEMBLY VC3211M MSP-135554-9.A2 135554-9	£4.81	£5.77
84 - RUBBER RING VC3211M/C MSP-424543-2.A2 424543-2	£21.01	£25.21
85 - SEAL RING VC3211M MSP-424544-0.A2 424544-0	£2.49	£2.99
86 - EXT DIN 471 CIRCLIP-20 VC3211 MSP-961060-6.A10 961060-6	£1.66	£1.99
87 - SHIM WASHER 20 VC3211M/9079F MSP-267041-1.A7 267041-1	£1.66	£1.99
88 - O RING 20 VC3211M/HR3000C/690 MSP-213304-3.A5 213304-3	£1.66	£1.99
89 - CAM VC3211M MSP-454208-2.A1 454208-2	£3.38	£4.06
90 - OUTER VALVE VC3211M MSP-141919-5.A3 141919-5	£2.49	£2.99
91 - INNER VALVE VC3211M MSP-141918-7.A1 141918-7	£2.49	£2.99
93 - INNER COVER VC3211M MSP-454204-0.A1 454204-0	£41.69	£50.03
94 - PT SCREW 4X35 VC3211M/BSS501 MSP-266053-1.A52 266053-1	£1.66	£1.99
95 - PROTECTOR VC3211M MSP-454209-0.A3 454209-0	£11.33	£13.60
96 - PT SCREW 4X35 VC3211M/BSS501 MSP-266053-1.A51 266053-1	£1.66	£1.99
97 - COMPRESSION SPRING 20 VC3211M MSP-234273-5.A2 234273-5	£1.66	£1.99
98 - LOCK PLATE VC3211M MSP-454215-5.A3 454215-5	£3.51	£4.21
99 - LOCK LEVER VC3211M MSP-454214-7.A1 454214-7	£3.64	£4.37
100 - PIN 4 VC3211M MSP-268292-9.A2 268292-9	£1.66	£1.99
101 - TAPPING SCREW 4X28 VC3211M/95 MSP-266257-5.A4 266257-5	£1.66	£1.99
102 - HOLDER PLATE VC3211M MSP-417587-9.A3 417587-9	£2.49	£2.99
103 - HOLDER VC3211M MSP-451455-6.A1 451455-6	£1.66	£1.99
104 - TAPPING SCREW 4X14 VC3211M MSP-266192-7.A112 266192-7	£1.66	£1.99
105 - TAPPING SCREW 4X14 VC3211M MSP-266192-7.A115 266192-7	£1.66	£1.99
106 - HOOK VC3211M/VC3210L/2510/131 MSP-168537-4.A2 168537-4	£11.57	£13.88
108 - TANK SET VC2211M/VC2211 MSP-188828-7.A0 188828-7	£108.33	£130.00
109 - RUBBER RING T VC3211M MSP-424346-4.A3 424346-4	£5.33	£6.40
110 - PAN HEAD SCREW M4X12 VC3211M MSP-911118-1.A18 911118-1	£1.66	£1.99
111 - INLET COVER VC3211M MSP-451546-3.A3 451546-3	£3.90	£4.68
112 - O RING 56 VC3211/HR3500/DVC863 MSP-213655-4.A8 213655-4	£2.49	£2.99
113 - INLET VC3211M MSP-451454-8.A3 451454-8	£6.24	£7.49
114 - PAN HD SCREW M4X6 VC3211M MSP-911103-4.A5 911103-4	£1.66	£1.99
115 - EARTH LINE 120 VC3211M/DVC861 MSP-649150-2.A8 649150-2	£3.25	£3.90
117 - WHEEL CAP VC3211M MSP-451643-5.A3 451643-5	£2.49	£2.99
118 - EXT DIN 471 CIRCLIP-20 VC3211 MSP-961060-6.A11 961060-6	£1.66	£1.99
119 - FLAT WASHER 20 VC3211M/GA9020 MSP-267299-2.A20 267299-2	£1.66	£1.99
120 - CASTER 170 VC3211M MSP-451642-7.A1 451642-7	£20.57	£24.68
121 - JOINT PIPE 20-350 VC3211M MSP-331888-0.A2 331888-0	£3.77	£4.52
122 - CASTER 75 VC3211M MSP-168547-1.A1 168547-1	£8.97	£10.76
123 - POWDER FILTER M VC3211M MSP-141875-9.A2 141875-9	£21.03	£25.24
124 - DAMPER VC3211M MSP-423452-2.A1 423452-2	£5.59	£6.71
125 - PRE-FILTER SET VC3211M/VC2211 MSP-196253-8.A1 196253-8	£15.82	£18.99
126 - O RING 30 VC3211M/HR5000/HM13 MSP-213406-5.A4 213406-5	£1.66	£1.99
A01 - HOSE 28-3.5 SET VC13 MSP-195433-3.A6 195433-3	£57.94	£69.53
A01-1 - SLEEVE 195433-3/DVC863L MSP-417662-1.A2 417662-1	£6.10	£7.32
A02 - FRONT CUFF 22 VC3211/1310/2211 MSP-417765-1.A8 417765-1	£1.20	£1.44
A01-1 - STOPPER 195433-3/195434-1 MSP-417586-1.A8 417586-1	£2.73	£3.28
A01-1 - CUFFS LOCK 195433-3/195434-1 MSP-417191-4.A2 417191-4	£8.52	£10.22
A01-1 - FRONT CUFF 38 DVC340/BDVC350 MSP-417766-9.A1 417766-9	£2.62	£3.15
A01-1 - HOSE 28-3.5 SET VC13 MSP-195433-3.A5 195433-3	£57.94	£69.53
A03 - FRONT CUFF 24 VC3211/1310/2211 MSP-424379-9.A1 424379-9	£2.80	£3.36
A04 - POLY BAG SET VC3211M/VC2211 MSP-195440-6.A0 195440-6	£7.72	£9.27
A05 - CAP VC3211M/VC2211 MSP-424545-8.A2 424545-8	£5.85	£7.02
A06 - BRUSH VC3211M/VC2211/DVC861L MSP-743328-0.A2 743328-0	£13.09	£15.71
A06 - NOZZLE ASSY 404/VC3211M/VC2211 MSP-122512-4.A3 122512-4	£18.69	£22.43
A06 - TF SCREW 4X16 TRILOBULAR MSP-265871-4.A8 265871-4	£1.66	£1.99
A07 - HOSE 38-2.5 SET VC3211M MSP-195434-1.A3 195434-1	£57.94	£69.53
A07-1 - CUFFS LOCK 195433-3/195434-1 MSP-417191-4.A1 417191-4	£8.52	£10.22
A07-1 - SLEEVE 195434-1/DVC863L MSP-417306-3.A6 417306-3	£4.02	£4.82
A07-1 - STOPPER 195433-3/195434-1 MSP-417586-1.A7 417586-1	£2.73	£3.28
A08 - STRAIGHT PIPE SET VC3211M/1310 MSP-192563-1.A3 192563-1	£10.97	£13.16
A07-1 - HOSE 38-2.5 SET VC3211M MSP-195434-1.A2 195434-1	£57.94	£69.53
A09 - BENT PIPE SET VC3211M/VC1310 MSP-192562-3.A3 192562-3	£14.22	£17.06
A10 - CORNER NOZZLE VC3211M/VC1310/ MSP-410306-2.A1 410306-2	£2.08	£2.50
A12 - PAN HD SCREW M4X20 9032/LS081 MSP-911138-5.A1 911138-5	£1.66	£1.99
E02 - *NON INSULATED TERMINAL GD0801 MSP-654091-9.A256 654091-9	£1.66	£1.99
