Makita DVC861LZ Corded and Cordless Vacuum Cleaner Spare Parts

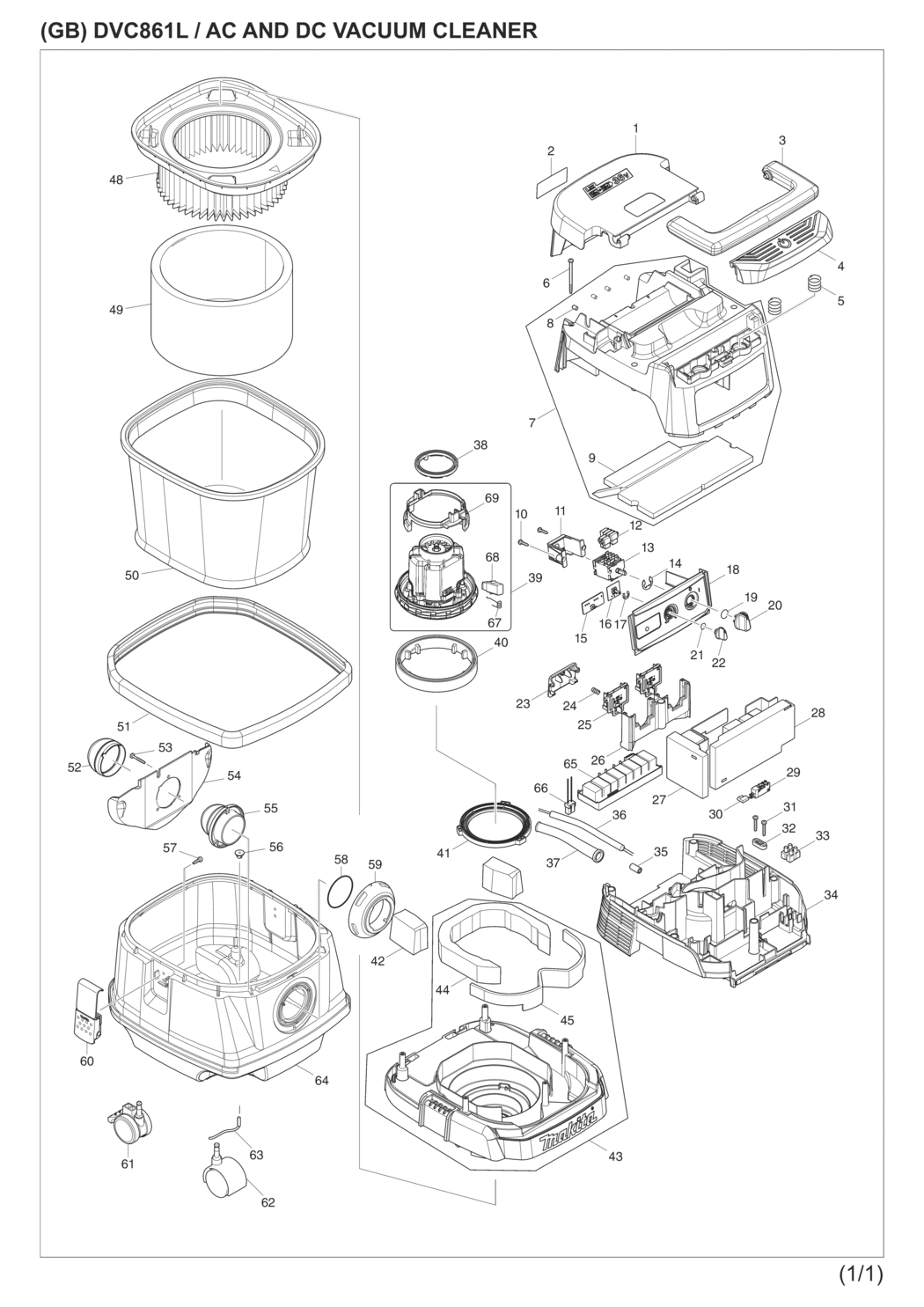

An exploded drawing and spare parts listing for the Makita DVC861LZ Corded and Cordless Vacuum Cleaner

	Ex VAT	Inc VAT
3 - GRIP DVC861L/DVC863L/DVC864L MSP-455734-4.A2 455734-4	£8.11	£9.73
4 - SWITCH BUTTON DVC861L/DVC863L MSP-459262-1.A2 459262-1	£6.59	£7.91
5 - COMPRESSION SPRING 20 VC3211M MSP-234273-5.A7 234273-5	£1.44	£1.73
6 - TAPPING SCREW 4X65 GA5010/20 MSP-266340-8.A9 266340-8	£1.44	£1.73
9 - TOP DAMPER DVC861L/DVC863L MSP-424688-6.A2 424688-6	£3.59	£4.31
11 - SWITCH HOLDER VC3211M/3210L/2 MSP-451343-7.A8 451343-7	£1.44	£1.73
12 - RECEPTACLE SLEEVE VC1310/321 MSP-686023-8.A9 686023-8	£1.44	£1.73
13 - SWITCH DVC861L MSP-650745-6 650745-6	£17.71	£21.25
14 - EXT E-RING JIS JE-12 VC3211M MSP-961062-2.A12 961062-2	£1.44	£1.73
16 - SUB CONTROLLER VC3210L/2510/1 MSP-631922-9.A3 631922-9	£10.92	£13.10
19 - O RING 14 VC3211M/AN942/HR321 MSP-213176-6.A15 213176-6	£1.44	£1.73
21 - O RING 9 VC3211/HR2210/AN635H MSP-213054-0.A21 213054-0	£1.44	£1.73
22 - SWITCH DIAL VC3211M/VC3210L/2 MSP-451344-5.A1 451344-5	£1.44	£1.73
24 - COMPRESSION SPRING 7 RP0900/ MSP-231240-1.A26 231240-1	£1.44	£1.73
25 - TERMINAL DUR182/DHR165/DKP180 MSP-644808-8.A75 644808-8	£4.28	£5.14
26 - TERMINAL BASE DVC861L/DVC863L MSP-455729-7.A0 455729-7	£4.99	£5.99
27 - CONTROLLER B 240VDVC861L MSP-620406-2 620406-2	£192.72	£231.26
27 - CONTROLLER B 110V DVC861L MSP-620393-5 620393-5	£159.84	£191.81
28 - CONTROLLER A 240V DVC861L MSP-620392-7 620392-7	£215.52	£258.62
28 - CONTROLLER A 110V DVC861L MSP-620391-9 620391-9	£214.32	£257.18
29 - SWITCH D2VW-01-3HS DVC861L/863 MSP-651910-0.A1 651910-0	£8.11	£9.73
30 - RECEPTACLE SLEEVE DVC861L/863 MSP-686039-3.A1 686039-3	£1.44	£1.73
31 - TAPPING SCREW 4X25 M9001/TD022 MSP-266374-1.A48 266374-1	£1.44	£1.73
32 - *STRAIN RELIEF MT811/952/9554 MSP-687123-7.A6 687123-7	£1.44	£1.73
32 - STRAIN RELIEF M9001/DVC/RP0900 MSP-687124-5.A11 687124-5	£1.44	£1.73
33 - TERMINAL BLOCK 2012NB/LH1040 MSP-654561-8.A7 654561-8	£1.44	£1.73
35 - LINE FILTER BTD/DTM51/DVC861L MSP-688161-2.A91 688161-2	£1.44	£1.73
35-1 - LINE FILTER BHS630/DFS441/451 MSP-688163-8.A6 688163-8	£1.44	£1.73
36 - POWER SUPPLY CORD DVC860L/861L MSP-666899-9 666899-9	£4.52	£5.43
36 - POWER CORD 110V DVC861L MSP-665949-7 665949-7	£2.50	£3.00
38 - RUBBER RING 60 DVC861L/DVC863L MSP-424685-2.A1 424685-2	£2.34	£2.81
42 - REAR BLOCK FILTER DVC861/863 MSP-424690-9.A1 424690-9	£1.44	£1.73
43 - TANK COVER DVC861/DVC863L MSP-143175-3.A2 143175-3	£43.76	£52.51
48 - POWDER FILTER H SET DVC861/863 MSP-197166-6.A1 197166-6	£49.13	£58.96
49 - DAMPER DVC861L/DVC863L/DVC864L MSP-423398-2.A1 423398-2	£16.85	£20.22
50 - PRE FILTER VC1310L/DVC861 MSP-140253-0.A3 140253-0	£31.68	£38.02
51 - BUMPER VC1310L/DVC861L MSP-424230-3.A0 424230-3	£11.23	£13.48
52 - RUBBER HOLDER VC3210L/2510L/ MSP-424382-0.A3 424382-0	£1.44	£1.73
53 - TAPPING SCREW 4X28 VC3211M/95 MSP-266257-5.A19 266257-5	£1.44	£1.73
54 - HOLDER PLATE VC1310L/DVC861L MSP-419351-4.A2 419351-4	£2.18	£2.62
55 - HOLDER VC1310L/DVC861L/DVC863L MSP-419350-6.A1 419350-6	£2.02	£2.43
57 - TAPPING SCREW 4X14 VC3211M MSP-266192-7.A61 266192-7	£1.44	£1.73
58 - O RING 56 VC3211/HR3500/DVC863 MSP-213655-4.A3 213655-4	£1.44	£1.73
59 - INLET VC1310L/DVC861L/DVC863L MSP-451348-7.A2 451348-7	£4.06	£4.87
60 - HOOK VC3211M/VC3210L/2510/131 MSP-168537-4.A6 168537-4	£13.88	£16.66
61 - CASTER 50 VC1310/DVC861/DVC863 MSP-168535-8.A1 168535-8	£6.55	£7.86
62 - CASTER 50 VC1310/DVC861/DVC863 MSP-168434-4.A3 168434-4	£5.46	£6.55
63 - EARTH LINE 120 VC3211M/DVC861 MSP-649150-2.A0 649150-2	£3.90	£4.68
65 - CONTROLLER C DVC861L MSP-620502-6 620502-6	£130.80	£156.96
66 - LEAD UNIT DVC861L MSP-632F97-3 632F97-3	£13.88	£16.66
A01 - BRUSH VC3211M/VC2211/DVC861L MSP-743328-0.A5 743328-0	£17.13	£20.56
A01 - NOZZLE ASSY 404/VC3211M/VC2211 MSP-122512-4.A1 122512-4	£18.69	£22.43
A01 - TF SCREW 4X16 TRILOBULAR MSP-265871-4.A3 265871-4	£1.44	£1.73
A02 - HOSE 38-2.5 SET VC3211M MSP-195434-1.A6 195434-1	£57.94	£69.53
A02-1 - CUFFS LOCK 195433-3/195434-1 MSP-417191-4.A15 417191-4	£8.52	£10.22
A02-1 - HOSE 38-2.5 SET VC3211M MSP-195434-1.A7 195434-1	£57.94	£69.53
A02-1 - SLEEVE 195434-1/DVC863L MSP-417306-3.A0 417306-3	£4.02	£4.82
A02-1 - STOPPER 195433-3/195434-1 MSP-417586-1.A0 417586-1	£2.73	£3.28
A03 - POLY BAG SET 650X650 VC1310 MSP-195432-5.A2 195432-5	£8.58	£10.29
A04 - STRAIGHT PIPE SET VC3211M/1310 MSP-192563-1.A1 192563-1	£10.97	£13.16
A05 - BENT PIPE SET VC3211M/VC1310 MSP-192562-3.A5 192562-3	£14.22	£17.06
A06 - CORNER NOZZLE VC3211M/VC1310/ MSP-410306-2.A6 410306-2	£2.08	£2.50
A08 - TOOL BOX DVC861L/DVC863 MSP-455732-8.A0 455732-8	£17.46	£20.95
A09 - PAN HD SCREW M4X20 9032/LS081 MSP-911138-5.A29 911138-5	£1.44	£1.73
A10 - CONNECTION CORD 110V DVC861L MSP-661915-2 661915-2	£20.30	£24.36
A11 - HOSE 28-3.5 SET VC13 MSP-195433-3.A1 195433-3	£57.94	£69.53
A11 - FRONT CUFF 22 VC3211/1310/2211 MSP-417765-1.A2 417765-1	£1.20	£1.44
A11 - FRONT CUFF 24 VC3211/1310/2211 MSP-424379-9.A9 424379-9	£2.80	£3.36
A11-1 - FRONT CUFF 38 DVC340/BDVC350 MSP-417766-9.A6 417766-9	£2.62	£3.15
A11-1 - CUFFS LOCK 195433-3/195434-1 MSP-417191-4.A13 417191-4	£8.52	£10.22
A11-1 - FRONT CUFF 24 VC3211/1310/2211 MSP-424379-9.A8 424379-9	£2.80	£3.36
A11-1 - HOSE 28-3.5 SET VC13 MSP-195433-3.A2 195433-3	£57.94	£69.53
A11-1 - FRONT CUFF 22 VC3211/1310/2211 MSP-417765-1.A1 417765-1	£1.20	£1.44
A11-1 - SLEEVE 195433-3/DVC863L MSP-417662-1.A6 417662-1	£6.10	£7.32
A11-1 - STOPPER 195433-3/195434-1 MSP-417586-1.A3 417586-1	£2.73	£3.28
E03 - *NON INSULATED TERMINAL GD0801 MSP-654091-9.A75 654091-9	£1.44	£1.73
E04 - LINE FILTER BTD/DTM51/DVC861L MSP-688161-2.A92 688161-2	£1.44	£1.73
