Makita TD022DSE Cordless Impact Driver Spare Parts

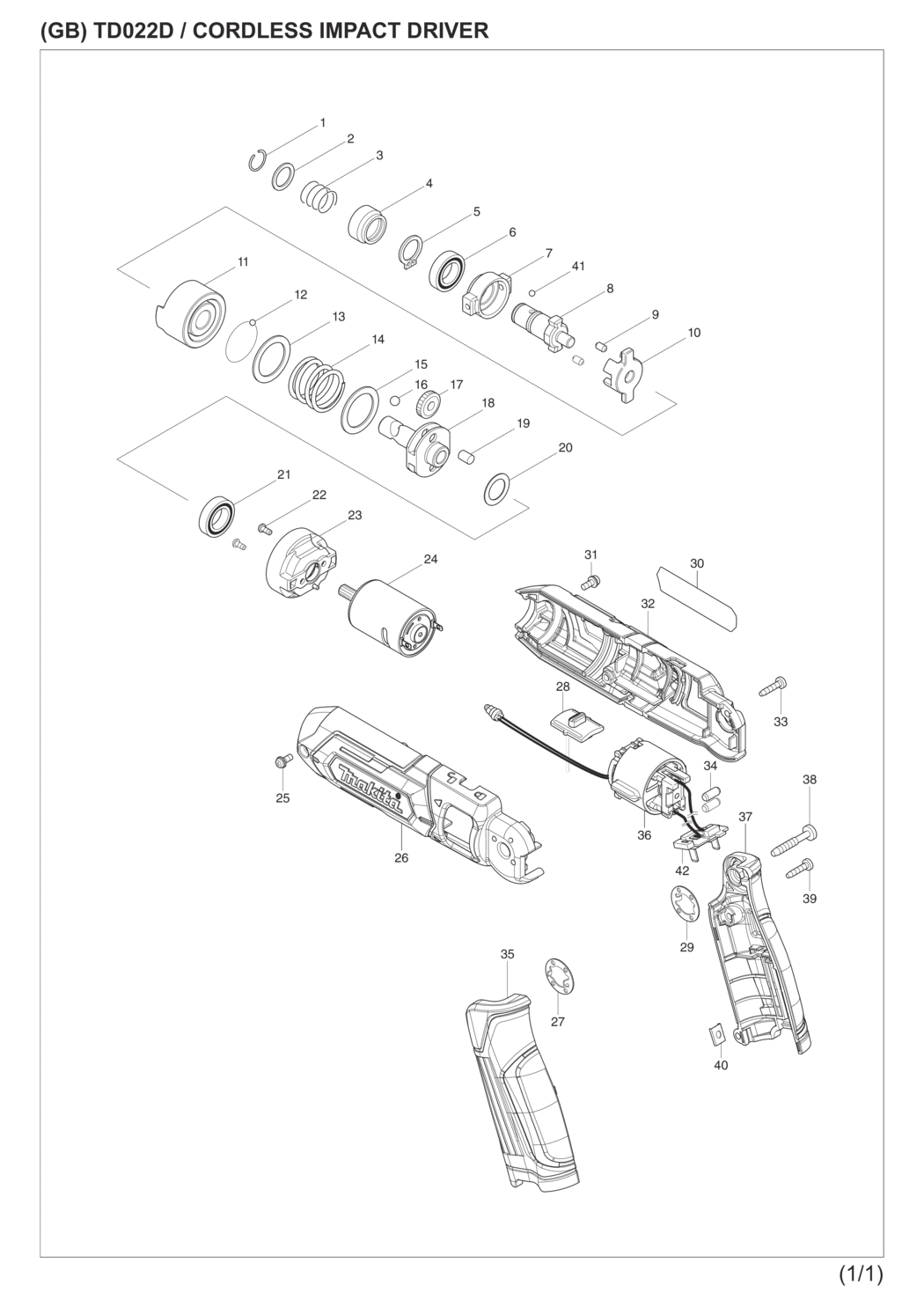

An exploded drawing and spare parts listing for the Makita TD022DSE Cordless Impact Driver

	Ex VAT	Inc VAT
1 - RING SPRING 10 TD0101F/DF010 MSP-231965-7.A41 231965-7	£1.44	£1.73
2 - FLAT WASHER 11 TD0101F/6796D& MSP-267143-3.A15 267143-3	£1.44	£1.73
3 - COMPRESSION SPRING 13 TD126 MSP-233005-7.A77 233005-7	£1.44	£1.73
4 - BIT SLEEVE TD020/TD022/TD0101F MSP-324711-6.A4 324711-6	£1.44	£1.73
5 - EXT INVERTED CIRCLIP-12 6791D MSP-961072-9.A4 961072-9	£1.44	£1.73
6 - BALL BEARING 66801LLU TD020 MSP-210108-4.A5 210108-4	£3.59	£4.31
7 - LOCK RING TD020/TD022 MSP-313136-9.A1 313136-9	£7.64	£9.17
8 - SPINDLE M TD020/TD022 MSP-324717-4.A1 324717-4	£4.99	£5.99
9 - PIN 3.5 TD020/TD022 MSP-268160-6.A2 268160-6	£1.44	£1.73
10 - ANVIL TD020/TD022 MSP-324713-2.A2 324713-2	£12.48	£14.98
11 - HAMMER TD020/TD022 MSP-324714-0.A0 324714-0	£7.02	£8.42
12 - STEEL BALL 3 HR1840/M8701 MSP-216019-1.A102 216019-1	£1.44	£1.73
13 - FLAT WASHER 20 TD020/TD022 MSP-267335-4.A5 267335-4	£1.44	£1.73
14 - COMPRESSION SPRING 20 TD020/02 MSP-233481-5.A2 233481-5	£1.44	£1.73
15 - FLAT WASHER 20 TD020/TD022 MSP-267335-4.A4 267335-4	£1.44	£1.73
16 - STEEL BALL 4.8 TW100D/TD0101F MSP-216002-8.A9 216002-8	£1.44	£1.73
17 - SPUR GEAR 27 TD020/TD022 MSP-227173-6.A0 227173-6	£1.44	£1.73
18 - SPINDLE TD020/TD022 MSP-324715-8.A2 324715-8	£10.77	£12.92
19 - PIN 5 TD020/TD022 MSP-268161-4.A0 268161-4	£1.44	£1.73
20 - NARROW THIN WASHER 12 TW100D MSP-253052-2.A12 253052-2	£1.44	£1.73
21 - BALL BEARING 66801LLU TD020 MSP-210108-4.A4 210108-4	£3.59	£4.31
22 - SPARE PART MSP-265172-0.A5 265172-0	£1.44	£1.73
23 - INTERNAL GEAR CASE TD021D/022D MSP-451522-7.A0 451522-7	£1.44	£1.73
24 - DC MOTOR TD022D MSP-629237-6 629237-6	£9.67	£11.61
25 - SPARE PART MSP-265173-8.A4 265173-8	£1.44	£1.73
26 - MOTOR HOUSING SET TD022D MSP-183F00-2.A1 183F00-2	£8.11	£9.73
27 - LOCK WASHER TD020/TD022/DF010D MSP-267803-7.A9 267803-7	£1.44	£1.73
28 - LOCK LEVER TD021D/TD022 MSP-451523-5.A1 451523-5	£1.44	£1.73
29 - LOCK WASHER TD020/TD022/DF010D MSP-267803-7.A8 267803-7	£1.44	£1.73
31 - SPARE PART MSP-265173-8.A5 265173-8	£1.44	£1.73
32 - MOTOR HOUSING SET TD022D MSP-183F00-2.A0 183F00-2	£8.11	£9.73
33 - TAPPING SCREW BIND 3X14 TD020 MSP-266404-8.A7 266404-8	£1.44	£1.73
34 - RUBBER PIN 4 HM1317C-CB/HM086 MSP-263027-3.A1 263027-3	£1.44	£1.73
35 - HANDLE SET TD022D MSP-183E72-1.A0 183E72-1	£4.99	£5.99
36 - SWITCH UNIT TD022D MSP-632H09-8 632H09-8	£36.43	£43.72
36 - LINE FILTER BTD/DTM51/DVC861L MSP-688161-2.A93 688161-2	£1.44	£1.73
37 - HANDLE SET TD022D MSP-183E72-1.A1 183E72-1	£4.99	£5.99
38 - TAPPING SCREW 4X25 M9001/TD022 MSP-266374-1.A66 266374-1	£1.44	£1.73
39 - TAPPING SCREW BIND 3X14 TD020 MSP-266404-8.A6 266404-8	£1.44	£1.73
40 - SET PLATE TD020DSE/DF010D/GN9 MSP-345749-8.A3 345749-8	£1.44	£1.73
41 - STEEL BALL 3 HR1840/M8701 MSP-216019-1.A104 216019-1	£1.44	£1.73
42 - TERMINAL GN900SE/UM164D/CL070 MSP-643817-4.A0 643817-4	£1.44	£1.73
A01 - + BIT 2-50 TD020DSE TD0101F/DF MSP-784244-7.A26 784244-7	£1.20	£1.44
A02 - HOLSTOR TD020/TD022 MSP-168435-2.A0 168435-2	£5.18	£6.21
A04 - DC10WA CHARGER LI-ION 194589-9 MSP-*DC10WA.A4 *DC10WA	-
A05 - BATTERY BL0715 SET MSP-198000-3.A3 198000-3	£36.90	£44.28
