Makita DTW450RMJ Cordless Impact Wrench Spare Parts

Home Details Reviews Delivery

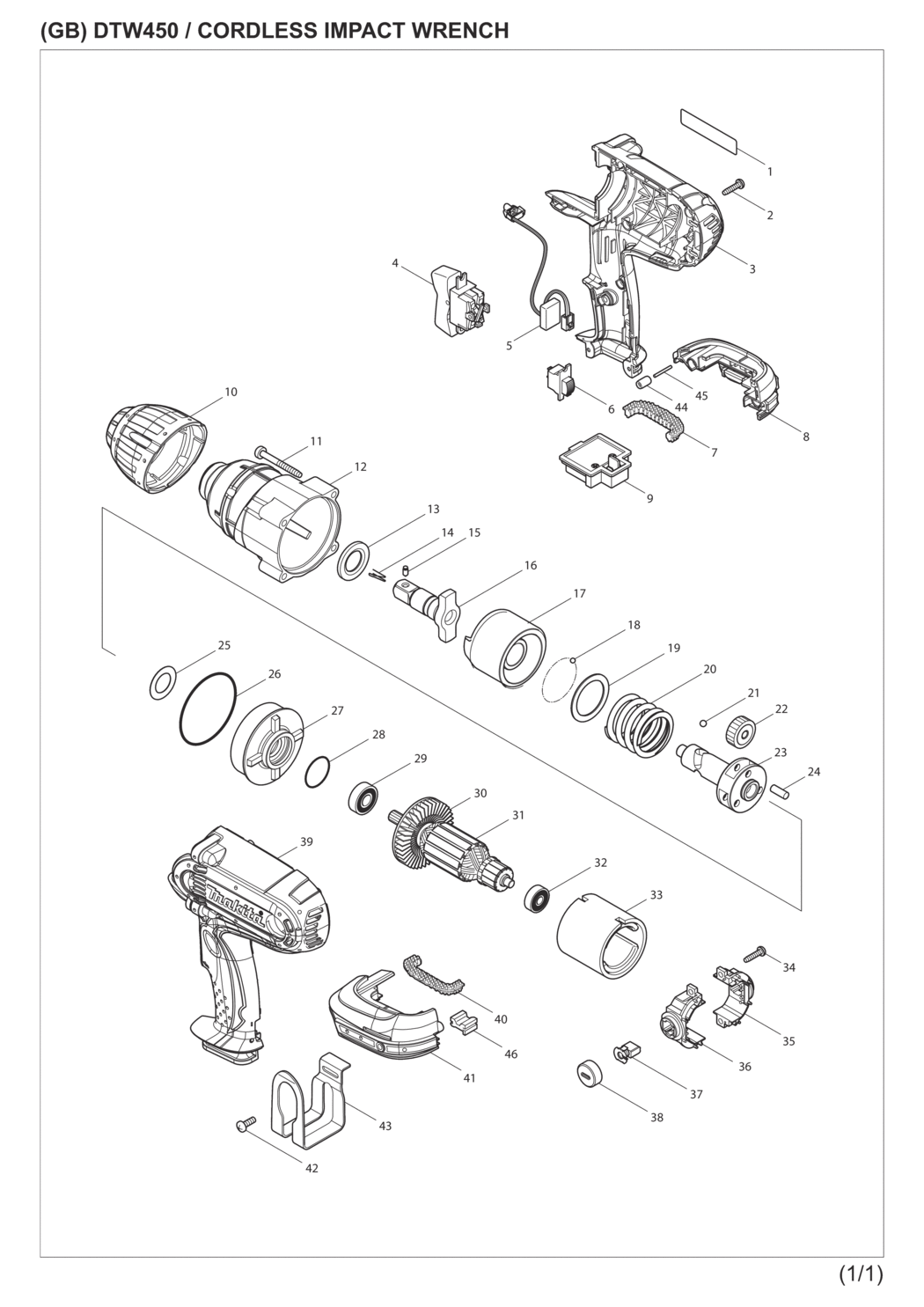

An exploded drawing and spare parts listing for the Makita DTW450RMJ Cordless Impact Wrench

	Ex VAT	Inc VAT
2 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A194 265995-6	£1.66	£1.99
3 - RUBBER PIN BHR262/BUH550RD MSP-263025-7.A6 263025-7	£2.49	£2.99
3 - HOUSING SET BTW450 MSP-188434-8.A2 188434-8	£36.08	£43.30
4 - SWITCH SL220SD-19 BTW450 MSP-651572-4.A4 651572-4	£18.04	£21.65
5 - LIGHT CIRCUIT BTW450 MSP-631738-2.A1 631738-2	£11.00	£13.20
6 - SWITCH UNIT BTW450 MSP-638503-0.A2 638503-0	£12.22	£14.66
7 - CUSHION RUBBER BTW450/BHR202 MSP-424042-4.A14 424042-4	£2.49	£2.99
8 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A352 263005-3	£1.66	£1.99
8 - BATTERY HOUSING SET BTW450 MSP-187873-9.A5 187873-9	£13.97	£16.76
9 - TERMINAL BVF104/BVR154RF/BTW4 MSP-643843-3.A2 643843-3	£5.98	£7.18
10 - BUMPER BTW450 MSP-421971-2.A1 421971-2	£3.25	£3.90
11 - PT SCREW 5X45 9046/JR3070CT MSP-266056-5.A11 266056-5	£1.66	£1.99
12 - HAMMER CASE BTW450 MSP-158076-2.A1 158076-2	£22.44	£26.93
13 - FLAT WASHER 19 TW200/250/350 MSP-267268-3.A2 267268-3	£1.66	£1.99
14 - RING SPRING 10 6904/6931DW/69 MSP-231907-1.A3 231907-1	£1.66	£1.99
16-1 - ANVIL TW0350/DTW450 MSP-326983-9.A1 326983-9	£54.12	£64.94
17 - HAMMER BTW450 MSP-324697-4.A2 324697-4	£24.97	£29.96
18 - STEEL BALL 4 5008MB/JV101D MSP-216008-6.A48 216008-6	£1.66	£1.99
19 - FLAT WASHER 32 BTW450 MSP-267340-1.A0 267340-1	£1.66	£1.99
20 - COMPRESSION SPRING 33 BTW450 MSP-234338-3.A2 234338-3	£8.32	£9.98
21 - STEEL BALL 6.4 6904/TW0350 MSP-216007-8.A0 216007-8	£1.66	£1.99
22 - SPUR GEAR 23 BTW450 MSP-227171-0.A1 227171-0	£2.49	£2.99
23 - SPINDLE BTW450 MSP-310185-7.A1 310185-7	£43.01	£51.61
24 - HARD ROLLER 6-15 4305 MSP-256033-5.A5 256033-5	£1.66	£1.99
25 - BLUE NARROW WASHER 18 6905B MSP-253794-8.A5 253794-8	£1.66	£1.99
26 - O RING 63 BTW450 MSP-213722-5.A2 213722-5	£1.66	£1.99
27 - INTERNAL GEAR 53 BTW450 MSP-227172-8.A1 227172-8	£21.12	£25.34
28 - O RING 26 3901/4101RH/HR2630T MSP-213407-3.A23 213407-3	£1.66	£1.99
29 - BALL BEARING 6000DDW 2RDCM MSP-210059-1.A59 210059-1	£2.49	£2.99
30 - FAN 60 UH45/55/6570/6807/DS40 MSP-241850-6.A2 241850-6	£2.49	£2.99
31 - ARMATURE ASSY 18V BTW450 MSP-519199-5.A1 519199-5	£37.40	£44.88
32 - BALL BEARING 627LLB 4324 MSP-210025-8.A14 210025-8	£2.49	£2.99
33 - YOKE UNIT BJR240/BTW450 MSP-638107-8.A5 638107-8	£22.44	£26.93
34 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A197 265995-6	£1.66	£1.99
35 - BRUSH HOLDER BTW450 MSP-638870-3.A0 638870-3	£21.12	£25.34
35 - INSULATION TERMINAL FT1.25-M3 MSP-654037-5.A29 654037-5	£1.66	£1.99
35 - LINE FILTER BTD/DTM51/DVC861L MSP-688161-2.A20 688161-2	£1.66	£1.99
37 - CARBON BRUSH CB-441 MSP-194435-6.A3 194435-6	£5.33	£6.40
38 - HOLDER CAP BHS630/5621RD/LS80 MSP-643941-3.A35 643941-3	£1.66	£1.99
39 - HOUSING SET BTW450 MSP-188434-8.A4 188434-8	£36.08	£43.30
39 - RUBBER PIN BHR262/BUH550RD MSP-263025-7.A9 263025-7	£2.49	£2.99
40 - CUSHION RUBBER BTW450/BHR202 MSP-424042-4.A16 424042-4	£2.49	£2.99
41 - BATTERY HOUSING SET BTW450 MSP-187873-9.A3 187873-9	£13.97	£16.76
41 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A339 263005-3	£1.66	£1.99
42 - SPECIAL PAN HD SCREW M4X12 MSP-251314-2.A108 251314-2	£1.66	£1.99
43 - HOOK BTW450/DPB181/DHR171D MSP-345736-7.A0 345736-7	£2.49	£2.99
44 - RUBBER PIN 5 BTD/DTM51/TW1001 MSP-263036-2.A42 263036-2	£1.66	£1.99
45 - PIN 1.5 BTD/BTM40/DTM51/DTW285 MSP-268184-2.A8 268184-2	£1.66	£1.99
A01 - DC18RC COMPACT CHARGER MSP-*DC18RC.A80 *DC18RC	-
A02-2 - BATTERY BL1840B/DGA508/DTW285 MSP-197265-4.A4 197265-4	£173.82	£208.58
A03 - BATTERY COVER BDG800/DTW251 MSP-450128-8.A32 450128-8	£1.20	£1.44
A04 - STACKING CASE TYPE 3 210MM MSP-821551-8.A8 821551-8	£39.40	£47.28
A04 - LATCH FOR STACKING CASE MACPA MSP-453974-8.A11 453974-8	£2.49	£2.99
A05 - MAKPAC TRAY TYPE3 DTW450 MSP-837645-9.A0 837645-9	£7.34	£8.81
