Makita DTP131RFE Cordless 4 Mode Impact Driver Spare Parts

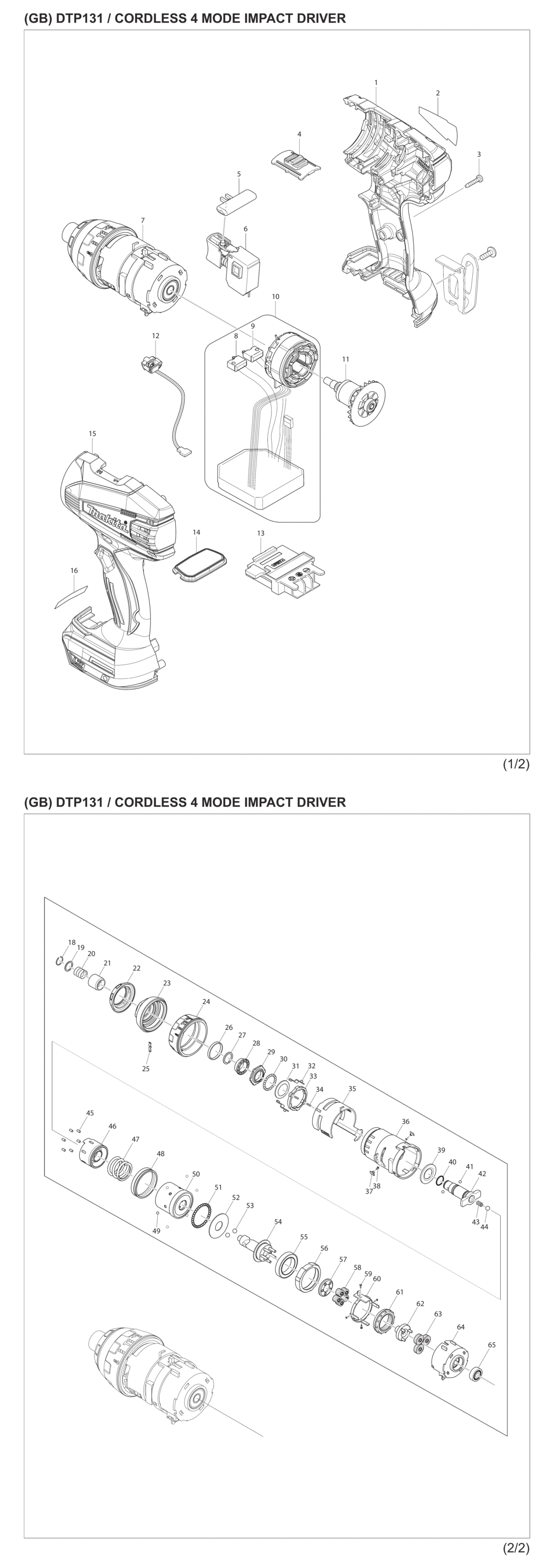

An exploded drawing and spare parts listing for the Makita DTP131RFE Cordless 4 Mode Impact Driver

	Ex VAT	Inc VAT
1 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A791 263005-3	£1.44	£1.73
1 - HOUSING SET BTP131 MSP-187266-0.A3 187266-0	£49.37	£59.24
3 - TAPPING SCREW BIND 3 X 16 L14 MSP-266130-9.A167 266130-9	£1.44	£1.73
4 - SPEED CHANGE LEVER ASSY BTP13 MSP-126105-9.A3 126105-9	£2.65	£3.18
5 - F/R CHANGE LEVER BTD043/063/1 MSP-419041-9.A17 419041-9	£1.44	£1.73
6 - SWITCH C3JW-1A BTP131/141 MSP-650673-5.A5 650673-5	£22.90	£27.48
7 - IMPACT ASSY M BTP131/141 MSP-126341-7.A2 126341-7	£236.04	£283.25
8 - SWITCH UNITS BTP131/141 MSP-638958-9.A2 638958-9	£42.72	£51.26
9 - SWITCH UNIT BTP131/141 MSP-638959-7.A1 638959-7	£42.72	£51.26
10 - STATOR BTP131 MSP-638898-1.A1 638898-1	£281.64	£337.97
11 - ARMATURE BTP131/141 MSP-619292-6.A2 619292-6	£98.53	£118.24
12 - LED CIRCUIT BTP131/141 MSP-620092-9.A1 620092-9	£10.14	£12.17
13 - TERMINAL DST111/DST121/BCL140 MSP-643850-6.A10 643850-6	£5.78	£6.93
14 - SWITCH PLATE BTP131/141 MSP-141268-0.A1 141268-0	£17.13	£20.56
15 - HOUSING SET BTP131 MSP-187266-0.A2 187266-0	£49.37	£59.24
15 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A782 263005-3	£1.44	£1.73
18 - RING SPRING 11 BTD/TD126/TL064 MSP-231951-8.A38 231951-8	£1.44	£1.73
19 - NARROW WASHER 12 TD126/DTD154 MSP-267085-1.A14 267085-1	£1.44	£1.73
20 - COMPRESSION SPRING 13 TD126 MSP-233005-7.A42 233005-7	£1.44	£1.73
21 - SLEEVE 6916FD-6980FD/TD126 MSP-324420-7.A13 324420-7	£4.37	£5.24
22 - BAMPER BTP131/141 MSP-424485-0.A3 424485-0	£3.74	£4.49
23 - HAMMER CASE ASSY BTP131/141 MSP-135505-2.A1 135505-2	£28.51	£34.21
24 - CHANGE RING BTP131/141 MSP-453321-3.A3 453321-3	£8.89	£10.67
25 - LEAF SPRING BTP131/141 MSP-232272-1.A2 232272-1	£1.44	£1.73
26 - SLEEVE 24 BTP131/141 MSP-257809-3.A3 257809-3	£2.97	£3.56
27 - RETAINING RING WR-15 BTP130/1 MSP-961085-0.A2 961085-0	£1.44	£1.73
28 - CAM A BTP131/141 MSP-223175-0.A2 223175-0	£4.37	£5.24
29 - CAM B BTP131/141 MSP-223176-8.A1 223176-8	£2.02	£2.43
30 - STEEL BALL 3 HR1840/M8701 MSP-216019-1.A55 216019-1	£1.44	£1.73
31 - CUP WASHER BTP131/141 MSP-267839-6.A2 267839-6	£1.44	£1.73
32 - HAMMER CHANGE PLATE BTP131/14 MSP-346560-1.A0 346560-1	£1.44	£1.73
33 - HAMMER CHANGE RING BTP131/141 MSP-313227-6.A2 313227-6	£2.34	£2.81
34 - COMPRESSION SPRING 2 BTP131/1 MSP-234231-1.A0 234231-1	£1.44	£1.73
35 - CHANGE CASE BTP131/141 MSP-453320-5.A0 453320-5	£4.06	£4.87
36 - GEAR CASE ASSY BTP131/141 MSP-135504-4.A2 135504-4	£29.38	£35.25
37 - PIN GUIDE BTP131/141 MSP-453324-7.A3 453324-7	£1.44	£1.73
38 - FLAT HD PIN 1.2-3.5 BTP131/14 MSP-256537-7.A0 256537-7	£1.44	£1.73
39 - NYLON WASHER 15 BTP130/140 MSP-261130-4.A6 261130-4	£1.44	£1.73
40 - OIL SEAL 12.5 TD0101F/BTP130/ MSP-213166-9.A2 213166-9	£1.44	£1.73
41 - STEEL BALL 3.5 BPJ/DTD154/TL06 MSP-216001-0.A160 216001-0	£1.59	£1.91
42 - ANVIL M BTP131/141 MSP-326126-3.A1 326126-3	£27.65	£33.18
43 - COMPRESSION SPRING 5 BTP131/1 MSP-234233-7.A3 234233-7	£1.44	£1.73
44 - STEEL BALL 5.6/DTW285 MSP-216041-8.A29 216041-8	£1.44	£1.73
46 - HAMMER BTP131/141 MSP-326123-9.A1 326123-9	£30.24	£36.29
47 - COMPRESSION SPRING 22 BTP131/ MSP-234234-5.A0 234234-5	£5.92	£7.11
48 - CHANGE SLEEVE BTP131/141 MSP-331977-1.A2 331977-1	£9.98	£11.98
49 - STEEL BALL 3 HR1840/M8701 MSP-216019-1.A53 216019-1	£1.44	£1.73
50 - OUTER HAMMER BTP131/141 MSP-326124-7.A2 326124-7	£20.30	£24.36
51 - STEEL BALL 3 HR1840/M8701 MSP-216019-1.A54 216019-1	£1.44	£1.73
52 - FLAT WASHER 14 BTP131/141 MSP-267453-8.A1 267453-8	£1.44	£1.73
53 - STEEL BALL 5.6/DTW285 MSP-216041-8.A30 216041-8	£1.44	£1.73
56 - BEARING CASE BTP131/141 MSP-453325-5.A0 453325-5	£3.90	£4.68
59 - FLAT FILLISTER HD PIN 1.2 MSP-268266-0.A1 268266-0	£1.44	£1.73
60 - CHANGE LEVER BTP131/141 MSP-453323-9.A0 453323-9	£2.02	£2.43
61 - INTERNAL GEAR 41 BTP131/141 MSP-227287-1.A1 227287-1	£4.21	£5.05
62 - SPUR GEAR 14A BTP131/141 MSP-141251-7.A3 141251-7	£3.28	£3.93
63 - SPUR GEAR 21 BTP131/141 MSP-227284-7.A2 227284-7	£1.44	£1.73
64 - MOTOR BRACKET ASSY BTP131/141 MSP-135506-0.A2 135506-0	£15.11	£18.13
65 - BALL BEARING 607ZZ HS6100 MSP-211022-7.A5 211022-7	£11.39	£13.67
A01 - SPECIAL PAN HD SCREW M4X12 MSP-251314-2.A27 251314-2	£1.44	£1.73
A02 - HOOK BTD136/147/BFS441/451/ MSP-346317-0.A15 346317-0	£1.93	£2.32
A03 - DC18RC COMPACT CHARGER MSP-*DC18RC.A212 *DC18RC	-
A05 - BATTERY COVER BDG800/DTW251 MSP-450128-8.A197 450128-8	£1.20	£1.44
A06 - LATCH FOR 140756-4 BTM40/50 MSP-162302-3.A33 162302-3	£1.20	£1.44
A06 - PLASTIC CASE BTD134/DTP141 MSP-824979-9.A3 824979-9	£25.18	£30.22
A06 - SHAFT BTM40/50/HR2230/2460 MSP-324319-6.A15 324319-6	£1.20	£1.44
A06 - HANDLE BTM40/50/BDF456/BHP456 MSP-451749-9.A2 451749-9	£1.20	£1.44
