Makita DTD147RFE Cordless Impact Driver Spare Parts

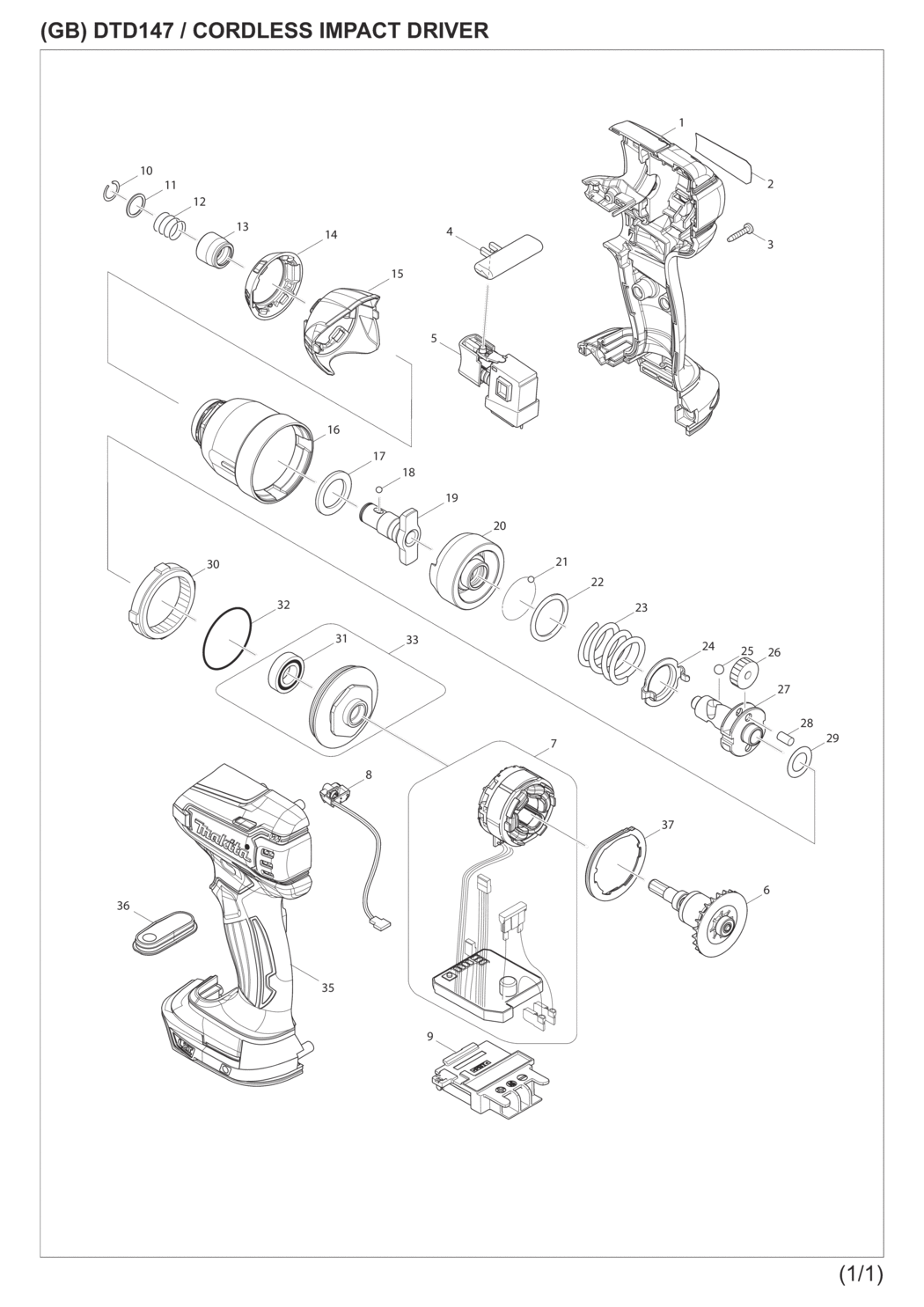

An exploded drawing and spare parts listing for the Makita DTD147RFE Cordless Impact Driver

	Ex VAT	Inc VAT
1 - HOUSING SET BTD147 MSP-187388-6.A3 187388-6	£43.30	£51.96
1 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A805 263005-3	£1.44	£1.73
2 - NAME PLATE DTD147 MSP-815F42-5.A1 815F42-5	£1.44	£1.73
3 - TAPPING SCREW BIND 3 X 16 L14 MSP-266130-9.A168 266130-9	£1.44	£1.73
4 - F/R CHANGE LEVER BTD043/063/1 MSP-419041-9.A25 419041-9	£1.44	£1.73
5 - SWITCH BTD136/147 MSP-141448-8.A0 141448-8	£27.65	£33.18
5 - SEAL BTD136/147 MSP-424496-5.A1 424496-5	£1.44	£1.73
6-1 - ROTOR BTD136/147 MSP-619353-2.A1 619353-2	£65.40	£78.48
7 - STATOR UNIT BTD147 MSP-632A40-2.A1 632A40-2	£161.88	£194.26
8 - LED CIRCUIT BTD136/147 MSP-620136-5.A0 620136-5	£10.61	£12.73
9 - TERMINAL DHP480/DDF480/DFL650 MSP-643860-3.A49 643860-3	£5.78	£6.94
10 - RING SPRING 11 BTD/TD126/TL064 MSP-231951-8.A41 231951-8	£1.44	£1.73
11 - NARROW WASHER 12 TD126/DTD154 MSP-267085-1.A12 267085-1	£1.44	£1.73
12 - COMPRESSION SPRING 13 TD126 MSP-233005-7.A51 233005-7	£1.44	£1.73
13 - BIT SLEEVE BTD134/146/136/147 MSP-326072-0.A2 326072-0	£2.50	£3.00
14 - BUMPER BTD136/147 MSP-424495-7.A0 424495-7	£2.50	£3.00
15 - HAMMER CASE COVER BTD136/147 MSP-453664-3.A0 453664-3	£1.44	£1.73
16 - HAMMER CASE BTD136/147 MSP-141477-1.A1 141477-1	£17.13	£20.56
17 - NYLON WASHER 19 BTD134/TD126 MSP-261151-6.A10 261151-6	£1.66	£1.99
18 - STEEL BALL 3.5 BPJ/DTD154/TL06 MSP-216001-0.A150 216001-0	£1.59	£1.91
19 - ANVIL M BTD134/136/146/147 MSP-326071-2.A5 326071-2	£11.86	£14.23
20 - HAMMER BTD134/136/146/147 MSP-326054-2.A3 326054-2	£18.72	£22.46
21 - STEEL BALL 3.5 BPJ/DTD154/TL06 MSP-216001-0.A151 216001-0	£1.59	£1.91
22 - FLAT WASHER 24 HR1840/HR1841F MSP-267175-0.A35 267175-0	£1.44	£1.73
23 - COMPRESSION SPRING 24 BTD147 MSP-234251-5.A3 234251-5	£5.78	£6.93
24 - PLATE BTD134/136/146/147 MSP-346466-3.A4 346466-3	£1.44	£1.73
25 - STEEL BALL 5.6/DTW285 MSP-216041-8.A35 216041-8	£1.44	£1.73
26 - *SPUR GEAR 22 BTD134/136/132 MSP-227233-4.A7 227233-4	£2.81	£3.37
26-1 - SPUR GEAR 22 BTD134/136/132/1 MSP-227362-3.A24 227362-3	£2.50	£3.00
27 - SPINDLE BTD134/136/146/147 MSP-326066-5.A0 326066-5	£14.82	£17.78
28 - PIN 5 BTD134LF10/TD126 MSP-256253-1.A5 256253-1	£1.44	£1.73
29 - THIN WASHER 12 BTD134/136/146 MSP-253362-7.A5 253362-7	£1.44	£1.73
30 - INTERNAL GEAR 51 BTD134/136/1 MSP-227150-8.A3 227150-8	£3.90	£4.68
31 - BALL BEARING 6901LLB BTD134/1 MSP-211140-1.A12 211140-1	£6.71	£8.05
32 - O RING 40 BTD134/136/144/146/ MSP-213507-9.A12 213507-9	£3.74	£4.49
33 - BEARING BOX BTD134/136/132/14 MSP-158145-9.A0 158145-9	£15.70	£18.84
35 - HOUSING SET BTD147 MSP-187388-6.A1 187388-6	£43.30	£51.96
35 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A806 263005-3	£1.44	£1.73
36-1 - SWITCH PLATE COMPM BTD136/147 MSP-141583-2.A3 141583-2	£4.37	£5.24
36 - SWITCH PLATE COMPM BTD136/147 MSP-141583-2.A8 141583-2	£4.37	£5.24
37 - BAFFLE PLATE BTD136/147 MSP-453665-1.A0 453665-1	£1.44	£1.73
A01 - HOOK BTD136/147/BFS441/451/ MSP-346317-0.A6 346317-0	£1.93	£2.32
A02 - TRUSS HEAD SCREW M4X12/BAP182 MSP-266622-8.A2 266622-8	£1.44	£1.73
A03 - DC18RC COMPACT CHARGER MSP-*DC18RC.A209 *DC18RC	-
A04 - *BATTERY BL1830 18V LI-ION MSP-194204-5.A28 194204-5	£42.91	£51.49
A05 - BATTERY COVER BDG800/DTW251 MSP-450128-8.A200 450128-8	£1.20	£1.44
A04-1 - *BATTERY BL1830 18V LI-ION MSP-194204-5.A29 194204-5	£42.91	£51.49
A06 - HANDLE BTM40/50/BDF456/BHP456 MSP-451749-9.A1 451749-9	£1.20	£1.44
A06 - LATCH FOR 140756-4 BTM40/50 MSP-162302-3.A31 162302-3	£1.20	£1.44
A06 - PLASTIC CASE BTD134/DTP141 MSP-824979-9.A5 824979-9	£25.18	£30.22
A06 - SHAFT BTM40/50/HR2230/2460 MSP-324319-6.A17 324319-6	£1.20	£1.44
A07 - LABEL/PLASTIC CASE DTD147RFE MSP-802U46-6 802U46-6	£1.44	£1.73
