Makita DTD136RFE Cordless Impact Driver Spare Parts

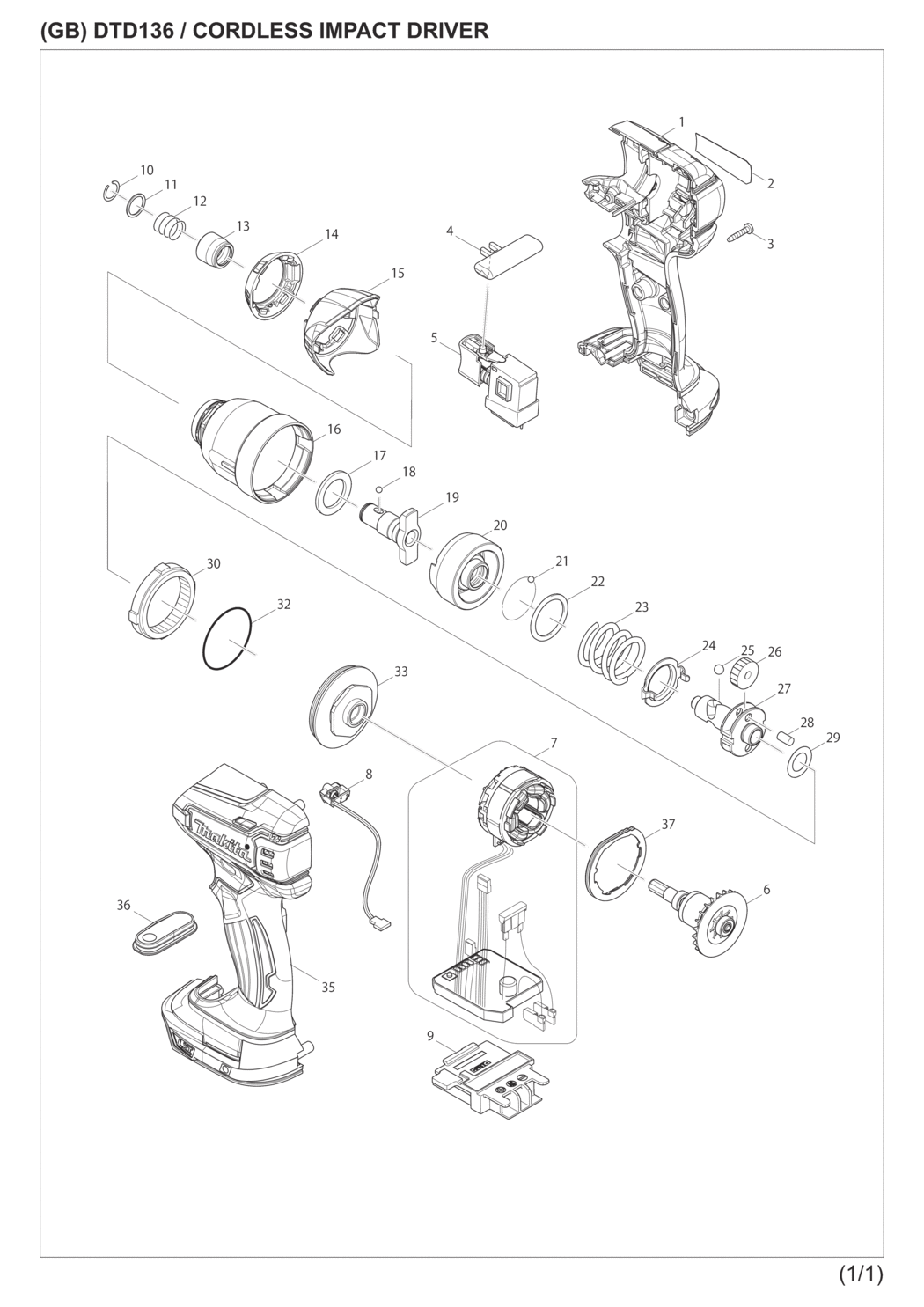

An exploded drawing and spare parts listing for the Makita DTD136RFE Cordless Impact Driver

	Ex VAT	Inc VAT
1 - HOUSING SET BTD136 MSP-187383-6 187383-6	£43.30	£51.96
2 - NAME PLATE DTD136 MSP-815K90-4 815K90-4	£1.44	£1.73
5 - SEAL BTD136/147 MSP-424496-5.A2 424496-5	£1.44	£1.73
5 - SWITCH BTD136/147 MSP-141448-8.A5 141448-8	£27.65	£33.18
6-1 - ROTOR BTD136/147 MSP-619353-2.A2 619353-2	£65.40	£78.48
7 - STATOR UNIT BTD136 MSP-632A39-7 632A39-7	£161.88	£194.26
8 - LED CIRCUIT BTD136/147 MSP-620136-5.A2 620136-5	£10.61	£12.73
9 - TERMINAL DST111/DST121/BCL140 MSP-643850-6.A16 643850-6	£5.78	£6.93
14 - BUMPER BTD136/147 MSP-424495-7.A2 424495-7	£2.50	£3.00
15 - HAMMER CASE COVER BTD136/147 MSP-453664-3.A2 453664-3	£1.44	£1.73
16 - HAMMER CASE BTD136/147 MSP-141477-1.A2 141477-1	£17.13	£20.56
36-1 - SWITCH PLATE COMPM BTD136/147 MSP-141583-2.A0 141583-2	£4.37	£5.24
36 - SWITCH PLATE COMPM BTD136/147 MSP-141583-2.A1 141583-2	£4.37	£5.24
37 - BAFFLE PLATE BTD136/147 MSP-453665-1.A2 453665-1	£1.44	£1.73
A06 - LATCH FOR 140756-4 BTM40/50 MSP-162302-3.A38 162302-3	£1.20	£1.44
A06 - HANDLE BTM40/50/BDF456/BHP456 MSP-451749-9.A32 451749-9	£1.20	£1.44
A06 - SHAFT BTM40/50/HR2230/2460 MSP-324319-6.A23 324319-6	£1.20	£1.44
A07 - LABEL/PLASTIC CASE DTD136RFE MSP-803J21-9 803J21-9	£1.44	£1.73
