Makita DFR550RMJ Cordless Auto Feed Screwdriver Spare Parts

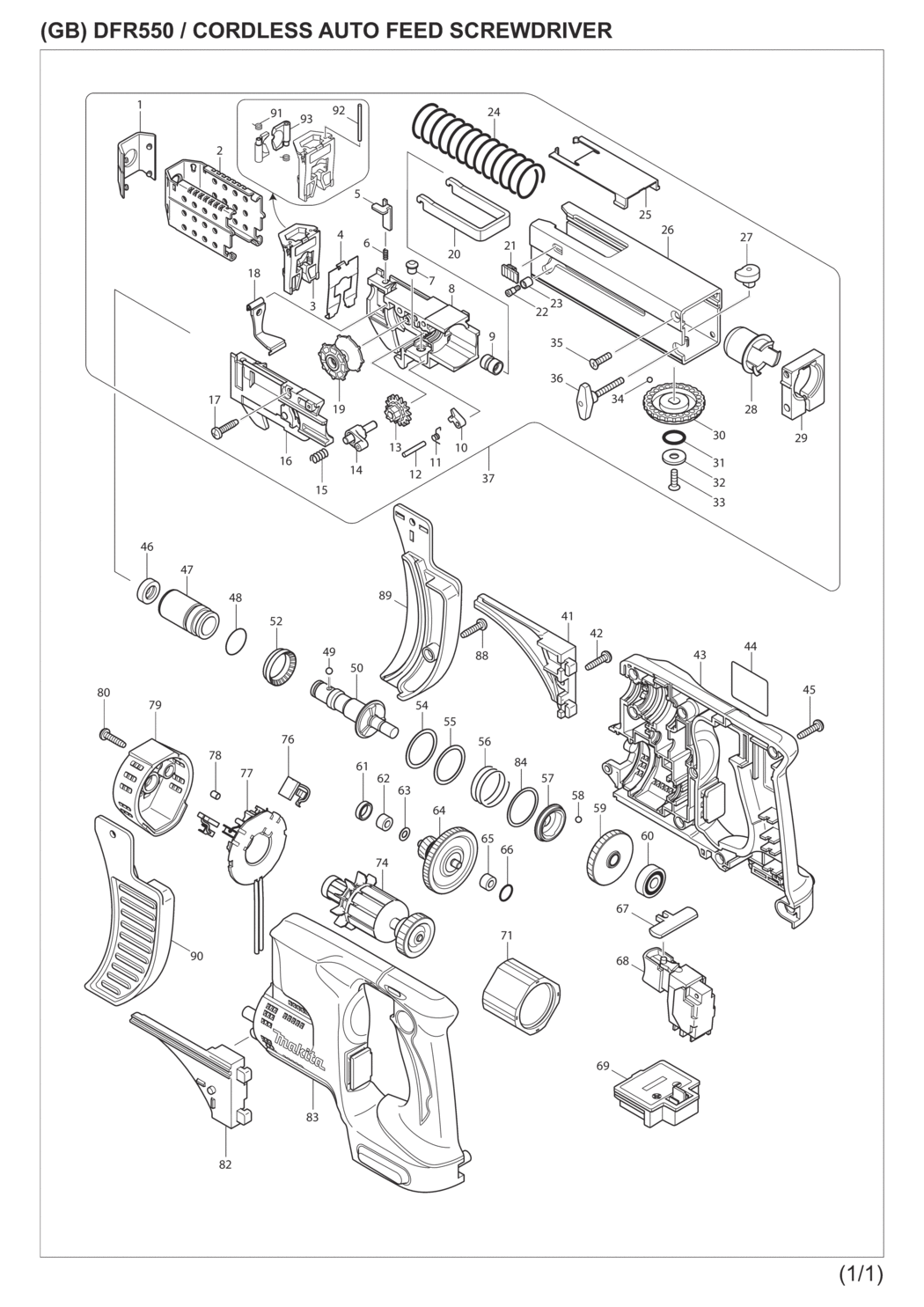

An exploded drawing and spare parts listing for the Makita DFR550RMJ Cordless Auto Feed Screwdriver

	Ex VAT	Inc VAT
1 - CAP/6844/6843/BFR550/540/750 MSP-424043-2.A5 424043-2	£2.50	£3.00
2 - STOPPER BASE 55 6843/BFR550/5 MSP-345839-7.A4 345839-7	£7.64	£9.17
3 - GUIDE BOX 6843/6844/BFR5 MSP-140493-0.A7 140493-0	£15.55	£18.66
4 - GUARD 6843/6844/BFR550/540/75 MSP-346269-5.A10 346269-5	£2.81	£3.37
5 - LEVER 6843/6844/BFR550/540/75 MSP-345837-1.A5 345837-1	£1.44	£1.73
6 - COMPRESSION SPRING 2 6835 MSP-233211-4.A17 233211-4	£1.44	£1.73
7 - PIN 6 6833/6835DWA/6836/BFR54 MSP-256451-7.A10 256451-7	£1.44	£1.73
8 - FEEDER BOX 6843/6844/BFR550/ MSP-450107-6.A5 450107-6	£4.06	£4.87
9 - SLEEVE 5 6833/6835DWA/6836 MSP-257685-5.A2 257685-5	£3.28	£3.93
10 - STOPPER 6833/6835DWA/BFR540 MSP-310062-3.A0 310062-3	£4.83	£5.80
11 - TORSION SPRING 4 6833/6835DW MSP-231636-6.A3 231636-6	£1.44	£1.73
12 - PIN 3 BCV01/6835DWA/BLS820/JR MSP-256158-5.A40 256158-5	£1.44	£1.73
13 - SPUR GEAR 16 6833/6835DWA MSP-226344-2.A4 226344-2	£1.44	£1.73
14 - RATCHET ARM 6843/6844/BF MSP-158374-4.A8 158374-4	£18.72	£22.46
15 - COMPRESSION SPRING 6 6835D MSP-233212-2.A6 233212-2	£1.49	£1.79
16 - BOXCOVER 6843/BFR550/540 MSP-158375-2.A2 158375-2	£8.27	£9.92
17 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1053 265995-6	£1.44	£1.73
18 - DUST COVER 6833/6835DWA/BFR54 MSP-162201-9.A5 162201-9	£3.74	£4.49
19 - WHEEL 6833/6835DWA/BFR540/55 MSP-416518-5.A10 416518-5	£2.65	£3.18
20 - PLATE 6843/6844/BFR550/540/75 MSP-345838-9.A6 345838-9	£3.28	£3.93
21 - STOPPER 6843/6844/BFR550/540 MSP-450111-5.A4 450111-5	£1.66	£1.99
22 - SHOULDER FLAT HD SCREW 6843/4 MSP-265177-0.A10 265177-0	£3.28	£3.93
23 - SLEEVE 4 6843/6844/BFR550/540 MSP-257764-9.A6 257764-9	£1.44	£1.73
24 - COMPRESSION SPRING 23 6843/BF MSP-234031-9.A1 234031-9	£2.50	£3.00
25 - CASING COVER 6843/6844/BFR550 MSP-450114-9.A6 450114-9	£1.44	£1.73
26 - CASING 55 6843/BFR550/54 MSP-158377-8.A4 158377-8	£43.60	£52.32
26 - LABEL/INDICATION 6843BFR540 MSP-816885-2.A3 816885-2	£1.44	£1.73
27 - SHIFTER PIN 6843/6844/BFR550/ MSP-310237-4.A2 310237-4	£7.18	£8.61
28 - INSULATION SLEEVE 6843/6844/B MSP-450110-7.A6 450110-7	£1.71	£2.05
29 - CLAMPER 6843/6844/BFR550/540 MSP-318181-9.A6 318181-9	£8.42	£10.11
30 - DIAL 42 6835DWA/6833/6834/683 MSP-417056-0.A2 417056-0	£1.44	£1.73
31 - O RING 12 JR3000/BFR540/550/ MSP-213107-5.A2 213107-5	£2.34	£2.81
32 - WASHER 6 W. COUNTERSUNK 6835D MSP-267201-5.A4 267201-5	£1.44	£1.73
33 - COUNTERSUNK SCREW M4X12/M9203 MSP-912117-6.A22 912117-6	£1.44	£1.73
34 - STEEL BALL 3.5 BPJ/DTD154/TL06 MSP-216001-0.A187 216001-0	£1.59	£1.91
35 - COUNTERSUNK SCREW M4X12/M9203 MSP-912117-6.A23 912117-6	£1.44	£1.73
36 - THUMB SCREW M4X28 MSP-265779-2.A6 265779-2	£2.02	£2.43
37 - CASING 55 SET 6843/BFR550/540 MSP-191B45-2.A4 191B45-2	£166.00	£199.20
41 - SCREW GUIDE SET BFR550/540 MSP-188309-1.A12 188309-1	£5.46	£6.55
42 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1052 265995-6	£1.44	£1.73
43 - HOUSING SET BFR550 MSP-187478-5.A6 187478-5	£48.58	£58.29
44 - TNAME PLATE DFR550 MSP-815R58-2.A3 815R58-2	£1.44	£1.73
45 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1056 265995-6	£1.44	£1.73
46 - DUST COVER 6830/6831DW/6835DW MSP-421467-3.A0 421467-3	£1.44	£1.73
47 - PLANE BEARING 14 BFR440/450/ MSP-214173-5.A6 214173-5	£4.83	£5.80
48 - O RING 16 BFS440/AN942/BFR540 MSP-213262-3.A2 213262-3	£1.44	£1.73
49 - STEEL BALL 3.5 BPJ/DTD154/TL06 MSP-216001-0.A186 216001-0	£1.59	£1.91
50 - SPINDLE B 6843/6844/BFR550/54 MSP-324808-1.A4 324808-1	£27.65	£33.18
52 - SLEEVE 20 BFS440/BFR540/550/ MSP-421927-5.A4 421927-5	£1.44	£1.73
54 - FLAT WASHER 25 BFS440/BFR750 MSP-267331-2.A14 267331-2	£1.44	£1.73
55 - FLAT WASHER 25 BFS440/BFR750 MSP-267331-2.A19 267331-2	£1.44	£1.73
56 - COMPRESSION SPRING 25 BFS440 MSP-234017-3.A8 234017-3	£3.90	£4.68
57 - CLUTCH CAM C BFS440/BFR550 MSP-223169-5.A0 223169-5	£17.86	£21.43
58 - STEEL BALL 4 5008MB/JV101D MSP-216008-6.A10 216008-6	£1.44	£1.73
59 - HELICAL GEAR 84 BFS440/BFR550 MSP-226670-9.A2 226670-9	£30.96	£37.15
60 - BALL BEARING 608 BFS440/BFR5 MSP-211034-0.A2 211034-0	£3.59	£4.31
61 - RUBBER SLEEVE 10 BFS440/BFR54 MSP-165115-1.A8 165115-1	£3.28	£3.93
62 - PLANE BEARING 5 BFS440/6010DW MSP-214017-9.A4 214017-9	£1.44	£1.73
63 - THIN BLUE WASHER 5 BFS440/683 MSP-253811-4.A4 253811-4	£1.44	£1.73
64 - GEAR 18-44 BFS440/ MSP-154937-4.A0 154937-4	£27.65	£33.18
65 - PLANE BEARING 5 BFS440/6010DW MSP-214017-9.A5 214017-9	£1.44	£1.73
66 - O RING 10 BFS440/BFR540/550 MSP-213055-8.A6 213055-8	£1.44	£1.73
67 - F/R CHANGE LEVER BFS440/BFR44 MSP-419304-3.A8 419304-3	£1.44	£1.73
68 - SWITCH TG513SBA-2 FR440/540/5 MSP-650670-1.A8 650670-1	£23.62	£28.34
69 - TERMINAL DHP480/DDF480/DFL650 MSP-643860-3.A61 643860-3	£5.78	£6.94
71 - YOKE UNIT BFS440/BFS441/451 MSP-638426-2.A6 638426-2	£25.20	£30.24
74 - ARMATURE BFR550/750/BFS450 MSP-619216-2.A5 619216-2	£40.03	£48.04
76 - CARBON BRUSH CB-440 BTD043/06 MSP-194427-5.A14 194427-5	£5.83	£7.00
77 - TORSION SPRING L BFS440/BTD13 MSP-231697-6.A10 231697-6	£1.44	£1.73
77 - BRUSH HOLDER BFS440/BFR5 MSP-638433-5.A7 638433-5	£2.65	£3.18
77 - TORSION SPRING R BFS440/BTD13 MSP-231696-8.A24 231696-8	£1.44	£1.73
78 - RUBBER PIN 4 BTD043/063/103 MSP-263032-0.A52 263032-0	£1.44	£1.73
79 - FRONT COVER BFR440/540/550/75 MSP-419307-7.A2 419307-7	£4.06	£4.87
80 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1054 265995-6	£1.44	£1.73
82 - SCREW GUIDE SET BFR550/540 MSP-188309-1.A13 188309-1	£5.46	£6.55
83 - HOUSING SET BFR550 MSP-187478-5.A5 187478-5	£48.58	£58.29
84 - FLAT WASHER 26 BFS440/BFR750 MSP-267332-0.A13 267332-0	£1.44	£1.73
88 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1055 265995-6	£1.44	£1.73
89 - GUIDE ATTACHMENT SET 6843/44/ MSP-188310-6.A1 188310-6	£6.55	£7.86
90 - GUIDE ATTACHMENT SET 6843/44/ MSP-188310-6.A20 188310-6	£6.55	£7.86
91 - TORSION SPRING 4 6843/44/BFR5 MSP-233567-5.A6 233567-5	£1.44	£1.73
92 - PIN 2 6843/44/BFR550/540/750 MSP-268188-4.A10 268188-4	£1.44	£1.73
93 - GUIDE 6843/44/BFR550/540/750 MSP-310282-9.A10 310282-9	£2.65	£3.18
94 - FEEDER BOX ASY BFR540/550/684 MSP-125809-0.A5 125809-0	£115.67	£138.80
A01 - HOOK BFR440/540/550/750 MSP-281217-6.A0 281217-6	£1.39	£1.67
A03 - DC18RC COMPACT CHARGER MSP-*DC18RC.A167 *DC18RC	-
A04-2 - BATTERY BL1840B/DGA508/DTW285 MSP-197265-4.A54 197265-4	£173.82	£208.58
A05 - LATCH FOR STACKING CASE MACPA MSP-453974-8.A80 453974-8	£1.71	£2.05
A06 - BATTERY COVER BDG800/DTW251 MSP-450128-8.A158 450128-8	£1.20	£1.44
A07 - INNER TRAY DFR440/450/540/550 MSP-837631-0 837631-0	£7.34	£8.81
E01 - CONTROLLER BFR440/550/750 MSP-620122-6.A8 620122-6	£37.01	£44.41
E02 - LINEFILTER UK360/DHR164/UR180D MSP-688172-7.A103 688172-7	£1.20	£1.44
