Makita DFL650FZ Cordless Angle Screwdriver Spare Parts

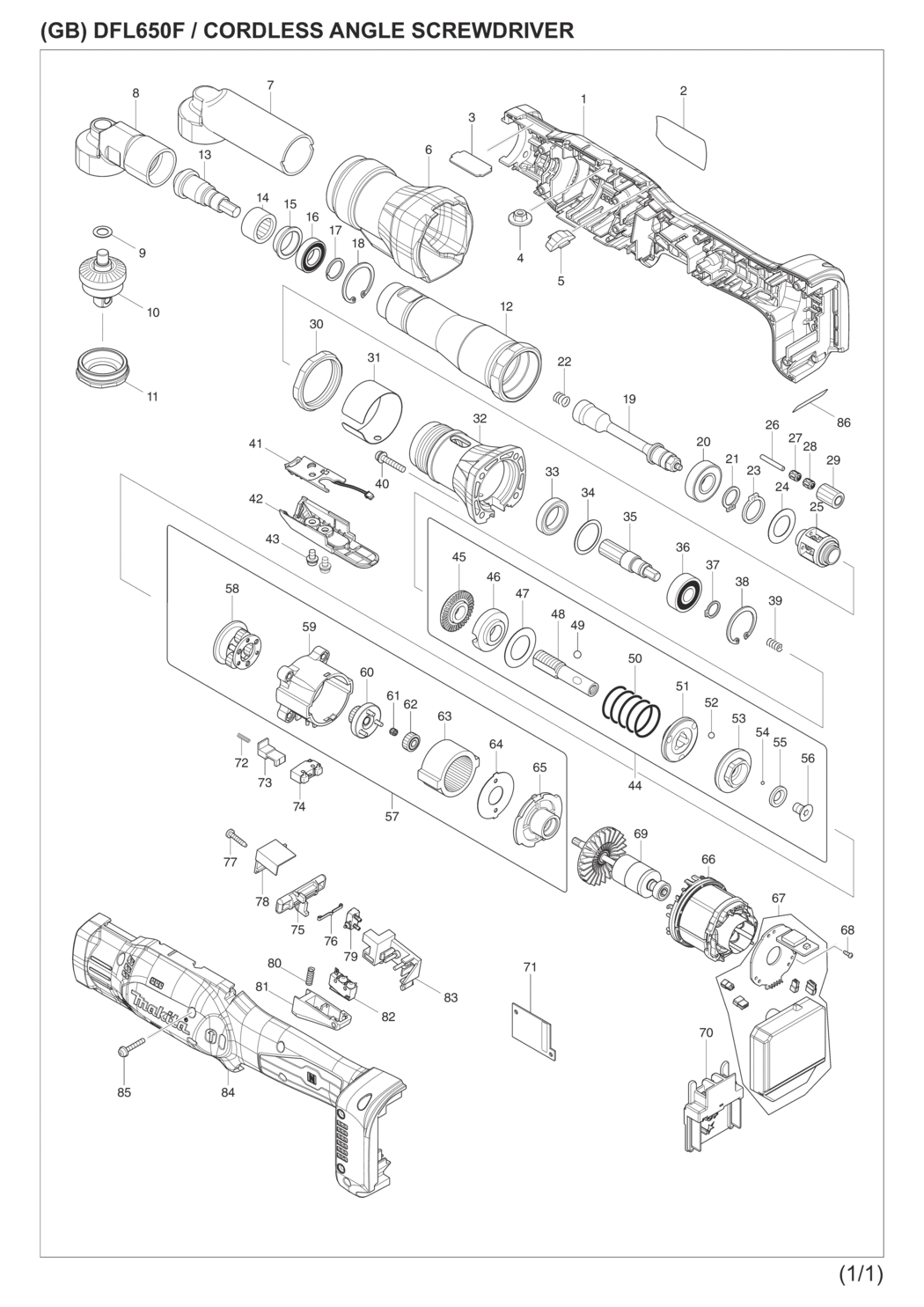

An exploded drawing and spare parts listing for the Makita DFL650FZ Cordless Angle Screwdriver

	Ex VAT	Inc VAT
1-1 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A56 263005-3	£1.44	£1.73
1 - *HOUSING SET DFL650F MSP-183A78-5.A0 183A78-5	£62.30	£74.76
1 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A54 263005-3	£1.44	£1.73
2 - NAME PLATE DFL650F MSP-850S66-2 850S66-2	£1.44	£1.73
3 - PLATE L DFL650F MSP-346862-5.A0 346862-5	£4.06	£4.87
4 - HEX NUT FLANGE M5 DFL650F MSP-252142-8.A3 252142-8	£2.50	£3.00
6 - PROTECTOR G DFL650F MSP-455773-4.A1 455773-4	£23.76	£28.51
7 - PROTECTOR E DFL650F MSP-455771-8.A1 455771-8	£19.72	£23.67
8-1 - ANGLE HEAD DFL650F/DFL651 MSP-143716-5.A2 143716-5	£241.68	£290.02
9 - HARD WASHER 8 UH4860/8412D MSP-253777-8.A13 253777-8	£1.44	£1.73
10 - *SPINDLE A DFL650F MSP-143050-3 143050-3	£94.50	£113.40
10-1 - SPINDLE A DFL650F/DFL651F MSP-143714-9.A1 143714-9	£105.72	£126.86
11 - BEARING RETAINER 20-34 DFL650 MSP-285739-8.A1 285739-8	£28.94	£34.73
12 - INTERNAL GEAR HOUSING DF MSP-143136-3 143136-3	£204.24	£245.09
12 - PROTECTOR F DUR650F/DFL650 MSP-455772-6.A1 455772-6	£7.64	£9.17
12-1 - INTERNAL GEAR HOUSING DF MSP-143717-3.A0 143717-3	£199.92	£239.90
12-1 - PROTECTOR F DUR650F/DFL650 MSP-455772-6.A0 455772-6	£7.64	£9.17
13 - *SPIRAL BEVEL GEAR 9 DFL650F MSP-227643-5 227643-5	£52.28	£62.73
13-1 - SPIRAL BEVEL GEAR 9 DFL651F MSP-221443-5.A0 221443-5	£52.01	£62.41
14 - NEEDLE BEARING 1612 JN1601 MSP-212222-2.A0 212222-2	£9.82	£11.79
15 - *SPACER DFL650F MSP-326490-2 326490-2	£8.73	£10.48
16-1 - BALL BEARING 6901DDW DFL650F MSP-211288-9.A4 211288-9	£9.82	£11.79
16 - BALL BEARING 6901DDW DFL650F MSP-211288-9.A5 211288-9	£9.82	£11.79
17 - RETAINING RING WR12 BHR261/2 MSP-961082-6.A3 961082-6	£1.44	£1.73
18 - RETAINING RING R-24 AN620 MSP-962103-7.A18 962103-7	£1.44	£1.73
19 - *SHAFT DFL650F MSP-326488-9 326488-9	£45.01	£54.01
19-1 - SHAFT DFL650F/DFL651F MSP-326708-1.A1 326708-1	£43.96	£52.75
20 - BALL BEARING 6001DDW HS7100 MSP-211131-2.A3 211131-2	£7.80	£9.36
21 - EXT INVERTED CIRCLIP-12 6791D MSP-961072-9.A1 961072-9	£1.44	£1.73
22 - COMPRESSION SPRING 6 DUR650F MSP-234392-7.A1 234392-7	£14.82	£17.78
23 - EXT DIN 471 CIRCLIP-16 LW1401 MSP-961056-7.A2 961056-7	£1.44	£1.73
24 - NARROW HARD WASHER 16 LC1230 MSP-253749-3.A5 253749-3	£1.44	£1.73
25 - CARRIER DFL650F MSP-326491-0.A0 326491-0	£73.58	£88.30
26 - PIN 3 DST111/DST112/JR3020 MSP-256221-4.A21 256221-4	£1.58	£1.89
27 - NEEDLE CAGE 307 DFL650F MSP-212131-5.A0 212131-5	£2.34	£2.81
28 - NEEDLE CAGE 307 DFL650F MSP-212131-5.A3 212131-5	£2.34	£2.81
29 - SPUR GEAR 14 DFL650F MSP-227364-9.A1 227364-9	£26.35	£31.62
30 - HEX NUT M36-41 BFL300FZ/BFL4 MSP-252187-6.A1 252187-6	£15.98	£19.18
31 - RING 38R DFL650F MSP-346863-3.A1 346863-3	£13.42	£16.10
32 - CLUTCH CASE BFL300FZ/BFL400F MSP-317808-8.A4 317808-8	£54.52	£65.42
33 - BALL BEARING 6803ZZ BFL300/4 MSP-211283-9.A13 211283-9	£13.58	£16.29
34 - FLAT WASHER 21 BFL300FZ/BFL4 MSP-267283-7.A10 267283-7	£1.44	£1.73
35 - SPUR GEAR 13 DFL650F MSP-227365-7.A0 227365-7	£64.89	£77.87
36 - BALL BEARING 6000DDW MSP-211088-7.A31 211088-7	£5.92	£7.11
37 - RETAINING RING S10 BFL080/121 MSP-961026-6.A10 961026-6	£1.44	£1.73
38 - INTERNAL RETAINING RING-26/51 MSP-962105-3.A19 962105-3	£1.44	£1.73
39 - COMPRESSION SPRING 5 BFL MSP-233019-6.A44 233019-6	£1.44	£1.73
40 - P HD SCREW M4X22 BTD043/063/1 MSP-265145-3.A52 265145-3	£1.44	£1.73
41 - LED CIRCUIT DFL650F MSP-620396-9.A6 620396-9	£12.01	£14.41
42 - *SWITCH COVER DFL650F MSP-455765-3.A1 455765-3	£7.02	£8.42
43 - PAN HEAD SCREW M4X8 BFT021F MSP-265171-2.A21 265171-2	£1.44	£1.73
44-1 - CLUTCH ASSY E BFH090/F DFL650 MSP-125392-7.A0 125392-7	£129.39	£155.27
44-2 - CLUTCH ASSY E BFH090/F DFL650 MSP-125392-7.A3 125392-7	£129.39	£155.27
44 - CLUTCH ASSY F BFT080FZ/DFL650 MSP-125393-5.A0 125393-5	£113.40	£136.08
45 - LOCK NUT M12 BFL080-200FZ MSP-324834-0.A54 324834-0	£14.67	£17.60
46 - ADJUST RING BFL080/121FZ MSP-158408-3.A58 158408-3	£10.14	£12.17
47 - FLAT WASHER 18 BFT40-123FZ MSP-267276-4.A52 267276-4	£1.44	£1.73
48 - SPINDLE BFL080-200F/DFL301/40 MSP-324296-2.A35 324296-2	£32.83	£39.40
49 - STEEL BALL 5.0 HP1641/6796 MSP-216018-3.A39 216018-3	£1.44	£1.73
50 - COMPRESSION SPRING 19E BFL200 MSP-233384-3.A3 233384-3	£6.71	£8.05
50-1 - COMPRESSION SPRING 19D BFL40 MSP-233385-1.A8 233385-1	£7.02	£8.42
51 - CAM D BFT040-123FZ/DFL301/402 MSP-223146-7.A42 223146-7	£25.20	£30.24
52 - STEEL BALL 4 BFL080/121FZ MSP-216024-8.A41 216024-8	£1.44	£1.73
53 - CAM A BFL080-200FZ.BFT80-123 MSP-223139-4.A24 223139-4	£25.49	£30.59
54 - STEEL BALL 3 HR1840/M8701 MSP-216019-1.A130 216019-1	£1.44	£1.73
55 - FLAT WASHER 7 BFL080/121FZ MSP-267247-1.A5 267247-1	£4.06	£4.87
56 - TORX CS HD SCREW M5X10 BFL MSP-266305-0.A13 266305-0	£1.44	£1.73
57 - GEAR ASSEMBLY F DFL650F MSP-123294-1.A1 123294-1	£247.80	£297.36
58 - CARRIER DFL650F MSP-143137-1.A0 143137-1	£142.56	£171.07
59 - GEAR CASE BFL080-200/DFL122 MSP-418004-2.A13 418004-2	£6.24	£7.49
60 - SPUR GEAR 20 DFL650F MSP-143052-9.A0 143052-9	£73.83	£88.60
61 - NEEDLE CAGE 205 DFL650F MSP-212132-3.A0 212132-3	£1.44	£1.73
62 - SPUR GEAR 18 DFL650F MSP-227366-5.A0 227366-5	£2.81	£3.37
63 - INTERNAL GEAR 47 BFL080-200FZ MSP-227048-9.A53 227048-9	£6.40	£7.68
64 - LOCK WASHER BFL080/121FZ MSP-267774-8.A5 267774-8	£1.44	£1.73
65 - MOTOR BRACKET BFL080-200FZ MSP-418003-4.A47 418003-4	£2.97	£3.56
66 - STATOR DFL650F MSP-629151-6.A1 629151-6	£39.31	£47.17
67-1 - CONTROLLER DFL650F MSP-620512-3.A0 620512-3	£252.48	£302.98
67-3 - CONTROLLER DFL650F MSP-620512-3.A1 620512-3	£252.48	£302.98
68 - TAPPING SCREW PT 2X6 DJV MSP-266490-9.A52 266490-9	£1.44	£1.73
69 - ROTOR DFL650F MSP-619364-7.A1 619364-7	£122.64	£147.17
70 - TERMINAL DHP480/DDF480/DFL650 MSP-643860-3.A5 643860-3	£5.78	£6.94
71 - RF UNIT DFL650F MSP-620397-7 620397-7	£42.72	£51.26
72 - COMPRESSION SPRING 2 DFL650F MSP-234361-8.A5 234361-8	£2.65	£3.18
73 - SWITCH LEVER BFL080-200FZ MSP-418002-6.A11 418002-6	£1.44	£1.73
74 - SWITCH UNIT DUR650F/DFL650 MSP-632E35-9.A0 632E35-9	£13.26	£15.91
75 - F/R CHANGE LEVER DFL650F MSP-455766-1.A0 455766-1	£5.78	£6.93
76 - LEAF SPRING BFL300FZ/BFL400 MSP-232201-4.A4 232201-4	£2.02	£2.43
77 - TAPPING SCREW BIND 3 X 16 L14 MSP-266130-9.A37 266130-9	£1.44	£1.73
78 - COVER BFL300FZ/BFL400FZ MSP-418204-4.A21 418204-4	£4.99	£5.99
79 - SWITCH UNIT BFL300FZ/BFL400F MSP-638276-5.A13 638276-5	£11.39	£13.67
80 - COMPRESSION SPRING 4 2414B/LC MSP-231397-8.A36 231397-8	£1.44	£1.73
81 - SWITCH LEVER A BFL300FZ/400FZ MSP-418203-6.A13 418203-6	£6.55	£7.86
82 - SWITCH UNIT BFL300FZ/BFL400F MSP-638275-7.A20 638275-7	£15.58	£18.70
83 - SWITCH BASE BFL300FZ/BFL400F MSP-418202-8.A20 418202-8	£6.55	£7.86
84 - *HOUSING SET DFL650F MSP-183A78-5.A1 183A78-5	£62.30	£74.76
84-1 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A919 263005-3	£1.44	£1.73
84 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A930 263005-3	£1.44	£1.73
85 - PAN HD SCREW M3X20 BTD043/063 MSP-265095-2.A61 265095-2	£1.44	£1.73
86 - LABEL/SERIAL NO DUR650/DFL650 MSP-850S69-6 850S69-6	£1.44	£1.73
