Makita DFL300FZ Cordless Angle Screwdriver Spare Parts

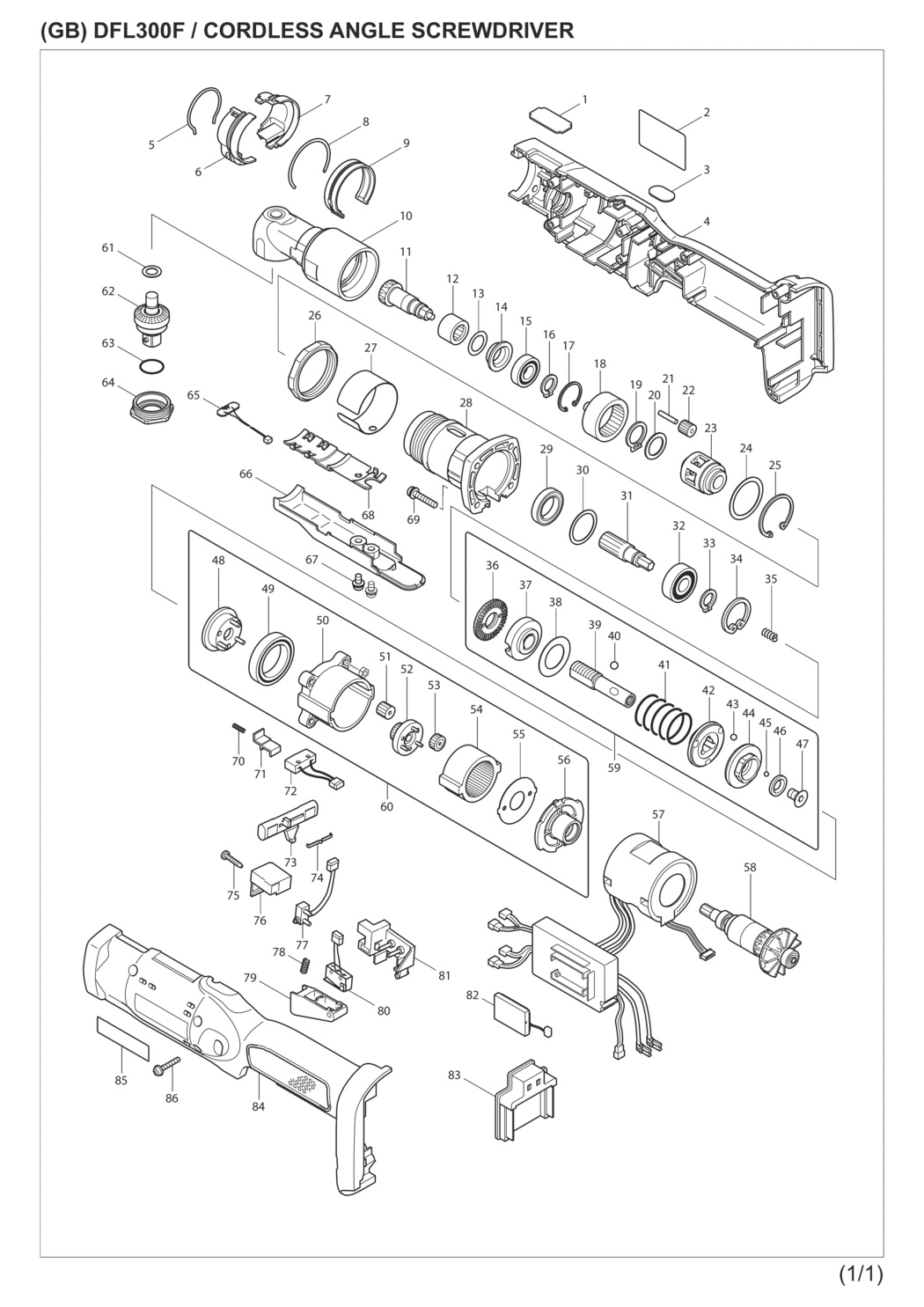

An exploded drawing and spare parts listing for the Makita DFL300FZ Cordless Angle Screwdriver

	Ex VAT	Inc VAT
1 - PLATE J BFL300FZ/DFL301FZ MSP-345445-8.A4 345445-8	£4.21	£5.05
3 - LENZ BFL080-200FZ MSP-418001-8.A7 418001-8	£1.44	£1.73
4 - HOUSING SET BFL300FZ/BFL400FZ MSP-187856-9.A0 187856-9	£56.62	£67.95
5 - RING SPRING 29 BFL300FZ/BFL4 MSP-233932-8.A1 233932-8	£2.65	£3.18
6 - LIGHT COVER SET BFL300FZ/400F MSP-183848-6.A10 183848-6	£7.49	£8.99
7 - LIGHT COVER SET BFL300FZ/400F MSP-183848-6.A11 183848-6	£7.49	£8.99
8 - RING SPRING 36 BFL300FZ/BFL40 MSP-233931-0.A9 233931-0	£1.44	£1.73
9 - LEAD COVER BFL300FZ/BFL400FZ MSP-418687-8.A5 418687-8	£4.37	£5.24
10 - ANGLE HEAD BFL300FZ MSP-158055-0.A0 158055-0	£40.17	£48.20
11 - SPIRAL BEVEL GEAR 9 BFL300FZ MSP-227478-4.A1 227478-4	£43.03	£51.64
12 - NEEDLE BEARING 1210 BFL300FZ MSP-212122-6.A3 212122-6	£4.99	£5.99
13 - SHIM WASHER 12 9401/DFL301/40 MSP-253312-2.A2 253312-2	£1.44	£1.73
14 - SPACER BFL080-200FZ/DFL301/40 MSP-345281-2.A21 345281-2	£2.81	£3.37
15 - BALL BEARING 6900LLB KP0810C MSP-210057-5.A9 210057-5	£7.64	£9.17
16 - RETAINING RING S10 BFL080/121 MSP-961026-6.A20 961026-6	£1.44	£1.73
17 - RETAINING RING-22 BFL300/400F MSP-962102-9.A5 962102-9	£1.44	£1.73
18 - INTERNAL GEAR 50 BFL300FZ/400 MSP-227120-7.A10 227120-7	£9.05	£10.86
19 - EXT DIN 471 CIRCLIP-14 MSP-961054-1.A1 961054-1	£1.44	£1.73
20 - THIN NARROW BLUE WASHER 14 MSP-253837-6.A7 253837-6	£1.44	£1.73
21 - PIN 3 4602D/9046/DFL301/402 MSP-256104-8.A7 256104-8	£1.44	£1.73
22 - SPUR GEAR 14 BFL300FZ/BFL400F MSP-227138-8.A10 227138-8	£24.91	£29.89
23 - CARRIER BFL300FZ/BFL400FZ MSP-310148-3.A7 310148-3	£63.63	£76.36
24 - NARROW BLUE WASHER 26 BHS630 MSP-267127-1.A24 267127-1	£1.44	£1.73
25 - RETAINING RING 32 BFL300/400 MSP-962161-3.A1 962161-3	£1.44	£1.73
26 - HEX NUT M36-41 BFL300FZ/BFL4 MSP-252187-6.A8 252187-6	£15.98	£19.18
27 - RING 38L BFL300FZ/DFL301FZ MSP-345448-2.A2 345448-2	£13.42	£16.10
28 - CLUTCH CASE BFL300FZ/BFL400F MSP-317808-8.A8 317808-8	£54.52	£65.42
29 - BALL BEARING 6803ZZ BFL300/4 MSP-211283-9.A17 211283-9	£13.58	£16.29
30 - FLAT WASHER 21 BFL300FZ/BFL4 MSP-267283-7.A1 267283-7	£1.44	£1.73
31 - SPUR GEAR 21 BFL300FZ/BFL400F MSP-227137-0.A2 227137-0	£48.44	£58.13
32 - BALL BEARING 6000DDW MSP-211088-7.A0 211088-7	£5.92	£7.11
33 - RETAINING RING S10 BFL080/121 MSP-961026-6.A21 961026-6	£1.44	£1.73
34 - INTERNAL RETAINING RING-26/51 MSP-962105-3.A2 962105-3	£1.44	£1.73
35 - COMPRESSION SPRING 5 BFL MSP-233019-6.A54 233019-6	£1.44	£1.73
36 - LOCK NUT M12 BFL080-200FZ MSP-324834-0.A32 324834-0	£14.67	£17.60
37 - ADJUST RING BFL080/121FZ MSP-158408-3.A35 158408-3	£10.14	£12.17
38 - FLAT WASHER 18 BFT40-123FZ MSP-267276-4.A36 267276-4	£1.44	£1.73
39 - SPINDLE BFL080-200F/DFL301/40 MSP-324296-2.A51 324296-2	£32.83	£39.40
40 - STEEL BALL 5.0 HP1641/6796 MSP-216018-3.A19 216018-3	£1.44	£1.73
41 - COMPRESSION SPRING 19F BFL30 MSP-233417-4.A1 233417-4	£8.58	£10.30
42 - CAM D BFT040-123FZ/DFL301/402 MSP-223146-7.A34 223146-7	£25.20	£30.24
43 - STEEL BALL 4 BFL080/121FZ MSP-216024-8.A62 216024-8	£1.44	£1.73
44 - CAM A BFL080-200FZ.BFT80-123 MSP-223139-4.A32 223139-4	£25.49	£30.59
45 - STEEL BALL 3 HR1840/M8701 MSP-216019-1.A153 216019-1	£1.44	£1.73
46 - FLAT WASHER 7 BFL080/121FZ MSP-267247-1.A22 267247-1	£4.06	£4.87
47 - TORX CS HD SCREW M5X10 BFL MSP-266305-0.A19 266305-0	£1.44	£1.73
48 - CARRIER A BFL080/121FZ MSP-153443-6.A3 153443-6	£13.26	£15.91
49 - BALL BEARING VC3211M/BHR162/ MSP-211375-4.A5 211375-4	£19.58	£23.50
50 - GEAR CASE BFL080-200/DFL122 MSP-418004-2.A16 418004-2	£6.24	£7.49
51 - SPUR GEAR 13 BFL080/121FZ MSP-227050-2.A24 227050-2	£1.44	£1.73
52 - SPUR GEAR 20 C BFT040FZ MSP-153684-4.A1 153684-4	£9.20	£11.04
53 - SPUR GEAR 15 BFT40FZ/DFL301F MSP-227104-5.A1 227104-5	£1.44	£1.73
54 - INTERNAL GEAR 47 BFL080-200FZ MSP-227048-9.A36 227048-9	£6.40	£7.68
55 - LOCK WASHER BFL080/121FZ MSP-267774-8.A20 267774-8	£1.44	£1.73
56 - MOTOR BRACKET BFL080-200FZ MSP-418003-4.A44 418003-4	£2.97	£3.56
57 - MOTORCONTROL UNIT BFL300/400 MSP-631620-5.A1 631620-5	£387.72	£465.26
58 - ROTOR BFL300FZ/DFL301FZ MSP-619143-3.A0 619143-3	£185.04	£222.05
59-1 - CLUTCH ASSY BFL300FZ/DFL301FZ MSP-125396-9.A1 125396-9	£80.01	£96.01
59 - CLUTCH ASSY BFL300FZ/DFL301FZ MSP-125396-9.A6 125396-9	£80.01	£96.01
60 - GEAR ASSY E BFT40FZ/DFL301FZ MSP-125231-1.A1 125231-1	£66.40	£79.68
61 - HARD WASHER 8 UH4860/8412D MSP-253777-8.A16 253777-8	£1.44	£1.73
62 - SPINDLE A BFL300/400FZ MSP-154447-1.A3 154447-1	£97.52	£117.03
63 - O RING 15 BFL300FZ MSP-213222-5.A1 213222-5	£2.02	£2.43
64 - BEARING RETAINER 15/26 BFL30 MSP-285722-5.A1 285722-5	£20.88	£25.06
65 - LED CIRCUIT BFL300/400FZ MSP-631622-1.A5 631622-1	£14.67	£17.60
66 - SWITCH COVER BFL300FZ/400FZ MSP-418690-9.A6 418690-9	£6.55	£7.86
67 - PAN HEAD SCREW M4X8 BFT021F MSP-265171-2.A7 265171-2	£1.44	£1.73
68 - LEAD UNIT BFL300FZ/BFL400FZ MSP-418686-0.A6 418686-0	£4.68	£5.62
69 - P HD SCREW M4X22 BTD043/063/1 MSP-265145-3.A62 265145-3	£1.44	£1.73
70 - COMPRESSION SPRING 2 6702D/67 MSP-232472-3.A83 232472-3	£1.44	£1.73
71 - SWITCH LEVER BFL080-200FZ MSP-418002-6.A14 418002-6	£1.44	£1.73
72 - SWITCH UNIT BFL080-200FZ MSP-638184-0.A3 638184-0	£9.20	£11.04
73 - F/R CHANGE LEVER BFL300FZ/40 MSP-418201-0.A2 418201-0	£4.99	£5.99
74 - LEAF SPRING BFL300FZ/BFL400 MSP-232201-4.A14 232201-4	£2.02	£2.43
75 - TAPPING SCREW BIND 3 X 16 L14 MSP-266130-9.A121 266130-9	£1.44	£1.73
76 - COVER BFL300FZ/BFL400FZ MSP-418204-4.A30 418204-4	£4.99	£5.99
77 - SWITCH UNIT BFL300FZ/BFL400F MSP-638276-5.A3 638276-5	£11.39	£13.67
78 - COMPRESSION SPRING 4 2414B/LC MSP-231397-8.A24 231397-8	£1.44	£1.73
79 - SWITCH LEVER A BFL300FZ/400FZ MSP-418203-6.A3 418203-6	£6.55	£7.86
80 - SWITCH UNIT BFL300FZ/BFL400F MSP-638275-7.A30 638275-7	£15.58	£18.70
81 - SWITCH BASE BFL300FZ/BFL400F MSP-418202-8.A30 418202-8	£6.55	£7.86
82 - BUZZER CIRCUIT BFL080-200FZ MSP-631514-4.A19 631514-4	£12.63	£15.16
83 - TERMINAL BFS440/BDF343/DFT022 MSP-643828-9.A2 643828-9	£4.83	£5.80
84 - HOUSING SET BFL300FZ/BFL400FZ MSP-187856-9.A1 187856-9	£56.62	£67.95
85 - LABEL/MAKITA 500 4305HR160DW MSP-819063-3.A14 819063-3	£1.44	£1.73
86 - PAN HD SCREW M3X20 BTD043/063 MSP-265095-2.A52 265095-2	£1.44	£1.73

Attribute Name	Value
Brand	Makita
