Makita BTD130FSFEW Cordless Impact Driver Spare Parts

Home Details Reviews Delivery

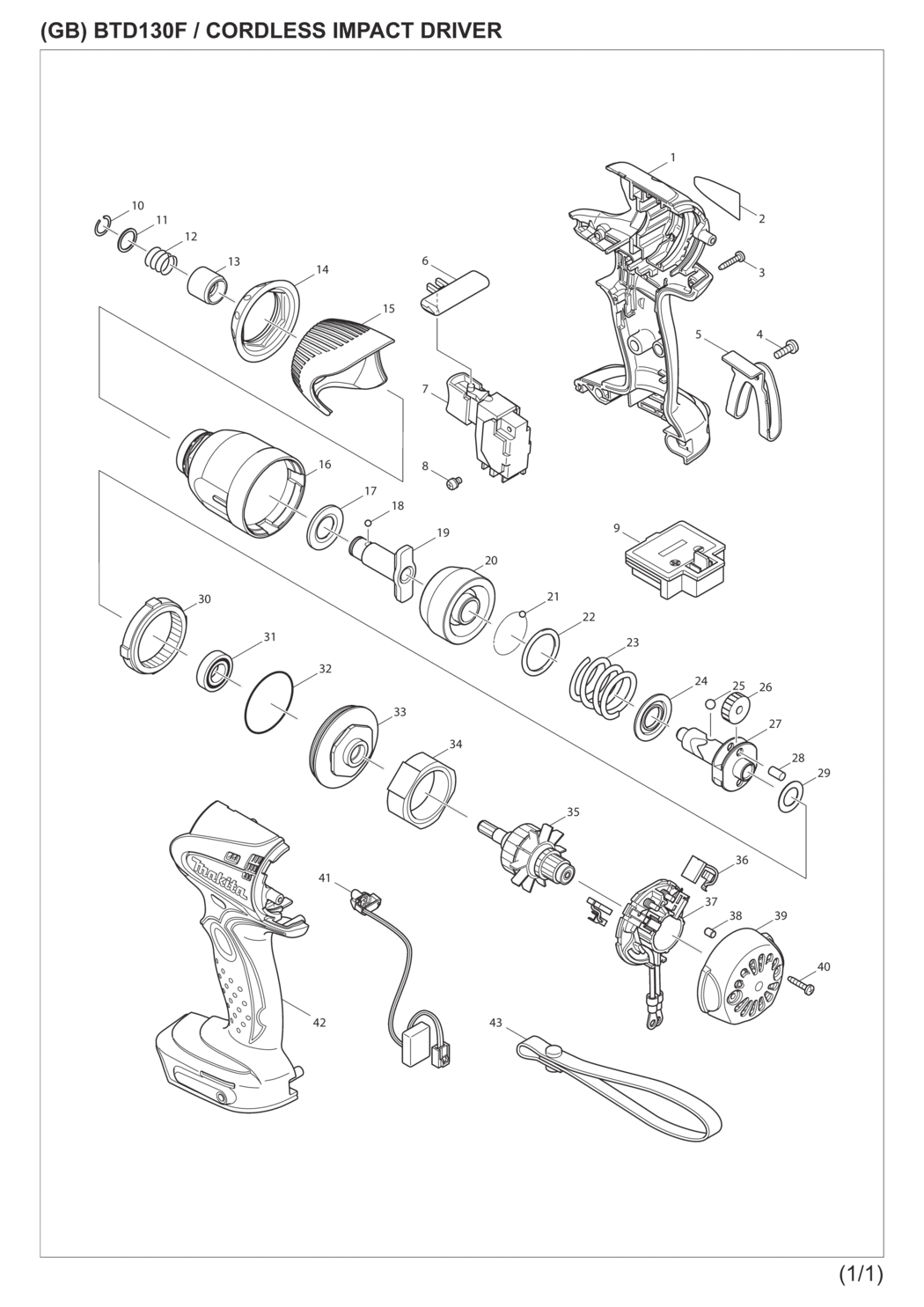

An exploded drawing and spare parts listing for the Makita BTD130FSFEW Cordless Impact Driver

	Ex VAT	Inc VAT
1-2 - *HOUSING SET BTD130F MSP-188257-4.A1 188257-4	£37.40	£44.88
1-3 - HOUSING SET BTD130F MSP-187471-9.A3 187471-9	£28.71	£34.45
1-1 - *HOUSING SET BTD130F MSP-188257-4.A0 188257-4	£37.40	£44.88
2 - NAME PLATE BTD130F MSP-861532-0.A3 861532-0	£1.66	£1.99
3 - TAPPING SCREW BIND 3 X 16 L14 MSP-266130-9.A263 266130-9	£1.66	£1.99
4 - SPECIAL PAN HD SCREW M4X12 MSP-251314-2.A37 251314-2	£1.66	£1.99
5-2 - HOOK BTD136/147/BFS441/451/ MSP-346317-0.A69 346317-0	£1.93	£2.32
6 - F/R CHANGE LEVER BTD043/063/1 MSP-419041-9.A1 419041-9	£1.66	£1.99
8 - PANHD SCREW M3.5X5 BTD134/146 MSP-652045-0.A4 652045-0	£1.66	£1.99
9-1 - *TERMINAL 14.4V MODELS ONLY MSP-643811-6.A29 643811-6	£3.38	£4.06
9 - TERMINAL BTW/BTD/BLS/BHP MODE MSP-643983-7.A3 643983-7	£3.25	£3.90
10 - RING SPRING 11 BTD/TD126/TL064 MSP-231951-8.A5 231951-8	£1.66	£1.99
11 - NARROW WASHER 12 TD126/DTD154 MSP-267085-1.A17 267085-1	£1.66	£1.99
12 - COMPRESSION SPRING 13 TD126 MSP-233005-7.A85 233005-7	£1.66	£1.99
13 - SLEEVE 6916FD-6980FD/TD126 MSP-324420-7.A1 324420-7	£2.49	£2.99
14-2 - BUMPER BTD130F/BTP130/140 MSP-424370-7.A4 424370-7	£2.49	£2.99
15-1 - HAMMER CASE COVER BTD130F MSP-452380-4.A0 452380-4	£2.49	£2.99
16-1 - HAMMER CASE BTD130F/132D MSP-154590-6.A8 154590-6	£15.51	£18.61
16 - HAMMER CASE BTD130F/132D MSP-154590-6.A11 154590-6	£15.51	£18.61
17 - NYLON WASHER 14 BTD043/063/10 MSP-261108-7.A8 261108-7	£1.66	£1.99
18 - STEEL BALL 3.5 BPJ/DTD154/TL06 MSP-216001-0.A109 216001-0	£1.66	£1.99
19 - ANVIL M 6935/80FD/BTD132/144 MSP-324432-0.A9 324432-0	£19.25	£23.10
20 - HAMMER BTD130F/BTD132 BTD133 MSP-324583-9.A3 324583-9	£11.55	£13.86
21 - STEEL BALL 3.5 BPJ/DTD154/TL06 MSP-216001-0.A110 216001-0	£1.66	£1.99
22 - FLAT WASHER 24 HR1840/HR1841F MSP-267175-0.A6 267175-0	£1.66	£1.99
23 - COMPRESSION SPRING 24 BTD134/ MSP-233430-2.A3 233430-2	£2.49	£2.99
24 - CUP WASHER 14 BTP130/TD126 MSP-267766-7.A11 267766-7	£1.66	£1.99
25 - STEEL BALL 5.6/DTW285 MSP-216041-8.A46 216041-8	£1.66	£1.99
26-1 - SPUR GEAR 22 BTD134/136/132/1 MSP-227362-3.A22 227362-3	£2.49	£2.99
27 - SPINDLE BTD130F/BTD132/144 MSP-324552-0.A0 324552-0	£13.09	£15.71
28 - PIN 5 BTD134LF10/TD126 MSP-256253-1.A11 256253-1	£1.66	£1.99
29 - FLAT WASHER 12 TD126/6916-691 MSP-267212-0.A16 267212-0	£1.66	£1.99
30 - INTERNAL GEAR 51 BTD134/136/1 MSP-227150-8.A6 227150-8	£3.25	£3.90
31 - BALL BEARING 6901LLB BTD134/1 MSP-211140-1.A10 211140-1	£5.59	£6.71
32 - O RING 40 BTD134/136/144/146/ MSP-213507-9.A3 213507-9	£2.49	£2.99
33-1 - BEARING BOX CO BTD140/BTD130F MSP-154769-9.A1 154769-9	£12.35	£14.82
34 - YOKE UNIT BTD043/063/103 MSP-638396-5.A3 638396-5	£11.77	£14.12
35-2 - ARMATURE BTD130F/134 MSP-619370-2.A6 619370-2	£17.82	£21.38
36-1 - CARBON BRUSH CB-440 BTD043/06 MSP-194427-5.A100 194427-5	-
36-2 - CARBON BRUSH CB-440 BTD043/06 MSP-194427-5.A117 194427-5	-
37-1 - TORSION SPRING L BFS440/BTD13 MSP-231697-6.A1 231697-6	£1.66	£1.99
37 - TORSION SPRING R BFS440/BTD13 MSP-231696-8.A31 231696-8	£1.66	£1.99
37-1 - BRUSH HOLDER BTD134/146 MSP-638895-7.A0 638895-7	£4.03	£4.84
37 - TORSION SPRING L BFS440/BTD13 MSP-231697-6.A0 231697-6	£1.66	£1.99
37-1 - TORSION SPRING R BFS440/BTD13 MSP-231696-8.A32 231696-8	£1.66	£1.99
38 - RUBBER PIN 4 BTD043/063/103 MSP-263032-0.A81 263032-0	£1.66	£1.99
39 - REAR COVER BTD130F MSP-418982-6.A1 418982-6	£6.50	£7.80
40 - TAPPING SCREW BIND 3 X 16 L14 MSP-266130-9.A262 266130-9	£1.66	£1.99
41 - LIGHT CIRCUIT BTD130F/BTP130 MSP-631631-0.A13 631631-0	£13.64	£16.37
42-1 - *HOUSING SET BTD130F MSP-188257-4.A3 188257-4	£37.40	£44.88
42-3 - HOUSING SET BTD130F MSP-187471-9.A2 187471-9	£28.71	£34.45
42-2 - *HOUSING SET BTD130F MSP-188257-4.A2 188257-4	£37.40	£44.88
A03 - PLASTIC CASE LID BTD130F MSP-418406-2.A5 418406-2	£7.80	£9.36
A03 - SHAFT BTP140/BTD132/144/BDF45 MSP-324207-7.A23 324207-7	£2.49	£2.99
A03 - LATCH FOR 824650-5 PL CASE MSP-417724-5.A5 417724-5	£1.88	£2.25
A03-4 - HANDLE HP1641/BTD140/DTW251 MSP-419216-0.A28 419216-0	£2.49	£2.99
A03-1 - LATCH FOR 824650-5 PL CASE MSP-417724-5.A146 417724-5	£1.88	£2.25
A03-2 - LATCH FOR 824650-5 PL CASE MSP-417724-5.A151 417724-5	£1.88	£2.25
A03-1 - PLASTIC CASE LID BST221/BTP13 MSP-419215-2.A62 419215-2	£5.98	£7.18
A03-3 - PLASTIC CASE LID BST221/BTP13 MSP-419215-2.A65 419215-2	£5.98	£7.18
A03-2 - PLATE BST221/BTD140SFE/BHR162 MSP-413098-2.A44 413098-2	£1.66	£1.99
A03-3 - PLATE BST221/BTD140SFE/BHR162 MSP-413098-2.A83 413098-2	£1.66	£1.99
A03-1 - SHAFT BTP140/BTD132/144/BDF45 MSP-324207-7.A83 324207-7	£2.49	£2.99
A03-3 - SHAFT BTP140/BTD132/144/BDF45 MSP-324207-7.A90 324207-7	£2.49	£2.99
A03-1 - HANDLE HP1641/BTD140/DTW251 MSP-419216-0.A29 419216-0	£2.49	£2.99
A03-2 - PLASTIC CASE LID BST221/BTP13 MSP-419215-2.A63 419215-2	£5.98	£7.18
A03-4 - PLASTIC CASE LID BST221/BTP13 MSP-419215-2.A64 419215-2	£5.98	£7.18
A03-1 - PLATE BST221/BTD140SFE/BHR162 MSP-413098-2.A45 413098-2	£1.66	£1.99
A03-4 - PLATE BST221/BTD140SFE/BHR162 MSP-413098-2.A82 413098-2	£1.66	£1.99
A03-4 - SHAFT BTP140/BTD132/144/BDF45 MSP-324207-7.A22 324207-7	£2.49	£2.99
A03-3 - HANDLE HP1641/BTD140/DTW251 MSP-419216-0.A31 419216-0	£2.49	£2.99
A03-3 - LATCH FOR 824650-5 PL CASE MSP-417724-5.A6 417724-5	£1.88	£2.25
A03-2 - HANDLE HP1641/BTD140/DTW251 MSP-419216-0.A30 419216-0	£2.49	£2.99
A03-4 - LATCH FOR 824650-5 PL CASE MSP-417724-5.A7 417724-5	£1.88	£2.25
A03-2 - SHAFT BTP140/BTD132/144/BDF45 MSP-324207-7.A21 324207-7	£2.49	£2.99
A07 - BATTERY COVER BDG800/DTW251 MSP-450128-8.A157 450128-8	£1.20	£1.44
