Makita BTD130FSFE Cordless Impact Driver Spare Parts

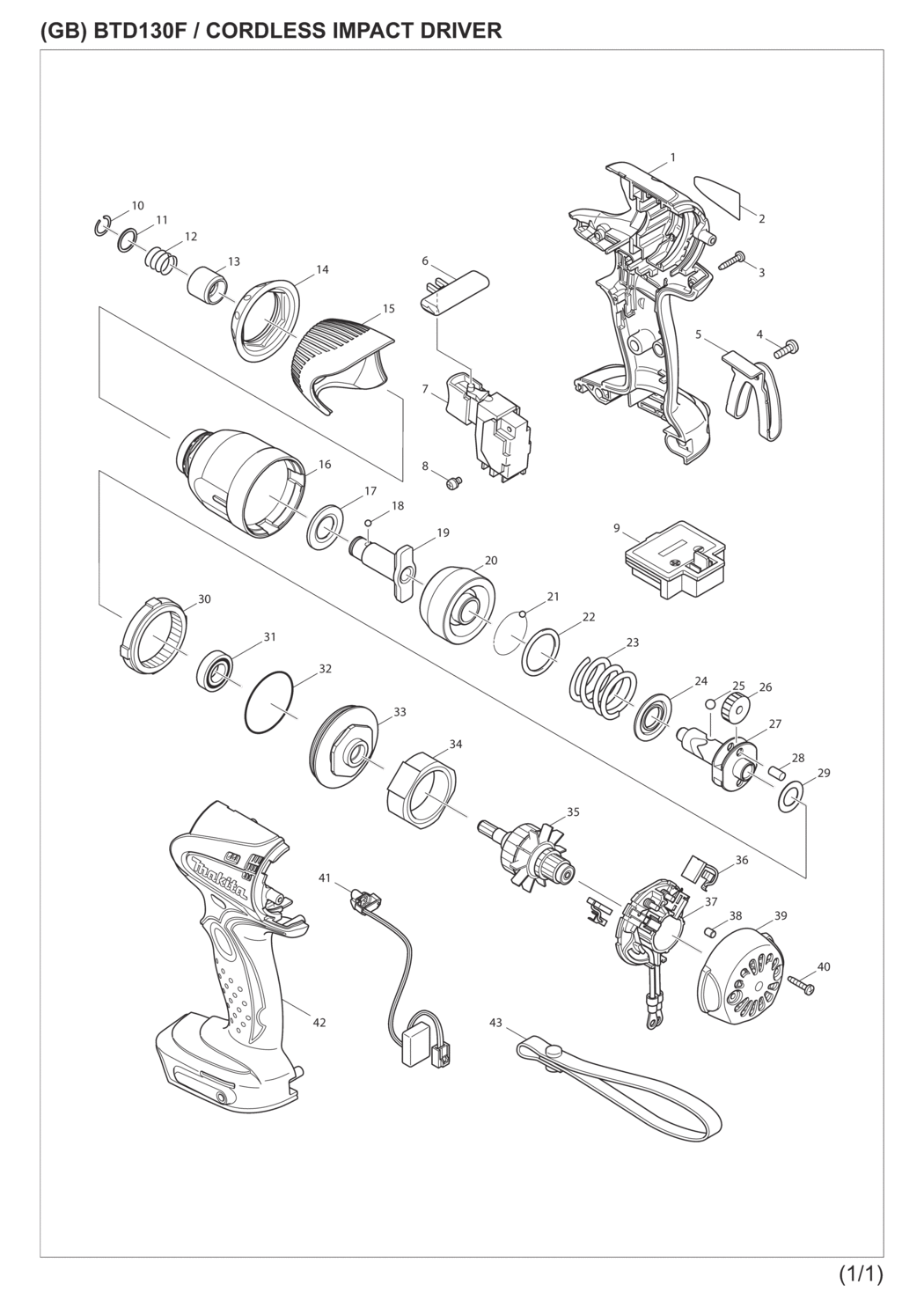

An exploded drawing and spare parts listing for the Makita BTD130FSFE Cordless Impact Driver

	Ex VAT	Inc VAT
2 - NAME PLATE BTD130F MSP-861532-0.A1 861532-0	£1.44	£1.73
3 - TAPPING SCREW BIND 3 X 16 L14 MSP-266130-9.A17 266130-9	£1.44	£1.73
4 - SPECIAL PAN HD SCREW M4X12 MSP-251314-2.A132 251314-2	£1.44	£1.73
5-2 - HOOK BTD136/147/BFS441/451/ MSP-346317-0.A110 346317-0	£1.93	£2.32
6 - F/R CHANGE LEVER BTD043/063/1 MSP-419041-9.A72 419041-9	£1.44	£1.73
8 - PANHD SCREW M3.5X5 BTD134/146 MSP-652045-0.A17 652045-0	£1.44	£1.73
9-1 - *TERMINAL 14.4V MODELS ONLY MSP-643811-6.A9 643811-6	£4.06	£4.87
9 - TERMINAL BTW/BTD/BLS/BHP MODE MSP-643983-7.A16 643983-7	£3.90	£4.68
10 - RING SPRING 11 BTD/TD126/TL064 MSP-231951-8.A51 231951-8	£1.44	£1.73
11 - NARROW WASHER 12 TD126/DTD154 MSP-267085-1.A30 267085-1	£1.44	£1.73
12 - COMPRESSION SPRING 13 TD126 MSP-233005-7.A39 233005-7	£1.44	£1.73
13 - SLEEVE 6916FD-6980FD/TD126 MSP-324420-7.A22 324420-7	£4.37	£5.24
14-2 - BUMPER BTD130F/BTP130/140 MSP-424370-7.A1 424370-7	£3.28	£3.93
15-1 - HAMMER CASE COVER BTD130F MSP-452380-4.A4 452380-4	£3.28	£3.93
16-1 - HAMMER CASE BTD130F/132D MSP-154590-6.A6 154590-6	£20.30	£24.36
16 - HAMMER CASE BTD130F/132D MSP-154590-6.A13 154590-6	£20.30	£24.36
17 - NYLON WASHER 14 BTD043/063/10 MSP-261108-7.A2 261108-7	£1.44	£1.73
18 - STEEL BALL 3.5 BPJ/DTD154/TL06 MSP-216001-0.A67 216001-0	£1.59	£1.91
19 - ANVIL M 6935/80FD/BTD132/144 MSP-324432-0.A3 324432-0	£25.20	£30.24
20 - HAMMER BTD130F/BTD132 BTD133 MSP-324583-9.A6 324583-9	£15.58	£18.70
21 - STEEL BALL 3.5 BPJ/DTD154/TL06 MSP-216001-0.A66 216001-0	£1.59	£1.91
22 - FLAT WASHER 24 HR1840/HR1841F MSP-267175-0.A61 267175-0	£1.44	£1.73
23 - COMPRESSION SPRING 24 BTD134/ MSP-233430-2.A22 233430-2	£2.18	£2.62
24 - CUP WASHER 14 BTP130/TD126 MSP-267766-7.A28 267766-7	£1.44	£1.73
25 - STEEL BALL 5.6/DTW285 MSP-216041-8.A90 216041-8	£1.44	£1.73
26-1 - SPUR GEAR 22 BTD134/136/132/1 MSP-227362-3.A12 227362-3	£2.50	£3.00
27 - SPINDLE BTD130F/BTD132/144 MSP-324552-0.A8 324552-0	£17.13	£20.56
28 - PIN 5 BTD134LF10/TD126 MSP-256253-1.A30 256253-1	£1.44	£1.73
29 - FLAT WASHER 12 TD126/6916-691 MSP-267212-0.A5 267212-0	£1.44	£1.73
30 - INTERNAL GEAR 51 BTD134/136/1 MSP-227150-8.A17 227150-8	£3.90	£4.68
31 - BALL BEARING 6901LLB BTD134/1 MSP-211140-1.A7 211140-1	£6.71	£8.05
32 - O RING 40 BTD134/136/144/146/ MSP-213507-9.A34 213507-9	£3.74	£4.49
33-1 - BEARING BOX CO BTD140/BTD130F MSP-154769-9.A5 154769-9	£14.82	£17.78
34 - YOKE UNIT BTD043/063/103 MSP-638396-5.A26 638396-5	£15.91	£19.09
35-2 - ARMATURE BTD130F/134 MSP-619370-2.A0 619370-2	£23.32	£27.99
36-2 - CARBON BRUSH CB-440 BTD043/06 MSP-194427-5.A95 194427-5	£5.83	£7.00
36-1 - CARBON BRUSH CB-440 BTD043/06 MSP-194427-5.A122 194427-5	£5.83	£7.00
37-1 - TORSION SPRING L BFS440/BTD13 MSP-231697-6.A32 231697-6	£1.44	£1.73
37-1 - BRUSH HOLDER BTD134/146 MSP-638895-7.A10 638895-7	£4.83	£5.80
37 - TORSION SPRING L BFS440/BTD13 MSP-231697-6.A34 231697-6	£1.44	£1.73
37-1 - TORSION SPRING R BFS440/BTD13 MSP-231696-8.A43 231696-8	£1.44	£1.73
37 - TORSION SPRING R BFS440/BTD13 MSP-231696-8.A46 231696-8	£1.44	£1.73
38 - RUBBER PIN 4 BTD043/063/103 MSP-263032-0.A2 263032-0	£1.44	£1.73
39 - REAR COVER BDF450/BHP450/BTD1 MSP-418981-8.A10 418981-8	£7.80	£9.36
40 - TAPPING SCREW BIND 3 X 16 L14 MSP-266130-9.A12 266130-9	£1.44	£1.73
41 - LIGHT CIRCUIT BTD130F/BTP130 MSP-631631-0.A5 631631-0	£17.86	£21.43
A03 - PLASTIC CASE LID BTD130F MSP-418406-2.A2 418406-2	£9.36	£11.23
A03 - SHAFT BTP140/BTD132/144/BDF45 MSP-324207-7.A56 324207-7	£2.18	£2.62
A03 - LATCH FOR 824650-5 PL CASE MSP-417724-5.A109 417724-5	£1.20	£1.44
A03-1 - HANDLE HP1641/BTD140/DTW251 MSP-419216-0.A74 419216-0	£1.44	£1.73
A03-1 - LATCH FOR 824650-5 PL CASE MSP-417724-5.A11 417724-5	£1.20	£1.44
A03-1 - PLASTIC CASE LID BST221/BTP13 MSP-419215-2.A5 419215-2	£7.18	£8.61
A03-2 - PLATE BST221/BTD140SFE/BHR162 MSP-413098-2.A47 413098-2	£1.44	£1.73
A03-3 - PLATE BST221/BTD140SFE/BHR162 MSP-413098-2.A80 413098-2	£1.44	£1.73
A03-2 - HANDLE HP1641/BTD140/DTW251 MSP-419216-0.A21 419216-0	£1.44	£1.73
A03-2 - LATCH FOR 824650-5 PL CASE MSP-417724-5.A12 417724-5	£1.20	£1.44
A03-3 - PLASTIC CASE LID BST221/BTP13 MSP-419215-2.A4 419215-2	£7.18	£8.61
A03-3 - SHAFT BTP140/BTD132/144/BDF45 MSP-324207-7.A24 324207-7	£2.18	£2.62
A03-3 - HANDLE HP1641/BTD140/DTW251 MSP-419216-0.A22 419216-0	£1.44	£1.73
A03-3 - LATCH FOR 824650-5 PL CASE MSP-417724-5.A144 417724-5	£1.20	£1.44
A03-4 - LATCH FOR 824650-5 PL CASE MSP-417724-5.A153 417724-5	£1.20	£1.44
A03-2 - SHAFT BTP140/BTD132/144/BDF45 MSP-324207-7.A25 324207-7	£2.18	£2.62
A03-4 - HANDLE HP1641/BTD140/DTW251 MSP-419216-0.A23 419216-0	£1.44	£1.73
A03-2 - PLASTIC CASE LID BST221/BTP13 MSP-419215-2.A61 419215-2	£7.18	£8.61
A03-4 - PLASTIC CASE LID BST221/BTP13 MSP-419215-2.A66 419215-2	£7.18	£8.61
A03-1 - PLATE BST221/BTD140SFE/BHR162 MSP-413098-2.A48 413098-2	£1.44	£1.73
A03-4 - PLATE BST221/BTD140SFE/BHR162 MSP-413098-2.A79 413098-2	£1.44	£1.73
A03-1 - SHAFT BTP140/BTD132/144/BDF45 MSP-324207-7.A82 324207-7	£2.18	£2.62
A03-4 - SHAFT BTP140/BTD132/144/BDF45 MSP-324207-7.A91 324207-7	£2.18	£2.62
A07 - BATTERY COVER BDG800/DTW251 MSP-450128-8.A154 450128-8	£1.20	£1.44

Attribute Name	Value
Brand	Makita
