Makita 6347DWDE3 Cordless Driver Drill Spare Parts

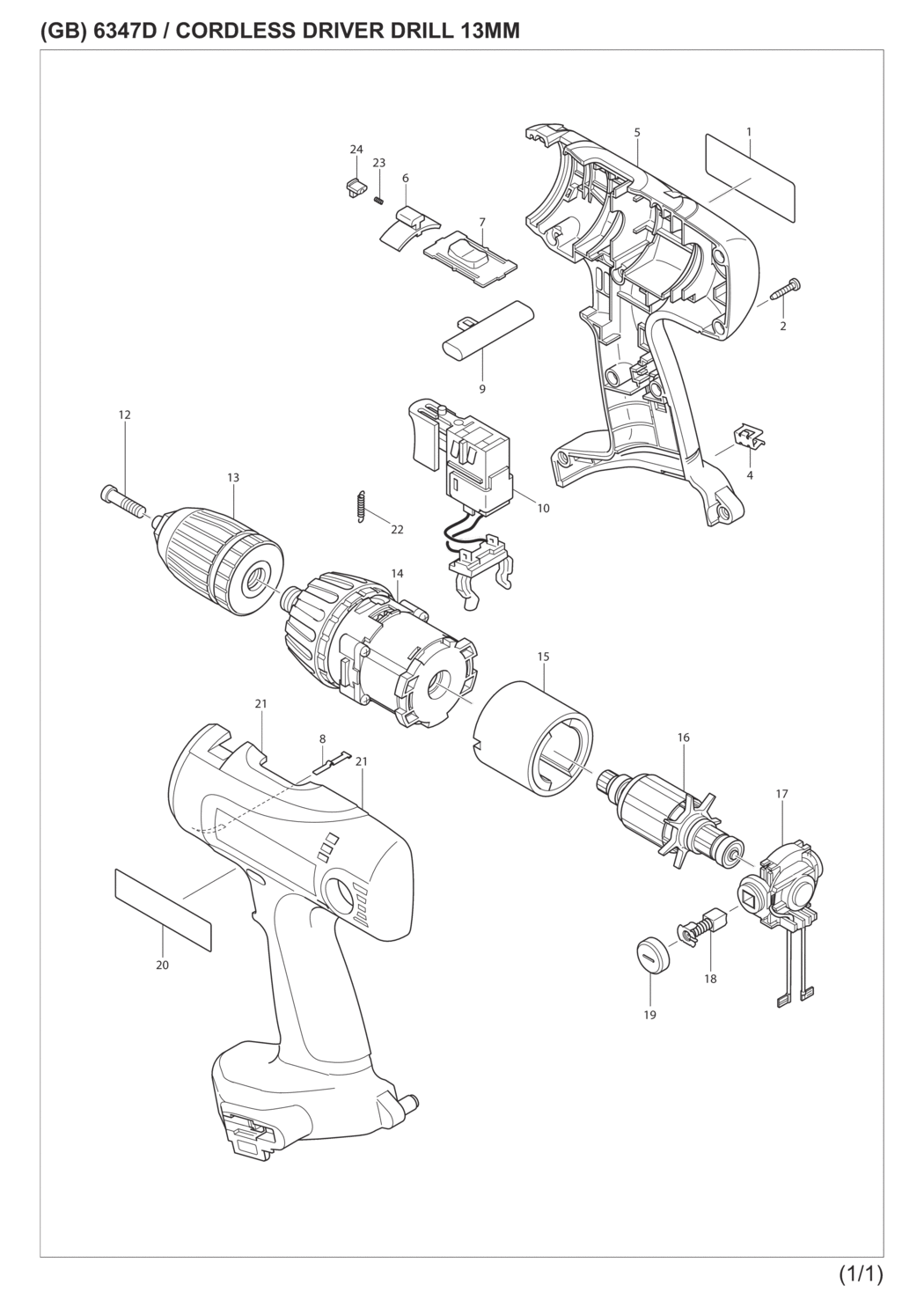

An exploded drawing and spare parts listing for the Makita 6347DWDE3 Cordless Driver Drill

	Ex VAT	Inc VAT
4 - BIT HOLDER 6313DW/8413D-43D MSP-344391-2.A15 344391-2	£1.66	£1.99
5-1 - HOUSING SET 6347D MSP-188785-9.A1 188785-9	£24.48	£29.38
6 - MODE CHANGE LEVER 6317-47D MSP-417879-6.A4 417879-6	£1.44	£1.73
7 - SPEED CHANGE LEVER ASSY BHP46 MSP-125102-2.A2 125102-2	£1.44	£1.73
7 - COMPRESSION SPRING 4 MSP-231433-0.A60 231433-0	£1.44	£1.73
7-1 - SPEED CHANGE LEVER ASSY DDF34 MSP-125310-5.A31 125310-5	£1.44	£1.73
8 - LEAF SPRING DHP480/DDF480 MSP-232182-2.A80 232182-2	£1.44	£1.73
9-1 - F/R CHANGE LEVER 6317-47D MSP-417880-1.A0 417880-1	£1.44	£1.73
13-1 - KEYLESS CHUCK 63-43D/DP4700/ MSP-193616-9.A3 193616-9	£24.72	£29.66
14-3 - GEAR ASSY/ALMINIUM 6317-47DWD MSP-125574-1.A3 125574-1	£41.23	£49.48
15 - YOKE UNIT 6317-47D BUC121/122 MSP-638138-7.A3 638138-7	£19.58	£23.50
16-1 - ARMATURE 6347DWDE MSP-619118-2.A2 619118-2	£26.92	£32.31
19 - HOLDER CAP BPJ140/180/BUC121/ MSP-643954-4.A11 643954-4	£2.49	£2.99
21-1 - HOUSING SET 6347D MSP-188785-9.A0 188785-9	£24.48	£29.38
22 - TENSION SPRING 2 6317-47D MSP-231829-5.A5 231829-5	£1.44	£1.73
A03-1 - SHAFT BTP140/BTD132/144/BDF45 MSP-324207-7.A31 324207-7	£2.18	£2.62
A03-1 - LATCH FOR 824650-5 PL CASE MSP-417724-5.A0 417724-5	£1.20	£1.44
