Makita 6347DWAE3 Cordless Driver Drill Spare Parts

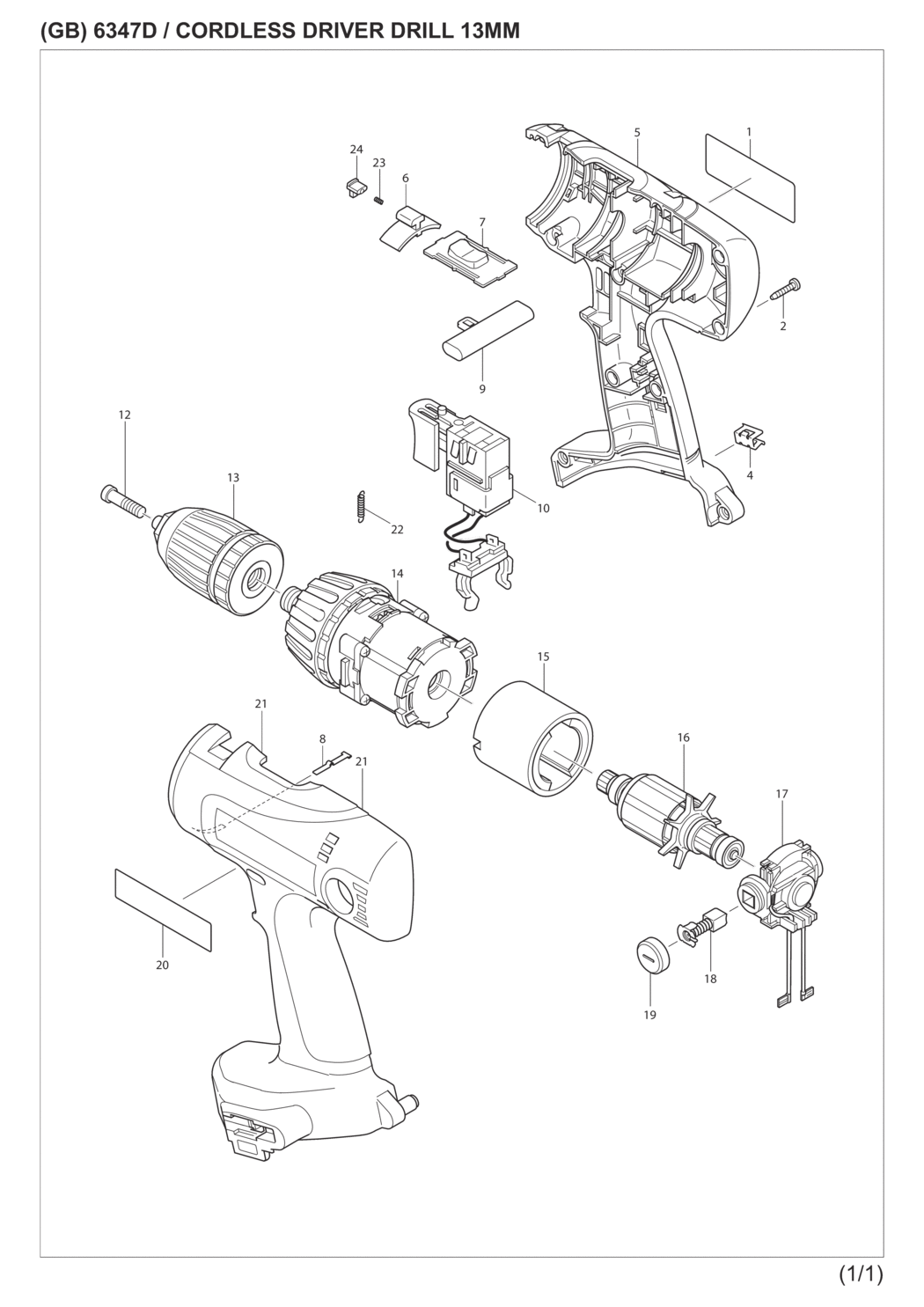

An exploded drawing and spare parts listing for the Makita 6347DWAE3 Cordless Driver Drill

	Ex VAT	Inc VAT
4 - BIT HOLDER 6313DW/8413D-43D MSP-344391-2.A16 344391-2	£1.66	£1.99
5-1 - HOUSING SET 6347D MSP-188785-9.A2 188785-9	£24.48	£29.38
6 - MODE CHANGE LEVER 6317-47D MSP-417879-6.A3 417879-6	£1.44	£1.73
7 - COMPRESSION SPRING 4 MSP-231433-0.A62 231433-0	£1.44	£1.73
7-1 - SPEED CHANGE LEVER ASSY DDF34 MSP-125310-5.A34 125310-5	£1.44	£1.73
7-1 - COMPRESSION SPRING 4 MSP-231433-0.A63 231433-0	£1.44	£1.73
9-1 - F/R CHANGE LEVER 6317-47D MSP-417880-1.A9 417880-1	£1.44	£1.73
9 - F/R CHANGE LEVER 6317-47D MSP-417880-1.A10 417880-1	£1.44	£1.73
10 - BATTERY HOLDER LS800DWB/HR160 MSP-643918-8.A5 643918-8	£11.08	£13.29
12 - SPECIAL BOLT M6X22 LTH MSP-251464-3.A0 251464-3	£1.44	£1.73
14-3 - GEAR ASSY/ALMINIUM 6317-47DWD MSP-125574-1.A2 125574-1	£41.23	£49.48
16-1 - ARMATURE 6347DWDE MSP-619118-2.A0 619118-2	£26.92	£32.31
18 - CARBON BRUSH SET CB-430 MSP-191971-3.A58 191971-3	£5.78	£6.93
20 - LABEL/MAKITA LS10305603R241 MSP-819064-1.A1 819064-1	£1.44	£1.73
22 - TENSION SPRING 2 6317-47D MSP-231829-5.A4 231829-5	£1.44	£1.73
A01 - BATTERY COVER UC120DW/VR250DW MSP-414938-7.A5 414938-7	£1.44	£1.73

Attribute Name	Value
Brand	Makita
