Makita 6337DWAE3 Cordless Driver Drill Spare Parts

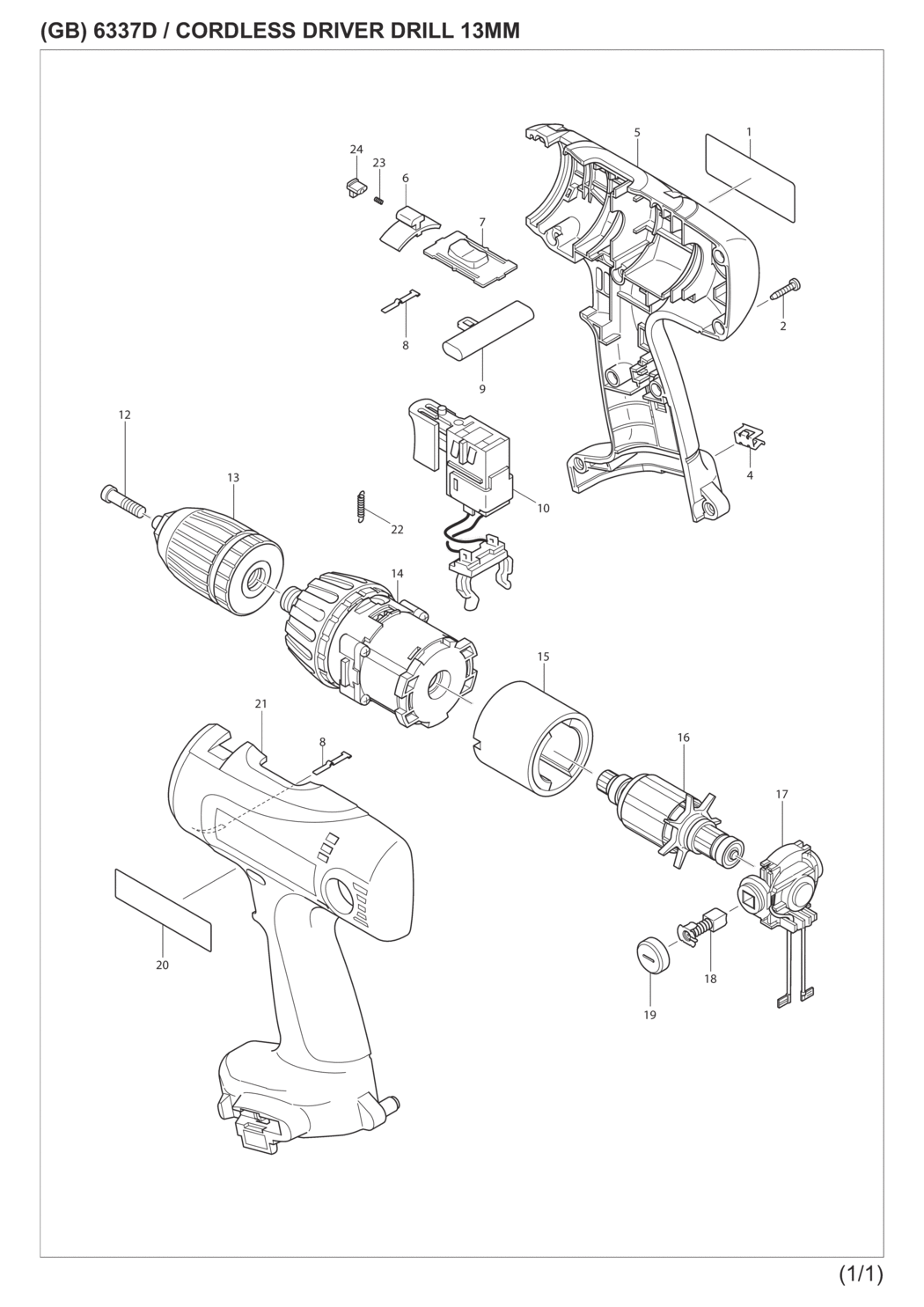

An exploded drawing and spare parts listing for the Makita 6337DWAE3 Cordless Driver Drill

	Ex VAT	Inc VAT
1 - NAME PLATE 6337D MSP-853712-2.A1 853712-2	£2.49	£2.99
6 - MODE CHANGE LEVER 6317-47D MSP-417879-6.A0 417879-6	£2.49	£2.99
7 - SPEED CHANGE LEVER ASSY BHP46 MSP-125102-2.A5 125102-2	£1.66	£1.99
7-1 - SPEED CHANGE LEVER ASSY DDF34 MSP-125310-5.A27 125310-5	£1.66	£1.99
9 - F/R CHANGE LEVER 6317-47D MSP-417880-1.A5 417880-1	£1.66	£1.99
10 - BATTERY HOLDER LS800DWB/HR160 MSP-643918-8.A7 643918-8	£9.23	£11.08
17 - ENDBELL 6317-47D MSP-638139-5.A4 638139-5	£3.90	£4.68
20 - LABEL/MAKITA LS10305603R241 MSP-819064-1.A12 819064-1	£2.49	£2.99
24-1 - LOCK LEVER 6317-47D MSP-418095-3.A4 418095-3	£1.66	£1.99
A01 - BATTERY COVER UC120DW/VR250DW MSP-414938-7.A15 414938-7	£1.66	£1.99
A02 - 45MM DOUBLE-END PH 2 X SLOT 6 MSP-784637-8.A41 784637-8	£2.48	£2.97
A03 - LABEL/MAKITA LOGO HR1830 MSP-819144-3.A12 819144-3	£1.66	£1.99
A03 - LATCH FOR 824650-5 PL CASE MSP-417724-5.A36 417724-5	£1.20	£1.44
A03-1 - LABEL/MAKITA LOGO HR1830 MSP-819144-3.A13 819144-3	£1.66	£1.99

Attribute Name	Value
Brand	Makita
