Makita 6317DWAE Cordless Driver Drill Spare Parts

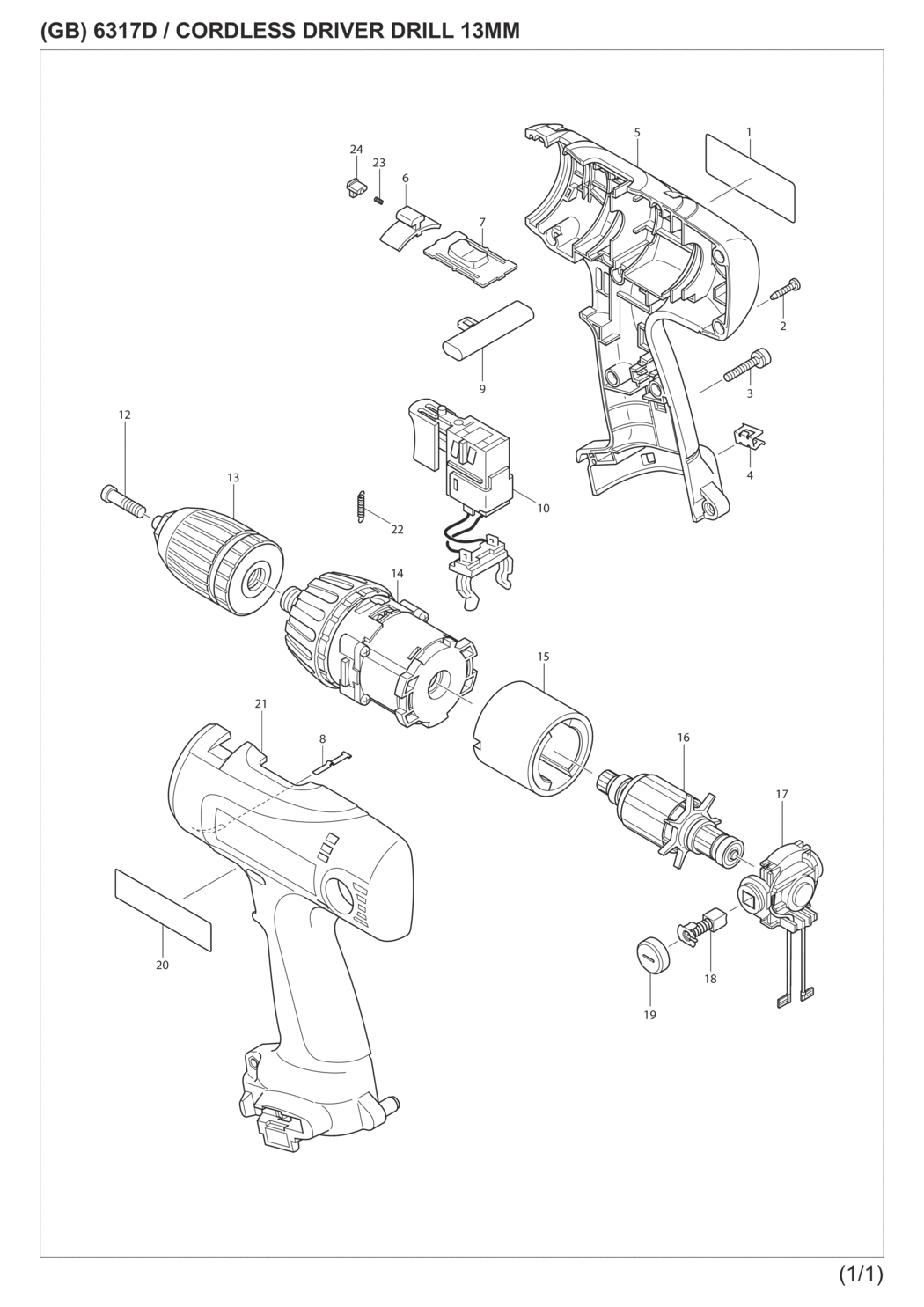

An exploded drawing and spare parts listing for the Makita 6317DWAE Cordless Driver Drill

	Ex VAT	Inc VAT
2 - TAPPING SCREW BIND 3 X 16 L14 MSP-266130-9.A298 266130-9	£1.44	£1.73
2-1 - TAPPING SCREW BIND 3 X 16 L14 MSP-266130-9.A301 266130-9	£1.44	£1.73
4 - BIT HOLDER 6313DW/8413D-43D MSP-344391-2.A2 344391-2	£1.66	£1.99
7-1 - COMPRESSION SPRING 4 MSP-231433-0.A31 231433-0	£1.44	£1.73
7-1 - SPEED CHANGE LEVER ASSY DDF34 MSP-125310-5.A28 125310-5	£1.44	£1.73
7 - COMPRESSION SPRING 4 MSP-231433-0.A32 231433-0	£1.44	£1.73
8 - LEAF SPRING DHP480/DDF480 MSP-232182-2.A39 232182-2	£1.44	£1.73
12 - SPECIAL BOLT M6X22 LTH MSP-251464-3.A7 251464-3	£1.44	£1.73
13-1 - KEYLESS CHUCK 63-43D/DP4700/ MSP-193616-9.A1 193616-9	£24.72	£29.66
16-1 - ARMATURE 6317DWDE MSP-619116-6 619116-6	£26.92	£32.31
17 - ENDBELL 6317-47D MSP-638139-5.A2 638139-5	£4.68	£5.62
22 - TENSION SPRING 2 6317-47D MSP-231829-5.A0 231829-5	£1.44	£1.73
23 - COMPRESSION SPRING 2 MSP-233353-4.A4 233353-4	£1.44	£1.73
A01 - BATTERY COVER UC120DW/VR250DW MSP-414938-7.A12 414938-7	£1.44	£1.73
A03 - LABEL/MAKITA LOGO HR1830 MSP-819144-3.A10 819144-3	£1.44	£1.73
A03 - HANDLE 6317-47D PLASTIC CASE MSP-417723-7.A8 417723-7	£1.44	£1.73
A03-1 - SHAFT BTP140/BTD132/144/BDF45 MSP-324207-7.A12 324207-7	£2.18	£2.62
A03-1 - HANDLE 6317-47D PLASTIC CASE MSP-417723-7.A7 417723-7	£1.44	£1.73

Attribute Name	Value
Brand	Makita
