Mafell 970701 Pull-Push Saw ERIKA 85 L Spare Parts

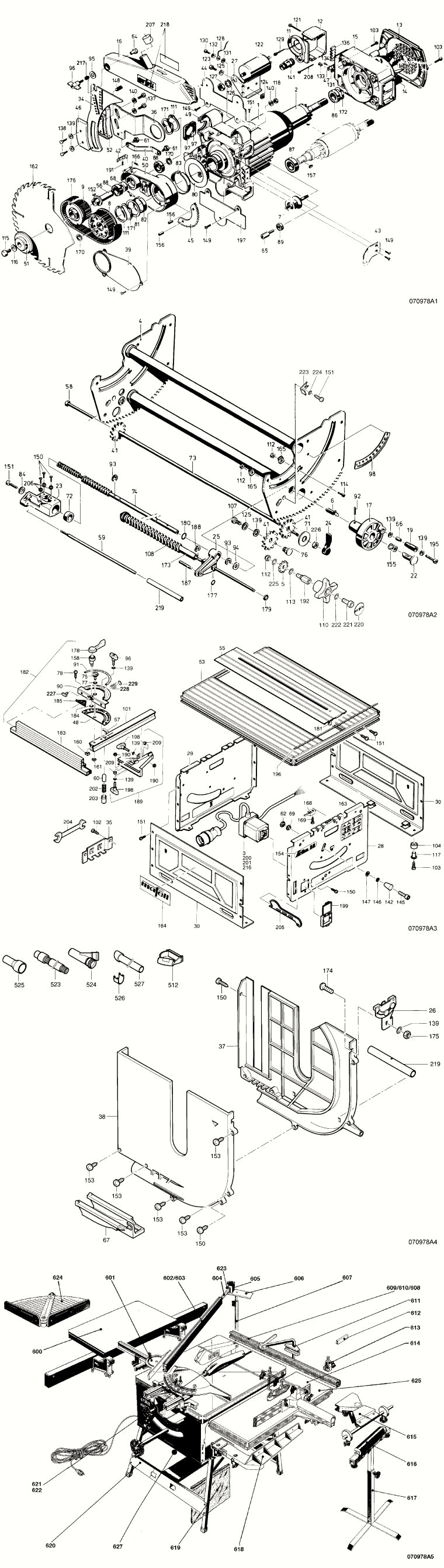

An exploded drawing and spare parts listing for the Mafell 970701 Pull-Push Saw ERIKA 85 L

	Ex VAT	Inc VAT
1 - STATOR MAF-082116.A 082116	-
2 - ROTOR MAF-007290.A1 007290	-
3 - SWITCH, CPL., WITH BRAKE MAF-087758.A 087758	-
4 - CRADLE, CPL. MAF-039739.A1 039739	-
5 - PINION MAF-035369.A6 035369	-
6 - CLICK-IN BRACKET MAF-039803.A1 039803	-
7 - SETTING ROLLER MAF-200855.A0 200855	-
8 - DRIVING DISK MAF-039743.A1 039743	-
9 - FLANGE, REAR MAF-201305.A1 201305	-
11 - CAPACITOR MOUNTING MAF-037924.A0 037924	-
12 - COVER MAF-037923.A0 037923	-
13 - FAN COVER MAF-037922.A2 037922	-
14 - FAN MAF-037908.A3 037908	-
15 - END PLATE MAF-037919.A2 037919	-
16 - PROTECTIVE COVER MAF-201019.A4 201019	£40.80	£48.96
17 - HANDWHEEL MAF-039801.A5 039801	-
19 - PART NAME NOT AVAILABLE MAF-039799.A2 039799	-
22 - PUSH-BUTTON MAF-039780.A0 039780	-
23 - THREADED BUSHING MAF-039812.A0 039812	-
24 - TENSIONING LEVER MAF-039806.A1 039806	£7.81	£9.37
25 - SPRING MOUNTING MAF-039852.A0 039852	-
26 - SUPPORT, CPL. MAF-039839.A1 039839	-
27 - ANGLE PLATE MAF-037925.A0 037925	-
28 - FRONT PLATE MAF-039736.A1 039736	-
29 - REAR PLATE MAF-201861.A1 201861	-
30 - SIDE PLATE MAF-039805.A0 039805	-
34 - RIVING KNIFE/SPLITTER MAF-039778.A0 039778	-
35 - FIXING PLATE MAF-039828.A1 039828	-
36 - RIVING KNIFE/SPLITTER SUPPORT MAF-039770.A1 039770	-
37 - PROTECTIVE COVER MAF-201424.A1 201424	-
38 - SAW GUARD COVER MAF-201425.A0 201425	-
39 - BELT GUARD MAF-039761.A0 039761	-
40 - STRUT MAF-039771.A0 039771	-
41 - PINION MAF-201075.A1 201075	-
43 - SUPPORTING PLATE MAF-039822.A1 039822	-
44 - COVER PLATE, UPPER MAF-039731.A0 039731	-
45 - DRIVING SEGMENT MAF-039759.A1 039759	-
46 - CLAMPING METAL SHEET MAF-039791.A1 039791	-
47 - SMALL PLATE MAF-037987.A4 037987	-
48 - INDEX PLATE MAF-038262.A2 038262	-
49 - BEARING COVER MAF-039746.A0 039746	-
50 - PIVOTING ARM MAF-039744.A1 039744	-
51 - CLAMPING FLANGE MAF-039741.A0 039741	-
52 - INTERMEDIATE PIECE MAF-039769.A0 039769	-
53 - TABLE TOP MAF-201862.A0 201862	-
55 - TABLE INSERT MAF-201387.A0 201387	-
56 - SAW BLADE SHAFT MAF-039745.A1 039745	-
57 - SLIDING COVER MAF-038266.A2 038266	-
58 - COLLAR SCREW MAF-039813.A0 039813	-
59 - GUIDE BAR MAF-039811.A0 039811	-
60 - INDEX PIN MAF-038264.A3 038264	-
61 - SHOULDER SCREW MAF-039814.A1 039814	-
62 - ADJUSTING BOLT MAF-039776.A1 039776	-
64 - GUIDE PIECE MAF-201049.A5 201049	£8.79	£10.55
65 - BEARING BOLT MAF-039762.A0 039762	-
66 - SPACER BUSHING MAF-039800.A1 039800	-
67 - SLIDING COVER MAF-201761.A1 201761	-
68 - SPACER BUSHING MAF-039754.A0 039754	-
69 - GUIDE PIECE MAF-039775.A1 039775	-
71 - WASHER MAF-039787.A0 039787	-
72 - STOP SLEEVE MAF-039821.A0 039821	-
73 - TILTING ROD MAF-201076.A1 201076	-
75 - SHOULDER SCREW MAF-200948.A1 200948	-
76 - GUIDE NUT MAF-201077.A1 201077	-
77 - CUP SPRING MAF-006692.A8 006692	-
78 - CYLINDRICAL OVAL-HEAD SCREW MAF-055162.A15 055162	-
80 - SHIM RING MAF-039795.A0 039795	-
81 - SHIM RING MAF-039796.A1 039796	-
82 - GUIDE BUSH MAF-039797.A1 039797	-
83 - GUIDE BUSH MAF-039798.A1 039798	-
84 - WASHER MAF-061084.A1 061084	-
86 - GROOVED BALL BEARING MAF-006263.A2 006263	-
87 - GROOVED BALL BEARING MAF-062018.A16 062018	£27.36	£32.83
88 - GROOVED BALL BEARING MAF-006268.A1 006268	£16.07	£19.28
89 - GROOVED BALL BEARING MAF-006292.A1 006292	£13.09	£15.71
90 - STOP PLATE MAF-202595.A2 202595	-
91 - ANGLE SCALE MAF-077534.A4 077534	-
92 - SPRING DOWEL SLEEVE MAF-005831.A3 005831	-
93 - LOCKING WASHER MAF-061206.A1 061206	-
94 - SEALING RING MAF-065025.A3 065025	-
95 - WASHER MAF-061044.A4 061044	£1.73	£2.08
96 - WING SCREW MAF-079062.A0 079062	£6.76	£8.11
97 - SKIMMER MAF-039740.A0 039740	-
98 - SKALE MAF-039807.A1 039807	-
101 - GUIDE BAR MAF-038259.A4 038259	-
102 - SELF-TAPPING OVAL-HEAD SCREW MAF-055107.A1 055107	-
103 - CYLINDRICAL OVAL-HEAD SCREW MAF-055188.A15 055188	-
104 - RUBBER BUFFER MAF-034675.A2 034675	-
107 - CYLINDER-HEAD SCREW MAF-055010.A1 055010	-
108 - RETRACTING SPRING MAF-066088.A2 066088	-
110 - PART NAME NOT AVAILABLE MAF-201383.A1 201383	-
111 - RETAINING RING MAF-061133.A1 061133	£3.46	£4.15
112 - LOCKING NUT MAF-005979.A0 005979	£2.67	£3.20
113 - CUP SPRING MAF-006692.A10 006692	-
114 - OVAL-HEAD SCREW MAF-055127.A0 055127	-
115 - HEXAGON-HEAD SCREW MAF-056009.A1 056009	-
116 - WASHER MAF-006130.A8 006130	-
117 - TUBULAR RIVET MAF-201018.A3 201018	-
118 - HEXAGONAL NUT MAF-005920.A16 005920	-
121 - SELF-TAPPING OVAL-HEAD SCREW MAF-055124.A7 055124	-
122 - CAPACITOR MAF-076214.A1 076214	-
123 - HEXAGON-HEAD SCREW MAF-005697.A3 005697	-
124 - SQUARE NUT MAF-005953.A9 005953	-
125 - LOCKING WASHER MAF-006113.A4 006113	£2.02	£2.43
126 - LOCKING WASHER MAF-006114.A21 006114	-
127 - HEXAGONAL NUT MAF-005920.A11 005920	-
128 - CONNECTING CABLE MAF-038790.A1 038790	-
129 - PART NAME NOT AVAILABLE MAF-038789.A0 038789	-
130 - CHEESE-HEAD SCREW MAF-055095.A2 055095	-
131 - SQUARE NUT MAF-005961.A2 005961	-
132 - SERRATED LOCK WASHER MAF-061121.A3 061121	-
133 - LOCKING SCREW WITH WASHER MAF-055155.A3 055155	-
134 - RIBBED NAIL MAF-058068.A6 058068	-
136 - CLAMPING STRIP MAF-087721.A5 087721	-
137 - HEXAGON-HEAD SCREW MAF-005645.A11 005645	-
138 - HEXAGON-HEAD SCREW MAF-005632.A4 005632	-
139 - WASHER MAF-006101.A16 006101	£1.80	£2.16
140 - WASHER MAF-006102.A13 006102	-
141 - SCREW-TYPE CABLE CLAMP MAF-076041.A3 076041	-
142 - CONICAL HANDLE MAF-076101.A3 076101	-
145 - CYLINDER-HEAD SCREW MAF-005573.A14 005573	-
146 - CUP SPRING MAF-006675.A3 006675	£2.52	£3.03
147 - SHIM RING MAF-039838.A0 039838	-
148 - PRESSURE BIT, SPRING-LOADED MAF-005289.A7 005289	-
149 - FLAT-HEAD SCREW MAF-005399.A2 005399	£1.33	£1.60
150 - SELF-TAPPING OVAL-HEAD SCREW MAF-055062.A12 055062	-
151 - CYLINDRICAL OVAL-HEAD SCREW MAF-055079.A28 055079	£1.38	£1.66
152 - WOODRUFF KEY MAF-076053.A0 076053	-
153 - CYLINDRICAL OVAL-HEAD SCREW MAF-055061.A48 055061	£1.79	£2.15
155 - PRESSURE SPRING MAF-066084.A4 066084	-
156 - SPRING DOWEL SLEEVE MAF-005874.A3 005874	-
157 - WOODRUFF KEY MAF-007805.A1 007805	£2.72	£3.27
158 - ECCENTRIC ARBOR MAF-200946.A7 200946	-
160 - SQUARE NUT MAF-005953.A6 005953	-
161 - MUSHROOM-SHAPED COVERING PIECE MAF-038260.A6 038260	-
162 - TCT SAW BLADE MAF-092458.A1 092458	-
163 - INSTRUCTION PLATE MAF-070963.A0 070963	-
165 - SLIDING BLOCK MAF-039781.A0 039781	-
166 - SPRING DOWEL SLEEVE MAF-058071.A1 058071	-
168 - RETAINING SPRING MAF-039833.A3 039833	-
169 - CYLINDRICAL OVAL-HEAD SCREW MAF-055162.A10 055162	-
170 - RETAINING RING MAF-006194.A2 006194	£2.02	£2.43
171 - FEDERSCHEIBE MAF-061131.A0 061131	-
172 - FEDERSCHEIBE MAF-061118.A1 061118	-
173 - SHOCK ABSORBER MAF-039851.A0 039851	-
174 - TRUSS-HEAD SCREW MAF-057032.A0 057032	-
175 - LOCKING NUT MAF-005999.A12 005999	-
176 - TOOTHED BELT MAF-076378.A1 076378	£36.11	£43.33
177 - SEALING RING MAF-065015.A3 065015	£3.16	£3.79
178 - TENSIONING LEVER MAF-039413.A0 039413	-
179 - LOCKING WASHER MAF-061073.A3 061073	-
180 - SHIM RING MAF-061107.A1 061107	-
181 - CLAMPING BOLT MAF-039865.A1 039865	-
182 - UNIVERSAL GUIDE FENCE MAF-201611.A2 201611	£241.20	£289.44
183 - GUIDE FENCE EXTENSION MAF-200878.A5 200878	-
184 - ARBOR CLAMPING RING MAF-061075.A1 061075	-
185 - TRACTION ELEMENT MAF-200947.A1 200947	-
187 - BOLT MAF-058163.A1 058163	-
188 - LOCKING WASHER MAF-061135.A8 061135	-
189 - CLAMPING FENCE SUPPORT, CPL. MAF-203277.A0 203277	-
190 - HEXAGONAL NUT MAF-005998.A4 005998	-
191 - PRESSURE SPRING MAF-066085.A0 066085	-
192 - SHOULDER BOLT MAF-201165.A4 201165	-
195 - CYLINDER-HEAD SCREW MAF-055013.A10 055013	-
196 - SKALE MAF-039863.A1 039863	-
197 - COVER PLATE, LOWER MAF-039835.A1 039835	-
198 - WING SCREW MAF-079063.A0 079063	-
199 - SWITCH COVER MAF-201073.A1 201073	-
200 - ELECTRONIC BRAKE CIRCUIT MAF-087760.A1 087760	-
201 - RELAY, CPL. MAF-076215.A1 076215	-
202 - PRESSURE SPRING MAF-066051.A6 066051	-
203 - GUIDE BOLT MAF-038261.A2 038261	-
204 - DOUBLE-END SPANNER MAF-093141.A0 093141	-
205 - PUSH STICK MAF-034901.A1 034901	-
206 - LOCKING WASHER MAF-006184.A7 006184	£1.58	£1.89
207 - ROUND CAP MAF-076430.A4 076430	£4.47	£5.36
208 - CABLE BINDER MAF-076415.A0 076415	-
209 - SPACER SLEEVE MAF-201330.A1 201330	-
216 - PRECEDING SWITCH MAF-087761.A3 087761	-
217 - PRESSURE SPRING MAF-066096.A13 066096	£4.47	£5.36
218 - STICKER MAF-077308.A3 077308	-
219 - PROTECTIVE PIPE MAF-201413.A1 201413	-
220 - NAME PLATE MAF-201166.A8 201166	£8.54	£10.25
221 - CYLINDER-HEAD SCREW MAF-005590.A6 005590	-
222 - WASHER MAF-061134.A1 061134	-
223 - LOCKING BAR MAF-201863.A3 201863	-
224 - WASHER MAF-006100.A6 006100	£2.11	£2.53
225 - WASHER MAF-006144.A3 006144	£2.22	£2.66
226 - HEXAGONAL NUT MAF-202257.A0 202257	-
227 - SLIDING BLOCK MAF-202596.A3 202596	-
228 - TORSION SPRING MAF-066109.A3 066109	-
229 - LOCKING WASHER MAF-061005.A1 061005	-
512 - PUSH BLOCK HANDLE, CPL. MAF-201788.A4 201788	-
523 - EXTRACTION HOSE MAF-093659.A1 093659	-
524 - BRANCH PIPE MAF-076425.A2 076425	-
525 - REDUCING SOCKET MAF-076431.A3 076431	-
526 - HOSE SUPPORT MAF-201770.A3 201770	-
527 - CHIP CONDUCTING TUBE MAF-201344.A2 201344	-
623 - ADJUSTABLE STOP MAF-038675.A 038675	-
