Mafell 919001 Portable Circular Saw K 65 cc Spare Parts

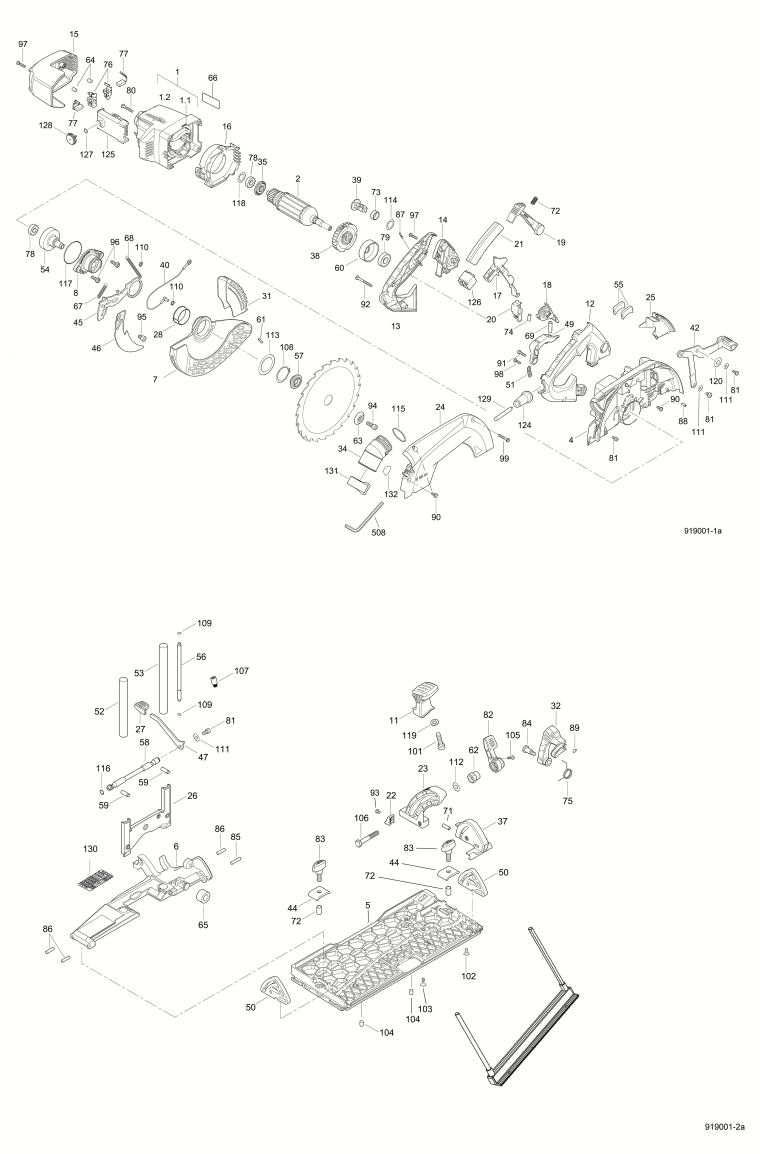

An exploded drawing and spare parts listing for the Mafell 919001 Portable Circular Saw K 65 cc

	Ex VAT	Inc VAT
1 - MOTOR CASING MAF-084660.A5 084660	-
1.1 - INDUCTOR MAF-084658.A6 084658	-
1.2 - MOTOR CASING, EMPTY MAF-204506.A21 204506	£59.25	£71.10
2 - ARMATURE MAF-088232.A5 088232	-
4 - GEAR CASING MAF-205849.A6 205849	-
5 - BASE PLATE MAF-206285.A1 206285	-
6 - TILTING SUPPORT MAF-205863.A7 205863	£95.18	£114.21
7 - PROTECTIVE COVER MAF-205845.A8 205845	£73.37	£88.04
8 - BEARING COVER MAF-205847.A7 205847	-
11 - HANDLE MAF-206278.A6 206278	-
12 - HANDLE SHELL MAF-204490.A18 204490	-
13 - HANDLE SHELL MAF-204486.A19 204486	£30.25	£36.30
14 - HANDLE SHELL COVER MAF-204513.A21 204513	£12.35	£14.82
15 - MOTOR COVER MAF-204493.A22 204493	£24.88	£29.86
16 - AIR CONDUCTING RING MAF-206283.A4 206283	-
17 - SWITCH TRIGGER MAF-204494.A19 204494	£12.91	£15.49
18 - LOCKING LEVER MAF-205158.A11 205158	-
19 - LOCK-OFF BUTTON MAF-206239.A6 206239	-
20 - LOCKING LEVER MAF-204509.A22 204509	£8.47	£10.16
21 - HANDLE INSERT MAF-203877.A31 203877	£20.10	£24.12
22 - INDICATOR MAF-206236.A6 206236	£4.78	£5.74
23 - SEGMENT FOR TILTING MAF-206286.A8 206286	-
24 - PROTECTIVE COVER MAF-206263.A1 206263	-
25 - CHIP DEFLECTOR MAF-205886.A7 205886	-
26 - COVER MAF-205871.A8 205871	-
27 - HANDLE MAF-206237.A7 206237	-
28 - SLEEVE MAF-206228.A8 206228	-
31 - PROTECTIVE DISK MAF-205897.A6 205897	-
32 - LEVER MAF-206243.A6 206243	-
34 - HOSE CONNECTOR MAF-205290.A9 205290	£19.09	£22.91
35 - INSULATING DISK MAF-204492.A22 204492	£9.02	£10.82
37 - INDICATOR MAF-206193.A7 206193	-
38 - FAN MAF-204517.A20 204517	£12.95	£15.54
39 - PUSH-BUTTON MAF-205890.A5 205890	-
40 - BOWDEN CABLE MAF-205881.A7 205881	£8.52	£10.23
42 - LEVER JOINT MAF-206232.A6 206232	-
44 - CLAMPING CLAWS MAF-200050.A37 200050	£4.53	£5.44
45 - RIVING KNIFE/SPLITTER SUPPORT MAF-205856.A6 205856	-
46 - RIVING KNIFE/SPLITTER MAF-205857.A7 205857	-
47 - CLAMPING LEVER MAF-201433.A15 201433	£8.29	£9.95
49 - BRAKE LEVER MAF-206573.A4 206573	-
50 - SEGMENT MAF-206190.A7 206190	-
51 - CABLE CLAMP MAF-029584.A141 029584	-
52 - GUIDE COLUMN MAF-205861.A6 205861	-
53 - GUIDE COLUMN MAF-205862.A6 205862	-
54 - SAW SHAFT MAF-205854.A8 205854	£69.52	£83.42
55 - BRAKE LINING MAF-202429.A32 202429	-
56 - STOP PLATE MAF-205153.A14 205153	-
57 - FLANGE MAF-203999.A25 203999	£16.98	£20.38
58 - ECCENTRIC ARBOR MAF-206204.A7 206204	-
59 - PRESSURE BOLT MAF-200034.A20 200034	-
60 - BRAKE DRUM MAF-206574.A5 206574	-
61 - RUBBER BUFFER MAF-206287.A8 206287	-
62 - SHOULDER NUT MAF-205294.A13 205294	-
63 - FLANGE MAF-204388.A21 204388	£17.42	£20.90
64 - PRESSURE BIT MAF-202378.A42 202378	-
65 - STOP BUFFER MAF-205579.A9 205579	-
66 - STICKER MAF-170221.A11 170221	-
67 - RETRACTING SPRING MAF-206290.A8 206290	-
68 - RETRACTING SPRING MAF-066181.A8 066181	-
69 - PRESSURE SPRING MAF-006645.A11 006645	-
71 - PRESSURE SPRING (EACH) MAF-066143.A15 066143	£3.52	£4.22
72 - PRESSURE SPRING MAF-066043.A138 066043	£3.19	£3.83
73 - PRESSURE SPRING MAF-066096.A33 066096	£4.47	£5.36
74 - PRESSURE SPRING MAF-066154.A20 066154	-
75 - LEG SPRING MAF-206244.A7 206244	-
76 - BRUSH HOLDER MAF-063160.A53 063160	£10.57	£12.68
77 - CARBON BRUSH WITH AUTOMATIC CUT-OFF MAF-063164.A43 063164	£13.02	£15.63
78 - GROOVED BALL BEARING MAF-006282.A94 006282	£15.42	£18.50
79 - GROOVED BALL BEARING MAF-006280.A59 006280	£14.33	£17.20
80 - OVAL-HEAD SCREW MAF-055069.A44 055069	£2.27	£2.72
81 - CYLINDER-HEAD SCREW MAF-055055.A26 055055	£3.39	£4.07
82 - LEVER MAF-205884.A6 205884	£12.29	£14.75
83 - WING SCREW MAF-079082.A18 079082	-
84 - SHOULDER SCREW MAF-055063.A26 055063	-
85 - CYLINDRICAL PIN MAF-058228.A9 058228	£2.38	£2.86
86 - CYLINDRICAL PIN MAF-058046.A25 058046	£2.98	£3.57
87 - RIBBED PIN MAF-058219.A23 058219	-
88 - SPRING DOWEL SLEEVE MAF-058229.A12 058229	-
89 - RETAINING RING MAF-007160.A8 007160	-
90 - SELF-TAPPING SCREW MAF-055232.A65 055232	£1.77	£2.12
91 - SELF-TAPPING SCREW MAF-055230.A73 055230	-
92 - OVAL-HEAD SCREW MAF-055257.A32 055257	-
93 - CYLINDER-HEAD SCREW MAF-055043.A12 055043	-
94 - CYLINDER-HEAD SCREW MAF-055096.A56 055096	£2.22	£2.66
95 - CYLINDER-HEAD SCREW MAF-055234.A44 055234	£1.25	£1.50
96 - CYLINDER-HEAD SCREW MAF-055229.A26 055229	-
97 - CYLINDRICAL OVAL-HEAD SCREW MAF-055061.A206 055061	£1.79	£2.15
98 - CYLINDRICAL OVAL-HEAD SCREW MAF-055233.A92 055233	£1.79	£2.15
99 - CYLINDRICAL OVAL-HEAD SCREW MAF-055139.A26 055139	-
101 - CYLINDER-HEAD SCREW MAF-055060.A14 055060	-
102 - FLAT-HEAD SCREW MAF-053031.A37 053031	£1.81	£2.17
103 - FLAT-HEAD SCREW MAF-053029.A37 053029	£2.98	£3.58
104 - THREADED PIN MAF-005284.A79 005284	-
105 - COUNTER-SUNK OVAL-HEAD SCREW MAF-053020.A85 053020	£2.11	£2.53
106 - HEXAGON-HEAD SCREW MAF-056031.A13 056031	-
107 - THREADED PIN MAF-206587.A3 206587	-
108 - RETAINING RING MAF-061138.A29 061138	£2.41	£2.89
109 - SNAP RING MAF-061160.A15 061160	-
110 - LOCKING WASHER MAF-061069.A54 061069	£1.57	£1.88
111 - WASHER MAF-061013.A95 061013	-
112 - WASHER MAF-061172.A31 061172	-
113 - WASHER MAF-061179.A9 061179	-
114 - SHIM RING MAF-006160.A53 006160	£1.73	£2.08
115 - SEALING RING MAF-078173.A25 078173	-
116 - SEALING RING MAF-065042.A22 065042	£1.72	£2.06
117 - SEALING RING MAF-065063.A12 065063	-
118 - FEDERSCHEIBE MAF-061132.A45 061132	-
119 - WASHER MAF-006101.A122 006101	£1.62	£1.94
120 - CUP SPRING MAF-066016.A33 066016	-
124 - CABLE PROTECTING SLEEVE MAF-086064.A104 086064	£3.53	£4.24
125 - CONTROL MODULE MAF-077682.A5 077682	-
126 - 2-POLE SWITCH MAF-087851.A21 087851	£19.09	£22.91
127 - SEALING RING MAF-065004.A62 065004	£1.72	£2.06
128 - SETTING WHEEL MAF-203729.A34 203729	-
129 - MAINS CABLE 4 M (13.1 FT) MAF-087323.A50 087323	£41.38	£49.65
130 - LABEL SELECTION OF SAW BLADES MAF-206575.A4 206575	-
131 - HOOK-AND-LOOP FASTENER BELT MAF-205049.A29 205049	£5.66	£6.79
132 - GLUE DOT Ø 20 MM DOUBLE SIDED MAF-170249.A8 170249	-
508 - ALLEN KEY MAF-093034.A75 093034	-
