Mafell 917603 Plunge-Cut Saw MT 55 cc MaxiMAX in the MAFELL-MAX up to machine no. 1158826 Spare Parts

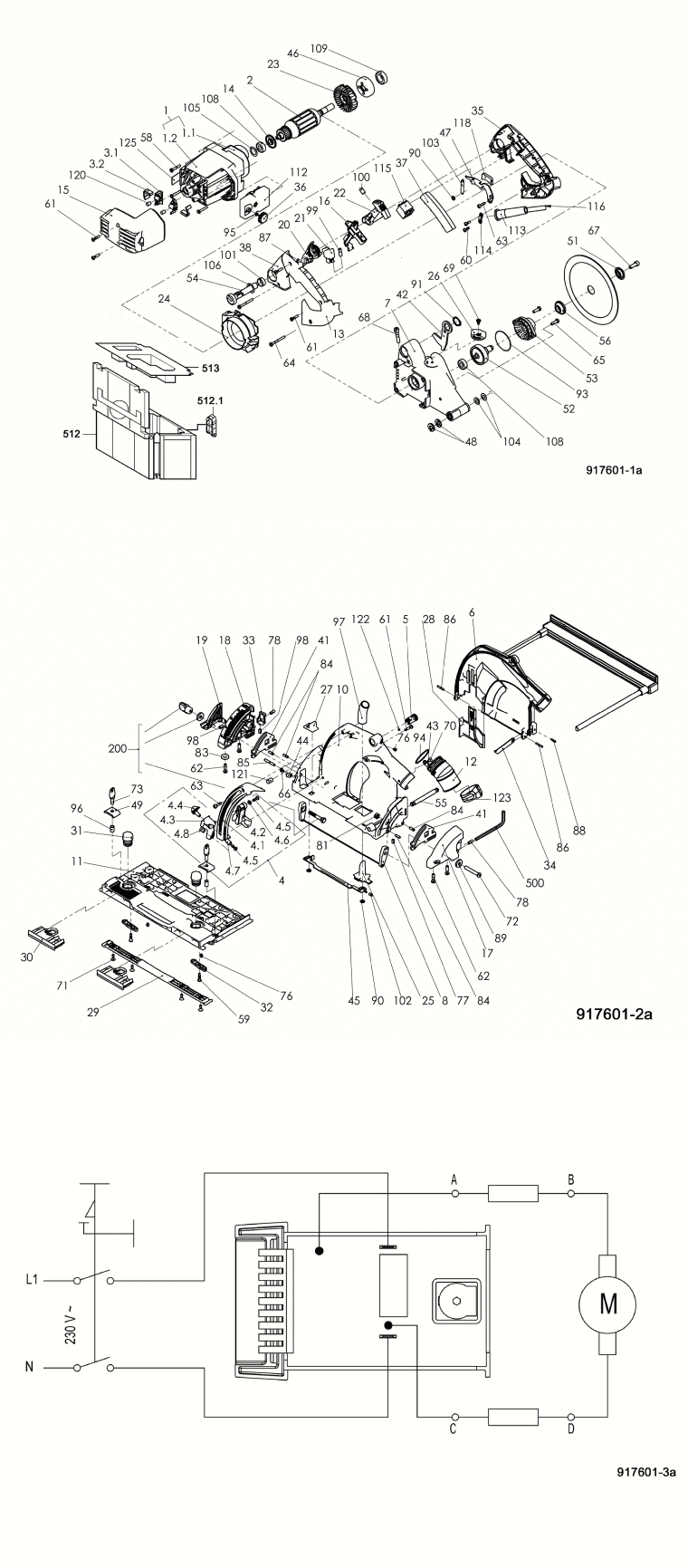

An exploded drawing and spare parts listing for the Mafell 917603 Plunge-Cut Saw MT 55 cc MaxiMAX in the MAFELL-MAX up to maschine no. 1158826

	Ex VAT	Inc VAT
1 - MOTOR CASING WITH INDUCTOR 230 V MAF-084620.A6 084620	£190.78	£228.94
1.1 - INDUCTOR WITH COIL 230 V MAF-084618.A8 084618	£112.06	£134.47
1.2 - MOTOR CASING, EMPTY MAF-204506.A11 204506	£59.25	£71.10
2 - ARMATURE MAF-088224.A8 088224	£162.91	£195.49
3.1 - BRUSH HOLDER MAF-063160.A35 063160	£10.57	£12.68
3.2 - CARBON BRUSH WITH AUTOMATIC CUT-OFF MAF-063164.A13 063164	£13.02	£15.63
4 - DEPTH STOP MAF-204487.A0 204487	£25.41	£30.49
4.1 - DEPTH SETTING MAF-204496.A1 204496	£14.44	£17.33
4.2 - INDICATOR MAF-204497.A11 204497	£12.91	£15.49
4.3 - SLIDING COVER MAF-204511.A8 204511	£2.38	£2.86
4.4 - INDICATOR MAF-204520.A11 204520	£9.45	£11.34
4.5 - CYLINDRICAL OVAL-HEAD SCREW MAF-055233.A64 055233	£1.79	£2.15
4.6 - WASHER MAF-061015.A47 061015	-
4.7 - PRESSURE SPRING MAF-066043.A88 066043	£3.19	£3.83
4.8 - PRESSURE SPRING MAF-006691.A8 006691	-
5 - LOCK MAF-204488.A12 204488	£33.78	£40.54
6 - PROTECTIVE COVER MAF-204523.A1 204523	£132.30	£158.76
7 - GEAR CASING MAF-206084.A4 206084	£207.55	£249.06
8 - CLAMPING UNIT MAF-204859.A8 204859	£19.11	£22.93
10 - TILTING SUPPORT MAF-204482.A8 204482	£178.28	£213.93
11 - BASE PLATE MAF-204389.A8 204389	£130.28	£156.33
12 - HOSE CONNECTOR MAF-204485.A9 204485	£15.51	£18.61
13 - HANDLE SHELL MAF-204486.A8 204486	£30.25	£36.30
14 - INSULATING DISK MAF-204492.A21 204492	£9.02	£10.82
15 - MOTOR COVER MAF-204493.A9 204493	£24.88	£29.86
16 - SWITCH TRIGGER MAF-204494.A12 204494	£12.91	£15.49
17 - SEGMENT FOR TILTING MAF-204495.A4 204495	£10.74	£12.89
18 - SEGMENT FOR TILTING MAF-204502.A5 204502	£14.03	£16.84
19 - INDICATOR MAF-204504.A1 204504	£11.20	£13.44
20 - LOCKING LEVER MAF-204507.A8 204507	£10.82	£12.98
21 - LOCKING LEVER MAF-204509.A8 204509	£8.47	£10.16
22 - LOCK-OFF BUTTON MAF-204510.A10 204510	£12.05	£14.46
23 - FAN MAF-204517.A11 204517	£12.95	£15.54
24 - AIR CONDUCTING RING MAF-204518.A8 204518	£17.15	£20.58
25 - SPRING GUIDE MAF-204519.A9 204519	£11.26	£13.51
26 - LOCKING LEVER MAF-204522.A7 204522	-
27 - CAP MAF-204524.A2 204524	-
28 - SLIDING COVER MAF-204529.A8 204529	£16.00	£19.20
29 - INLAY MAF-204861.A6 204861	£16.50	£19.80
30 - PANEL MAF-204863.A7 204863	-
31 - SETTING WHEEL MAF-204864.A6 204864	£7.64	£9.17
32 - INLAY MAF-204867.A1 204867	£9.55	£11.46
33 - STOP PLATE MAF-205053.A2 205053	-
34 - STOP CLIP MAF-204868.A6 204868	-
35 - HANDLE SHELL MAF-204490.A16 204490	-
36 - SETTING WHEEL MAF-203729.A20 203729	-
37 - HANDLE INSERT MAF-203877.A18 203877	£20.10	£24.12
38 - HANDLE SHELL COVER MAF-204513.A10 204513	£12.35	£14.82
41 - SEGMENT MAF-204501.A5 204501	£12.48	£14.97
42 - CLICK-IN METAL SHEET MAF-204505.A2 204505	£9.45	£11.34
43 - CLIP MAF-204512.A2 204512	£7.54	£9.05
44 - INDICATOR MAF-204530.A4 204530	£6.50	£7.80
45 - ADJUSTABLE SHEET METAL MAF-205051.A6 205051	-
46 - BRAKE DRUM MAF-201452.A16 201452	£14.34	£17.21
47 - BRAKE LEVER MAF-202347.A6 202347	£6.57	£7.88
48 - WASHER MAF-205466.A1 205466	-
49 - CLAMPING CLAWS MAF-200050.A25 200050	£4.53	£5.44
51 - FLANGE MAF-204388.A8 204388	£17.42	£20.90
52 - SAW SHAFT MAF-205676.A0 205676	-
53 - BEARING COVER MAF-205663.A0 205663	£58.38	£70.06
54 - PUSH-BUTTON MAF-204516.A7 204516	£32.22	£38.67
55 - BOLT MAF-204528.A12 204528	-
56 - FLANGE MAF-203999.A13 203999	£16.98	£20.38
58 - OVAL-HEAD SCREW MAF-055069.A19 055069	£2.27	£2.72
59 - HEADLESS SCREW MAF-204869.A5 204869	-
60 - CYLINDRICAL OVAL-HEAD SCREW MAF-055246.A8 055246	-
61 - CYLINDRICAL OVAL-HEAD SCREW MAF-055061.A163 055061	£1.79	£2.15
62 - CYLINDRICAL OVAL-HEAD SCREW MAF-055195.A6 055195	-
63 - SELF-TAPPING SCREW MAF-055230.A49 055230	-
64 - OVAL-HEAD SCREW MAF-055257.A22 055257	-
65 - CYLINDRICAL OVAL-HEAD SCREW MAF-055188.A29 055188	-
66 - CHEESE-HEAD SCREW MAF-053036.A5 053036	-
67 - CYLINDER-HEAD SCREW MAF-055096.A18 055096	£2.22	£2.66
68 - CYLINDER-HEAD SCREW MAF-055263.A10 055263	-
69 - SHOULDER SCREW MAF-055118.A34 055118	£2.52	£3.03
70 - FLAT-HEAD SCREW MAF-053031.A21 053031	£1.81	£2.17
71 - FLAT-HEAD SCREW MAF-053029.A4 053029	£2.98	£3.58
72 - CHEESE-HEAD SCREW MAF-053035.A8 053035	-
73 - WING SCREW MAF-079082.A5 079082	-
76 - THREADED PIN MAF-052016.A9 052016	-
77 - THREADED PIN MAF-005284.A47 005284	-
78 - THREADED PIN MAF-005248.A9 005248	-
81 - HEXAGON SAFETY NUT MAF-059017.A4 059017	-
83 - LOCKING WASHER MAF-006179.A22 006179	£1.61	£1.93
84 - CYLINDRICAL PIN MAF-058218.A5 058218	-
85 - CYLINDRICAL PIN MAF-058156.A24 058156	£3.63	£4.36
86 - SPIRAL DOWEL SLEEVE MAF-058186.A11 058186	-
87 - RIBBED PIN MAF-058219.A11 058219	-
88 - SPIRAL DOWEL SLEEVE MAF-058123.A2 058123	-
89 - WASHER MAF-061172.A5 061172	-
90 - LOCKING WASHER MAF-061069.A44 061069	£1.57	£1.88
91 - RETAINING RING MAF-007163.A12 007163	-
93 - SEALING RING MAF-065063.A8 065063	-
94 - SEALING RING MAF-078173.A4 078173	-
95 - SEALING RING MAF-065004.A47 065004	£1.72	£2.06
96 - PRESSURE SPRING MAF-066043.A61 066043	£3.19	£3.83
97 - PRESSURE SPRING MAF-066166.A7 066166	£3.77	£4.52
98 - PRESSURE SPRING MAF-066053.A12 066053	£2.67	£3.20
99 - PRESSURE SPRING MAF-066154.A11 066154	-
100 - PRESSURE SPRING MAF-066043.A99 066043	£3.19	£3.83
101 - PRESSURE SPRING MAF-066096.A25 066096	£4.47	£5.36
102 - PRESSURE SPRING MAF-006641.A1 006641	-
103 - RETRACTING SPRING MAF-066092.A20 066092	£5.22	£6.27
104 - CUP SPRING MAF-006693.A12 006693	-
105 - FEDERSCHEIBE MAF-061132.A28 061132	-
106 - SHIM RING MAF-006160.A42 006160	£1.73	£2.08
108 - GROOVED BALL BEARING MAF-006282.A54 006282	£15.42	£18.50
109 - GROOVED BALL BEARING MAF-006280.A25 006280	£14.33	£17.20
112 - CONTROL MODULE MAF-077671.A10 077671	£74.34	£89.21
113 - CABLE PROTECTING SLEEVE MAF-086064.A71 086064	£3.53	£4.24
114 - CABLE CLAMP MAF-205830.A5 205830	-
115 - 2-POLE SWITCH MAF-087851.A8 087851	£19.09	£22.91
116 - MAINS CABLE 4 M (13.1 FT) MAF-087323.A40 087323	£41.38	£49.65
118 - BRAKE LINING MAF-202429.A13 202429	-
120 - PRESSURE BIT MAF-202378.A26 202378	-
121 - STOP BUFFER MAF-203207.A1 203207	-
122 - STEEL BALL MAF-062104.A7 062104	-
123 - HOOK-AND-LOOP FASTENER BELT MAF-205049.A16 205049	£5.66	£6.79
125 - STICKER MAF-170221.A4 170221	-
200 - CLAMPING UNIT MAF-205411.A1 205411	£18.79	£22.55
500 - ALLEN KEY MAF-093034.A16 093034	-
512 - CARRYING CASE MAFELL-MAX MAF-095043.A13 095043	-
512.1 - LATCH MAF-095074.A37 095074	-
513 - PLASTIC TRAY FOR TK MAX MAF-095159.A4 095159	£21.53	£25.84
