Mafell 917601 Plunge-cut saw MT 55 cc in the MAFELL-MAX up to machine no. 899219 Spare Parts

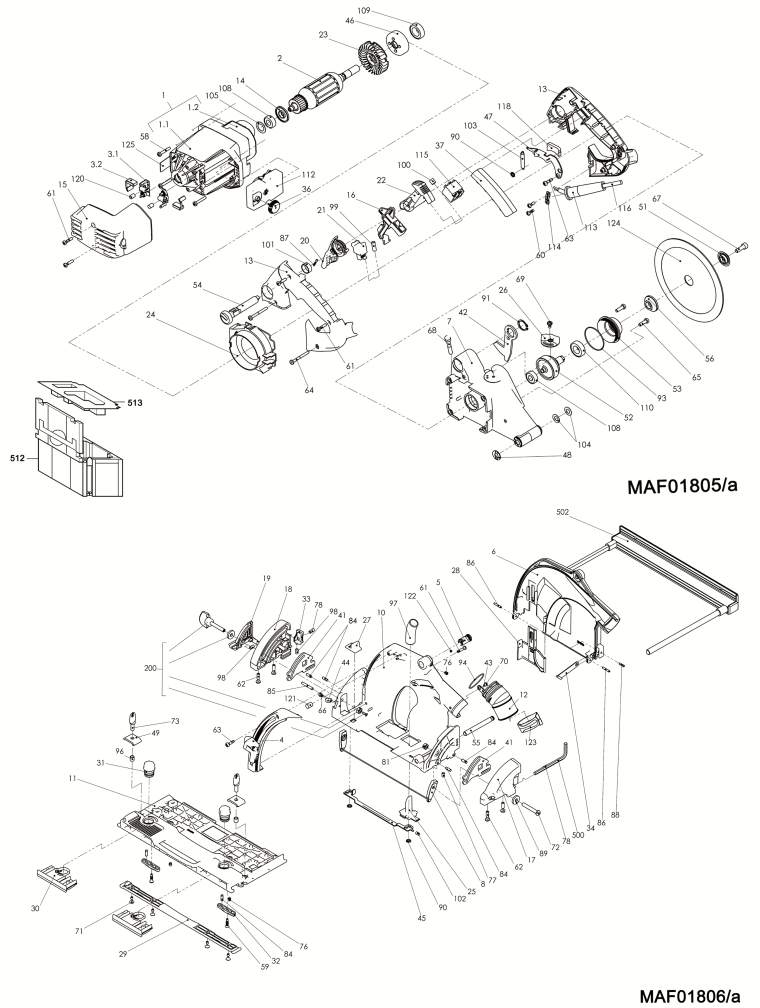

An exploded drawing and spare parts listing for the Mafell 917601 Plunge-cut saw MT 55 cc in the MAFELL-MAX up to machine no. 899219

	Ex VAT	Inc VAT
1 - MOTOR CASING WITH INDUCTOR 230 V MAF-084620.A8 084620	£181.70	£218.04
1.1 - MOTOR CASING, EMPTY MAF-204506.A8 204506	£56.42	£67.71
1.2 - INDUCTOR WITH COIL 230 V MAF-084618.A7 084618	£106.72	£128.07
2 - ARMATURE MAF-088208.A1 088208	£240.13	£288.16
3.1 - BRUSH HOLDER MAF-063160.A15 063160	£10.07	£12.08
3.2 - CARBON BRUSH WITH AUTOMATIC CUT-OFF MAF-063164.A19 063164	£12.41	£14.89
4 - DEPTH STOP MAF-204487.A7 204487	£24.20	£29.04
5 - LOCK MAF-204488.A11 204488	£32.18	£38.61
6 - PROTECTIVE COVER MAF-204523.A8 204523	£126.00	£151.20
7 - GEAR CASING MAF-204480.A0 204480	£137.50	£165.00
8 - CLAMPING UNIT MAF-204859.A0 204859	£18.20	£21.84
10 - TILTING SUPPORT MAF-204482.A1 204482	£169.78	£203.74
11 - BASE PLATE MAF-204389.A3 204389	£124.08	£148.89
12 - HOSE CONNECTOR MAF-204485.A0 204485	£13.10	£15.72
13 - HANDLE SHELL MAF-204486.A17 204486	£28.81	£34.57
14 - INSULATING DISK MAF-204492.A9 204492	£8.58	£10.30
15 - MOTOR COVER MAF-204493.A8 204493	£23.70	£28.44
16 - SWITCH TRIGGER MAF-204494.A13 204494	£12.29	£14.75
17 - SEGMENT FOR TILTING MAF-204495.A5 204495	£10.23	£12.28
18 - SEGMENT FOR TILTING MAF-204502.A0 204502	£13.37	£16.04
19 - INDICATOR MAF-204504.A4 204504	£10.67	£12.80
20 - LOCKING LEVER MAF-204507.A14 204507	£10.30	£12.36
21 - LOCKING LEVER MAF-204509.A7 204509	£8.07	£9.68
22 - LOCK-OFF BUTTON MAF-204510.A8 204510	£11.48	£13.77
23 - FAN MAF-204517.A18 204517	£12.33	£14.80
24 - AIR CONDUCTING RING MAF-204518.A9 204518	£16.33	£19.60
25 - SPRING GUIDE MAF-204519.A6 204519	£10.72	£12.87
26 - LOCKING LEVER MAF-204522.A8 204522	-
27 - CAP MAF-204524.A6 204524	-
28 - SLIDING COVER MAF-204529.A6 204529	£15.24	£18.29
29 - INLAY MAF-204861.A0 204861	£15.72	£18.86
30 - PANEL MAF-204863.A6 204863	-
31 - SETTING WHEEL MAF-204864.A3 204864	£7.28	£8.73
32 - INLAY MAF-204867.A0 204867	£9.09	£10.91
33 - STOP PLATE MAF-205053.A4 205053	-
34 - STOP CLIP MAF-204868.A11 204868	-
36 - SETTING WHEEL MAF-203729.A7 203729	-
37 - HANDLE INSERT MAF-203877.A28 203877	£19.14	£22.97
41 - SEGMENT MAF-204501.A0 204501	£11.88	£14.26
42 - CLICK-IN METAL SHEET MAF-204505.A8 204505	£9.00	£10.80
43 - CLIP MAF-204512.A1 204512	£7.18	£8.62
44 - INDICATOR MAF-204530.A0 204530	£6.19	£7.43
45 - ADJUSTABLE SHEET METAL MAF-205051.A2 205051	-
46 - BRAKE DRUM MAF-201452.A11 201452	£13.66	£16.39
47 - BRAKE LEVER MAF-202347.A8 202347	£6.25	£7.50
48 - WASHER MAF-205358.A0 205358	-
49 - CLAMPING CLAWS MAF-200050.A23 200050	£4.32	£5.18
51 - FLANGE MAF-204388.A19 204388	£16.58	£19.90
52 - SAW SHAFT MAF-204855.A0 204855	£74.72	£89.67
53 - BEARING COVER MAF-204498.A3 204498	£55.84	£67.01
54 - PUSH-BUTTON MAF-204516.A6 204516	£30.69	£36.83
55 - BOLT MAF-204528.A11 204528	-
56 - FLANGE MAF-203999.A17 203999	£16.18	£19.41
58 - OVAL-HEAD SCREW MAF-055069.A20 055069	£2.16	£2.59
59 - HEADLESS SCREW MAF-204869.A1 204869	-
60 - CYLINDRICAL OVAL-HEAD SCREW MAF-055233.A52 055233	£1.71	£2.05
61 - CYLINDRICAL OVAL-HEAD SCREW MAF-055061.A75 055061	£1.71	£2.05
62 - CYLINDRICAL OVAL-HEAD SCREW MAF-055195.A10 055195	-
63 - SELF-TAPPING SCREW MAF-055230.A25 055230	-
64 - OVAL-HEAD SCREW MAF-055257.A17 055257	-
65 - CYLINDRICAL OVAL-HEAD SCREW MAF-055188.A26 055188	-
66 - CYLINDER-HEAD SCREW MAF-055029.A6 055029	-
67 - CYLINDER-HEAD SCREW MAF-055096.A16 055096	£2.11	£2.53
68 - CYLINDER-HEAD SCREW MAF-055263.A12 055263	-
69 - SHOULDER SCREW MAF-055118.A32 055118	£2.41	£2.89
70 - FLAT-HEAD SCREW MAF-005331.A1 005331	-
71 - FLAT-HEAD SCREW MAF-053029.A3 053029	£2.84	£3.41
72 - CHEESE-HEAD SCREW MAF-053035.A4 053035	-
73 - WING SCREW MAF-079082.A7 079082	-
76 - THREADED PIN MAF-052016.A8 052016	-
77 - THREADED PIN MAF-005279.A14 005279	-
78 - THREADED PIN MAF-005248.A13 005248	-
81 - HEXAGON SAFETY NUT MAF-059017.A7 059017	-
84 - CYLINDRICAL PIN MAF-058218.A6 058218	-
85 - CYLINDRICAL PIN MAF-058156.A26 058156	£3.46	£4.15
86 - SPIRAL DOWEL SLEEVE MAF-058186.A8 058186	-
87 - RIBBED PIN MAF-058219.A17 058219	-
88 - SPIRAL DOWEL SLEEVE MAF-058123.A4 058123	-
89 - WASHER MAF-061172.A13 061172	-
90 - LOCKING WASHER MAF-061069.A37 061069	£1.49	£1.79
91 - RETAINING RING MAF-007163.A15 007163	-
93 - SEALING RING MAF-065057.A6 065057	-
94 - SEALING RING MAF-065055.A0 065055	-
96 - PRESSURE SPRING MAF-066043.A81 066043	£3.04	£3.65
97 - PRESSURE SPRING MAF-066166.A9 066166	£3.58	£4.30
98 - PRESSURE SPRING MAF-066053.A10 066053	£2.54	£3.05
99 - PRESSURE SPRING MAF-066154.A13 066154	-
100 - PRESSURE SPRING MAF-066043.A85 066043	£3.04	£3.65
101 - PRESSURE SPRING MAF-066096.A23 066096	£4.25	£5.10
102 - PRESSURE SPRING MAF-006641.A8 006641	-
103 - RETRACTING SPRING MAF-066092.A21 066092	£4.98	£5.97
104 - CUP SPRING MAF-006660.A21 006660	-
105 - FEDERSCHEIBE MAF-061132.A21 061132	-
108 - GROOVED BALL BEARING MAF-006282.A29 006282	£14.68	£17.62
109 - GROOVED BALL BEARING MAF-006288.A30 006288	£8.82	£10.58
110 - GROOVED BALL BEARING MAF-006280.A38 006280	£13.65	£16.38
112 - CONTROL MODULE MAF-077168.A0 077168	£96.80	£116.16
113 - CABLE PROTECTING SLEEVE MAF-086064.A56 086064	£3.37	£4.04
114 - CABLE CLAMP MAF-029584.A98 029584	-
115 - 2-POLE SWITCH MAF-087851.A9 087851	£18.18	£21.82
116 - MAINS CABLE 4 M (13.1 FT) MAF-087323.A24 087323	£39.41	£47.29
118 - BRAKE LINING MAF-202429.A8 202429	-
120 - PRESSURE BIT MAF-202378.A21 202378	-
121 - STOP BUFFER MAF-204009.A13 204009	-
122 - STEEL BALL MAF-062104.A6 062104	-
123 - HOOK-AND-LOOP FASTENER BELT MAF-205049.A22 205049	£5.39	£6.47
124 - TCT SAW BLADE MAF-092584.A1 092584	£52.24	£62.69
125 - STICKER MAF-170221.A5 170221	-
200 - CLAMPING UNIT MAF-205411.A6 205411	£17.90	£21.48
500 - ALLEN KEY MAF-093034.A29 093034	-
502 - PARALLEL GUIDE FENCE MAF-201436.A3 201436	£50.20	£60.24
512 - CARRYING CASE MAFELL-MAX MAF-095043.A12 095043	-
513 - PLASTIC TRAY FOR TK MAX MAF-095159.A3 095159	£20.51	£24.61
