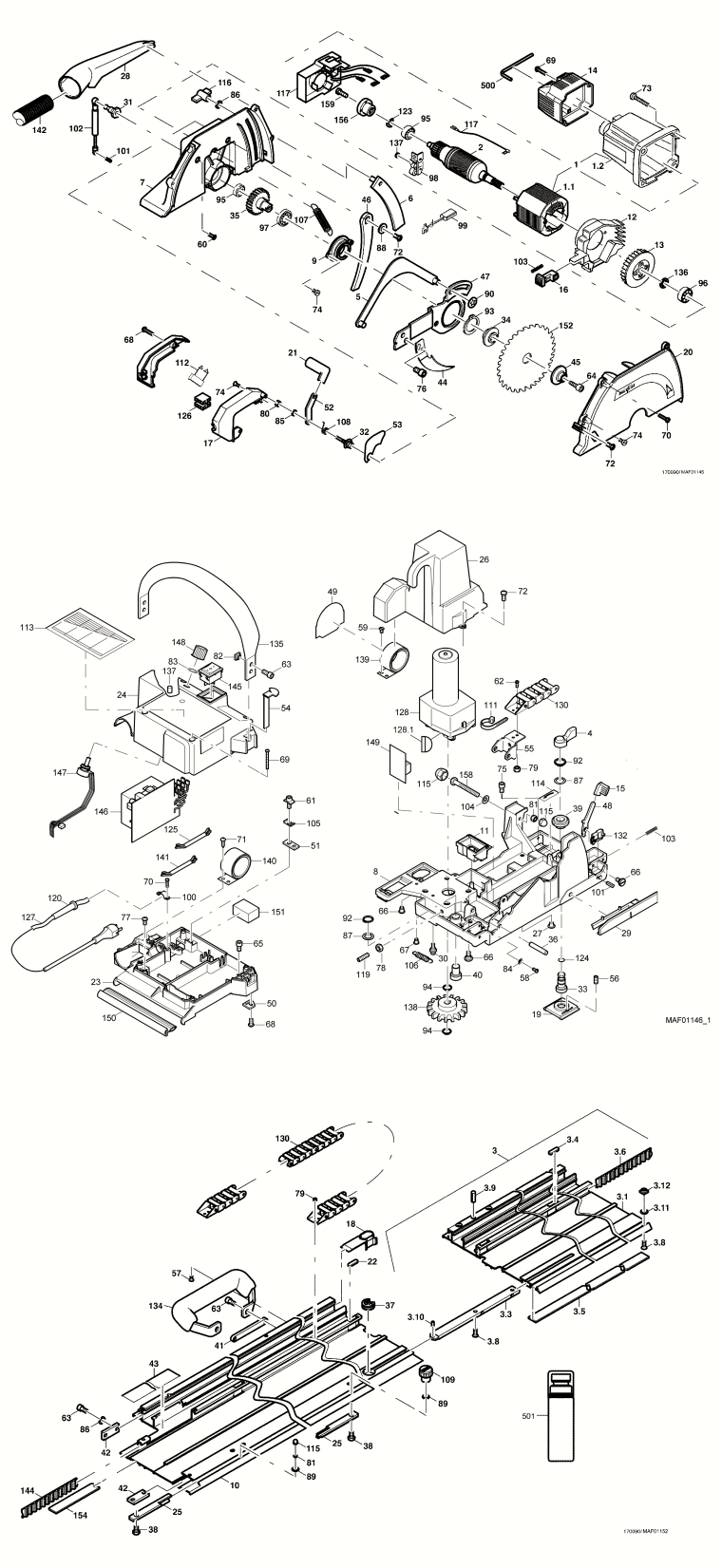

An exploded drawing and spare parts listing for the Mafell 916201 Portable Panel Saw System PSS 3100 SE up to machine no. 715943
Ex VAT Inc VAT
1 - MOTOR CASING WITH INDUCTOR 230 V MAF-084640.A8 084640 £166.83 £200.20
1.1 - INDUCTOR WITH COIL MAF-084540.A6 084540 £87.14 £104.57
1.2 - MOTOR CASING, EMPTY MAF-202045.A1 202045 -
2 - ARMATURE, BALANCED MAF-088150.A7 088150 £135.58 £162.69
3 - GUIDE-RAIL EXTENSION MAF-203750.A3 203750 -
3.1 - GUIDE RAIL MAF-203758.A3 203758 -
3.3 - ADAPTER MAF-202927.A1 202927 -
3.4 - CLAMPING DEVICE MAF-202914.A2 202914 -
3.5 - CELLULAR RUBBER STRIP MAF-204029.A7 204029 £40.08 £48.10
3.6 - TOOTHED BELT SEGMENT MAF-203766.A7 203766 -
3.8 - FLAT-HEAD SCREW MAF-053006.A20 053006 -
3.9 - SPRING DOWEL SLEEVE MAF-058204.A3 058204 -
3.10 - CYLINDRICAL PIN MAF-058200.A4 058200 -
3.11 - WASHER MAF-061119.A12 061119 -
3.12 - SQUARE NUT MAF-005977.A3 005977 -
4 - TENSIONING LEVER MAF-203397.A18 203397 -
5 - GUIDE PIECE MAF-202857.A8 202857 -
6 - DEPTH STOP MAF-202912.A0 202912 -
7 - GEAR CASING MAF-203765.A3 203765 -
8 - BASE PLATE MAF-203763.A1 203763 -
9 - GEAR CASING COVER MAF-202851.A7 202851 -
10 - GUIDE RAIL MAF-202907.A8 202907 -
11 - INSERT MAF-203358.A8 203358 -
12 - AIR CONDUCTING RING MAF-203756.A0 203756 -
13 - FAN MAF-200015.A8 200015 £7.85 £9.42
14 - MOTOR COVER MAF-039220.A6 039220 -
15 - CAP MAF-202345.A14 202345 £5.74 £6.89
16 - LOCKING BOLT MAF-202436.A6 202436 -
17 - TERMINAL BOX MAF-202902.A1 202902 -
18 - DUST EXTRACTION SHOE MAF-202928.A4 202928 -
19 - GUIDE PIECE MAF-202916.A4 202916 -
20 - PROTECTIVE COVER MAF-203764.A4 203764 -
21 - PLUNGE LEVER HANDLE MAF-202344.A0 202344 £5.94 £7.13
22 - CLAMPING DEVICE MAF-202914.A1 202914 -
23 - CASING, LOWER PART MAF-202905.A4 202905 -
24 - CASING COVER MAF-202906.A6 202906 -
25 - SLIDING COVER MAF-202922.A7 202922 -
26 - COVERING HOOD MAF-202938.A2 202938 -
27 - GUIDE BOLT MAF-039836.A2 039836 -
28 - CHIP COLLECTOR MAF-203643.A2 203643 -
29 - SEALING PIECE MAF-203749.A1 203749 -
30 - SPRING BOLT MAF-202935.A8 202935 -
31 - BALL-SHAPED FIXTURE MAF-203369.A3 203369 -
32 - ARBOR MAF-203361.A8 203361 -
33 - ECCENTRIC ARBOR MAF-203364.A3 203364 -
34 - FLANGE, REAR MAF-200038.A0 200038 -
35 - SAW SHAFT MAF-203649.A2 203649 -
36 - CYLINDRICAL PIN MAF-058203.A1 058203 -
37 - CLAMPING PIECE MAF-202926.A3 202926 £24.21 £29.05
38 - HEXAGON-HEAD SCREW MAF-202923.A2 202923 -
39 - ECCENTRIC BUSH MAF-203545.A0 203545 -
40 - GUIDE BOLT MAF-203356.A7 203356 -
41 - SLIDING BLOCK MAF-039436.A3 039436 -
42 - SLIDING BLOCK MAF-202911.A3 202911 -
43 - COVERING PLATE MAF-203366.A8 203366 -
44 - RIVING KNIFE/SPLITTER MAF-202580.A9 202580 £10.26 £12.31
45 - FLANGE, FRONT MAF-203648.A6 203648 -
46 - SUPPORTING LEVER MAF-202859.A1 202859 -
47 - RIVING KNIFE/SPLITTER SUPPORT MAF-202862.A0 202862 -
48 - CLICK LEVER MAF-202913.A0 202913 -
49 - BOUNDARY DISK MAF-202919.A1 202919 -
50 - ADJUSTABLE SHEET METAL MAF-202937.A3 202937 -
51 - SMALL PLATE MAF-203546.A2 203546 -
52 - PLUNGE LEVER MAF-203362.A4 203362 -
53 - CHIP GUARD MAF-203365.A5 203365 -
54 - SHEET METAL FIXING PLATE MAF-203549.A6 203549 -
55 - TILTING PLATE MAF-203762.A2 203762 -
56 - THREADED PIN MAF-052011.A23 052011 -
57 - FLAT-HEAD SCREW MAF-005380.A5 005380 -
58 - CYLINDRICAL OVAL-HEAD SCREW MAF-055111.A16 055111 -
59 - FLAT-HEAD SCREW MAF-005367.A2 005367 -
60 - FLAT-HEAD SCREW MAF-053016.A8 053016 -
61 - LOCKING SCREW WITH WASHER MAF-055155.A12 055155 -
62 - CYLINDER-HEAD SCREW MAF-005516.A4 005516 -
63 - CYLINDER-HEAD SCREW MAF-005536.A20 005536 -
64 - CYLINDER-HEAD SCREW MAF-055096.A25 055096 £2.11 £2.53
65 - CYLINDER-HEAD SCREW MAF-055234.A22 055234 £1.19 £1.43
66 - SHOULDER SCREW MAF-055186.A7 055186 -
67 - SHOULDER SCREW MAF-055118.A20 055118 £2.41 £2.89
68 - CYLINDRICAL OVAL-HEAD SCREW MAF-055061.A80 055061 £1.71 £2.05
69 - CYLINDRICAL OVAL-HEAD SCREW MAF-055194.A9 055194 -
70 - CYLINDRICAL OVAL-HEAD SCREW MAF-055233.A40 055233 £1.71 £2.05
71 - SELF-TAPPING OVAL-HEAD SCREW MAF-055058.A32 055058 -
72 - OVAL-HEAD SCREW MAF-055093.A5 055093 -
73 - SELF-TAPPING SCREW MAF-055230.A57 055230 -
74 - SELF-TAPPING SCREW MAF-055232.A2 055232 £1.68 £2.02
75 - CYLINDER-HEAD SCREW MAF-055229.A2 055229 -
76 - CYLINDER-HEAD SCREW MAF-055242.A8 055242 -
77 - CYLINDER-HEAD SCREW MAF-055228.A6 055228 -
78 - HEXAGONAL NUT MAF-005900.A19 005900 -
79 - HEXAGONAL NUT MAF-005913.A6 005913 -
80 - HEXAGONAL NUT MAF-005915.A37 005915 -
81 - LOCKING NUT MAF-005979.A34 005979 £2.54 £3.05
82 - SQUARE NUT MAF-005953.A31 005953 -
83 - LOCKING WASHER MAF-006183.A15 006183 £2.01 £2.41
84 - LOCKING WASHER MAF-006184.A23 006184 £1.50 £1.80
85 - WASHER MAF-006100.A49 006100 £2.01 £2.41
86 - WASHER MAF-006101.A86 006101 £1.54 £1.85
87 - SHIM RING MAF-006157.A4 006157 -
88 - WASHER MAF-061013.A50 061013 -
89 - WASHER MAF-061044.A33 061044 £1.65 £1.98
90 - LOCKING WASHER MAF-061005.A10 061005 -
92 - RETAINING RING MAF-006173.A16 006173 -
93 - RETAINING RING MAF-061138.A22 061138 £2.29 £2.75
94 - RETAINING RING MAF-007159.A8 007159 -
95 - GROOVED BALL BEARING MAF-006282.A27 006282 £14.68 £17.62
96 - GROOVED BALL BEARING MAF-006280.A50 006280 £13.65 £16.38
97 - GROOVED BALL BEARING MAF-062065.A11 062065 £34.87 £41.84
98 - BRUSH HOLDER MAF-063160.A11 063160 £10.07 £12.08
99 - CARBON BRUSH MAF-063163.A1 063163 -
100 - CABLE CLAMP MAF-029584.A76 029584 -
101 - SPRING DOWEL SLEEVE MAF-005817.A11 005817 -
102 - GAS SPRING MAF-006666.A2 006666 £33.91 £40.69
103 - PRESSURE SPRING MAF-006657.A13 006657 -
104 - CUP SPRING MAF-006664.A4 006664 £1.98 £2.38
105 - CLIP CONNECTOR MAF-006172.A8 006172 -
106 - RETRACTING SPRING MAF-066054.A4 066054 -
107 - RETRACTING SPRING MAF-066090.A12 066090 -
108 - LEG SPRING MAF-066147.A7 066147 -
109 - KNURLED NUT MAF-065052.A6 065052 -
111 - CABLE BINDER MAF-076492.A0 076492 -
112 - INTERFERENCE SUPPRESSION CAPACITOR MAF-076187.A8 076187 -
113 - STICKER MAF-078415.A6 078415 -
114 - STICKER MAF-078416.A3 078416 -
115 - HEXAGONAL PROTECTIVE CAP MAF-077009.A16 077009 -
116 - WING NUT MAF-007996.A2 007996 -
117 - CONTROL MODULE MAF-077043.A6 077043 -
119 - THREADED PIN MAF-005285.A2 005285 -
120 - CABLE PROTECTING SLEEVE MAF-086064.A67 086064 £3.37 £4.04
123 - FEDERSCHEIBE MAF-061132.A22 061132 -
124 - SEALING RING MAF-006581.A5 006581 -
125 - CONNECTING CABLE MAF-203769.A5 203769 -
126 - CLAMPING STRIP MAF-087626.A5 087626 -
127 - MAINS CABLE 4 M (13.1 FT) MAF-087594.A8 087594 -
128 - MOTOR WITH SPUR GEAR MAF-087918.A5 087918 £362.62 £435.14
128.1 - WOODRUFF KEY MAF-007804.A6 007804 -
130 - ENERGY CHAIN MAF-087859.A1 087859 -
132 - SNAP-ACTION SWITCH MAF-087819.A7 087819 -
134 - BOW HANDLE MAF-200650.A1 200650 -
135 - BOW HANDLE MAF-201142.A7 201142 -
136 - SPACER RING MAF-201159.A3 201159 -
137 - PRESSURE BIT MAF-202378.A9 202378 -
138 - TOOTHED WASHER MAF-202917.A3 202917 -
139 - ROLLED SPRING MAF-202920.A0 202920 -
140 - ROLLED SPRING MAF-202925.A0 202925 -
141 - CONNECTING CABLE MAF-203768.A2 203768 -
142 - EXTRACTION HOSE MAF-203757.A6 203757 -
144 - TOOTHED BELT SEGMENT MAF-202929.A4 202929 -
145 - 2-POLE REVERSING SWITCH MAF-087817.A4 087817 -
146 - MAINS ADAPTER MAF-202933.A3 202933 -
147 - POTENTIOMETER WITH PLUG MAF-087697.A4 087697 -
148 - KNOB MAF-065047.A3 065047 -
149 - CONNECTION CIRCUIT BOARD MAF-203357.A4 203357 -
150 - PROTECTIVE LEDGE MAF-007605.A3 007605 £10.60 £12.72
151 - STOP BUFFER MAF-201609.A8 201609 -
152 - TCT SAW BLADE MAF-092533.A0 092533 £42.16 £50.59
154 - CELLULAR RUBBER STRIP MAF-204029.A12 204029 £40.08 £48.10
156 - TACHOMETER CARRIER MAF-038975.A21 038975 £20.14 £24.17
158 - HEXAGON-HEAD SCREW MAF-005673.A2 005673 -
159 - CYLINDER-HEAD SCREW MAF-055054.A7 055054 -
500 - ALLEN KEY MAF-093034.A44 093034 -
501 - SLIDING AGENT MAF-076477.A5 076477 -
