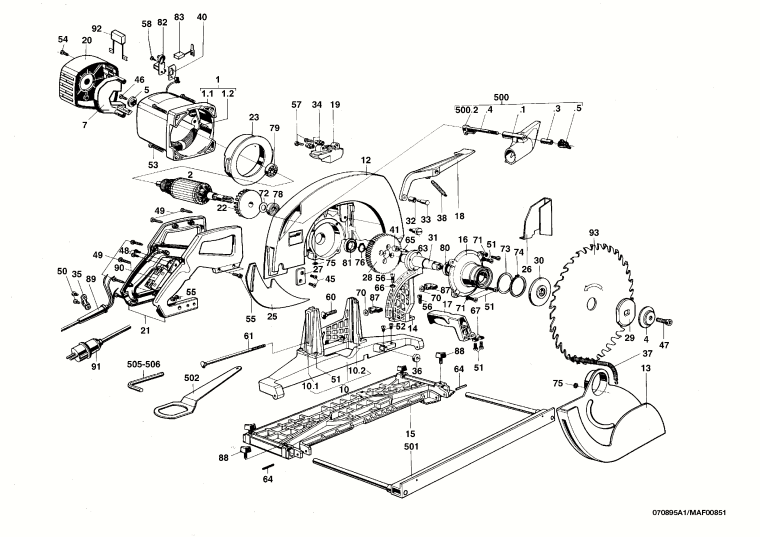

1 - MOTOR CASING WITH INDUCTOR
MAF-084470.A2
084470
|
-
|
|
|
|
1.1 - MOTOR CASING, EMPTY
MAF-203635.A27
203635
|
£101.12
|
£121.34
|
|
|
1.2 - INDUCTOR WITH COIL
MAF-084471.A1
084471
|
-
|
|
|
|
2 - ARMATURE, BALANCED
MAF-088130.A0
088130
|
-
|
|
|
|
4 - CLAMPING DISK, CPL.
MAF-035507.A3
035507
|
-
|
|
|
|
5 - TACHOMETER CARRIER
MAF-038975.A54
038975
|
£21.15
|
£25.38
|
|
|
7 - CONTROL MODULE
MAF-077145.A3
077145
|
-
|
|
|
|
10 - TILTING SUPPORT, ASSEMBLED
MAF-035975.A0
035975
|
-
|
|
|
|
10.1 - VERTICAL GUIDEWAY, REAR
MAF-035011.A3
035011
|
-
|
|
|
|
10.2 - VERTICAL GUIDEWAY, FRONT
MAF-035010.A0
035010
|
-
|
|
|
|
13 - PROTECTIVE COVER
MAF-201072.A1
201072
|
-
|
|
|
|
14 - SEGMENT FOR TILTING
MAF-035005.A1
035005
|
-
|
|
|
|
16 - BEARING COVER
MAF-035978.A0
035978
|
-
|
|
|
|
17 - HANDLE
MAF-033468.A9
033468
|
-
|
|
|
|
18 - LEVER
MAF-035008.A2
035008
|
-
|
|
|
|
19 - INTERMEDIATE PIECE
MAF-035013.A3
035013
|
-
|
|
|
|
20 - MOTOR COVER
MAF-039174.A10
039174
|
-
|
|
|
|
21 - HANDLE SHELLS (PAIR)
MAF-038419.A5
038419
|
-
|
|
|
|
22 - FAN
MAF-039182.A15
039182
|
£19.45
|
£23.34
|
|
|
23 - AIR CONDUCTING RING
MAF-201948.A3
201948
|
-
|
|
|
|
25 - RIVING KNIFE/SPLITTER
MAF-035015.A1
035015
|
-
|
|
|
|
26 - GUARD PLATE
MAF-035018.A3
035018
|
-
|
|
|
|
27 - RIVING KNIFE/SPLITTER PLATE
MAF-035019.A1
035019
|
-
|
|
|
|
28 - ROUE DENTÉE
MAF-202128.A3
202128
|
-
|
|
|
|
29 - FLANGE, FRONT
MAF-035503.A1
035503
|
-
|
|
|
|
30 - FLANGE, REAR
MAF-035504.A2
035504
|
-
|
|
|
|
31 - SAW SHAFT
MAF-202129.A2
202129
|
-
|
|
|
|
32 - ROLLER
MAF-038683.A1
038683
|
-
|
|
|
|
33 - BOLT
MAF-038674.A0
038674
|
-
|
|
|
|
34 - INSERTION NUT
MAF-029513.A7
029513
|
-
|
|
|
|
35 - CABLE CLAMP
MAF-029584.A149
029584
|
-
|
|
|
|
36 - STOP BUFFER
MAF-034209.A20
034209
|
-
|
|
|
|
37 - RETRACTING SPRING
MAF-035025.A12
035025
|
-
|
|
|
|
38 - RETRACTING SPRING II
MAF-035026.A6
035026
|
-
|
|
|
|
40 - PAD
MAF-201872.A85
201872
|
-
|
|
|
|
41 - SLEEVE
MAF-202225.A4
202225
|
-
|
|
|
|
45 - FLAT-HEAD SCREW
MAF-005372.A15
005372
|
£2.08
|
£2.50
|
|
|
46 - CYLINDER-HEAD SCREW
MAF-005505.A30
005505
|
-
|
|
|
|
47 - CYLINDER-HEAD SCREW
MAF-055014.A5
055014
|
-
|
|
|
|
48 - SELF-TAPPING OVAL-HEAD SCREW
MAF-055058.A42
055058
|
-
|
|
|
|
49 - CYLINDRICAL OVAL-HEAD SCREW
MAF-055061.A225
055061
|
£1.79
|
£2.15
|
|
|
50 - SELF-TAPPING OVAL-HEAD SCREW
MAF-055062.A69
055062
|
-
|
|
|
|
51 - OVAL-HEAD SCREW
MAF-055101.A58
055101
|
£2.14
|
£2.57
|
|
|
52 - OVAL-HEAD SCREW
MAF-055102.A11
055102
|
-
|
|
|
|
53 - OVAL-HEAD SCREW
MAF-055114.A26
055114
|
-
|
|
|
|
54 - SELF-TAPPING OVAL-HEAD SCREW
MAF-055124.A39
055124
|
-
|
|
|
|
55 - OVAL-HEAD SCREW
MAF-055129.A27
055129
|
-
|
|
|
|
56 - OVAL-HEAD SCREW
MAF-055130.A7
055130
|
-
|
|
|
|
57 - OVAL-HEAD SCREW
MAF-055131.A0
055131
|
-
|
|
|
|
58 - COUNTER-SUNK OVAL-HEAD SCREW
MAF-053020.A91
053020
|
£2.11
|
£2.53
|
|
|
60 - TRUSS-HEAD SCREW
MAF-005718.A20
005718
|
-
|
|
|
|
63 - SHOULDER SCREW
MAF-005799.A9
005799
|
-
|
|
|
|
64 - SPRING DOWEL SLEEVE
MAF-058101.A1
058101
|
-
|
|
|
|
65 - CYLINDRICAL PIN
MAF-058021.A8
058021
|
-
|
|
|
|
66 - HEXAGONAL NUT
MAF-005911.A33
005911
|
-
|
|
|
|
67 - SQUARE NUT
MAF-005953.A51
005953
|
-
|
|
|
|
70 - WASHER
MAF-006101.A91
006101
|
£1.80
|
£2.16
|
|
|
71 - LOCKING WASHER
MAF-006113.A45
006113
|
£2.02
|
£2.43
|
|
|
72 - SHIM RING
MAF-006160.A49
006160
|
£1.73
|
£2.08
|
|
|
73 - SHIM RING
MAF-061071.A14
061071
|
-
|
|
|
|
74 - RETAINING RING
MAF-061072.A24
061072
|
-
|
|
|
|
75 - LOCKING WASHER
MAF-061073.A47
061073
|
-
|
|
|
|
76 - RETAINING RING
MAF-006195.A9
006195
|
-
|
|
|
|
78 - GROOVED BALL BEARING
MAF-006260.A54
006260
|
£19.06
|
£22.87
|
|
|
79 - GROOVED BALL BEARING
MAF-062073.A73
062073
|
£15.00
|
£18.00
|
|
|
80 - GROOVED BALL BEARING
MAF-006293.A5
006293
|
-
|
|
|
|
81 - GROOVED BALL BEARING
MAF-062040.A6
062040
|
-
|
|
|
|
82 - BRUSH HOLDER
MAF-063148.A70
063148
|
£10.82
|
£12.98
|
|
|
83 - CARBON BRUSH WITH AUTOMATIC CUT-OFF
MAF-063147.A42
063147
|
£15.46
|
£18.55
|
|
|
87 - WING NUT
MAF-007988.A12
007988
|
-
|
|
|
|
88 - WING SCREW
MAF-079077.A41
079077
|
-
|
|
|
|
89 - CABLE PROTECTING SLEEVE
MAF-086065.A55
086065
|
£3.63
|
£4.36
|
|
|
90 - 2-POLE SWITCH WITH LOCK-OFF BUTTON
MAF-087461.A6
087461
|
£46.27
|
£55.52
|
|
|
91 - MAINS CABLE (13.1 FT)
MAF-087321.A0
087321
|
-
|
|
|
|
92 - INTERFERENCE SUPPRESSION CAPACITOR
MAF-087650.A11
087650
|
£21.06
|
£25.27
|
|
|
93 - TCT SAW BLADE
MAF-092446.A2
092446
|
-
|
|
|
|
500 - HOSE CONNECTOR
MAF-039296.A3
039296
|
-
|
|
|
|
500.1 - HOSE CONNECTOR
MAF-039292.A0
039292
|
-
|
|
|
|
500.2 - FIXING CLAW
MAF-037875.A1
037875
|
-
|
|
|
|
500.3 - SPACER TUBE
MAF-035416.A6
035416
|
£7.17
|
£8.60
|
|
|
500.4 - SET SCREW
MAF-057038.A0
057038
|
-
|
|
|
|
500.5 - WING NUT
MAF-007996.A33
007996
|
-
|
|
|
|
501 - PARALLEL GUIDE FENCE
MAF-035115.A1
035115
|
£169.33
|
£203.20
|
|
|
502 - RING SPANNER
MAF-035117.A1
035117
|
-
|
|
|
|
505 - ALLEN KEY
MAF-093081.A13
093081
|
-
|
|
|
|
506 - ALLEN KEY
MAF-093074.A30
093074
|
£3.10
|
£3.72
|
|
