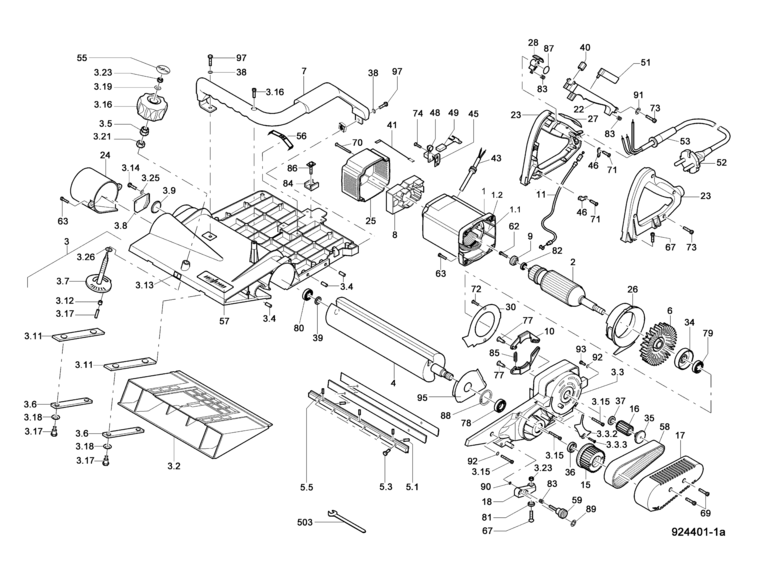

1 - MOTOR CASING WITH INDUCTOR 230 V
MAF-084606.A4
084606
|
-
|
|
|
|
1.1 - INDUCTOR 230 V
MAF-084592.A2
084592
|
-
|
|
|
|
1.2 - MOTOR CASING
MAF-204443.A3
204443
|
£123.07
|
£147.68
|
|
|
2 - ARMATURE, BALANCED
MAF-088203.A3
088203
|
£407.49
|
£488.99
|
|
|
3 - PART NAME NOT AVAILABLE
MAF-203322.A0
203322
|
-
|
|
|
|
3.2 - PART NAME NOT AVAILABLE
MAF-203342.A2
203342
|
£420.22
|
£504.26
|
|
|
3.3.2 - COVERING PLATE
MAF-202288.A7
202288
|
£6.61
|
£7.93
|
|
|
3.3.3 - FLAT-HEAD SCREW
MAF-005399.A34
005399
|
£1.33
|
£1.60
|
|
|
3.4 - CENTERING SLEEVE
MAF-036054.A5
036054
|
-
|
|
|
|
3.5 - HEXAGONAL NUT
MAF-202403.A7
202403
|
-
|
|
|
|
3.6 - CLAMPING BAR
MAF-035152.A5
035152
|
-
|
|
|
|
3.7 - CAM DISK
MAF-203317.A0
203317
|
£57.20
|
£68.64
|
|
|
3.8 - COVER
MAF-202297.A7
202297
|
-
|
|
|
|
3.9 - LID
MAF-036034.A4
036034
|
-
|
|
|
|
3.11 - GUIDE RAIL
MAF-036854.A7
036854
|
-
|
|
|
|
3.12 - JACKET
MAF-036861.A0
036861
|
£21.92
|
£26.31
|
|
|
3.13 - ADHESIVE LABEL
MAF-077651.A2
077651
|
-
|
|
|
|
3.14 - HEXAGON-HEAD SCREW
MAF-005677.A3
005677
|
£1.38
|
£1.66
|
|
|
3.15 - OVAL-HEAD SCREW
MAF-055115.A3
055115
|
-
|
|
|
|
3.16 - HANDLE
MAF-038970.A38
038970
|
£8.78
|
£10.53
|
|
|
3.17 - CYLINDRICAL PIN
MAF-058125.A9
058125
|
£3.00
|
£3.60
|
|
|
3.18 - CUP SPRING
MAF-066027.A10
066027
|
£1.84
|
£2.21
|
|
|
3.19 - WASHER
MAF-061172.A19
061172
|
-
|
|
|
|
3.21 - HEXAGONAL NUT
MAF-005924.A33
005924
|
£1.75
|
£2.10
|
|
|
3.23 - LOCKING NUT
MAF-005979.A30
005979
|
£2.67
|
£3.20
|
|
|
3.25 - WASHER
MAF-006100.A45
006100
|
£2.11
|
£2.53
|
|
|
3.26 - SHIM RING
MAF-006169.A4
006169
|
-
|
|
|
|
4 - CUTTER HEAD
MAF-203324.A1
203324
|
-
|
|
|
|
5.1 - SPRING DOWEL SLEEVE
MAF-058144.A3
058144
|
£2.22
|
£2.67
|
|
|
5.3 - HEXAGON-HEAD SCREW
MAF-035103.A3
035103
|
£3.10
|
£3.72
|
|
|
5.5 - THREADED PIN
MAF-005284.A34
005284
|
-
|
|
|
|
6 - FAN
MAF-035138.A0
035138
|
£13.75
|
£16.50
|
|
|
7 - BOW HANDLE
MAF-203316.A3
203316
|
-
|
|
|
|
8 - CONTROL MODULE
MAF-077165.A0
077165
|
£113.32
|
£135.99
|
|
|
9 - TACHOMETER CARRIER
MAF-038975.A26
038975
|
£21.15
|
£25.38
|
|
|
10 - BRAKE LEVER, CPL.
MAF-201122.A5
201122
|
-
|
|
|
|
11 - BOWDEN CABLE, CPL.
MAF-202301.A5
202301
|
-
|
|
|
|
15 - DRIVING WHEEL, LARGE
MAF-202286.A2
202286
|
-
|
|
|
|
16 - DRIVING WHEEL, SMALL
MAF-202287.A6
202287
|
-
|
|
|
|
17 - PROTECTIVE COVER
MAF-035140.A9
035140
|
£50.40
|
£60.48
|
|
|
18 - LEVER
MAF-035147.A12
035147
|
-
|
|
|
|
22 - SWITCH LEVER
MAF-204216.A5
204216
|
-
|
|
|
|
23 - PART NAME NOT AVAILABLE
MAF-204217.A3
204217
|
-
|
|
|
|
24 - CHIP EJECTOR
MAF-202290.A4
202290
|
-
|
|
|
|
25 - MOTOR COVER
MAF-204037.A6
204037
|
-
|
|
|
|
26 - AIR CONDUCTING RING
MAF-035139.A9
035139
|
-
|
|
|
|
27 - HANDLE INSERT
MAF-203860.A3
203860
|
-
|
|
|
|
28 - LOCKING LEVER
MAF-201745.A27
201745
|
£6.32
|
£7.58
|
|
|
30 - INTERMEDIATE PLATE
MAF-202289.A3
202289
|
-
|
|
|
|
34 - BRAKE DRUM
MAF-202296.A0
202296
|
-
|
|
|
|
35 - BOUNDARY DISK
MAF-200680.A6
200680
|
-
|
|
|
|
36 - SPACER RING
MAF-039007.A2
039007
|
-
|
|
|
|
37 - SPACER RING
MAF-038484.A7
038484
|
-
|
|
|
|
38 - WASHER
MAF-006101.A66
006101
|
£1.62
|
£1.94
|
|
|
39 - SPACER DISK
MAF-035994.A0
035994
|
-
|
|
|
|
40 - HEXAGONAL NUT
MAF-201147.A7
201147
|
£7.80
|
£9.36
|
|
|
41 - CONNECTING CABLE
MAF-085133.A4
085133
|
-
|
|
|
|
43 - CONNECTING CABLE
MAF-087800.A2
087800
|
-
|
|
|
|
45 - PAD
MAF-201872.A46
201872
|
-
|
|
|
|
46 - CABLE CLAMP
MAF-029584.A72
029584
|
-
|
|
|
|
48 - BRUSH HOLDER
MAF-063157.A4
063157
|
-
|
|
|
|
49 - CARBON BRUSH WITH AUTOMATIC CUT-OFF
MAF-063180.A5
063180
|
£15.98
|
£19.17
|
|
|
51 - 2-POLE SWITCH
MAF-087599.A9
087599
|
£53.30
|
£63.96
|
|
|
52 - PART NAME NOT AVAILABLE
MAF-087378.A3
087378
|
-
|
|
|
|
53 - CABLE PROTECTING SLEEVE
MAF-086065.A34
086065
|
£3.63
|
£4.36
|
|
|
55 - NAME PLATE
MAF-201166.A34
201166
|
£8.54
|
£10.25
|
|
|
56 - PLATE SPRING
MAF-066184.A
066184
|
-
|
|
|
|
57 - STICKER
MAF-077308.A10
077308
|
-
|
|
|
|
58 - TOOTHED BELT
MAF-076488.A7
076488
|
£43.75
|
£52.50
|
|
|
59 - KNURLED KNOB
MAF-065029.A4
065029
|
£9.67
|
£11.61
|
|
|
62 - CYLINDER-HEAD SCREW
MAF-005505.A18
005505
|
-
|
|
|
|
63 - CYLINDRICAL OVAL-HEAD SCREW
MAF-055086.A46
055086
|
-
|
|
|
|
67 - OVAL-HEAD SCREW
MAF-055101.A12
055101
|
£2.14
|
£2.57
|
|
|
69 - OVAL-HEAD SCREW
MAF-055082.A7
055082
|
£1.94
|
£2.33
|
|
|
70 - SELF-TAPPING OVAL-HEAD SCREW
MAF-055124.A29
055124
|
-
|
|
|
|
71 - CYLINDRICAL OVAL-HEAD SCREW
MAF-055233.A78
055233
|
£1.79
|
£2.15
|
|
|
72 - FLAT-HEAD SCREW
MAF-005399.A19
005399
|
£1.33
|
£1.60
|
|
|
73 - CYLINDRICAL OVAL-HEAD SCREW
MAF-055061.A127
055061
|
£1.79
|
£2.15
|
|
|
74 - COUNTER-SUNK OVAL-HEAD SCREW
MAF-053020.A47
053020
|
£2.11
|
£2.53
|
|
|
77 - SHOULDER SCREW
MAF-055118.A12
055118
|
£2.52
|
£3.03
|
|
|
78 - GROOVED BALL BEARING
MAF-006260.A35
006260
|
£19.06
|
£22.87
|
|
|
79 - GROOVED BALL BEARING
MAF-006268.A10
006268
|
£16.07
|
£19.28
|
|
|
80 - GROOVED BALL BEARING
MAF-006280.A28
006280
|
£14.33
|
£17.20
|
|
|
81 - GROOVED BALL BEARING
MAF-006282.A49
006282
|
£15.42
|
£18.50
|
|
|
82 - GROOVED BALL BEARING
MAF-062073.A42
062073
|
£15.00
|
£18.00
|
|
|
83 - PRESSURE SPRING
MAF-066043.A62
066043
|
£3.19
|
£3.83
|
|
|
84 - CLIP CONNECTOR
MAF-006172.A14
006172
|
-
|
|
|
|
85 - RETRACTING SPRING
MAF-066112.A3
066112
|
£5.80
|
£6.96
|
|
|
86 - LOCKING SCREW WITH WASHER
MAF-055155.A16
055155
|
-
|
|
|
|
87 - SEALING RING
MAF-006591.A20
006591
|
£1.73
|
£2.08
|
|
|
88 - RETAINING RING
MAF-007141.A6
007141
|
£3.73
|
£4.48
|
|
|
89 - LOCKING WASHER
MAF-061078.A10
061078
|
-
|
|
|
|
90 - SEALING RING
MAF-065004.A23
065004
|
£1.72
|
£2.06
|
|
|
91 - WASHER
MAF-061013.A44
061013
|
-
|
|
|
|
92 - WASHER
MAF-061015.A31
061015
|
-
|
|
|
|
93 - CYLINDRICAL OVAL-HEAD SCREW
MAF-055091.A12
055091
|
-
|
|
|
|
95 - SHEET METAL AIR DEFLECTOR
MAF-202299.A4
202299
|
-
|
|
|
|
97 - HEXAGON-HEAD SCREW
MAF-005697.A7
005697
|
-
|
|
|
|
503 - SINGLE-END SPANNER
MAF-093258.A8
093258
|
£9.90
|
£11.88
|
|
