Mafell 924410 Carpentry Planing Machine ZH 320 K Spare Parts

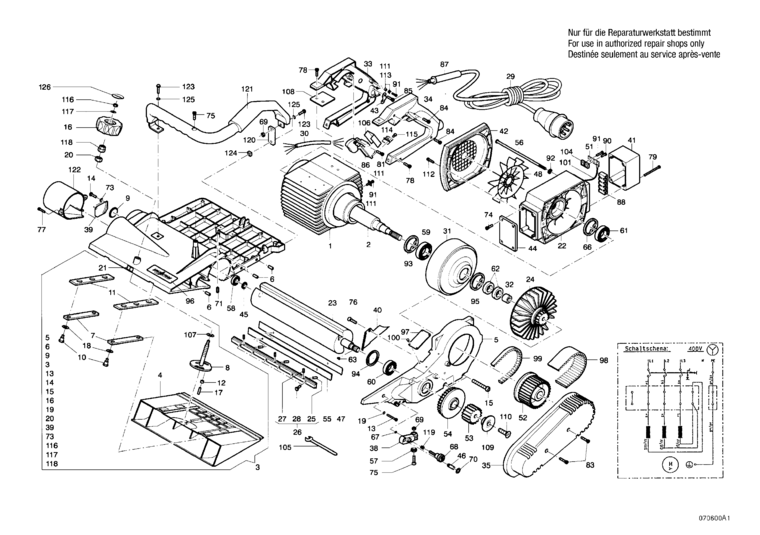

An exploded drawing and spare parts listing for the Mafell 924410 Carpentry Planing Machine ZH 320 K

	Ex VAT	Inc VAT
1 - STATOR MAF-082118.A1 082118	-
2 - ROTOR MAF-037605.A0 037605	-
3 - MAIN BODY WITH FRONT BASE PLATE, ASSEMBLED MAF-202568.A 202568	-
4 - BASE PLATE, FRONT MAF-202574.A1 202574	£278.38	£334.05
5 - END PLATE MAF-202562.A 202562	-
6 - CENTERING SLEEVE MAF-036054.A11 036054	-
7 - CLAMPING BAR MAF-035152.A2 035152	-
8 - CAM DISK MAF-202401.A3 202401	£54.05	£64.86
9 - LID MAF-036034.A2 036034	-
10 - SHOULDER SCREW MAF-036853.A7 036853	£8.87	£10.64
11 - GUIDE RAIL MAF-036854.A9 036854	-
12 - JACKET MAF-036861.A6 036861	£20.88	£25.06
13 - CYLINDRICAL OVAL-HEAD SCREW MAF-055100.A5 055100	-
14 - HEXAGON-HEAD SCREW MAF-005677.A10 005677	£1.32	£1.58
15 - CYLINDRICAL OVAL-HEAD SCREW MAF-055087.A1 055087	-
16 - HANDLE MAF-038970.A36 038970	£8.36	£10.03
17 - CYLINDRICAL PIN MAF-058125.A4 058125	£2.86	£3.43
18 - CUP SPRING MAF-066027.A12 066027	£1.75	£2.10
19 - WASHER MAF-061015.A48 061015	-
20 - HEXAGONAL NUT MAF-005924.A31 005924	£1.67	£2.00
21 - ADHESIVE LABEL MAF-077651.A10 077651	-
22 - END PLATE MAF-037919.A7 037919	-
23 - CUTTER HEAD, BALANCED MAF-202567.A 202567	-
24 - FAN MAF-039664.A1 039664	£49.35	£59.22
25 - SPRING DOWEL SLEEVE MAF-058144.A7 058144	£2.12	£2.54
26 - CLAMPING DEVICE MAF-202295.A2 202295	-
27 - THREADED PIN MAF-005284.A64 005284	-
28 - HEXAGON-HEAD SCREW MAF-035103.A8 035103	£2.95	£3.54
29 - MAINS CABLE WITH CEE-PLUG MAF-031685.A1 031685	-
30 - CONNECTING CABLE MAF-039686.A1 039686	-
31 - INTERMEDIATE PIECE MAF-037608.A1 037608	-
32 - SPACER BUSH MAF-039668.A0 039668	-
33 - HANDLE SHELL, RIGHT MAF-039683.A1 039683	-
34 - HANDLE SHELL, LEFT MAF-039685.A0 039685	-
35 - PROTECTIVE COVER MAF-039627.A0 039627	-
38 - LEVER MAF-035147.A5 035147	-
39 - COVER MAF-202297.A2 202297	-
40 - PART NAME NOT AVAILABLE MAF-202559.A 202559	-
41 - TERMINAL BOX LID MAF-039688.A1 039688	-
42 - FAN COVER MAF-037922.A6 037922	-
43 - CABLE CLAMP MAF-006566.A2 006566	-
44 - COVER MAF-038921.A3 038921	-
45 - SPACER DISK MAF-035994.A11 035994	-
46 - PRESS-IN BOLT MAF-038164.A2 038164	-
47 - KNIFE SUPPORT MAF-091790.A1 091790	£91.81	£110.17
48 - FAN MAF-037908.A7 037908	-
51 - SMALL PLATE MAF-037987.A6 037987	-
52 - DRIVING WHEEL, LARGE MAF-039670.A0 039670	-
53 - DRIVING WHEEL, SMALL MAF-039669.A1 039669	-
54 - FAN DRIVING WHEEL MAF-039671.A1 039671	-
55 - REVERSIBLE KNIVES PAIR MAF-091791.A2 091791	£38.32	£45.99
56 - COLLAR SCREW MAF-057029.A0 057029	-
57 - GROOVED BALL BEARING MAF-006282.A46 006282	£14.68	£17.62
58 - GROOVED BALL BEARING MAF-006280.A24 006280	£13.65	£16.38
59 - GROOVED BALL BEARING MAF-006293.A0 006293	-
60 - GROOVED BALL BEARING MAF-006231.A9 006231	£13.65	£16.38
61 - GROOVED BALL BEARING MAF-006263.A5 006263	-
62 - GROOVED BALL BEARING MAF-062063.A1 062063	-
63 - WOODRUFF KEY MAF-066050.A1 066050	-
66 - FEDERSCHEIBE MAF-061118.A3 061118	-
67 - SEALING RING MAF-065004.A40 065004	£1.63	£1.96
68 - KNURLED KNOB MAF-065029.A0 065029	£9.22	£11.06
69 - HEXAGONAL NUT MAF-005939.A30 005939	-
70 - LOCKING WASHER MAF-061078.A6 061078	-
71 - THREADED PIN MAF-005256.A1 005256	-
73 - WASHER MAF-006100.A32 006100	£2.01	£2.41
74 - SELF-TAPPING OVAL-HEAD SCREW MAF-055062.A43 055062	-
75 - OVAL-HEAD SCREW MAF-055101.A10 055101	£2.04	£2.45
76 - CYLINDRICAL OVAL-HEAD SCREW MAF-055091.A9 055091	-
77 - CYLINDRICAL OVAL-HEAD SCREW MAF-055086.A34 055086	-
78 - CYLINDRICAL OVAL-HEAD SCREW MAF-055188.A24 055188	-
79 - SELF-TAPPING OVAL-HEAD SCREW MAF-055124.A27 055124	-
81 - OVAL-HEAD SCREW MAF-055093.A10 055093	-
83 - OVAL-HEAD SCREW MAF-055114.A7 055114	-
84 - OVAL-HEAD SCREW MAF-055069.A25 055069	£2.16	£2.59
85 - CYLINDRICAL OVAL-HEAD SCREW MAF-055137.A27 055137	£2.03	£2.44
86 - 3-POLE SWITCH WITH LOCK-OFF BUTTON MAF-087598.A1 087598	-
87 - CABLE PROTECTING SLEEVE MAF-086065.A36 086065	£3.46	£4.15
88 - CLAMPING STRIP MAF-087721.A6 087721	-
90 - RIBBED NAIL MAF-058068.A8 058068	-
91 - LOCKING SCREW WITH WASHER MAF-055155.A8 055155	-
92 - LOCKING WASHER MAF-006179.A20 006179	£1.53	£1.84
93 - RETAINING RING MAF-061008.A3 061008	-
94 - RETAINING RING MAF-007141.A7 007141	£3.56	£4.27
95 - RETAINING RING MAF-061127.A1 061127	-
96 - STICKER MAF-077308.A16 077308	-
97 - RATING PLATE MAF-077535.A1 077535	-
98 - TOOTHED BELT MAF-076376.A0 076376	-
99 - TOOTHED BELT MAF-076377.A1 076377	-
100 - RIBBED NAIL MAF-005826.A8 005826	-
101 - CONNECTING CABLE MAF-038790.A4 038790	-
104 - SQUARE NUT MAF-005961.A7 005961	-
105 - SINGLE-END SPANNER MAF-093258.A4 093258	£9.42	£11.31
106 - COVERING INSULATION MAF-028596.A1 028596	-
107 - SHIM RING MAF-006169.A2 006169	-
108 - INSULATING INSERT MAF-039689.A0 039689	-
109 - BOUNDARY DISK MAF-039705.A1 039705	-
110 - FLAT-HEAD SCREW MAF-005334.A3 005334	-
111 - LOCKING WASHER MAF-006184.A22 006184	£1.50	£1.80
112 - CYLINDRICAL OVAL-HEAD SCREW MAF-055195.A12 055195	-
113 - CLIP CONNECTOR MAF-006172.A17 006172	-
114 - SAFETY GUARD MAF-038283.A1 038283	-
115 - CYLINDER-HEAD SCREW MAF-055110.A1 055110	-
116 - LOCKING NUT MAF-005979.A32 005979	£2.54	£3.05
117 - WASHER MAF-061028.A12 061028	-
118 - HEXAGONAL NUT MAF-202403.A2 202403	-
119 - PRESSURE SPRING MAF-066043.A64 066043	£3.04	£3.65
120 - PART NAME NOT AVAILABLE MAF-202566.A 202566	-
121 - PART NAME NOT AVAILABLE MAF-202561.A 202561	-
122 - CHIP EJECTOR MAF-202290.A3 202290	-
123 - HEXAGON-HEAD SCREW MAF-005697.A6 005697	-
124 - SQUARE NUT MAF-005953.A45 005953	-
125 - WASHER MAF-006101.A55 006101	£1.54	£1.85
126 - NAME PLATE MAF-201166.A38 201166	£8.13	£9.76
