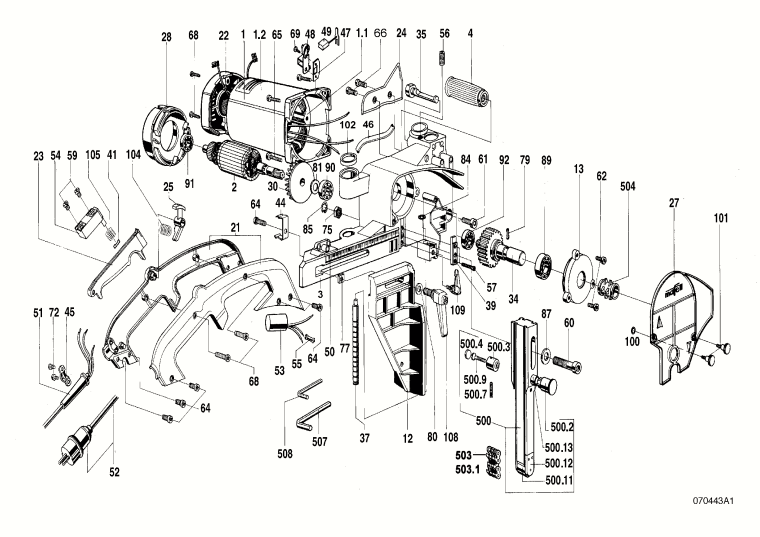

An exploded drawing and spare parts listing for the Mafell 924201 Chain Mortiser LS 103 complete with chain set 28 x 40 x 100 mm < 695276
Ex VAT Inc VAT
1 - MOTOR CASING WITH INDUCTOR MAF-084406.A3 084406 £315.62 £378.75
1.1 - INDUCTOR WITH COIL MAF-084299.A5 084299 £231.95 £278.34
1.2 - MOTOR CASING, EMPTY MAF-203635.A4 203635 £96.30 £115.56
2 - ARMATURE, BALANCED MAF-088128.A7 088128 £227.40 £272.88
3 - GEAR CASING MAF-200952.A0 200952 £500.01 £600.01
4 - HANDLE MAF-203387.A3 203387 £54.30 £65.16
12 - STOP PLATE MAF-200954.A7 200954 £121.88 £146.25
13 - BEARING COVER MAF-200956.A6 200956 £60.38 £72.46
21 - HANDLE SHELLS (PAIR) MAF-200960.A5 200960 £35.96 £43.15
22 - MOTOR COVER MAF-039249.A4 039249 £28.30 £33.96
23 - SWITCH LEVER MAF-201114.A5 201114 £13.23 £15.88
24 - COVER MAF-200962.A4 200962 £5.31 £6.37
25 - LOCKING LEVER MAF-201745.A1 201745 £6.02 £7.22
27 - CHAIN GUARD MAF-200961.A7 200961 £22.32 £26.79
28 - AIR CONDUCTING RING MAF-200973.A6 200973 £17.95 £21.54
30 - FAN, UPPER MAF-032355.A17 032355 £12.50 £15.00
34 - GEAR SHAFT MAF-200959.A15 200959 £214.56 £257.47
35 - LOCKING BOLT MAF-200963.A1 200963 £36.52 £43.82
37 - DEPTH STOP MAF-200964.A1 200964 -
39 - GUIDE PIECE MAF-200965.A4 200965 £65.50 £78.60
41 - RETAINING CLIP MAF-201155.A9 201155 -
44 - RETAINING SPRING MAF-200977.A13 200977 £13.08 £15.70
45 - CABLE CLAMP MAF-029584.A23 029584 -
46 - PROTECTIVE TUBE MAF-201250.A1 201250 -
47 - PAD MAF-201872.A15 201872 -
48 - BRUSH HOLDER MAF-063148.A22 063148 £10.30 £12.36
49 - CARBON BRUSH WITH AUTOMATIC CUT-OFF MAF-063147.A17 063147 £14.72 £17.67
50 - SKALE MAF-077087.A6 077087 £9.51 £11.41
51 - CABLE PROTECTING SLEEVE MAF-086065.A12 086065 £3.46 £4.15
52 - MAINS CABLE 10 M (32.8 FT.) MAF-087612.A7 087612 £72.48 £86.98
53 - INTERFERENCE SUPPRESSION CAPACITOR MAF-087403.A9 087403 £14.52 £17.42
54 - 2-POLE SWITCH MAF-087878.A4 087878 £54.45 £65.34
55 - CONTACT CLIP MAF-008747.A12 008747 -
56 - THREADED PIN MAF-005284.A7 005284 -
57 - FLAT-HEAD SCREW MAF-005371.A12 005371 £2.31 £2.77
59 - CHEESE-HEAD SCREW MAF-005521.A14 005521 -
60 - CYLINDER-HEAD SCREW MAF-055214.A12 055214 £1.82 £2.18
61 - CYLINDER-HEAD SCREW MAF-055074.A2 055074 £2.12 £2.55
62 - CYLINDER-HEAD SCREW MAF-055041.A1 055041 £1.65 £1.98
64 - CYLINDRICAL OVAL-HEAD SCREW MAF-055079.A3 055079 £1.32 £1.58
65 - CYLINDRICAL OVAL-HEAD SCREW MAF-055086.A2 055086 -
66 - CYLINDRICAL OVAL-HEAD SCREW MAF-055187.A21 055187 £1.92 £2.30
68 - CYLINDRICAL OVAL-HEAD SCREW MAF-055061.A45 055061 £1.71 £2.05
69 - COUNTER-SUNK OVAL-HEAD SCREW MAF-053020.A26 053020 £2.01 £2.41
72 - SELF-TAPPING OVAL-HEAD SCREW MAF-055062.A4 055062 -
75 - HEXAGONAL NUT MAF-005924.A21 005924 £1.67 £2.00
77 - SQUARE NUT MAF-005972.A4 005972 £1.93 £2.32
79 - CYLINDRICAL PIN MAF-058153.A10 058153 £3.56 £4.27
80 - WASHER MAF-061128.A10 061128 £1.63 £1.96
81 - SHIM RING MAF-006160.A14 006160 £1.65 £1.98
84 - LOCKING WASHER MAF-061073.A19 061073 -
85 - RETAINING RING MAF-061163.A15 061163 -
87 - WASHER MAF-061047.A14 061047 £2.48 £2.97
89 - GROOVED BALL BEARING MAF-062018.A10 062018 £26.06 £31.27
90 - GROOVED BALL BEARING MAF-006260.A12 006260 £18.15 £21.78
91 - GROOVED BALL BEARING MAF-062073.A2 062073 £14.28 £17.14
92 - GROOVED BALL BEARING MAF-006288.A15 006288 £8.82 £10.58
100 - SEALING RING MAF-065015.A13 065015 £3.01 £3.61
101 - KNURLED KNOB MAF-065034.A10 065034 £14.97 £17.96
102 - FELT RING MAF-065035.A15 065035 -
104 - PRESSURE SPRING MAF-066043.A31 066043 £3.04 £3.65
105 - PRESSURE SPRING MAF-066078.A12 066078 -
108 - CLAMPING LEVER MAF-007193.A13 007193 £13.11 £15.73
109 - CLAMPING LEVER MAF-007192.A5 007192 £15.14 £18.17
500 - CHAIN BAR, CPL. MAF-091127.A 091127 -
500.2 - GREASE CUP MAF-091101.A2 091101 -
500.3 - CHAIN TENSIONING PIECE MAF-200974.A9 200974 £29.16 £34.99
500.4 - PRESSURE BIT MAF-200976.A14 200976 £3.28 £3.94
500.7 - THREADED PIN MAF-005275.A7 005275 £4.83 £5.80
500.9 - FLAT-HEAD SCREW MAF-053004.A3 053004 -
500.11 - BEARING MAF-091107.A1 091107 £118.09 £141.71
500.12 - COVER + 3 FLAT-HEAD SCREWS MAF-091201.A0 091201 -
500.13 - GREASE TUBE, CPL. MAF-091211.A 091211 -
503 - MORTISING CHAIN MAF-091230.A5 091230 £452.82 £543.39
503.1 - REPLACEMENT CHAIN LINKS + RIVETS MAF-091279.A10 091279 £94.39 £113.27
504 - SPROCKET MAF-091683.A1 091683 £99.99 £119.99
507 - ALLEN KEY MAF-093070.A19 093070 £12.92 £15.51
508 - ALLEN KEY MAF-093074.A10 093074 £2.95 £3.54
