Mafell 201000 Slot Mortising Attachment SG 400 Spare Parts

Home Details Reviews Delivery

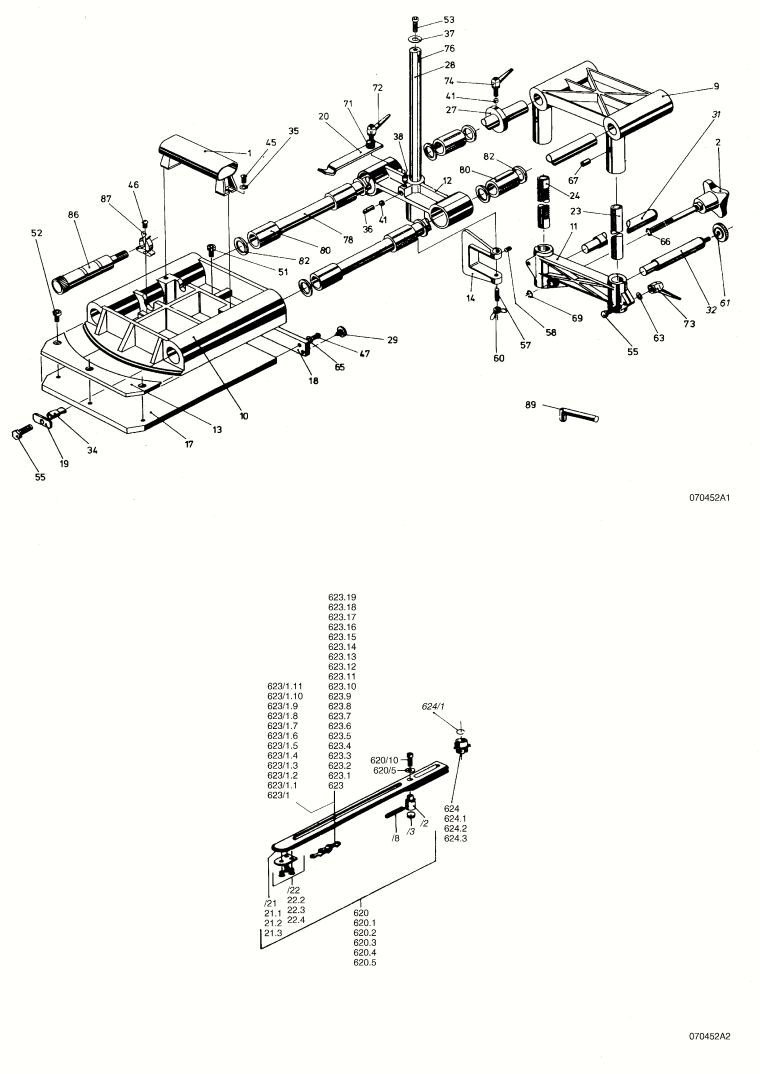

An exploded drawing and spare parts listing for the Mafell 201000 Slot Mortising Attachment SG 400

	Ex VAT	Inc VAT
1 - HANDLE MAF-035137.A1 035137	-
2 - PINION MAF-204740.A 204740	-
9 - COLUMN SUPPORT MAF-200848.A0 200848	-
10 - PART NAME NOT AVAILABLE MAF-039105.A1 039105	-
11 - GUIDE BLOCK MAF-201002.A0 201002	-
12 - SUPPORTING BRIGDE MAF-200832.A0 200832	-
13 - PART NAME NOT AVAILABLE MAF-037682.A2 037682	-
14 - FRAME MAF-037684.A1 037684	-
17 - BASE PLATE MAF-039108.A1 039108	-
18 - STOP PLATE MAF-039109.A1 039109	-
19 - STOP PLATE MAF-039878.A1 039878	-
20 - CLICK-IN METAL SHEET MAF-200846.A1 200846	-
23 - ARBOR, SHORT MAF-037693.A1 037693	-
24 - TOOTHED RACK MAF-037702.A1 037702	-
27 - DEPTH STOP RING MAF-037704.A1 037704	-
28 - GUIDE ROD MAF-200840.A2 200840	-
29 - POSITIONING PIN MAF-039121.A1 039121	-
31 - GUIDE COLUMN, SHORT MAF-201003.A1 201003	-
32 - GUIDE COLUMN, LONG MAF-201004.A1 201004	-
34 - PART NAME NOT AVAILABLE MAF-039877.A1 039877	-
35 - WASHER MAF-037691.A1 037691	-
36 - PRESSURE TRANSMITTING BOLT MAF-037705.A1 037705	-
37 - WASHER MAF-037695.A1 037695	-
38 - PRESSURE BOLT MAF-201170.A0 201170	-
41 - PRESSURE BOLT MAF-005814.A5 005814	£3.28	£3.93
45 - OVAL-HEAD SCREW MAF-055101.A4 055101	£2.14	£2.57
46 - CYLINDRICAL OVAL-HEAD SCREW MAF-055111.A5 055111	-
47 - OVAL-HEAD SCREW MAF-055130.A2 055130	-
51 - CYLINDER-HEAD SCREW MAF-005501.A0 005501	-
52 - CYLINDER-HEAD SCREW MAF-005590.A5 005590	-
53 - CYLINDER-HEAD SCREW MAF-005573.A13 005573	-
55 - HEXAGON-HEAD SCREW MAF-005633.A1 005633	-
57 - THREADED PIN MAF-005276.A2 005276	£1.90	£2.28
58 - THREADED PIN MAF-005281.A2 005281	-
60 - WING NUT MAF-005942.A0 005942	-
61 - KNURLED NUT MAF-005995.A1 005995	£4.70	£5.64
63 - WASHER MAF-006102.A21 006102	-
65 - LOCKING WASHER MAF-006113.A0 006113	£2.02	£2.43
66 - RETAINING RING MAF-006173.A6 006173	-
67 - SPRING DOWEL SLEEVE MAF-005817.A0 005817	-
69 - RETAINING RING MAF-007140.A0 007140	£1.70	£2.04
71 - PRESSURE SPRING MAF-066048.A0 066048	-
72 - CLAMPING LEVER MAF-007110.A2 007110	-
73 - CLAMPING LEVER MAF-007190.A2 007190	-
74 - CLAMPING LEVER MAF-037714.A5 037714	£26.54	£31.85
76 - SCALE MAF-037727.A2 037727	-
78 - HOLLOW SHAFT MAF-037710.A0 037710	-
80 - LINEAR BALL BEARING MAF-062048.A3 062048	-
82 - GASKET MAF-065012.A4 065012	-
86 - GREASE GUN MAF-076158.A4 076158	-
87 - SUPPORT MAF-076159.A3 076159	£9.70	£11.64
89 - ALLEN KEY MAF-093081.A3 093081	-
620 - CHAIN BAR 6 - 7 X 300 MM; LS 103 / SG 400 MAF-091606.A0 091606	£767.27	£920.72
620.1 - CHAIN BAR 8 - 9 X 300 MM; LS 103 / SG 400 MAF-091607.A0 091607	-
620.2 - CHAIN BAR 10 - 11 X 300 MM; LS 103 / SG 400 MAF-091608.A1 091608	-
620.3 - CHAIN BAR 12 - 17 X 300 MM; LS 103 / SG 400 MAF-091609.A0 091609	£895.12	£1074.14
620.4 - CHAIN BAR 10 - 11 X 400 MM; LS 103 / SG 400 MAF-091613.A0 091613	-
620.5 - CHAIN BAR 12 - 17 X 400 MM; LS 103 / SG 400 MAF-091611.A1 091611	£926.88	£1112.25
620/2 - CHAIN TENSIONING PIECE MAF-200975.A1 200975	£18.89	£22.67
620/3 - PRESSURE BIT MAF-200976.A2 200976	£3.45	£4.14
620/5 - WASHER MAF-006144.A9 006144	£2.22	£2.66
620/8 - THREADED PIN MAF-052003.A2 052003	£3.63	£4.36
620/10 - CYLINDER-HEAD SCREW MAF-055096.A7 055096	£2.22	£2.66
620/21 - BEARING 6 - 7 MM; SG 230 / SG 400 2.5mm MAF-091398.A0 091398	£118.34	£142.01
620/21.1 - BEARING 8 - 9 MM; SG 230 / SG 400 MAF-091396.A3 091396	£92.40	£110.88
620/21.2 - BEARING 10 - 11 MM; SG 230 / SG 400 MAF-091397.A3 091397	£92.40	£110.88
620/21.3 - BEARING 12 - 17 MM; SG 230 / SG 400 5mm MAF-091399.A3 091399	£145.53	£174.64
620/22 - COVER + 3 FLAT-HEAD SCREWS 6 - 7 MM; SG 230 / SG 400 MAF-091372.A2 091372	£90.64	£108.77
620/22.2 - COVER + 3 FLAT-HEAD SCREWS 8 - 9 MM; SG 230 / SG 400 MAF-091370.A2 091370	£104.72	£125.66
620/22.3 - COVER + 3 FLAT-HEAD SCREWS 10 - 11 MM; SG 230 / SG 400 MAF-091371.A4 091371	£74.24	£89.09
620/22.4 - COVER + 3 FLAT-HEAD SCREWS 12 - 17 MM; SG 230 / SG 400 MAF-208159.A0 208159	£121.98	£146.37
623 - CHAIN 6 X 300 MM; LS 103 / SG 400 MAF-091614.A0 091614	-
623.1 - CHAIN 7 X 300 MM; LS 103 / SG 400 MAF-091616.A1 091616	£708.02	£849.62
623.2 - CHAIN 8 X 300 MM; LS 103 / SG 400 MAF-091617.A0 091617	-
623.3 - CHAIN 9 X 300 MM; LS 103 / SG 400 MAF-091619.A1 091619	-
623.4 - CHAIN 10 X 300 MM; LS 103 / SG 400 MAF-091621.A1 091621	-
623.5 - CHAIN 11 X 300 MM; LS 103 / SG 400 MAF-091623.A0 091623	-
623.6 - CHAIN 12 X 300 MM; LS 103 / SG 400 MAF-091624.A0 091624	£765.18	£918.21
623.7 - CHAIN 13 X 300 MM; LS 103 / SG 400 MAF-091626.A1 091626	-
623.8 - CHAIN 14 X 300 MM; LS 103 / SG 400 MAF-091627.A1 091627	-
623.9 - CHAIN 15 X 300 MM; LS 103 / SG 400 MAF-091628.A1 091628	-
623.10 - CHAIN 16 X 300 MM; LS 103 / SG 400 MAF-091629.A1 091629	-
623.11 - CHAIN 17 X 300 MM; LS 103 / SG 400 MAF-091631.A1 091631	-
623.12 - CHAIN 10 X 400 MM; LS 103 / SG 400 MAF-091632.A0 091632	-
623.13 - CHAIN 11 X 400 MM; LS 103 / SG 400 MAF-091633.A0 091633	£926.88	£1112.25
623.14 - CHAIN 12 X 400 MM; LS 103 / SG 400 MAF-091634.A1 091634	£956.72	£1148.06
623.15 - CHAIN 13 X 400 MM; LS 103 / SG 400 MAF-091636.A1 091636	£1095.82	£1314.98
623.16 - CHAIN 14 X 400 MM; LS 103 / SG 400 MAF-091637.A0 091637	-
623.17 - CHAIN 15 X 400 MM; LS 103 / SG 400 MAF-091638.A1 091638	-
623.18 - CHAIN 16 X 400 MM; LS 103 / SG 400 MAF-091639.A1 091639	-
623.19 - CHAIN 17 X 400 MM; LS 103 / SG 400 MAF-091641.A1 091641	-
623/1 - SET OF LINKS MAF-091393.A3 091393	-
623/1.1 - SET OF LINKS MAF-091394.A2 091394	-
623/1.2 - SET OF LINKS MAF-091395.A1 091395	-
623/1.3 - SET OF LINKS MAF-091391.A1 091391	-
623/1.4 - SET OF LINKS MAF-091366.A4 091366	-
623/1.5 - SET OF LINKS MAF-091392.A1 091392	-
623/1.6 - SET OF LINKS MAF-091367.A3 091367	-
623/1.7 - SET OF LINKS MAF-091368.A2 091368	-
623/1.8 - SET OF LINKS MAF-091369.A0 091369	-
623/1.9 - SET OF LINKS MAF-091335.A2 091335	-
623/1.10 - SET OF LINKS MAF-091336.A0 091336	-
623/1.11 - SET OF LINKS MAF-091337.A2 091337	£664.99	£797.99
624 - SPROCKET 6 - 7 MM; LS 103 / SG 230 / 400 MAF-091686.A0 091686	£148.74	£178.49
624.1 - SPROCKET 8 - 9 MM; LS 103 / SG 230 / 400 MAF-091687.A1 091687	£148.74	£178.49
624.2 - SPROCKET 10 - 11 MM; LS 103 / SG 230 / 400 MAF-091688.A0 091688	£148.74	£178.49
624.3 - SPROCKET 12 - 17 MM; LS 103 / SG 230 / 400 MAF-091689.A1 091689	£134.74	£161.69
624/1 - SNAP RING MAF-061161.A0 061161	-
