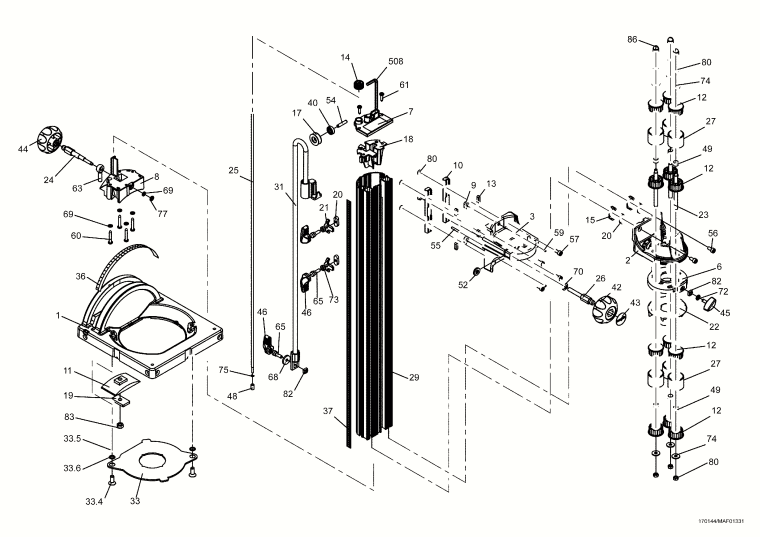

1 - BASE PLATE
MAF-204047.A1
204047
|
-
|
|
|
|
2 - RETAINING PLATE
MAF-204071.A3
204071
|
£152.46
|
£182.95
|
|
|
3 - TELESCOPIC SUPPORT
MAF-204058.A2
204058
|
£128.50
|
£154.20
|
|
|
6 - SETTING DISK
MAF-204059.A0
204059
|
-
|
|
|
|
7 - COVER
MAF-204048.A9
204048
|
-
|
|
|
|
8 - INTERMEDIATE PIECE
MAF-204073.A3
204073
|
-
|
|
|
|
9 - GUIDE ELEMENT
MAF-204052.A0
204052
|
£3.72
|
£4.47
|
|
|
10 - LEDGE
MAF-204054.A1
204054
|
-
|
|
|
|
11 - CLAMPING DEVICE
MAF-204053.A1
204053
|
-
|
|
|
|
12 - TAKE-UP
MAF-204297.A7
204297
|
-
|
|
|
|
13 - SLIDING BLOCK
MAF-204065.A8
204065
|
£4.41
|
£5.29
|
|
|
14 - SWITCH TRIGGER
MAF-204051.A2
204051
|
-
|
|
|
|
15 - SPACER
MAF-204292.A6
204292
|
-
|
|
|
|
17 - ROPE ROLL
MAF-204055.A0
204055
|
-
|
|
|
|
18 - INSERT
MAF-204401.A0
204401
|
-
|
|
|
|
19 - CLAMPING PLATE
MAF-204408.A3
204408
|
-
|
|
|
|
20 - CLAMPING NUT
MAF-038676.A10
038676
|
-
|
|
|
|
21 - STOP PLATE
MAF-204067.A1
204067
|
-
|
|
|
|
22 - COVER
MAF-204068.A7
204068
|
-
|
|
|
|
23 - GUIDE BOLT
MAF-204062.A6
204062
|
-
|
|
|
|
24 - ECCENTRIC ARBOR
MAF-204049.A0
204049
|
-
|
|
|
|
25 - PUSHER ROD
MAF-204296.A1
204296
|
-
|
|
|
|
26 - TENSIONING SCREW
MAF-204056.A7
204056
|
£14.55
|
£17.46
|
|
|
27 - GUIDE BUSH
MAF-204298.A4
204298
|
-
|
|
|
|
29 - COLUMN
MAF-204044.A2
204044
|
-
|
|
|
|
31 - TRACTION ROPE, CPL.
MAF-204402.A0
204402
|
-
|
|
|
|
33 - INSERT PLATE
MAF-204060.A1
204060
|
-
|
|
|
|
36 - ANGLE SCALE
MAF-204069.A4
204069
|
-
|
|
|
|
37 - DEPTH SCALE
MAF-204293.A1
204293
|
-
|
|
|
|
40 - GROOVED BALL BEARING
MAF-006296.A11
006296
|
-
|
|
|
|
42 - HANDLE
MAF-038970.A24
038970
|
£8.78
|
£10.53
|
|
|
43 - NAME PLATE
MAF-201166.A25
201166
|
£8.54
|
£10.25
|
|
|
44 - HANDLE
MAF-039101.A16
039101
|
-
|
|
|
|
45 - WING SCREW
MAF-079080.A9
079080
|
£8.08
|
£9.70
|
|
|
46 - TENSIONING LEVER
MAF-203397.A11
203397
|
-
|
|
|
|
48 - PRESSURE SPRING
MAF-066158.A5
066158
|
-
|
|
|
|
49 - PRESSURE SPRING
MAF-066072.A9
066072
|
£5.22
|
£6.27
|
|
|
52 - CUP SPRING
MAF-006665.A7
006665
|
£3.63
|
£4.36
|
|
|
54 - CYLINDRICAL PIN
MAF-058006.A7
058006
|
-
|
|
|
|
55 - CYLINDRICAL PIN
MAF-058156.A20
058156
|
£3.63
|
£4.36
|
|
|
56 - CYLINDER-HEAD SCREW
MAF-005536.A15
005536
|
-
|
|
|
|
57 - CYLINDER-HEAD SCREW
MAF-055037.A13
055037
|
-
|
|
|
|
59 - THREADED PIN
MAF-052011.A2
052011
|
-
|
|
|
|
60 - SELF-TAPPING OVAL-HEAD SCREW
MAF-055256.A0
055256
|
-
|
|
|
|
61 - SELF-TAPPING OVAL-HEAD SCREW
MAF-055157.A16
055157
|
-
|
|
|
|
63 - THREADED EYE-BOLT
MAF-057018.A5
057018
|
-
|
|
|
|
65 - SHOULDER SCREW
MAF-202258.A10
202258
|
-
|
|
|
|
68 - WASHER
MAF-034208.A5
034208
|
-
|
|
|
|
69 - WASHER
MAF-006100.A23
006100
|
£2.11
|
£2.53
|
|
|
70 - WASHER
MAF-006102.A26
006102
|
-
|
|
|
|
72 - WASHER
MAF-006101.A49
006101
|
£1.80
|
£2.16
|
|
|
73 - WASHER
MAF-038928.A0
038928
|
-
|
|
|
|
74 - WASHER
MAF-061044.A26
061044
|
£1.73
|
£2.08
|
|
|
75 - LOCKING WASHER
MAF-061025.A2
061025
|
-
|
|
|
|
77 - LOCKING WASHER
MAF-061073.A25
061073
|
-
|
|
|
|
80 - LOCKING NUT
MAF-005979.A18
005979
|
£2.67
|
£3.20
|
|
|
82 - SQUARE NUT
MAF-005953.A25
005953
|
-
|
|
|
|
83 - LOCKING NUT
MAF-005982.A9
005982
|
£1.85
|
£2.22
|
|
|
86 - HEXAGONAL PROTECTIVE CAP
MAF-077009.A1
077009
|
-
|
|
|
|
508 - ALLEN KEY
MAF-093034.A11
093034
|
-
|
|
|
