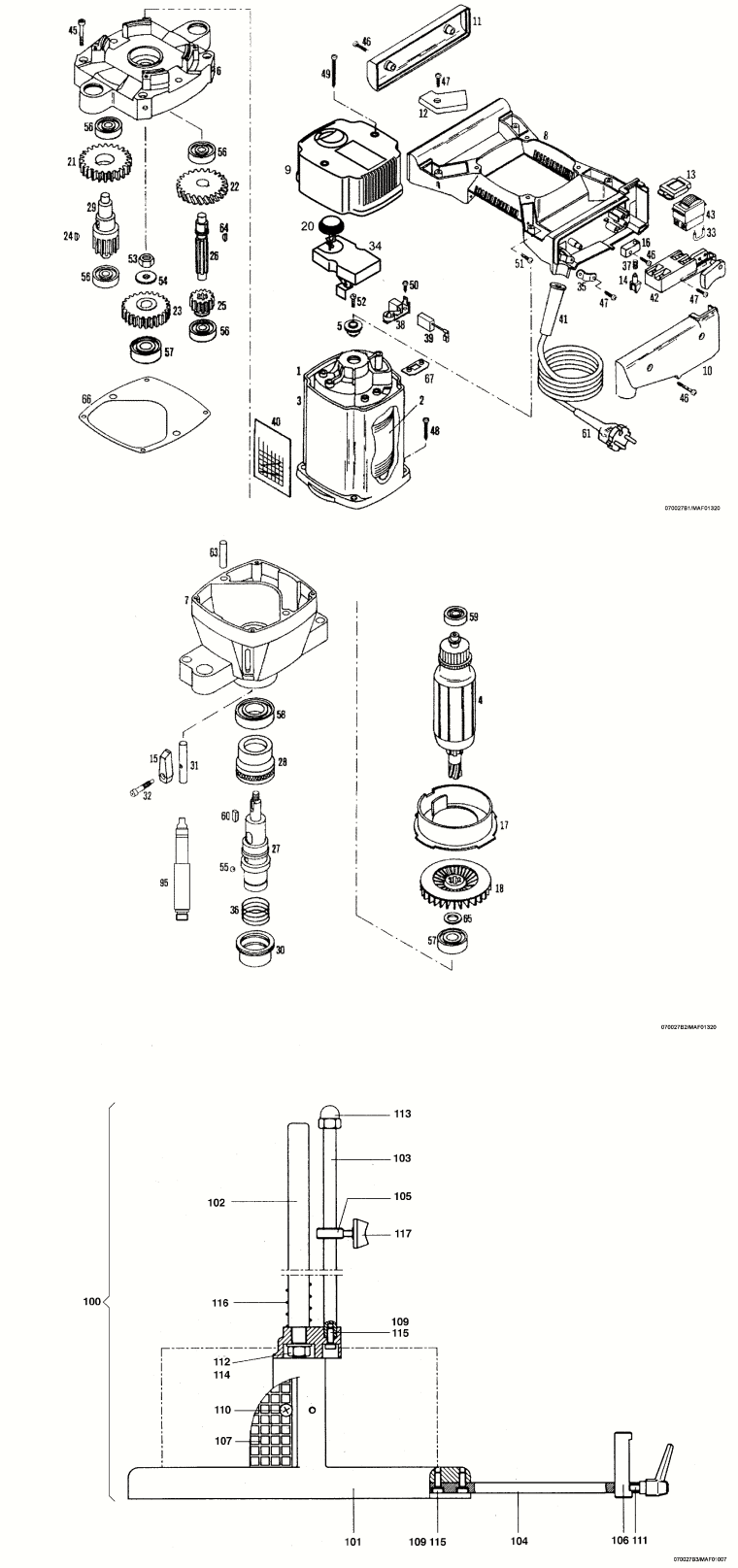

1 - MOTOR CASING WITH INDUCTOR
MAF-084410.A1
084410
|
-
|
|
|
|
2 - INDUCTOR WITH COIL
MAF-084411.A1
084411
|
-
|
|
|
|
3 - MOTOR CASING, EMPTY
MAF-203635.A14
203635
|
£96.30
|
£115.56
|
|
|
4 - ARMATURE, BALANCED
MAF-088112.A1
088112
|
-
|
|
|
|
5 - TACHOMETER CARRIER
MAF-038975.A18
038975
|
£20.14
|
£24.17
|
|
|
6 - BEARING COVER
MAF-039162.A1
039162
|
-
|
|
|
|
7 - GEAR CASING
MAF-039164.A5
039164
|
-
|
|
|
|
8 - HANDLE HOOD
MAF-039173.A3
039173
|
-
|
|
|
|
9 - MOTOR COVER
MAF-204179.A1
204179
|
-
|
|
|
|
10 - HANDLE SHELL, RIGHT
MAF-039172.A4
039172
|
£17.01
|
£20.41
|
|
|
11 - HANDLE SHELL, LEFT
MAF-039171.A0
039171
|
£16.88
|
£20.25
|
|
|
12 - COVER
MAF-039167.A3
039167
|
-
|
|
|
|
13 - SLIDING COVER
MAF-039166.A1
039166
|
-
|
|
|
|
14 - LOCKING BOLT
MAF-039169.A5
039169
|
-
|
|
|
|
15 - SWITCH LEVER
MAF-039170.A4
039170
|
-
|
|
|
|
16 - GUIDE ROD
MAF-039168.A3
039168
|
-
|
|
|
|
17 - AIR CONDUCTING RING
MAF-039181.A4
039181
|
-
|
|
|
|
18 - FAN
MAF-039182.A6
039182
|
£18.52
|
£22.23
|
|
|
20 - SETTING WHEEL
MAF-204278.A1
204278
|
-
|
|
|
|
21 - ROUE DENTÉE
MAF-039143.A1
039143
|
-
|
|
|
|
22 - ROUE DENTÉE
MAF-039144.A5
039144
|
-
|
|
|
|
23 - ROUE DENTÉE
MAF-039137.A4
039137
|
-
|
|
|
|
24 - WOODRUFF KEY
MAF-007805.A4
007805
|
£2.59
|
£3.11
|
|
|
25 - ROUE DENTÉE
MAF-039145.A3
039145
|
-
|
|
|
|
26 - SPLINE SHAFT
MAF-039152.A2
039152
|
-
|
|
|
|
27 - DRILLING SHAFT
MAF-039134.A5
039134
|
-
|
|
|
|
28 - SLEEVE
MAF-039141.A0
039141
|
-
|
|
|
|
29 - GEAR SHAFT
MAF-039153.A4
039153
|
-
|
|
|
|
30 - SLEEVE
MAF-039142.A3
039142
|
-
|
|
|
|
31 - SLIDING COVER
MAF-039147.A3
039147
|
-
|
|
|
|
32 - SCREW
MAF-039184.A2
039184
|
-
|
|
|
|
33 - PART NAME NOT AVAILABLE
MAF-039190.A5
039190
|
-
|
|
|
|
34 - CONTROL MODULE
MAF-077129.A1
077129
|
-
|
|
|
|
35 - CABLE CLAMP
MAF-029584.A47
029584
|
-
|
|
|
|
36 - PRESSURE SPRING
MAF-066075.A0
066075
|
-
|
|
|
|
37 - PRESSURE SPRING
MAF-066078.A22
066078
|
-
|
|
|
|
38 - BRUSH HOLDER
MAF-063148.A28
063148
|
£10.30
|
£12.36
|
|
|
39 - CARBON BRUSH WITH AUTOMATIC CUT-OFF
MAF-063147.A21
063147
|
£14.72
|
£17.67
|
|
|
40 - SPEED DIAGRAM
MAF-077645.A2
077645
|
-
|
|
|
|
41 - CABLE PROTECTING SLEEVE
MAF-086065.A26
086065
|
£3.46
|
£4.15
|
|
|
42 - 2-POLE SWITCH WITH LOCKING BUTTON
MAF-087404.A1
087404
|
-
|
|
|
|
43 - 2-POLE REVERSING SWITCH
MAF-087688.A3
087688
|
£39.82
|
£47.78
|
|
|
45 - CYLINDER-HEAD SCREW
MAF-055046.A3
055046
|
-
|
|
|
|
46 - CYLINDRICAL OVAL-HEAD SCREW
MAF-055061.A61
055061
|
£1.71
|
£2.05
|
|
|
47 - SELF-TAPPING OVAL-HEAD SCREW
MAF-055062.A35
055062
|
-
|
|
|
|
48 - OVAL-HEAD SCREW
MAF-055069.A14
055069
|
£2.16
|
£2.59
|
|
|
49 - SELF-TAPPING OVAL-HEAD SCREW
MAF-055124.A13
055124
|
-
|
|
|
|
50 - COUNTER-SUNK OVAL-HEAD SCREW
MAF-053020.A35
053020
|
£2.01
|
£2.41
|
|
|
51 - CYLINDRICAL OVAL-HEAD SCREW
MAF-055137.A17
055137
|
-
|
|
|
|
52 - CYLINDER-HEAD SCREW
MAF-005505.A6
005505
|
-
|
|
|
|
53 - LOCKING NUT
MAF-005970.A3
005970
|
-
|
|
|
|
54 - WASHER
MAF-061038.A13
061038
|
-
|
|
|
|
55 - STEEL BALL
MAF-062042.A9
062042
|
-
|
|
|
|
56 - GROOVED BALL BEARING
MAF-006279.A4
006279
|
-
|
|
|
|
57 - GROOVED BALL BEARING
MAF-006260.A29
006260
|
£18.15
|
£21.78
|
|
|
58 - GROOVED BALL BEARING
MAF-006261.A11
006261
|
-
|
|
|
|
59 - GROOVED BALL BEARING
MAF-062073.A34
062073
|
£14.28
|
£17.14
|
|
|
60 - ADJUSTING SPRING
MAF-066081.A2
066081
|
-
|
|
|
|
61 - MAINS CABLE 10 M (32.8 FT.)
MAF-087612.A22
087612
|
£72.48
|
£86.98
|
|
|
63 - CYLINDRICAL PIN
MAF-058005.A3
058005
|
£2.88
|
£3.45
|
|
|
64 - WOODRUFF KEY
MAF-007804.A3
007804
|
-
|
|
|
|
65 - SHIM RING
MAF-006160.A26
006160
|
£1.65
|
£1.98
|
|
|
66 - GASKET
MAF-039157.A4
039157
|
-
|
|
|
|
67 - PAD
MAF-201872.A35
201872
|
-
|
|
|
|
95 - MOUNTING SHAFT FOR RING-GROOVE CUTTING TOOLS
MAF-039192.A0
039192
|
-
|
|
|
|
100 - SPECIAL DRILL MOUNT FOR RING-GROOVE CUTTING TOOLS
MAF-039160.A1
039160
|
-
|
|
|
|
101 - BASE PLATE
MAF-039176.A1
039176
|
-
|
|
|
|
102 - GUIDE COLUMN
MAF-039158.A1
039158
|
-
|
|
|
|
103 - DEPTH CONTROL COLUMN
MAF-039177.A1
039177
|
-
|
|
|
|
104 - STOP PLATE BAR
MAF-039159.A1
039159
|
-
|
|
|
|
105 - DEPTH STOP RING
MAF-038481.A1
038481
|
-
|
|
|
|
106 - BOLT
MAF-039199.A0
039199
|
-
|
|
|
|
107 - GUARD SCREEN
MAF-038782.A0
038782
|
-
|
|
|
|
109 - CYLINDER-HEAD SCREW
MAF-055041.A23
055041
|
£1.65
|
£1.98
|
|
|
110 - OVAL-HEAD SCREW
MAF-055127.A6
055127
|
-
|
|
|
|
111 - CLAMPING LEVER
MAF-071000.A4
071000
|
-
|
|
|
|
112 - HEXAGONAL NUT
MAF-005926.A11
005926
|
-
|
|
|
|
113 - CAP NUT
MAF-005996.A2
005996
|
-
|
|
|
|
114 - WASHER
MAF-006104.A10
006104
|
-
|
|
|
|
115 - LOCKING WASHER
MAF-006113.A25
006113
|
£1.92
|
£2.31
|
|
|
116 - PRESSURE SPRING
MAF-066076.A4
066076
|
-
|
|
|
|
117 - WING SCREW
MAF-079077.A21
079077
|
-
|
|
|
