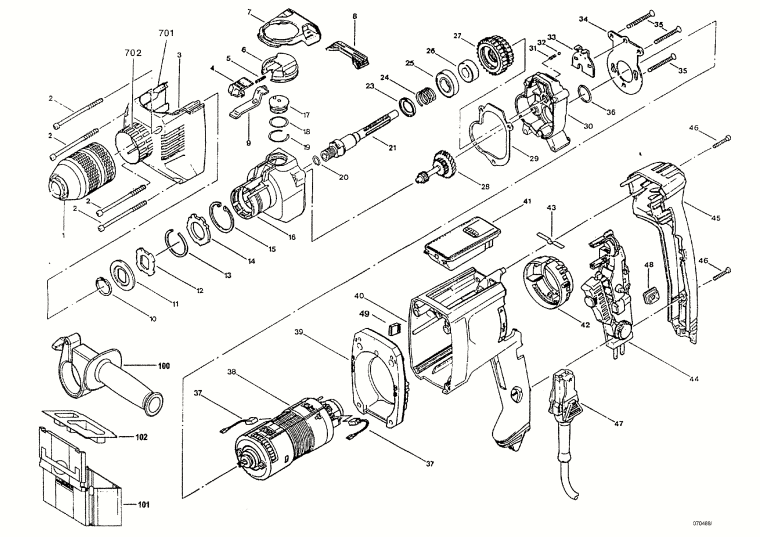

1 - QUICK-ACTION CHUCK
MAF-078000.A1
078000
|
-
|
|
|
|
2 - PLASTIC SCREW
MAF-078001.A3
078001
|
-
|
|
|
|
3 - GEAR CASING COVER
MAF-078002.A2
078002
|
-
|
|
|
|
4 - LOCK SETTING SLIDE
MAF-078003.A0
078003
|
-
|
|
|
|
5 - PRESSURE SPRING
MAF-078004.A3
078004
|
-
|
|
|
|
6 - GEAR SHIFT KNOB
MAF-078005.A0
078005
|
-
|
|
|
|
7 - COVER PLATE
MAF-078006.A0
078006
|
-
|
|
|
|
8 - SELECTOR SLIDE SWITCH
MAF-078007.A0
078007
|
-
|
|
|
|
9 - ANGULAR SLIDE
MAF-078008.A0
078008
|
-
|
|
|
|
10 - RETAINING RING
MAF-078009.A4
078009
|
-
|
|
|
|
11 - PANEL
MAF-078010.A3
078010
|
-
|
|
|
|
12 - LOCKING DISK
MAF-078011.A2
078011
|
-
|
|
|
|
13 - SNAP RING
MAF-078012.A3
078012
|
-
|
|
|
|
14 - REINFORCING DISK
MAF-078013.A3
078013
|
-
|
|
|
|
15 - RETAINING RING
MAF-078014.A0
078014
|
-
|
|
|
|
16 - GEAR CASING
MAF-078015.A0
078015
|
-
|
|
|
|
17 - SWITCHING DISK WITH NEEDLE BEARING
MAF-078016.A2
078016
|
-
|
|
|
|
18 - SEALING RING
MAF-078017.A0
078017
|
-
|
|
|
|
19 - ROUND-WIRE SNAP RING
MAF-078018.A3
078018
|
-
|
|
|
|
20 - SNAP RING
MAF-078019.A1
078019
|
-
|
|
|
|
21 - DRILLING SPINDLE WITH CIRCLIP
MAF-078020.A0
078020
|
-
|
|
|
|
23 - PRESSURE DISK
MAF-078021.A1
078021
|
-
|
|
|
|
24 - PRESSURE SPRING
MAF-078022.A3
078022
|
-
|
|
|
|
25 - GROOVED BALL BEARING
MAF-078023.A2
078023
|
-
|
|
|
|
26 - NOTCHED DISK
MAF-078024.A0
078024
|
-
|
|
|
|
27 - SLIDING BLOCK
MAF-078025.A2
078025
|
-
|
|
|
|
28 - COUNTERSHAFT
MAF-078026.A2
078026
|
-
|
|
|
|
29 - PROFILE GASKET
MAF-078027.A3
078027
|
-
|
|
|
|
30 - GEAR FLANGE WITH NEEDLE BEARING
MAF-078028.A2
078028
|
-
|
|
|
|
31 - PRESSURE SPRING
MAF-078029.A2
078029
|
-
|
|
|
|
32 - STEEL BALL
MAF-078030.A0
078030
|
-
|
|
|
|
33 - SWITCHING PLATE
MAF-078031.A2
078031
|
-
|
|
|
|
34 - PART NAME NOT AVAILABLE
MAF-078032.A1
078032
|
-
|
|
|
|
35 - FLAT-HEAD SCREW
MAF-078033.A1
078033
|
-
|
|
|
|
36 - SEALING RING
MAF-078034.A1
078034
|
-
|
|
|
|
37 - CARBON BRUSH
MAF-076949.A6
076949
|
£7.09
|
£8.51
|
|
|
38 - COMPACT MOTOR CM 50
MAF-078035.A1
078035
|
-
|
|
|
|
39 - AIR CONDUCTING INTERMEDIATE PIECE
MAF-078036.A3
078036
|
-
|
|
|
|
40 - MOTOR CASING
MAF-078037.A1
078037
|
-
|
|
|
|
41 - VENTILATION COVER
MAF-078038.A2
078038
|
-
|
|
|
|
42 - CW/CCW REVERSING RING
MAF-078039.A0
078039
|
-
|
|
|
|
43 - CLICK SPRING
MAF-078040.A0
078040
|
-
|
|
|
|
44 - SWITCH ELECTRONIC MODULE
MAF-078041.A2
078041
|
-
|
|
|
|
45 - HANDLE COVER
MAF-078042.A3
078042
|
-
|
|
|
|
46 - SCREW
MAF-078043.A4
078043
|
-
|
|
|
|
47 - PART NAME NOT AVAILABLE
MAF-078044.A1
078044
|
-
|
|
|
|
48 - LOCKING BUTTON ADAPTER
MAF-078045.A4
078045
|
-
|
|
|
|
49 - SPACER
MAF-078048.A1
078048
|
-
|
|
|
|
100 - AUXILIARY HANDLE
MAF-078049.A3
078049
|
-
|
|
|
|
101 - CARRYING CASE
MAF-078050.A
078050
|
-
|
|
|
|
102 - TRAY FOR CARRYING CASE
MAF-078051.A
078051
|
-
|
|
|
|
701 - GEARING
MAF-204819.A2
204819
|
-
|
|
|
|
702 - CLAMPING COLLAR
MAF-078047.A1
078047
|
-
|
|
|
