Festool MFT/3-VL 230V / 495516 Spare Parts

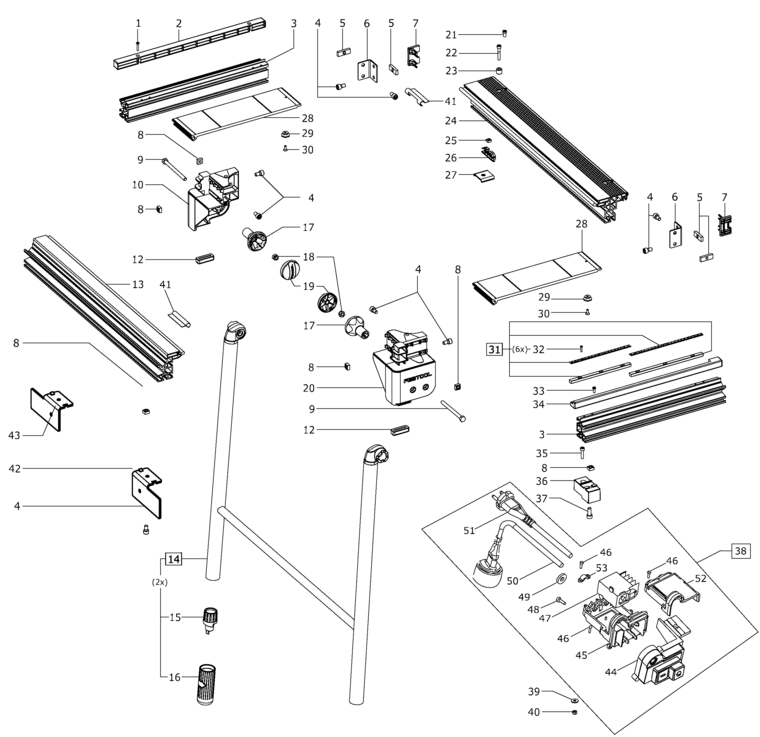

An exploded diagram and spare parts listing for the Festool MFT/3-VL 230V / 495516

	Ex VAT	Inc VAT
1 - FLAT HEAD SCREW M4 X 22 FSP-403231.A1 403231	£2.00	£2.40
2 - COVER FSP-474888.A3 474888	£4.62	£5.54
3 - PROFILE FSP-473200.A1 473200	£47.88	£57.45
4 - CHEESE HEAD SCREW M8 X 14 FSP-228639.A4 228639	£2.00	£2.40
5 - FEATHER KEY FSP-455488.A2 455488	£6.50	£7.80
6 - CORNER CONNECTION FSP-473612.A2 473612	£6.62	£7.95
7 - SPACER PLATE FSP-475748.A0 475748	£2.48	£2.97
8 - SQUARE NUT M8 FSP-219098.A6 219098	£2.00	£2.40
9 - HEXAGON SCREW FSP-464713.A15 464713	£2.00	£2.40
10 - ANGLE BASE FSP-472861.A4 472861	£31.83	£38.20
12 - RUBBER FOOT (4 PCS.) FSP-492255.A10 492255	£17.98	£21.57
13 - PROFILE FSP-473513.A0 473513	£67.69	£81.23
14 - FOLDAWAY LEG FSP-494794.A2 494794	£77.52	£93.03
15 - ADJUSTMENT FSP-448178.A28 448178	£2.00	£2.40
16 - FOOT FSP-465883.A16 465883	£13.48	£16.18
17 - LOWER SECTION OF PISTOL FSP-492148.A5 492148	£4.72	£5.66
18 - HEXAGON NUT M8 FSP-200735.A62 200735	£2.00	£2.40
19 - UPPER SECTION OF PISTOL FSP-447534.A40 447534	£2.00	£2.40
20 - ANGLE BASE FSP-472860.A1 472860	£31.83	£38.20
21 - SCREW FSP-465131.A0 465131	£2.00	£2.40
22 - CHEESE HEAD SCREW M6 X 40 FSP-228653.A20 228653	£2.00	£2.40
23 - BUSH FSP-474741.A10 474741	£3.56	£4.27
24 - PROFILE FSP-473601.A2 473601	£92.20	£110.64
25 - SQUARE NUT M6 FSP-228566.A51 228566	£2.00	£2.40
26 - WEDGE FSP-463814.A0 463814	£2.00	£2.40
27 - LUG SUPPORT FSP-473614.A3 473614	£8.25	£9.90
28 - PROFILE PLATE FSP-475358.A2 475358	£46.58	£55.89
29 - BUSH FSP-475130.A0 475130	£14.86	£17.83
30 - FLAT HEAD SCREW M5 X 12 FSP-400703.A4 400703	£2.00	£2.40
31 - SCALE FSP-493761.A0 493761	£36.58	£43.89
32 - RAISED-HEAD SCREW 3.0 X 14 MM FSP-400792.A6 400792	£2.00	£2.40
33 - RAISED-HEAD SCREW M4 X 12 FSP-228509.A1 228509	£2.00	£2.40
34 - COVER FSP-473566.A0 473566	£4.72	£5.66
35 - CHEESE HEAD SCREW M6 X 22 FSP-200689.A7 200689	£2.00	£2.40
36 - ADAPTER FSP-474908.A2 474908	£4.24	£5.09
37 - CHEESE HEAD SCREW M8 X 20 FSP-200692.A2 200692	£2.00	£2.40
38 - SWITCH ELEMENT EU 230V FSP-498891.A2 498891	£102.79	£123.35
39 - WASHER 6.4 MM FSP-228546.A98 228546	£2.00	£2.40
40 - HEXAGON NUT M6 FSP-228541.A67 228541	£2.00	£2.40
41 - CUSHIONING DEVICE FSP-485333.A1 485333	£18.07	£21.68
42 - BRACKET FSP-476521.A0 476521	£35.62	£42.75
43 - BRACKET FSP-476520.A2 476520	£35.62	£42.75
44 - PUSHER FSP-496878.A0 496878	£39.20	£47.04
45 - SWITCHING HOUSING FSP-447703.A2 447703	£8.42	£10.11
46 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-228663.A27 228663	£2.00	£2.40
47 - CONTACTOR FSP-455695.A2 455695	£42.10	£50.52
48 - RAISED-HEAD SCREW M4 X 12 FSP-228509.A2 228509	£2.00	£2.40
49 - RUBBER RING FSP-458613.A9 458613	£2.00	£2.40
50 - CONNECTING CABLE FSP-459404.A1 459404	£25.58	£30.69
51 - CABLE WITH PLUG FSP-459406.A0 459406	£25.58	£30.69
52 - SWITCH COVER FSP-447704.A13 447704	£4.75	£5.70
53 - CABLE CLAMP FSP-431899.A46 431899	£2.00	£2.40
