Festool BS 75 ESR 230V / 204651 Spare Parts

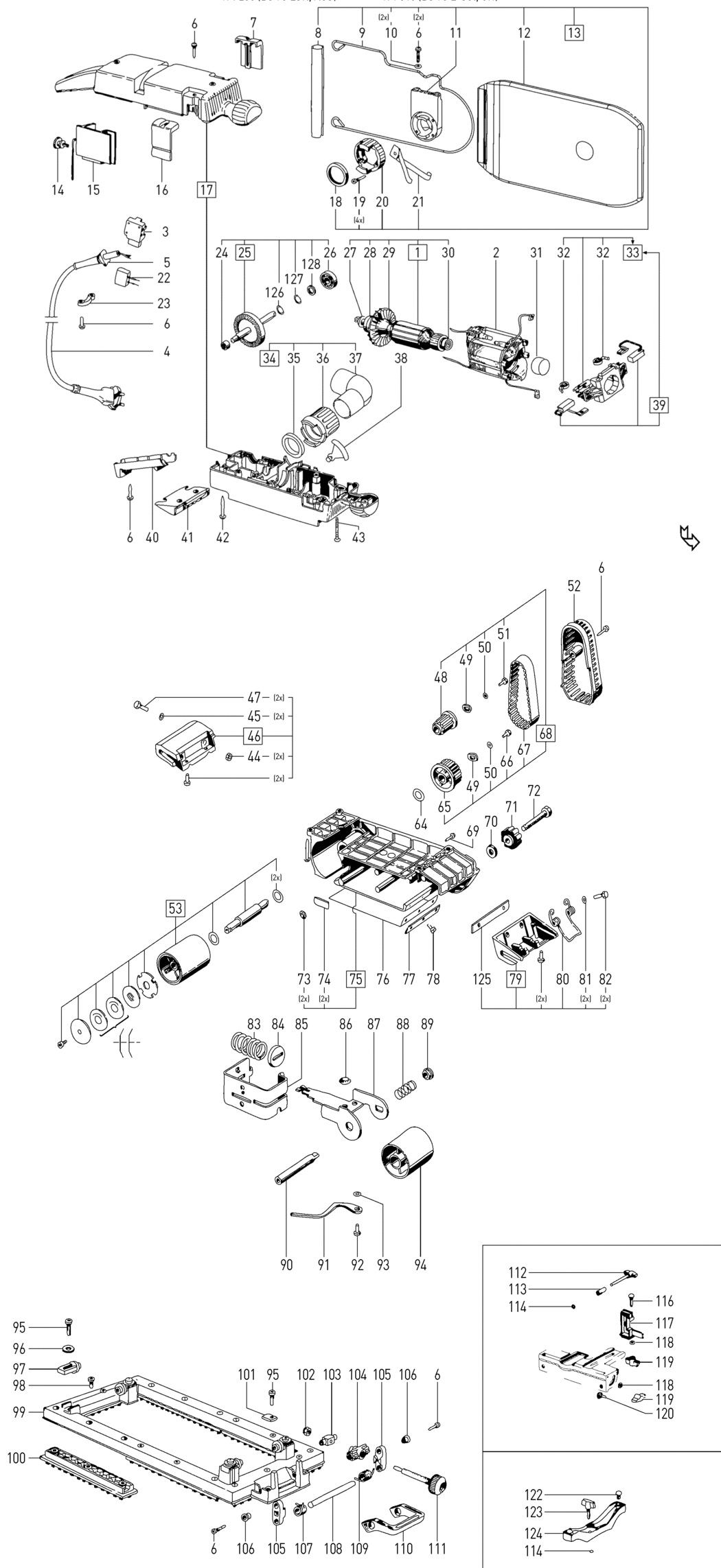

An exploded diagram and spare parts listing for the Festool BS 75 ESR 230V / 204651

	Ex VAT	Inc VAT
1 - ARMATURE 230 V FSP-490724.A0 490724	£67.94	£81.53
2 - FIELD ASSEMBLY 230 V FSP-491213.A3 491213	£42.88	£51.45
3 - SWITCH 230 V FSP-492638.A11 492638	£24.46	£29.35
4 - MAINS CABLE EU FSP-460463.A14 460463	£25.08	£30.09
5 - CABLE GROMMET FSP-459847.A8 459847	£2.00	£2.40
6 - RAISED-HEAD SCREW 4.0 X 16 MM FSP-228713.A65 228713	£2.00	£2.40
7 - COVER FSP-462003.A2 462003	£4.81	£5.77
8 - CLAMP FSP-460254.A11 460254	£6.39	£7.67
9 - BRACKET FSP-460218.A11 460218	£17.26	£20.71
10 - WASHER FSP-761519.A22 761519	£1.75	£2.10
11 - PRESSURE PIECE FSP-460302.A14 460302	£7.06	£8.47
12 - FILTER BAG FSP-460219.A6 460219	£25.78	£30.93
13 - DUST BAG FSP-490819.A3 490819	£28.79	£34.55
14 - ADJUSTING KNOB FSP-462298.A3 462298	£4.94	£5.93
15 - ELECTRONIC 220V FSP-492162.A4 492162	£47.80	£57.36
16 - COVER FSP-463003.A2 463003	£5.58	£6.70
17 - MOTOR HOUSING FSP-491512.A6 491512	£63.12	£75.75
18 - SEALING RING FSP-514020.A5 514020	£2.00	£2.40
19 - RAISED-HEAD SCREW 4.0 X 20 MM FSP-228567.A117 228567	£2.00	£2.40
20 - ADAPTER FSP-460300.A3 460300	£9.32	£11.19
21 - PLATE SPRING FSP-518891.A10 518891	£9.17	£11.00
22 - CAPACITOR FSP-626066.A11 626066	£6.42	£7.71
23 - CABLE CLAMP FSP-761618.A21 761618	£2.00	£2.40
24 - NEEDLE SLEEVE FSP-415839.A2 415839	£4.72	£5.66
25 - GEAR SHAFT FSP-490864.A0 490864	£59.43	£71.32
26 - BALL BEARING FSP-789575.A20 789575	£5.99	£7.19
27 - CLAMPING RING FSP-462444.A6 462444	£5.24	£6.29
28 - BALL BEARING FSP-789575.A21 789575	£5.99	£7.19
29 - FAN FSP-761708.A8 761708	£3.62	£4.34
30 - BALL BEARING FSP-400680.A12 400680	£5.24	£6.29
31 - RUBBER RING FSP-450508.A13 450508	£2.00	£2.40
32 - TORSION SPRING FSP-460275.A1 460275	£5.12	£6.15
33 - BEARING BRIDGE FSP-490917.A8 490917	£30.27	£36.32
34 - EXTRACTION ADAPTER AA - BS 75 / 105 FSP-490818.A12 490818	£14.55	£17.46
35 - SEALING RING FSP-459873.A17 459873	£2.00	£2.40
36 - ADAPTER FSP-459852.A9 459852	£10.65	£12.78
37 - ANGLE PIECE FSP-459897.A9 459897	£4.41	£5.29
38 - AIR DUCT FSP-460159.A2 460159	£2.00	£2.40
39 - BRUSH (PAIR) 230V FSP-490918.A0 490918	£10.17	£12.20
40 - COVER FSP-463004.A6 463004	£4.81	£5.77
41 - GUIDE FSP-463001.A7 463001	£4.86	£5.83
42 - RAISED-HEAD SCREW 4.0 X 30 MM FSP-400528.A51 400528	£2.00	£2.40
43 - SLOTTED PAN HEAD SCREW 3.9 X 50 MM FSP-432776.A3 432776	£2.00	£2.40
44 - SQUARE NUT M5 FSP-400701.A16 400701	£2.00	£2.40
45 - TOOTH DISC FSP-761542.A3 761542	£2.00	£2.40
46 - SUPPORT FSP-490914.A1 490914	£39.76	£47.71
47 - SCREW M5 X 14 FSP-400569.A7 400569	£2.00	£2.40
48 - CROWN GEAR FSP-731968.A6 731968	£8.99	£10.79
49 - DRIVER FSP-511935.A7 511935	£2.00	£2.40
50 - WASHER 4.3 MM FSP-228542.A41 228542	£2.00	£2.40
51 - HEXAGON SCREW M4 X 10 FSP-147117.A3 147117	£9.59	£11.51
52 - GEAR HOUSING FSP-460683.A7 460683	£4.58	£5.49
53 - DRIVING ROLLER FSP-490900.A9 490900	£61.68	£74.02
64 - SUPPORTING RING FSP-514527.A7 514527	£2.00	£2.40
65 - CROWN GEAR FSP-731967.A3 731967	£13.61	£16.33
66 - HEXAGON SCREW M4 X 10 LH FSP-421464.A2 421464	£9.28	£11.14
67 - FLAT TOOTH BELT FSP-729418.A5 729418	£20.27	£24.32
68 - BELT DRIVE FSP-490919.A9 490919	£39.24	£47.09
69 - SLOTTED PAN HEAD SCREW 3.9 X 13 MM FSP-203796.A8 203796	£2.00	£2.40
70 - RUBBER WASHER FSP-629057.A3 629057	£2.00	£2.40
71 - GRIP FSP-460129.A2 460129	£2.73	£3.28
72 - HEXAGON SCREW M6 X 40 FSP-228619.A4 228619	£2.00	£2.40
73 - WASHER FSP-459936.A8 459936	£2.00	£2.40
74 - GUIDE WASHER FSP-227668.A15 227668	£2.00	£2.40
75 - BELT CASING FSP-10245557.A5 10245557	£82.38	£98.86
76 - SANDING BASE FSP-490823.A8 490823	£13.16	£15.79
77 - STRIP FSP-228036.A8 228036	£2.00	£2.40
78 - RAISED-HEAD SCREW M4 X 8 FSP-228570.A77 228570	£2.00	£2.40
79 - SUPPORT FSP-490913.A9 490913	£45.40	£54.48
80 - SPRING FSP-701424.A1 701424	£9.12	£10.94
81 - WASHER 5.3 MM FSP-761515.A2 761515	£2.00	£2.40
82 - CHEESE HEAD SCREW M5 X 18 FSP-202824.A29 202824	£2.00	£2.40
83 - PRESSURE SPRING FSP-229792.A2 229792	£2.00	£2.40
84 - WASHER FSP-227552.A15 227552	£2.00	£2.40
85 - BRACKET FSP-512222.A2 512222	£14.15	£16.98
86 - WASHER FSP-459937.A10 459937	£2.00	£2.40
87 - BRACKET FSP-512230.A7 512230	£13.98	£16.77
88 - PRESSURE SPRING FSP-229784.A11 229784	£2.00	£2.40
89 - WASHER FSP-227641.A2 227641	£2.00	£2.40
90 - SHAFT FSP-649066.A2 649066	£16.32	£19.58
91 - LEVER FSP-227536.A16 227536	£5.58	£6.69
92 - TUBULAR RIVET FSP-413003.A11 413003	£2.00	£2.40
93 - SPRING DISC FSP-200588.A2 200588	£2.00	£2.40
94 - ADJUSTING ROLL FSP-490912.A1 490912	£35.94	£43.13
95 - RAISED-HEAD SCREW FSP-10016393.A10 10016393	£2.00	£2.40
96 - WASHER FSP-418269.A23 418269	£2.00	£2.40
97 - SHOULDER SCREW FSP-534471.A2 534471	£2.00	£2.40
98 - RAISED-HEAD SCREW 4.0 X 12 MM FSP-219071.A42 219071	£2.00	£2.40
99 - SANDING FRAME FSP-10204901.A7 10204901	£37.21	£44.65
99 - SANDING FRAME FSP-460153.A1 460153	£44.02	£52.82
100 - CARBON BRUSH FSP-534358.A18 534358	£14.15	£16.98
101 - PLATE FSP-534420.A18 534420	£2.00	£2.40
102 - HEXAGON NUT M5 FSP-761511.A17 761511	£2.00	£2.40
103 - HINGE FSP-534463.A19 534463	£2.00	£2.40
104 - HINGE FSP-465015.A12 465015	£2.66	£3.19
105 - FLAP FSP-534382.A1 534382	£2.00	£2.40
106 - FLANGE BUSHING FSP-534439.A1 534439	£2.00	£2.40
107 - TORSION SPRING FSP-538841.A17 538841	£2.87	£3.44
108 - SHAFT FSP-460013.A17 460013	£4.18	£5.02
109 - TORSION SPRING FSP-534412.A0 534412	£2.00	£2.40
110 - ECCENTRIC OSCILLATING CRANK FSP-534390.A19 534390	£3.20	£3.84
111 - KNURLED SCREW FSP-460134.A16 460134	£15.97	£19.16
114 - O-RING FSP-200052.A44 200052	£2.00	£2.40
122 - RUBBER PEDAL FSP-10004992.A3 10004992	£9.24	£11.09
123 - ROTARY KNOB M6 X 22.5 FSP-10734068.A44 10734068	£2.00	£2.40
124 - PEDAL FSP-10005040.A5 10005040	£26.08	£31.30
125 - STRIP FSP-637416.A12 637416	£4.81	£5.77
126 - SHIM RING FSP-782510.A0 782510	£2.00	£2.40
127 - WASHER FSP-761527.A10 761527	£2.00	£2.40
128 - WASHER FSP-761526.A5 761526	£2.00	£2.40
