Festool BS 75 / 491320 Spare Parts

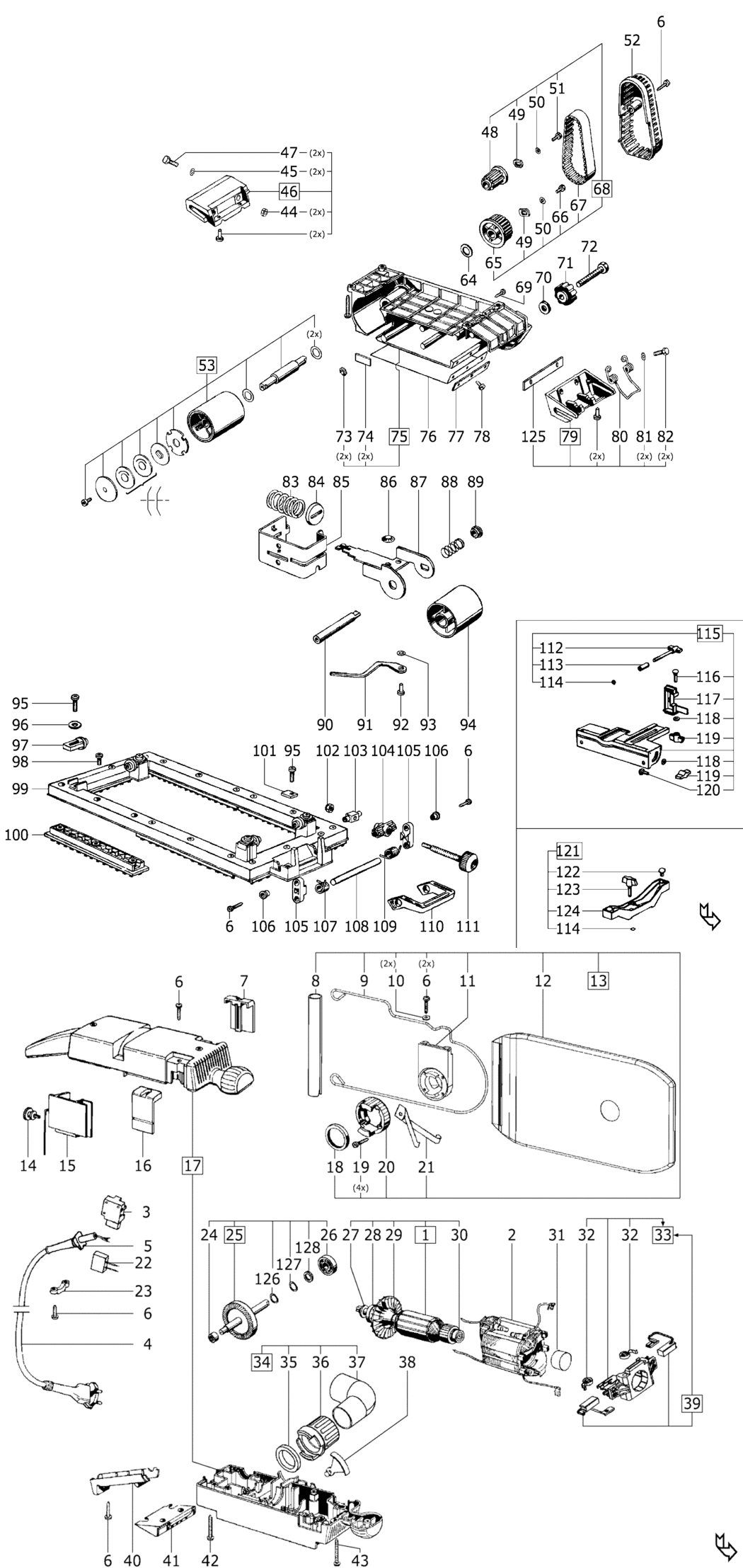

An exploded diagram and spare parts listing for the Festool BS 75 / 491320

	Ex VAT	Inc VAT
1 - ARMATURE 230 V FSP-490725.A1 490725	£69.78	£83.74
2 - FIELD ASSEMBLY 230 V FSP-491212.A0 491212	£43.96	£52.75
3 - SWITCH 230 V FSP-492638.A3 492638	£24.46	£29.35
4 - MAINS CABLE GB 240V FSP-462505.A11 462505	£25.08	£30.09
5 - CABLE GROMMET FSP-459847.A9 459847	£2.00	£2.40
6 - RAISED-HEAD SCREW 4.0 X 16 MM FSP-228713.A0 228713	£2.00	£2.40
7 - COVER FSP-462003.A5 462003	£4.81	£5.77
8 - CLAMP FSP-460254.A4 460254	£6.39	£7.67
9 - BRACKET FSP-460218.A4 460218	£17.26	£20.71
10 - WASHER FSP-761519.A2 761519	£1.75	£2.10
11 - PRESSURE PIECE FSP-460302.A8 460302	£7.06	£8.47
12 - FILTER BAG FSP-460219.A13 460219	£25.78	£30.93
13 - DUST BAG FSP-490819.A7 490819	£28.79	£34.55
14 - ADJUSTING KNOB FSP-462298.A5 462298	£4.94	£5.93
16 - COVER FSP-463003.A5 463003	£5.58	£6.70
17 - MOTOR HOUSING FSP-491511.A0 491511	£61.28	£73.54
18 - SEALING RING FSP-514020.A15 514020	£2.00	£2.40
19 - RAISED-HEAD SCREW 4.0 X 20 MM FSP-228567.A178 228567	£2.00	£2.40
20 - ADAPTER FSP-460300.A9 460300	£9.32	£11.19
21 - PLATE SPRING FSP-518891.A2 518891	£9.17	£11.00
22 - CAPACITOR FSP-626066.A4 626066	£6.42	£7.71
23 - CABLE CLAMP FSP-761618.A3 761618	£2.00	£2.40
24 - NEEDLE SLEEVE FSP-415839.A19 415839	£4.72	£5.66
25 - GEAR SHAFT FSP-490864.A5 490864	£59.43	£71.32
27 - CLAMPING RING FSP-462444.A0 462444	£5.24	£6.29
28 - BALL BEARING FSP-789575.A46 789575	£5.99	£7.19
29 - FAN FSP-761708.A0 761708	£3.62	£4.34
30 - BALL BEARING FSP-400680.A8 400680	£5.24	£6.29
31 - RUBBER RING FSP-450508.A36 450508	£2.00	£2.40
32 - TORSION SPRING FSP-460275.A5 460275	£5.12	£6.15
33 - BEARING BRIDGE FSP-490917.A4 490917	£30.27	£36.32
34 - EXTRACTION ADAPTER AA - BS 75 / 105 FSP-490818.A7 490818	£14.55	£17.46
35 - SEALING RING FSP-459873.A5 459873	£2.00	£2.40
36 - ADAPTER FSP-459852.A8 459852	£10.65	£12.78
37 - ANGLE PIECE FSP-459897.A8 459897	£4.41	£5.29
38 - AIR DUCT FSP-460159.A5 460159	£2.00	£2.40
39 - BRUSH (PAIR) 230V FSP-490918.A5 490918	£10.17	£12.20
40 - COVER FSP-463004.A4 463004	£4.81	£5.77
41 - GUIDE FSP-463001.A4 463001	£4.86	£5.83
42 - RAISED-HEAD SCREW 4.0 X 30 MM FSP-400528.A6 400528	£2.00	£2.40
43 - SLOTTED PAN HEAD SCREW 3.9 X 50 MM FSP-432776.A10 432776	£2.00	£2.40
44 - SQUARE NUT M5 FSP-400701.A1 400701	£2.00	£2.40
45 - TOOTH DISC FSP-761542.A15 761542	£2.00	£2.40
46 - SUPPORT FSP-490914.A9 490914	£39.76	£47.71
47 - SCREW M5 X 14 FSP-400569.A20 400569	£2.00	£2.40
48 - CROWN GEAR FSP-731968.A1 731968	£8.99	£10.79
49 - DRIVER FSP-511935.A1 511935	£2.00	£2.40
50 - WASHER 4.3 MM FSP-228542.A2 228542	£2.00	£2.40
51 - HEXAGON SCREW M4 X 10 FSP-147117.A9 147117	£9.59	£11.51
52 - GEAR HOUSING FSP-460683.A1 460683	£4.58	£5.49
53 - DRIVING ROLLER FSP-490900.A2 490900	£61.68	£74.02
64 - SUPPORTING RING FSP-514527.A1 514527	£2.00	£2.40
65 - CROWN GEAR FSP-731967.A8 731967	£13.61	£16.33
66 - HEXAGON SCREW M4 X 10 LH FSP-421464.A8 421464	£9.28	£11.14
67 - FLAT TOOTH BELT FSP-729418.A1 729418	£20.27	£24.32
68 - BELT DRIVE FSP-490919.A2 490919	£39.24	£47.09
69 - SLOTTED PAN HEAD SCREW 3.9 X 13 MM FSP-203796.A10 203796	£2.00	£2.40
70 - RUBBER WASHER FSP-629057.A9 629057	£2.00	£2.40
71 - GRIP FSP-460129.A6 460129	£2.73	£3.28
72 - HEXAGON SCREW M6 X 40 FSP-228619.A5 228619	£2.00	£2.40
73 - WASHER FSP-459936.A15 459936	£2.00	£2.40
74 - GUIDE WASHER FSP-227668.A7 227668	£2.00	£2.40
75 - BELT CASING FSP-10245557.A0 10245557	£82.38	£98.86
76 - SANDING BASE FSP-490823.A2 490823	£13.16	£15.79
77 - STRIP FSP-228036.A1 228036	£2.00	£2.40
78 - RAISED-HEAD SCREW M4 X 8 FSP-228570.A35 228570	£2.00	£2.40
79 - SUPPORT FSP-490913.A1 490913	£45.40	£54.48
80 - SPRING FSP-701424.A11 701424	£9.12	£10.94
81 - WASHER 5.3 MM FSP-761515.A31 761515	£2.00	£2.40
82 - CHEESE HEAD SCREW M5 X 18 FSP-202824.A19 202824	£2.00	£2.40
83 - PRESSURE SPRING FSP-229792.A9 229792	£2.00	£2.40
84 - WASHER FSP-227552.A8 227552	£2.00	£2.40
85 - BRACKET FSP-512222.A8 512222	£14.15	£16.98
86 - WASHER FSP-459937.A2 459937	£2.00	£2.40
87 - BRACKET FSP-512230.A1 512230	£13.98	£16.77
88 - PRESSURE SPRING FSP-229784.A0 229784	£2.00	£2.40
89 - WASHER FSP-227641.A8 227641	£2.00	£2.40
90 - SHAFT FSP-649066.A9 649066	£16.32	£19.58
91 - LEVER FSP-227536.A5 227536	£5.58	£6.69
92 - TUBULAR RIVET FSP-413003.A1 413003	£2.00	£2.40
93 - SPRING DISC FSP-200588.A21 200588	£2.00	£2.40
94 - ADJUSTING ROLL FSP-490912.A8 490912	£35.94	£43.13
95 - RAISED-HEAD SCREW FSP-10016393.A15 10016393	£2.00	£2.40
96 - WASHER FSP-418269.A7 418269	£2.00	£2.40
97 - SHOULDER SCREW FSP-534471.A14 534471	£2.00	£2.40
98 - RAISED-HEAD SCREW 4.0 X 12 MM FSP-219071.A102 219071	£2.00	£2.40
99 - SANDING FRAME FSP-10204901.A4 10204901	£37.21	£44.65
100 - CARBON BRUSH FSP-534358.A4 534358	£14.15	£16.98
101 - PLATE FSP-534420.A4 534420	£2.00	£2.40
102 - HEXAGON NUT M5 FSP-761511.A6 761511	£2.00	£2.40
103 - HINGE FSP-534463.A4 534463	£2.00	£2.40
104 - HINGE FSP-465015.A5 465015	£2.66	£3.19
105 - FLAP FSP-534382.A15 534382	£2.00	£2.40
106 - FLANGE BUSHING FSP-534439.A15 534439	£2.00	£2.40
107 - TORSION SPRING FSP-538841.A4 538841	£2.87	£3.44
108 - SHAFT FSP-460013.A3 460013	£4.18	£5.02
109 - TORSION SPRING FSP-534412.A15 534412	£2.00	£2.40
110 - ECCENTRIC OSCILLATING CRANK FSP-534390.A4 534390	£3.20	£3.84
111 - KNURLED SCREW FSP-460134.A3 460134	£15.97	£19.16
112 - BUTTERFLY SCREW M6 X 75 FSP-382590.A6 382590	£5.99	£7.19
113 - CLAMPING BRACKET FSP-541486.A8 541486	£4.69	£5.63
114 - O-RING FSP-200052.A0 200052	£2.00	£2.40
116 - ROUND-HEAD SCREW FSP-761486.A7 761486	£2.00	£2.40
117 - STOP ANGLE FSP-460006.A9 460006	£19.27	£23.12
118 - WASHER FSP-761516.A3 761516	£2.00	£2.40
119 - WING NUT M6 FSP-761601.A8 761601	£3.50	£4.20
120 - ROUND-HEAD SCREW M6 X 16 FSP-401463.A2 401463	£2.00	£2.40
122 - RUBBER PEDAL FSP-10004992.A9 10004992	£9.24	£11.09
123 - ROTARY KNOB M6 X 22.5 FSP-10734068.A0 10734068	£2.00	£2.40
124 - PEDAL FSP-10005040.A16 10005040	£26.08	£31.30
125 - STRIP FSP-637416.A3 637416	£4.81	£5.77
126 - SHIM RING FSP-782510.A13 782510	£2.00	£2.40
127 - WASHER FSP-761527.A3 761527	£2.00	£2.40
128 - WASHER FSP-761526.A9 761526	£2.00	£2.40
