Festool BS 105 E / 490713 Spare Parts

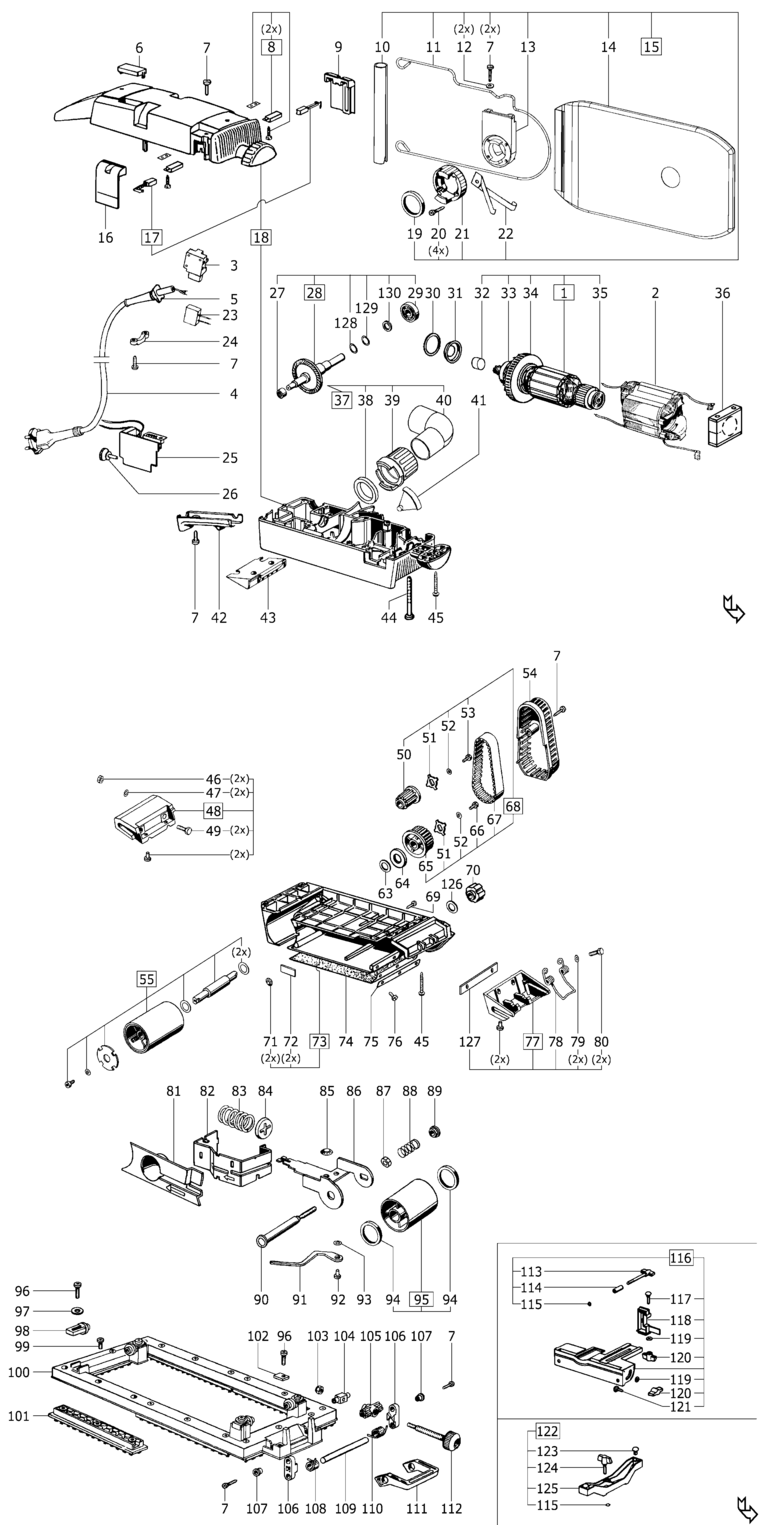

An exploded diagram and spare parts listing for the Festool BS 105 E / 490713

	Ex VAT	Inc VAT
1 - ARMATURE 230 V FSP-490743.A3 490743	£101.64	£121.97
2 - FIELD ASSEMBLY FSP-491207.A3 491207	£43.96	£52.75
3 - SWITCH 230 V FSP-492638.A0 492638	£24.46	£29.35
4 - MAINS CABLE GB 240V FSP-462505.A14 462505	£25.08	£30.09
4 - MAINS CABLE EU FSP-460463.A0 460463	£25.08	£30.09
5 - CABLE GROMMET FSP-459847.A11 459847	£2.00	£2.40
6 - COVER FSP-463948.A6 463948	£8.85	£10.62
7 - RAISED-HEAD SCREW 4.0 X 16 MM FSP-228713.A3 228713	£2.00	£2.40
8 - BRUSH HOLDER (PAIR) 120-230V FSP-490936.A1 490936	£18.09	£21.71
9 - COVER FSP-460674.A1 460674	£8.51	£10.21
10 - CLAMP FSP-460254.A6 460254	£6.39	£7.67
11 - BRACKET FSP-460218.A6 460218	£17.26	£20.71
12 - WASHER FSP-761519.A0 761519	£1.75	£2.10
13 - PRESSURE PIECE FSP-460302.A5 460302	£7.06	£8.47
14 - FILTER BAG FSP-460219.A11 460219	£25.78	£30.93
16 - COVER FSP-460675.A6 460675	£9.32	£11.19
17 - BRUSH (PAIR) 230V FSP-490929.A0 490929	£26.33	£31.60
18 - MOTOR HOUSING FSP-491241.A2 491241	£52.71	£63.25
19 - SEALING RING FSP-514020.A17 514020	£2.00	£2.40
20 - RAISED-HEAD SCREW 4.0 X 20 MM FSP-228567.A177 228567	£2.00	£2.40
21 - ADAPTER FSP-460300.A12 460300	£9.32	£11.19
22 - PLATE SPRING FSP-518891.A0 518891	£9.17	£11.00
24 - CABLE CLAMP 120V FSP-462325.A4 462325	£11.92	£14.31
24 - CABLE CLAMP FSP-761618.A0 761618	£2.00	£2.40
25 - ELECTRONIC 230 V FSP-492334.A6 492334	£48.44	£58.13
26 - ADJUSTING KNOB FSP-469587.A1 469587	£4.82	£5.78
27 - NEEDLE SLEEVE FSP-415839.A18 415839	£4.72	£5.66
28 - GEAR SHAFT FSP-490928.A6 490928	£80.55	£96.66
29 - BALL BEARING FSP-425575.A1 425575	£11.42	£13.70
30 - O-RING FSP-426768.A2 426768	£2.00	£2.40
31 - SUPPORTING RING FSP-581410.A1 581410	£2.00	£2.40
32 - CLAMPING RING FSP-581550.A6 581550	£7.99	£9.59
33 - BALL BEARING FSP-400065.A3 400065	£8.56	£10.27
34 - FAN FSP-581569.A1 581569	£7.38	£8.86
35 - BALL BEARING FSP-401550.A5 401550	£8.86	£10.63
36 - BEARING BRIDGE FSP-462309.A3 462309	£2.94	£3.53
37 - EXTRACTION ADAPTER AA - BS 75 / 105 FSP-490818.A4 490818	£14.55	£17.46
38 - SEALING RING FSP-459873.A7 459873	£2.00	£2.40
39 - ADAPTER FSP-459852.A6 459852	£10.65	£12.78
40 - ANGLE PIECE FSP-459897.A6 459897	£4.41	£5.29
41 - AIR DUCT FSP-460677.A6 460677	£7.99	£9.59
42 - COVER FSP-460676.A1 460676	£9.43	£11.32
43 - DUST GUIDE/DUST REMOVAL FSP-460673.A6 460673	£8.18	£9.81
44 - SLOTTED PAN HEAD SCREW 3.9 X 50 MM FSP-432776.A11 432776	£2.00	£2.40
45 - RAISED-HEAD SCREW 4.0 X 30 MM FSP-400528.A8 400528	£2.00	£2.40
46 - SQUARE NUT M5 FSP-400701.A4 400701	£2.00	£2.40
47 - TOOTH DISC FSP-761542.A22 761542	£2.00	£2.40
48 - SUPPORT FSP-490931.A2 490931	£54.82	£65.79
49 - SCREW M5 X 14 FSP-400569.A13 400569	£2.00	£2.40
50 - CROWN GEAR FSP-706450.A5 706450	£15.85	£19.02
51 - DRIVER FSP-227544.A5 227544	£2.00	£2.40
52 - WASHER FSP-266302.A0 266302	£2.00	£2.40
53 - CHEESE HEAD SCREW M5 X 12 FSP-761437.A6 761437	£2.00	£2.40
54 - HOOD FSP-460820.A6 460820	£6.30	£7.56
55 - DRIVING ROLLER FSP-490934.A6 490934	£65.99	£79.19
63 - SUPPORTING RING FSP-227749.A5 227749	£2.00	£2.40
64 - FELT WASHER FSP-761270.A6 761270	£2.00	£2.40
65 - CROWN GEAR FSP-706469.A2 706469	£18.47	£22.16
66 - CHEESE HEAD SCREW M5 X 12 LH FSP-411949.A6 411949	£4.88	£5.85
67 - FLAT TOOTH BELT FSP-462072.A1 462072	£20.72	£24.86
68 - BELT DRIVE FSP-490932.A6 490932	£45.13	£54.16
69 - SLOTTED PAN HEAD SCREW 3.9 X 13 MM FSP-203796.A20 203796	£2.00	£2.40
70 - GRIP FSP-460307.A6 460307	£3.14	£3.77
71 - WASHER FSP-459936.A9 459936	£2.00	£2.40
72 - GUIDE WASHER FSP-227668.A2 227668	£2.00	£2.40
73 - BELT CASING FSP-205414.A6 205414	£83.02	£99.62
75 - STRIP FSP-581496.A1 581496	£2.00	£2.40
76 - RAISED-HEAD SCREW M4 X 8 FSP-228570.A15 228570	£2.00	£2.40
77 - SUPPORT FSP-490930.A6 490930	£56.24	£67.49
78 - SPRING FSP-701424.A18 701424	£9.12	£10.94
79 - WASHER 5.3 MM FSP-761515.A37 761515	£2.00	£2.40
80 - CHEESE HEAD SCREW M5 X 22 FSP-400711.A0 400711	£2.00	£2.40
81 - COVER FSP-460738.A1 460738	£7.99	£9.59
82 - BRACKET FSP-581321.A6 581321	£14.60	£17.52
83 - PRESSURE SPRING FSP-581488.A6 581488	£3.00	£3.60
84 - WASHER FSP-227552.A1 227552	£2.00	£2.40
85 - WASHER FSP-459937.A7 459937	£2.00	£2.40
86 - BRACKET INCH (105 X 610) FSP-581666.A4 581666	£28.48	£34.17
86 - BRACKET METRIC (105 X 620) FSP-581313.A1 581313	£18.59	£22.31
87 - HEXAGON NUT M8 FSP-200719.A104 200719	£2.00	£2.40
88 - PRESSURE SPRING FSP-229784.A8 229784	£2.00	£2.40
89 - WASHER FSP-227641.A16 227641	£2.00	£2.40
90 - SHAFT FSP-465070.A6 465070	£33.31	£39.97
91 - LEVER FSP-227536.A3 227536	£5.58	£6.69
92 - TUBULAR RIVET FSP-413003.A6 413003	£2.00	£2.40
93 - SPRING DISC FSP-200588.A39 200588	£2.00	£2.40
94 - FELT WASHER FSP-761269.A1 761269	£2.00	£2.40
95 - ADJUSTING ROLL FSP-490933.A1 490933	£43.07	£51.68
96 - RAISED-HEAD SCREW FSP-10016393.A27 10016393	£2.00	£2.40
97 - WASHER FSP-418269.A3 418269	£2.00	£2.40
98 - SHOULDER SCREW FSP-534471.A15 534471	£2.00	£2.40
99 - RAISED-HEAD SCREW 4.0 X 12 MM FSP-219071.A61 219071	£2.00	£2.40
100 - SANDING FRAME FSP-10205222.A3 10205222	£45.33	£54.40
100 - SANDING FRAME FSP-460840.A1 460840	£47.40	£56.88
101 - CARBON BRUSH FSP-534358.A3 534358	£14.15	£16.98
102 - PLATE FSP-534420.A3 534420	£2.00	£2.40
103 - HEXAGON NUT M5 FSP-761511.A1 761511	£2.00	£2.40
104 - HINGE FSP-534463.A3 534463	£2.00	£2.40
105 - HINGE FSP-465015.A11 465015	£2.66	£3.19
106 - FLAP FSP-534382.A19 534382	£2.00	£2.40
107 - FLANGE BUSHING FSP-534439.A19 534439	£2.00	£2.40
108 - TORSION SPRING FSP-538841.A0 538841	£2.87	£3.44
109 - SHAFT FSP-460013.A8 460013	£4.18	£5.02
110 - TORSION SPRING FSP-534412.A19 534412	£2.00	£2.40
111 - ECCENTRIC OSCILLATING CRANK FSP-534390.A0 534390	£3.20	£3.84
112 - KNURLED SCREW FSP-460134.A10 460134	£15.97	£19.16
113 - BUTTERFLY SCREW M6 X 75 FSP-382590.A9 382590	£5.99	£7.19
114 - CLAMPING BRACKET FSP-541486.A10 541486	£4.69	£5.63
115 - O-RING FSP-200052.A22 200052	£2.00	£2.40
117 - ROUND-HEAD SCREW FSP-761486.A10 761486	£2.00	£2.40
118 - STOP ANGLE FSP-460006.A7 460006	£19.27	£23.12
119 - WASHER FSP-761516.A0 761516	£2.00	£2.40
120 - WING NUT M6 FSP-761601.A9 761601	£3.50	£4.20
121 - ROUND-HEAD SCREW M6 X 16 FSP-401463.A0 401463	£2.00	£2.40
123 - RUBBER PEDAL FSP-10004992.A13 10004992	£9.24	£11.09
124 - ROTARY KNOB M6 X 22.5 FSP-10734068.A16 10734068	£2.00	£2.40
125 - PEDAL FSP-10005040.A12 10005040	£26.08	£31.30
126 - WASHER FSP-461678.A3 461678	£2.00	£2.40
127 - STRIP FSP-637416.A7 637416	£4.81	£5.77
128 - SHIM RING FSP-265616.A3 265616	£2.00	£2.40
129 - SHIM RING FSP-416142.A6 416142	£2.00	£2.40
130 - SHIM RING FSP-437811.A3 437811	£2.00	£2.40

Attribute Name	Value
Brand	Festool

There are currently no reviews of this product.

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
