Festool RAP 150-21 FE 230V / 202870 Spare Parts

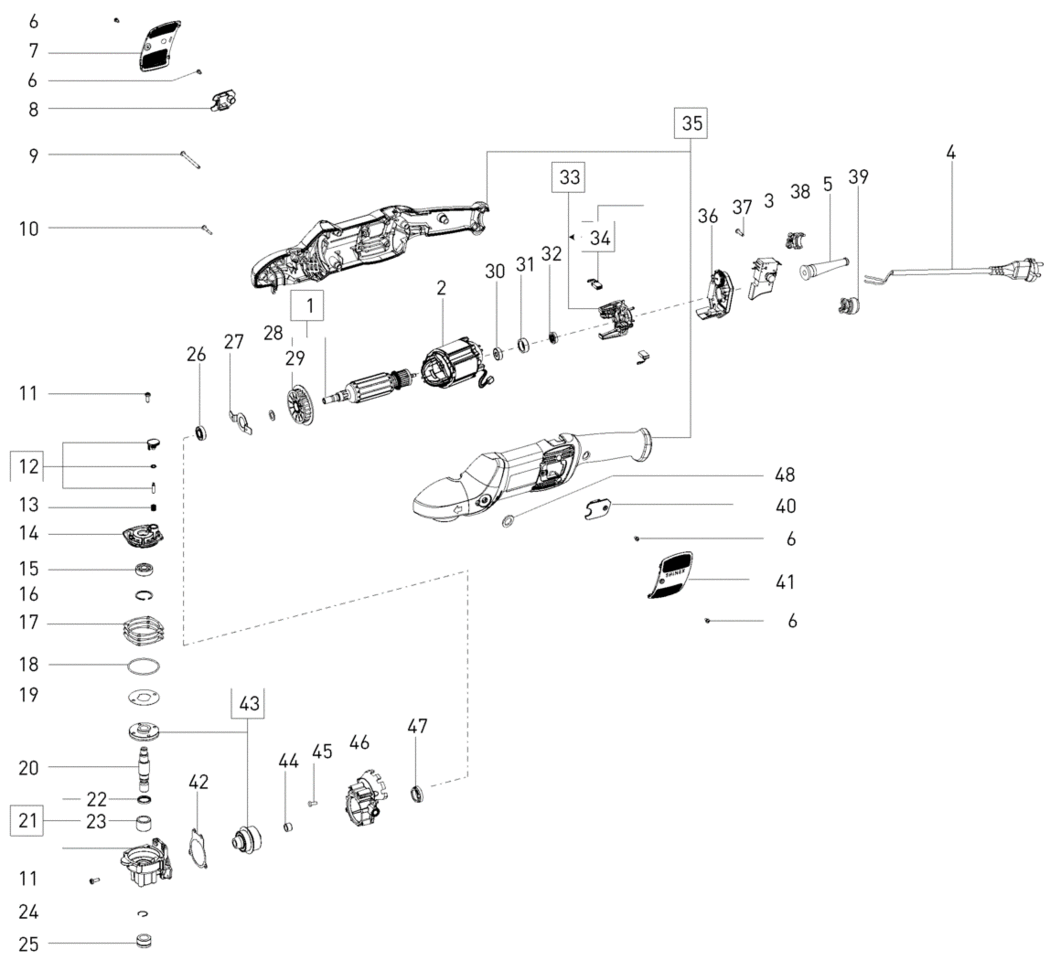

An exploded diagram and spare parts listing for the Festool RAP 150-21 FE 230V / 202870

	Ex VAT	Inc VAT
1 - ARMATURE 220-240V FSP-200355.A0 200355	£69.78	£83.74
2 - FIELD ASSEMBLY FSP-203202.A0 203202	£43.96	£52.75
3 - SWITCH FSP-473090.A0 473090	£24.83	£29.80
4 - CABLE WITH PLUG GB 240V FSP-477706.A7 477706	£41.54	£49.85
4 - CABLE WITH PLUG EU+ROK220V FSP-477705.A1 477705	£25.08	£30.09
5 - CABLE GROMMET FSP-445738.A0 445738	£2.00	£2.40
6 - RAISED-HEAD SCREW M 3 X 6 PZ SW DIN 7985 FSP-401026.A0 401026	£2.00	£2.40
7 - FILTER FSP-472999.A0 472999	£2.94	£3.53
8 - BRUSH CAP FSP-473001.A0 473001	£2.00	£2.40
9 - SLOTTED PAN HEAD SCREW FSP-401082.A0 401082	£2.00	£2.40
10 - RAISED-HEAD SCREW 3.5 X 22 MM FSP-400174.A0 400174	£2.00	£2.40
11 - RAISED-HEAD SCREW FSP-400955.A0 400955	£2.00	£2.40
12 - SPINDLE STOP FSP-495143.A7 495143	£37.68	£45.21
13 - PRESSURE SPRING FSP-444754.A46 444754	£2.00	£2.40
14 - BEARING COVER FSP-496481.A0 496481	£48.12	£57.74
15 - BALL BEARING FSP-228798.A54 228798	£5.38	£6.45
16 - CIRCLIP FSP-400977.A0 400977	£2.00	£2.40
17 - SHIM RING FSP-200357.A5 200357	£11.48	£13.78
18 - O-RING FSP-400905.A28 400905	£2.00	£2.40
19 - STRIKE PLATE FSP-472982.A7 472982	£2.00	£2.40
20 - SPINDLE FSP-472987.A0 472987	£30.22	£36.26
21 - ANGLE HOUSING FSP-200358.A0 200358	£53.78	£64.54
22 - SEALING RING FSP-400886.A8 400886	£3.62	£4.35
23 - NEEDLE SLEEVE FSP-400980.A7 400980	£12.76	£15.31
24 - CIRCLIP FSP-400976.A7 400976	£2.00	£2.40
25 - LIMIT STOP WASHER FSP-472991.A7 472991	£18.63	£22.36
26 - BALL BEARING FSP-401018.A1 401018	£12.09	£14.51
27 - LOCKING PLATE FSP-472980.A0 472980	£5.58	£6.70
28 - SHIM RING FSP-782510.A10 782510	£2.00	£2.40
29 - FAN FSP-10017471.A1 10017471	£6.68	£8.01
30 - BALL BEARING FSP-228672.A85 228672	£4.41	£5.29
31 - BEARING SLEEVE FSP-628201.A0 628201	£2.00	£2.40
32 - SOLENOID RING FSP-444018.A30 444018	£2.00	£2.40
33 - BEARING BRIDGE FSP-10009198.A4 10009198	£29.57	£35.48
34 - BRUSH (PAIR) 230V FSP-495144.A0 495144	£10.18	£12.21
35 - HOUSING FSP-10021094.A1 10021094	£32.57	£39.08
36 - ELECTRONIC FSP-200361.A1 200361	£48.44	£58.13
37 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-400584.A111 400584	£2.00	£2.40
38 - CLAMPING FSP-477964.A16 477964	£2.00	£2.40
39 - CLAMPING FSP-477962.A9 477962	£2.00	£2.40
40 - BRUSH CAP FSP-473000.A7 473000	£2.00	£2.40
41 - FILTER FSP-472998.A7 472998	£6.25	£7.50
42 - GASKET FSP-473584.A1 473584	£2.00	£2.40
43 - RING GEAR FSP-200364.A5 200364	£86.56	£103.87
44 - NEEDLE BUSHING FSP-400969.A7 400969	£5.81	£6.97
45 - RAISED-HEAD SCREW M4 X 10 FSP-228733.A98 228733	£2.00	£2.40
46 - GEAR HOUSING FSP-496484.A7 496484	£48.66	£58.39
47 - BEARING SLEEVE FSP-477394.A0 477394	£6.33	£7.60
48 - SHIM RING FSP-400884.A9 400884	£2.00	£2.40

Attribute Name	Value
