Festool LRS 400 / 202090 Spare Parts

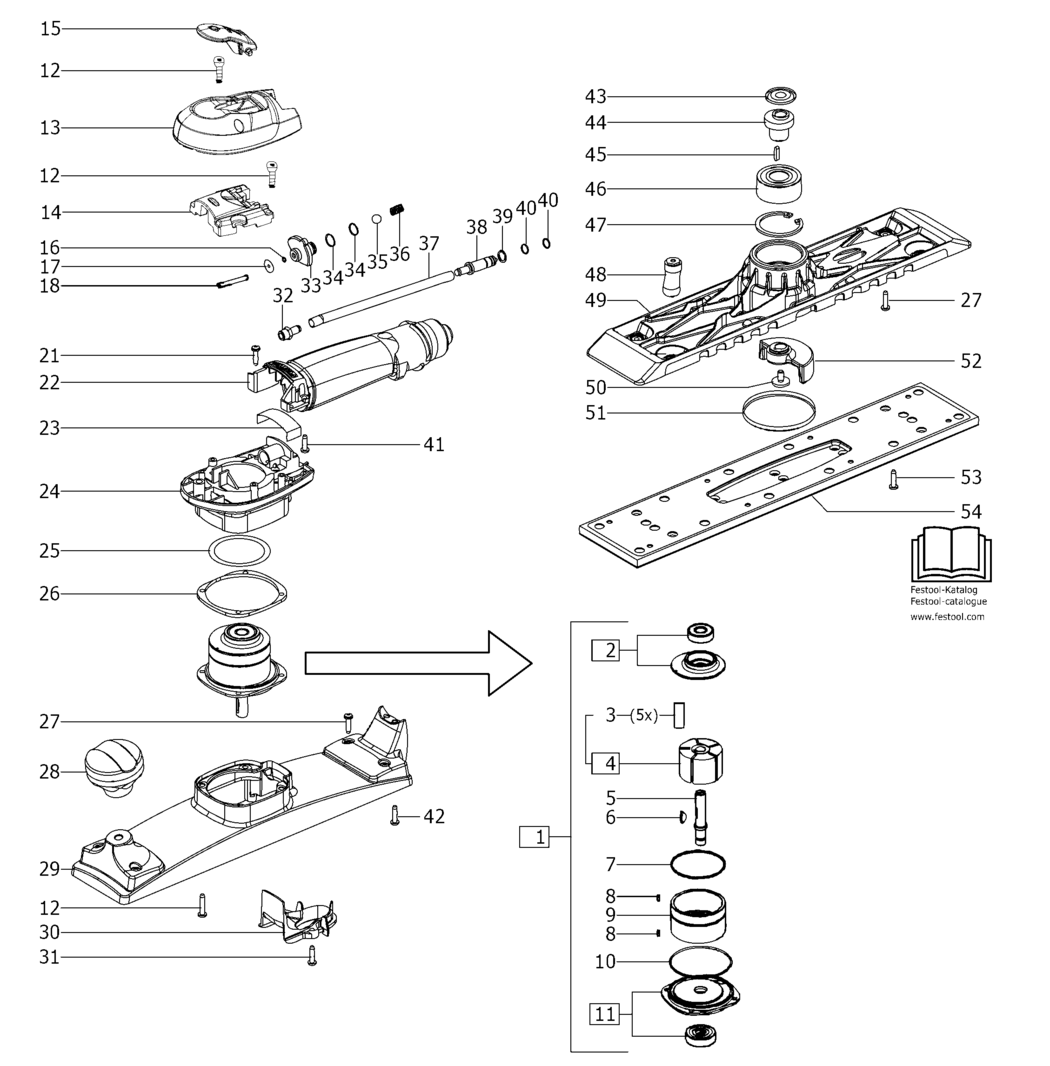

An exploded diagram and spare parts listing for the Festool LRS 400 / 202090

	Ex VAT	Inc VAT
1 - MOTOR FSP-493044.A2 493044	£176.02	£211.22
2 - MOTOR COVER FSP-630103.A5 630103	£47.99	£57.59
3 - LAMELLA (5 SET) FSP-491615.A14 491615	£24.83	£29.80
4 - ROTOR FSP-491593.A16 491593	£42.02	£50.43
5 - SHAFT FSP-466969.A2 466969	£44.98	£53.98
6 - WOODRUFF KEY FSP-466338.A6 466338	£2.00	£2.40
7 - O-RING FSP-704785.A11 704785	£6.62	£7.95
8 - SLEEVE FSP-773627.A22 773627	£2.00	£2.40
9 - BUSH FSP-720418.A7 720418	£48.70	£58.44
10 - O-RING FSP-704788.A6 704788	£3.25	£3.90
11 - HOUSING COVER FSP-630109.A15 630109	£59.02	£70.83
12 - RAISED-HEAD SCREW 4.0 X 20 MM FSP-228567.A109 228567	£2.00	£2.40
13 - CAP FSP-491416.A9 491416	£9.17	£11.00
14 - WEIGHT FSP-462876.A20 462876	£13.98	£16.77
15 - SWITCH LEVER FSP-709392.A2 709392	£4.06	£4.87
16 - O-RING FSP-200904.A7 200904	£2.00	£2.40
17 - WASHER FSP-720602.A7 720602	£2.00	£2.40
18 - SWITCH LINKAGE FSP-462877.A3 462877	£2.00	£2.40
21 - RAISED-HEAD SCREW 4.0 X 16 MM FSP-228713.A82 228713	£2.00	£2.40
22 - GRIP FSP-493623.A2 493623	£19.45	£23.34
23 - TRANSPARENCY FSP-720617.A2 720617	£2.00	£2.40
24 - HOUSING FSP-491566.A16 491566	£46.72	£56.07
25 - SEALING RING FSP-720246.A7 720246	£2.00	£2.40
26 - SPACER PIECE FSP-464276.A2 464276	£2.00	£2.40
27 - RAISED-HEAD SCREW M4 X 10 FSP-228733.A68 228733	£2.00	£2.40
28 - GRIP FSP-487554.A31 487554	£4.88	£5.85
29 - HOUSING FSP-464278.A2 464278	£61.55	£73.86
30 - EXTRACTOR CONNECTOR FSP-464500.A2 464500	£2.00	£2.40
31 - RAISED-HEAD SCREW M4 X 10 FSP-228582.A41 228582	£2.00	£2.40
32 - PIPE FSP-449396.A1 449396	£9.15	£10.98
33 - PISTON FSP-449556.A9 449556	£2.00	£2.40
34 - O-RING FSP-704786.A4 704786	£3.75	£4.50
35 - BALL FSP-410290.A8 410290	£4.81	£5.77
36 - PRESSURE SPRING FSP-463317.A14 463317	£2.00	£2.40
37 - HOSE FSP-10014022.A8 10014022	£4.31	£5.17
38 - COMPRESSED AIR TUBE FSP-10014028.A0 10014028	£19.71	£23.65
39 - SNAP RING FSP-203270.A13 203270	£2.00	£2.40
40 - O-RING FSP-704784.A4 704784	£2.00	£2.40
41 - COVER PLUG FSP-450920.A4 450920	£2.00	£2.40
42 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-228584.A20 228584	£2.00	£2.40
43 - NILOS RING FSP-782082.A10 782082	£6.42	£7.71
44 - CAM FSP-464277.A0 464277	£27.10	£32.52
45 - FEATHER KEY FSP-203271.A6 203271	£2.00	£2.40
46 - BALL BEARING FSP-447239.A6 447239	£37.83	£45.40
47 - SNAP RING FSP-205614.A2 205614	£2.00	£2.40
48 - RUBBER FOOT FSP-492047.A0 492047	£13.90	£16.68
49 - PLATE FSP-464285.A1 464285	£85.43	£102.52
50 - FLAT HEAD SCREW M5 X 8 FSP-204120.A13 204120	£2.00	£2.40
51 - CAP FSP-435291.A6 435291	£2.00	£2.40
52 - COUNTER BALANCE FSP-464279.A1 464279	£32.59	£39.11
53 - RAISED-HEAD SCREW M4 X 10 FSP-400606.A5 400606	£2.00	£2.40
54 - SANDING PAD FSP-493140.A0 493140	£57.26	£68.71

Attribute Name	Value
Brand	Festool
