Festool LEX 3 125/5 / 496891 Spare Parts

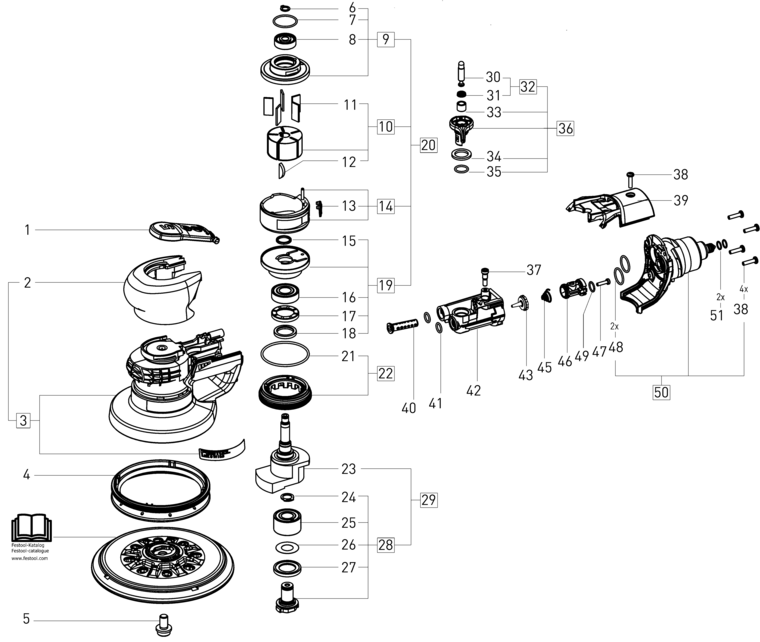

An exploded diagram and spare parts listing for the Festool LEX 3 125/5 / 496891

	Ex VAT	Inc VAT
1 - PUSHER FSP-707357.A4 707357	£4.31	£5.17
2 - CAP FSP-701692.A15 701692	£7.42	£8.90
3 - HOUSING FSP-498881.A4 498881	£54.32	£65.19
4 - COLLAR FSP-700356.A11 700356	£9.43	£11.32
5 - SCREW FSP-401165.A111 401165	£2.00	£2.40
6 - SNAP RING FSP-700979.A16 700979	£2.00	£2.40
7 - O-RING FSP-479998.A19 479998	£2.00	£2.40
8 - BALL BEARING FSP-228746.A10 228746	£7.11	£8.53
9 - BEARING COVER FSP-498836.A16 498836	£59.43	£71.32
10 - ROTOR FSP-201274.A1 201274	£61.18	£73.42
11 - LAMELLA (5) FSP-497765.A4 497765	£28.58	£34.29
12 - SPRING FSP-10004365.A4 10004365	£2.00	£2.40
13 - GASKET FSP-10000833.A16 10000833	£4.69	£5.63
14 - BUSHING FSP-498524.A4 498524	£81.25	£97.50
15 - SEALING RING FSP-478363.A17 478363	£2.82	£3.39
16 - BEARING FSP-478938.A0 478938	£8.68	£10.42
17 - ADAPTER RING FSP-700980.A1 700980	£5.93	£7.12
18 - SHAFT SEAL RING FSP-478960.A17 478960	£3.20	£3.84
19 - BEARING COVER FSP-498837.A1 498837	£65.48	£78.58
20 - MOTOR FSP-201273.A16 201273	£177.91	£213.49
21 - O-RING FSP-400905.A25 400905	£2.00	£2.40
22 - RETAINING NUT FSP-498838.A16 498838	£35.43	£42.52
23 - CAM FSP-10002435.A2 10002435	£84.59	£101.51
24 - SNAP RING FSP-761559.A3 761559	£2.00	£2.40
25 - ANGULAR CONTACT BALL BEARING FSP-703552.A7 703552	£32.06	£38.47
26 - SHIM RING FSP-10003677.A5 10003677	£2.00	£2.40
27 - ADAPTER RING FSP-10003671.A12 10003671	£2.00	£2.40
28 - BEARING BOLT FSP-495115.A4 495115	£64.52	£77.43
29 - CAM FSP-497988.A2 497988	£122.47	£146.96
30 - TAPPET FSP-701696.A0 701696	£3.81	£4.57
31 - SHAFT SEAL RING FSP-10003794.A12 10003794	£5.50	£6.60
32 - TAPPET FSP-498841.A4 498841	£25.45	£30.54
33 - BUSH FSP-10005659.A1 10005659	£2.00	£2.40
34 - FELT WASHER FSP-10001172.A1 10001172	£2.00	£2.40
35 - O-RING FSP-200929.A1 200929	£2.00	£2.40
36 - VALVE FSP-498842.A13 498842	£37.21	£44.65
37 - SCREW FSP-479759.A11 479759	£2.00	£2.40
38 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-400468.A91 400468	£2.00	£2.40
39 - COVER FSP-701689.A10 701689	£2.00	£2.40
40 - SHOCK ABSORBER FSP-701706.A2 701706	£2.00	£2.40
41 - O-RING FSP-701573.A17 701573	£2.00	£2.40
42 - SUPPORT FSP-701707.A12 701707	£4.07	£4.88
43 - VALVE FSP-10005674.A16 10005674	£5.74	£6.89
45 - SPRING FSP-701704.A15 701704	£2.00	£2.40
46 - SCREEN FSP-701698.A14 701698	£2.00	£2.40
47 - RAISED-HEAD SCREW 3.0 X 12 MM FSP-219069.A57 219069	£2.00	£2.40
48 - O-RING FSP-200934.A17 200934	£2.00	£2.40
49 - O-RING FSP-706535.A1 706535	£2.00	£2.40
50 - CONNECTING PIECE FSP-498882.A11 498882	£40.08	£48.10
51 - O-RING FSP-704784.A11 704784	£2.00	£2.40

Attribute Name	Value
Brand	Festool
