Festool CS 70 EBG GB 240V / 201438 Spare Parts

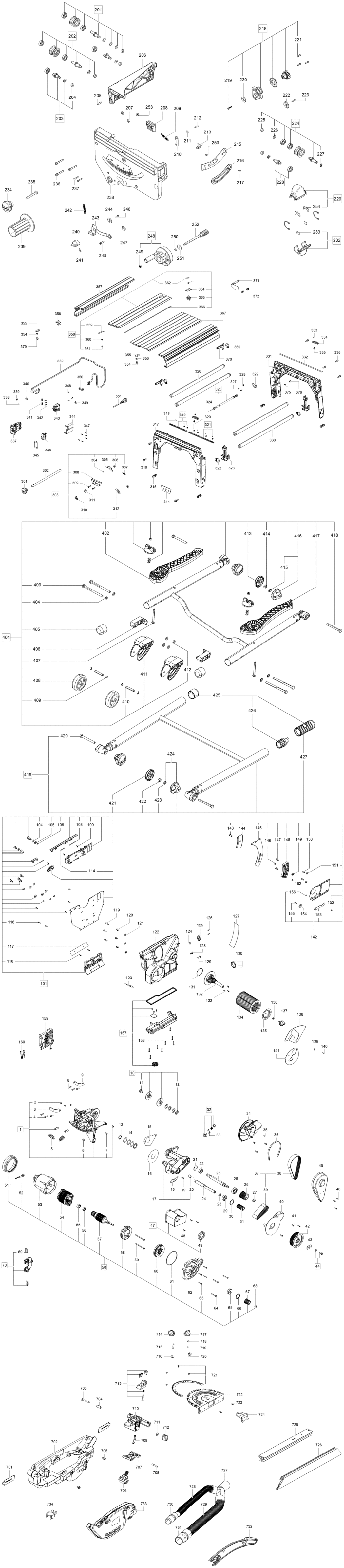

An exploded diagram and spare parts listing for the Festool CS 70 EBG GB 240V / 201438

	Ex VAT	Inc VAT
1 - SWIVELING SEGMENT FSP-488148.A8 488148	£95.98	£115.17
2 - HEXAGON NUT M5 FSP-200717.A28 200717	£2.00	£2.40
3 - BOARD SEGMENT FSP-446147.A9 446147	£6.55	£7.86
4 - CHEESE HEAD SCREW M5 X 18 FSP-202824.A0 202824	£2.00	£2.40
5 - CONNECTING MEMBER FSP-446146.A8 446146	£2.00	£2.40
6 - DU FLANGE BUSHING FSP-400253.A13 400253	£2.00	£2.40
7 - CLAMPING SLEEVE FSP-400259.A8 400259	£2.00	£2.40
8 - CHEESE HEAD SCREW M5 X 18 FSP-202824.A1 202824	£2.00	£2.40
9 - SUPPORT PLATE FSP-446704.A8 446704	£7.99	£9.59
10 - CLAMPING FLANGE FSP-488151.A9 488151	£60.72	£72.86
11 - FLANGE BOLT M8 X 15 FSP-446370.A8 446370	£9.99	£11.99
12 - SPRING WASHER FSP-444235.A26 444235	£2.00	£2.40
13 - SNAP RING FSP-200414.A14 200414	£2.00	£2.40
14 - COMPENSATING WASHER FSP-488465.A0 488465	£12.99	£15.59
15 - GLIDE PLATE FSP-450055.A14 450055	£4.02	£4.82
16 - WASHER FSP-446474.A0 446474	£7.63	£9.16
17 - ROCKER FSP-488149.A9 488149	£109.49	£131.39
18 - TOOTH SEGMENT FSP-202847.A17 202847	£8.68	£10.42
19 - RAISED-HEAD SCREW M4 X 16 FSP-219075.A47 219075	£2.00	£2.40
20 - NEEDLE BUSHING FSP-400254.A9 400254	£7.99	£9.59
21 - CIRCLIP FSP-219855.A5 219855	£2.00	£2.40
22 - BALL BEARING FSP-789595.A20 789595	£8.79	£10.55
23 - SHAFT FSP-202845.A17 202845	£45.81	£54.97
24 - SHAFT FSP-202846.A0 202846	£41.41	£49.69
25 - BALL BEARING FSP-400467.A13 400467	£22.55	£27.06
26 - TOOTHED BELT WHEEL FSP-445880.A8 445880	£37.13	£44.56
27 - NUT M10 FSP-451484.A14 451484	£2.00	£2.40
28 - WASHER FSP-449203.A0 449203	£2.00	£2.40
29 - BALL BEARING FSP-789775.A27 789775	£9.65	£11.58
30 - SNAP RING FSP-771483.A17 771483	£2.00	£2.40
31 - GEAR FSP-491936.A9 491936	£31.83	£38.20
32 - SPINDLE STOP FSP-488150.A8 488150	£24.08	£28.90
33 - RAISED-HEAD SCREW M4 X 10 FSP-228582.A14 228582	£2.00	£2.40
34 - AIR DUCT FSP-446473.A17 446473	£7.99	£9.59
35 - RAISED-HEAD SCREW M4 X 16 FSP-219075.A48 219075	£2.00	£2.40
36 - FELT STRIPE FSP-447962.A12 447962	£2.00	£2.40
37 - TOOTHED BELT FSP-488135.A12 488135	£46.72	£56.07
38 - TOOTHED BELT FSP-445882.A1 445882	£27.79	£33.35
39 - TOOTHED BELT FSP-445881.A2 445881	£33.98	£40.78
40 - COVER FSP-447710.A3 447710	£6.64	£7.97
41 - RAISED-HEAD SCREW M4 X 16 FSP-219075.A46 219075	£2.00	£2.40
42 - TOOTHED BELT WHEEL FSP-445878.A9 445878	£36.32	£43.59
43 - DRIVING WASHER FSP-446937.A0 446937	£2.00	£2.40
44 - CHEESE HEAD SCREW FSP-401165.A12 401165	£2.00	£2.40
45 - MOTOR COVER FSP-446469.A3 446469	£8.18	£9.81
46 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-228584.A84 228584	£2.00	£2.40
47 - HOUSING FSP-488154.A8 488154	£21.42	£25.71
48 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-228584.A85 228584	£2.00	£2.40
49 - LIP RING FSP-447968.A0 447968	£2.00	£2.40
50 - MOTOR FSP-204904.A0 204904	£341.10	£409.32
51 - SEALING RING FSP-447750.A9 447750	£4.48	£5.38
52 - SPEED INDICATOR FSP-487467.A8 487467	£7.99	£9.59
53 - MOTOR HOUSING FSP-446309.A17 446309	£17.97	£21.56
54 - STATOR FSP-204882.A2 204882	£77.86	£93.43
55 - BEARING RING FSP-438613.A45 438613	£2.00	£2.40
56 - BALL BEARING FSP-228559.A5 228559	£4.06	£4.87
57 - ARMATURE 230 V FSP-493504.A15 493504	£166.02	£199.23
58 - AIR GUIDE WASHER FSP-469886.A9 469886	£2.00	£2.40
59 - RAISED-HEAD SCREW 5.0 X 80 MM FSP-400264.A8 400264	£2.00	£2.40
60 - FAN FSP-486880.A7 486880	£6.90	£8.28
61 - O-RING FSP-400488.A9 400488	£2.00	£2.40
62 - MOTOR FLANGE FSP-451454.A5 451454	£43.88	£52.66
63 - RAISED-HEAD SCREW 3.5 X 25 MM FSP-219068.A21 219068	£2.00	£2.40
64 - RAISED-HEAD SCREW M5 X 40 FSP-400255.A8 400255	£2.00	£2.40
65 - BALL BEARING FSP-219021.A20 219021	£11.22	£13.46
66 - SNAP RING FSP-771483.A16 771483	£2.00	£2.40
67 - TOOTHED BELT WHEEL FSP-445877.A8 445877	£16.48	£19.77
68 - HEXAGON NUT M8 FSP-200719.A79 200719	£2.00	£2.40
69 - BRUSH (PAIR) 230V FSP-488134.A5 488134	£38.81	£46.57
70 - BRUSH HOLDER (PAIR) 230V FSP-488136.A5 488136	£42.10	£50.52
101 - COVER FSP-10031143.A0 10031143	£59.67	£71.60
104 - O-RING FSP-400320.A2 400320	£2.00	£2.40
105 - WASHER 6.4 MM FSP-228546.A112 228546	£2.00	£2.40
106 - WASHER FSP-208623.A18 208623	£2.00	£2.40
108 - BOLT FSP-10023698.A3 10023698	£2.00	£2.40
109 - TORSION SPRING FSP-10024820.A3 10024820	£2.00	£2.40
114 - BOLT FSP-10027491.A3 10027491	£2.00	£2.40
116 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-228584.A86 228584	£2.00	£2.40
117 - BOARD SEGMENT FSP-448081.A0 448081	£6.55	£7.86
118 - RAISED-HEAD SCREW 3.5 X 10 MM FSP-219031.A210 219031	£2.00	£2.40
119 - CHEESE HEAD SCREW M6 X 20 FSP-228612.A7 228612	£2.00	£2.40
120 - FLANGE BUSHING FSP-449159.A9 449159	£3.44	£4.13
121 - SQUARE NUT M6 FSP-228566.A23 228566	£2.00	£2.40
122 - PROTECTIVE COVER FSP-10023763.A2 10023763	£28.82	£34.59
123 - SPLINTER GUARD FSP-448695.A9 448695	£2.00	£2.40
124 - SEALING RING FSP-400271.A5 400271	£2.00	£2.40
125 - PLUG FSP-447770.A3 447770	£2.00	£2.40
126 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-228584.A125 228584	£2.00	£2.40
127 - SPLINTER GUARD FSP-448694.A9 448694	£3.00	£3.60
128 - CABLE CLAMP FSP-431899.A51 431899	£2.00	£2.40
129 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-228584.A124 228584	£2.00	£2.40
130 - EXTRACTOR CONNECTOR FSP-446588.A9 446588	£2.66	£3.19
131 - O-RING FSP-442413.A14 442413	£2.00	£2.40
132 - FILTER HOUSING FSP-447996.A3 447996	£7.86	£9.43
133 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-228584.A126 228584	£2.00	£2.40
134 - FILTER CARTRIDGE FSP-447995.A9 447995	£20.35	£24.42
135 - COVER FSP-447997.A9 447997	£3.62	£4.35
136 - SEALING RING FSP-449830.A3 449830	£2.00	£2.40
137 - ROTARY KNOB M6 X 22.5 FSP-10734068.A8 10734068	£2.00	£2.40
138 - PROTECTIVE PLATE FSP-10024034.A1 10024034	£6.50	£7.80
139 - WASHER FSP-615015.A0 615015	£2.00	£2.40
140 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-228584.A129 228584	£2.00	£2.40
141 - PROTECTIVE PLATE FSP-10024009.A2 10024009	£4.31	£5.17
142 - SPACER WEDGE HOLDER FSP-10031144.A3 10031144	£65.17	£78.20
143 - CHEESE HEAD SCREW M8 X 16 FSP-774346.A19 774346	£2.00	£2.40
144 - SPACER WEDGE PLATE FSP-445927.A17 445927	£6.30	£7.56
145 - SPACER WEDGE FSP-10023771.A1 10023771	£40.42	£48.50
146 - PRESSURE CLAMPING ELEMENT FSP-400287.A6 400287	£4.89	£5.87
147 - CHEESE HEAD SCREW M6 X 14 FSP-209354.A9 209354	£2.00	£2.40
148 - SPACER WEDGE HOLDER FSP-445926.A0 445926	£16.90	£20.28
149 - HEXAGON NUT M8 FSP-200719.A136 200719	£2.00	£2.40
150 - RAISED-HEAD SCREW M4 X 16 FSP-219075.A11 219075	£2.00	£2.40
151 - FLANGE BUSHING FSP-447555.A15 447555	£2.00	£2.40
152 - BOLT FSP-447358.A13 447358	£2.48	£2.97
153 - CONNECTING ROD FSP-446528.A9 446528	£2.00	£2.40
154 - WASHER FSP-447702.A23 447702	£2.00	£2.40
155 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-228584.A128 228584	£2.00	£2.40
156 - SNAP RING FSP-200615.A2 200615	£2.00	£2.40
157 - COVER FSP-488155.A12 488155	£40.58	£48.70
158 - RAISED-HEAD SCREW 3.5 X 25 MM FSP-219068.A28 219068	£2.00	£2.40
159 - CONTROL ELECTRONICS FSP-204905.A1 204905	£115.32	£138.39
160 - SET OF FLEXIBLE LEADS FSP-488440.A14 488440	£27.41	£32.89
201 - ROLLER FSP-488868.A2 488868	£44.02	£52.82
202 - ROLLER FSP-488867.A14 488867	£41.96	£50.35
203 - CYLINDER ROLLER FSP-488870.A4 488870	£31.50	£37.80
204 - HEXAGON NUT M8 FSP-200719.A137 200719	£2.00	£2.40
205 - CYLINDER PIN FSP-400260.A17 400260	£2.00	£2.40
206 - SUPPORT FSP-497196.A11 497196	£45.40	£54.48
207 - SQUARE NUT M6 FSP-228566.A22 228566	£2.00	£2.40
208 - SUPPORTING BEARING FSP-465449.A27 465449	£8.81	£10.57
209 - DRAW SPRING FSP-447263.A23 447263	£2.00	£2.40
210 - LEVER FSP-446671.A6 446671	£2.00	£2.40
211 - WASHER 4.3 MM FSP-228542.A11 228542	£2.00	£2.40
212 - RAISED-HEAD SCREW M4 X 16 FSP-219075.A10 219075	£2.00	£2.40
213 - INDICATOR FSP-446468.A13 446468	£2.00	£2.40
214 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-228584.A127 228584	£2.00	£2.40
215 - BEARING FSP-446470.A14 446470	£4.88	£5.85
216 - WASHER FSP-446472.A3 446472	£2.87	£3.44
217 - RAISED-HEAD SCREW 3.5 X 10 MM FSP-219031.A260 219031	£2.00	£2.40
218 - FLANGE FSP-488147.A17 488147	£28.07	£33.68
219 - RAISED-HEAD SCREW 4.0 X 20 MM FSP-228567.A193 228567	£2.00	£2.40
220 - WASHER FSP-447702.A25 447702	£2.00	£2.40
221 - RAISED-HEAD SCREW M4 X 16 FSP-219075.A13 219075	£2.00	£2.40
222 - GEAR FSP-446072.A17 446072	£3.56	£4.27
223 - RAISED-HEAD SCREW M4 X 16 FSP-219075.A14 219075	£2.00	£2.40
224 - ROLLER FSP-488869.A14 488869	£42.34	£50.81
225 - HEXAGON NUT M8 FSP-200719.A135 200719	£2.00	£2.40
226 - WASHER 8.4 MM FSP-228601.A51 228601	£2.00	£2.40
227 - SNAP RING FSP-200618.A16 200618	£2.00	£2.40
228 - CYLINDER ROLLER FSP-488870.A3 488870	£31.50	£37.80
229 - STRIPPER FSP-496820.A11 496820	£14.02	£16.83
230 - FELT INSERT FSP-451917.A8 451917	£2.00	£2.40
231 - LOCK WASHER FSP-447961.A0 447961	£2.00	£2.40
232 - STRIPPER FSP-496821.A6 496821	£19.81	£23.77
233 - FELT INSERT FSP-451918.A9 451918	£2.00	£2.40
234 - GRIP FSP-487555.A27 487555	£7.97	£9.57
235 - HEXAGON SCREW M8 X 60 FSP-400382.A18 400382	£2.00	£2.40
236 - CHEESE HEAD SCREW M6 X 40 FSP-228653.A2 228653	£2.00	£2.40
237 - RAISED-HEAD SCREW M4 X 25 FSP-400257.A46 400257	£2.00	£2.40
238 - CAR FRONT FSP-497195.A4 497195	£65.54	£78.65
239 - KNOB LEVER FSP-446063.A0 446063	£7.92	£9.51
240 - GRIP FSP-449869.A6 449869	£2.00	£2.40
241 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-228584.A123 228584	£2.00	£2.40
242 - DRAW SPRING FSP-447263.A22 447263	£2.00	£2.40
243 - END STOP FSP-449868.A11 449868	£7.31	£8.77
244 - WASHER FSP-447702.A24 447702	£2.00	£2.40
245 - CHEESE HEAD SCREW M5 X 18 FSP-202824.A8 202824	£2.00	£2.40
246 - RAISED-HEAD SCREW M4 X 16 FSP-219075.A12 219075	£2.00	£2.40
247 - ECCENTRIC NUT FSP-449928.A6 449928	£7.67	£9.20
248 - CRANK FSP-488159.A2 488159	£18.49	£22.19
249 - HEXAGON NUT M6 FSP-228541.A79 228541	£2.00	£2.40
250 - SPRING DISC FSP-200588.A25 200588	£2.00	£2.40
251 - WASHER 8.4 MM FSP-219049.A49 219049	£2.00	£2.40
252 - SPINDLE FSP-488271.A6 488271	£37.69	£45.23
253 - HEXAGON NUT M6 FSP-228541.A78 228541	£2.00	£2.40
301 - GRIP FSP-487569.A13 487569	£12.60	£15.12
302 - PULL ROD FSP-10028620.A2 10028620	-
303 - GUIDE FSP-488140.A0 488140	£34.68	£41.61
304 - PRESSURE CLAMPING ELEMENT FSP-400286.A18 400286	£4.56	£5.47
305 - LEVER FSP-446669.A11 446669	£3.78	£4.53
306 - SLEEVE FSP-449122.A8 449122	£2.00	£2.40
307 - DRAW SPRING FSP-447263.A21 447263	£2.00	£2.40
308 - GUIDE FSP-446675.A3 446675	£3.81	£4.57
309 - CHEESE HEAD SCREW M6 X 25 FSP-200128.A5 200128	£2.00	£2.40
310 - GRIP FSP-446974.A8 446974	£2.00	£2.40
311 - BUFFER FSP-447528.A14 447528	£2.00	£2.40
312 - DETENT LEVER FSP-702066.A3 702066	£5.68	£6.82
314 - HOLDING PLATE FSP-447789.A5 447789	£7.02	£8.43
315 - RUBBER FOOT (4 PCS.) FSP-492255.A23 492255	£17.98	£21.57
316 - SCREW M8 X 25 FSP-450683.A5 450683	£2.00	£2.40
317 - PORTAL FSP-462419.A3 462419	£137.92	£165.51
318 - SHEET METAL NUT FSP-448477.A3 448477	£2.00	£2.40
319 - SCALE FSP-488137.A17 488137	£15.60	£18.72
320 - RAISED-HEAD SCREW 2.5 X 8 MM FSP-400444.A11 400444	£2.00	£2.40
321 - SCALE FSP-488138.A0 488138	£19.35	£23.22
322 - CLIP FSP-400428.A0 400428	£3.56	£4.27
323 - HOLDER FSP-10024165.A3 10024165	£5.18	£6.22
324 - WASHER FSP-222490.A19 222490	£2.00	£2.40
325 - SHOCK ABSORBER FSP-488139.A17 488139	£39.74	£47.69
326 - PIPE FSP-459286.A6 459286	£55.66	£66.79
327 - RAISED-HEAD SCREW M4 X 16 FSP-219075.A15 219075	£2.00	£2.40
328 - CLIP FSP-458614.A27 458614	£2.00	£2.40
329 - BEARING SHEET FSP-448236.A0 448236	£2.00	£2.40
330 - AXLE TUBE FSP-459287.A8 459287	£53.54	£64.25
331 - PORTAL FSP-462420.A9 462420	£137.92	£165.51
332 - STICKER FSP-448251.A17 448251	£7.37	£8.84
333 - SQUARE NUT M6 FSP-228566.A24 228566	£2.00	£2.40
334 - STOP FSP-448118.A11 448118	£2.00	£2.40
335 - SCREW M6 X 12 FSP-449888.A12 449888	£2.00	£2.40
336 - SCREW M8 X 25 FSP-450683.A4 450683	£2.00	£2.40
337 - SWITCHING HOUSING FSP-703148.A4 703148	£39.50	£47.40
338 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-228663.A66 228663	£2.00	£2.40
339 - CLIP FSP-458614.A25 458614	£2.00	£2.40
340 - RUBBER RING FSP-458613.A1 458613	£2.00	£2.40
341 - CABLE CLAMP FSP-439288.A16 439288	£2.00	£2.40
342 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-228663.A67 228663	£2.00	£2.40
343 - SWITCH FSP-705171.A4 705171	£49.05	£58.86
344 - SWITCH COVER FSP-703149.A3 703149	£26.68	£32.02
345 - GASKET FSP-447768.A5 447768	£2.00	£2.40
346 - PUSHER FSP-500631.A2 500631	£30.91	£37.09
347 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-228663.A68 228663	£2.00	£2.40
348 - RAISED-HEAD SCREW M4 X 12 FSP-228509.A12 228509	£2.00	£2.40
349 - RUBBER RING FSP-458613.A0 458613	£2.00	£2.40
350 - FERRITE FSP-10044159.A2 10044159	£5.38	£6.45
351 - CABLE WITH PLUG FSP-710387.A0 710387	£25.08	£30.09
352 - TRAILING CABLE FSP-10032456.A0 10032456	£24.08	£28.90
353 - SQUARE NUT M6 FSP-228566.A21 228566	£2.00	£2.40
354 - SCREW M6 X 12 FSP-450682.A14 450682	£2.00	£2.40
355 - SPRING FSP-447262.A14 447262	£2.00	£2.40
356 - CLAMP FSP-449080.A6 449080	£2.00	£2.40
357 - CORNER PROFILE FSP-445867.A14 445867	£64.76	£77.71
358 - TABLE TOP INSERT FSP-10031145.A0 10031145	£58.70	£70.44
359 - PLATE SPRING FSP-448233.A14 448233	£2.00	£2.40
360 - SQUARE NUT M6 FSP-228566.A20 228566	£2.00	£2.40
361 - THREADED PIN M6 X 10 FSP-772405.A22 772405	£2.00	£2.40
362 - SPRING FSP-447262.A15 447262	£2.00	£2.40
364 - CLAMPING SUPPORT FSP-448234.A3 448234	£4.13	£4.96
365 - ROTARY KNOB FSP-482110.A17 482110	£2.32	£2.78
366 - STICKER FSP-10029836.A2 10029836	£16.72	£20.06
367 - FLAT PROFILE FSP-445866.A3 445866	£93.68	£112.41
369 - CLIP FSP-400428.A1 400428	£3.56	£4.27
370 - CABLE HOLDER FSP-449273.A12 449273	£2.71	£3.25
371 - RAM PROTECTION FSP-10042532.A3 10042532	£11.10	£13.32
372 - GUIDE FSP-10018211.A0 10018211	£2.00	£2.40
375 - RAISED-HEAD SCREW M4 X 12 FSP-228509.A13 228509	£2.00	£2.40
376 - CLIP FSP-458614.A26 458614	£2.00	£2.40
379 - SCREW M6 X 12 FSP-449888.A14 449888	£2.00	£2.40
401 - FOLDAWAY LEG FSP-10031146.A3 10031146	£85.18	£102.21
402 - LEG FSP-10020001.A5 10020001	£11.05	£13.26
403 - HEXAGON SCREW M8 X 110 FSP-400734.A5 400734	£2.00	£2.40
404 - WASHER 8.4 MM FSP-200579.A10 200579	£2.00	£2.40
405 - RUBBER FOOT FSP-465163.A48 465163	£3.12	£3.75
406 - REDUCTION FSP-10024830.A1 10024830	£2.00	£2.40
407 - SCREW FSP-10023530.A1 10023530	£2.00	£2.40
408 - WHEEL FSP-766488.A5 766488	£22.52	£27.02
409 - SNAP RING FSP-615477.A7 615477	£2.00	£2.40
410 - BOLT FSP-10024062.A4 10024062	£2.00	£2.40
411 - HOLDER FSP-10024831.A4 10024831	£2.00	£2.40
412 - NUT M8 FSP-618497.A6 618497	£2.00	£2.40
413 - UPPER SECTION OF PISTOL FSP-447534.A3 447534	£2.00	£2.40
414 - HEXAGON NUT M8 FSP-200735.A13 200735	£2.00	£2.40
415 - HEXAGON NUT FSP-400563.A7 400563	£2.00	£2.40
416 - LOWER SECTION OF PISTOL FSP-488523.A30 488523	£2.00	£2.40
417 - LEG FSP-10020002.A1 10020002	£11.05	£13.26
418 - HEXAGON SCREW M8 X 75 FSP-400309.A0 400309	£2.00	£2.40
419 - FOLDAWAY LEG FSP-499888.A5 499888	£79.78	£95.74
420 - HEXAGON SCREW M8 X 75 FSP-400309.A1 400309	£2.00	£2.40
421 - UPPER SECTION OF PISTOL FSP-447534.A4 447534	£2.00	£2.40
422 - HEXAGON NUT M8 FSP-200735.A14 200735	£2.00	£2.40
423 - HEXAGON NUT FSP-400563.A6 400563	£2.00	£2.40
424 - LOWER SECTION OF PISTOL FSP-488523.A29 488523	£2.00	£2.40
425 - RUBBER FOOT FSP-465163.A47 465163	£3.12	£3.75
426 - ADJUSTMENT FSP-448178.A2 448178	£2.00	£2.40
427 - FOOT FSP-465883.A27 465883	£13.48	£16.18
701 - PLATE FSP-465145.A0 465145	£2.00	£2.40
702 - BAG FSP-10032097.A7 10032097	£28.70	£34.44
703 - ROUND-HEAD SCREW M6 X 40 FSP-228534.A3 228534	£2.00	£2.40
704 - SPACER BUSH FSP-448066.A29 448066	£9.59	£11.51
705 - SCREW M6 X 12 FSP-449888.A13 449888	£2.00	£2.40
706 - GRIP FSP-487893.A0 487893	£7.24	£8.69
707 - CLAMP SUPPORT FSP-10031568.A0 10031568	£14.60	£17.52
708 - SLEEVE 6 X 36 MM FSP-400289.A1 400289	£2.00	£2.40
709 - PRESSURE SPRING FSP-448064.A30 448064	£2.00	£2.40
710 - TERMINAL FSP-204748.A7 204748	£39.55	£47.46
711 - WASHER 6.4 MM FSP-228546.A136 228546	£2.00	£2.40
712 - ROTARY KNOB M6 FSP-483350.A10 483350	£6.30	£7.56
713 - SUPPORT FSP-489181.A27 489181	£30.82	£36.99
714 - ROTARY KNOB FSP-440713.A95 440713	£2.64	£3.17
715 - STUD SCREW FSP-464525.A34 464525	£2.00	£2.40
716 - WASHER 6.4 MM FSP-228546.A137 228546	£2.00	£2.40
717 - ROTARY KNOB FSP-487755.A1 487755	£9.03	£10.84
718 - WASHER FSP-448471.A0 448471	£3.62	£4.34
719 - FLAT HEAD SCREW M4 X 8 FSP-219043.A11 219043	£2.00	£2.40
720 - FLAT HEAD SCREW FSP-448065.A12 448065	£3.81	£4.57
721 - SCALE FSP-488156.A0 488156	£25.04	£30.05
722 - SWIVELING SEGMENT FSP-448014.A12 448014	£34.26	£41.11
723 - SLEEVE 5 X 12 MM FSP-228692.A35 228692	£2.00	£2.40
724 - CLAMPING PLATE FSP-10023711.A34 10023711	£4.44	£5.33
725 - GUIDING PROFILE FSP-10023709.A7 10023709	-
726 - STOP PROFILE FSP-10023710.A0 10023710	£36.30	£43.56
727 - Y-PIECE FSP-450575.A9 450575	£25.45	£30.54
728 - HOSE 27 X 2 M FSP-459250.A9 459250	£38.39	£46.07
729 - HOSE 36 X 1.5 M FSP-459251.A15 459251	£38.39	£46.07
730 - CONNECTING SLEEVE FSP-577162.A45 577162	£16.25	£19.50
731 - REDUCING SLEEVE. ANTISTATIC FSP-452358.A0 452358	£26.08	£31.30
732 - WORKPIECE HOLDER FSP-10023700.A2 10023700	£8.48	£10.18
733 - SAFETY DEVICE FSP-10023759.A0 10023759	£43.63	£52.36
734 - CLAMP FSP-450158.A17 450158	£2.00	£2.40
735 - SLIDING GUIDE FSP-450031.A2 450031	£4.00	£4.80
736 - RAISED-HEAD SCREW 4.0 X 20 MM FSP-228567.A194 228567	£2.00	£2.40

Attribute Name	Value
Brand	Festool

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Festool CS 70 EBG GB 240V / 201438 Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Festool CS 70 EBG GB 240V / 201438 Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Festool CS 70 EBG GB 240V / 201438 Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
