Festool CS 70 EBG / 201434 Spare Parts

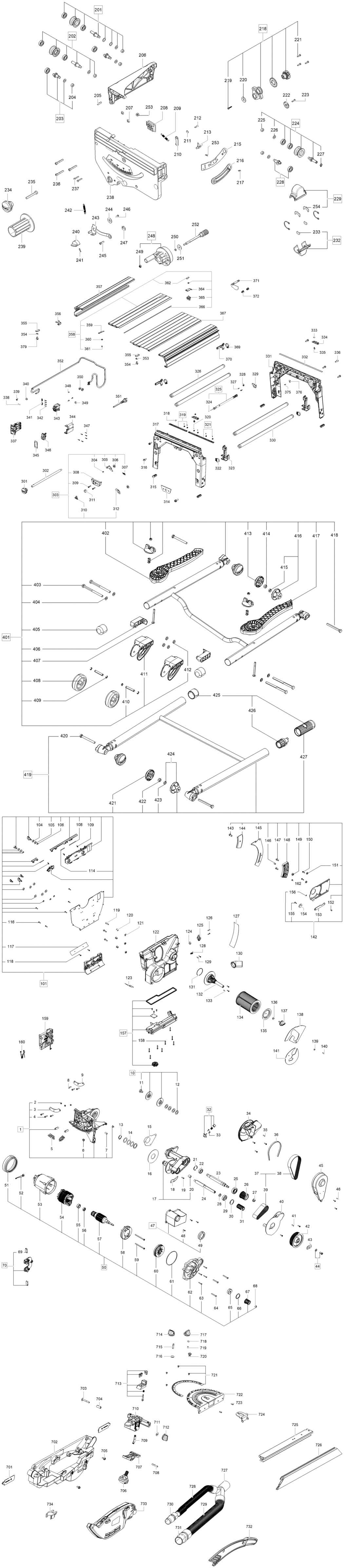

An exploded diagram and spare parts listing for the Festool CS 70 EBG / 201434

	Ex VAT	Inc VAT
1 - SWIVELING SEGMENT FSP-488148.A17 488148	£95.98	£115.17
2 - HEXAGON NUT M5 FSP-200717.A60 200717	£2.00	£2.40
3 - BOARD SEGMENT FSP-446147.A5 446147	£6.55	£7.86
4 - CHEESE HEAD SCREW M5 X 18 FSP-202824.A34 202824	£2.00	£2.40
5 - CONNECTING MEMBER FSP-446146.A12 446146	£2.00	£2.40
6 - DU FLANGE BUSHING FSP-400253.A21 400253	£2.00	£2.40
7 - CLAMPING SLEEVE FSP-400259.A13 400259	£2.00	£2.40
8 - CHEESE HEAD SCREW M5 X 18 FSP-202824.A35 202824	£2.00	£2.40
9 - SUPPORT PLATE FSP-446704.A10 446704	£7.99	£9.59
10 - CLAMPING FLANGE FSP-488151.A0 488151	£60.72	£72.86
11 - FLANGE BOLT M8 X 15 FSP-446370.A11 446370	£9.99	£11.99
12 - SPRING WASHER FSP-444235.A3 444235	£2.00	£2.40
13 - SNAP RING FSP-200414.A5 200414	£2.00	£2.40
14 - COMPENSATING WASHER FSP-488465.A13 488465	£12.99	£15.59
15 - GLIDE PLATE FSP-450055.A3 450055	£4.02	£4.82
16 - WASHER FSP-446474.A11 446474	£7.63	£9.16
17 - ROCKER FSP-488149.A0 488149	£109.49	£131.39
18 - TOOTH SEGMENT FSP-202847.A6 202847	£8.68	£10.42
19 - RAISED-HEAD SCREW M4 X 16 FSP-219075.A67 219075	£2.00	£2.40
20 - NEEDLE BUSHING FSP-400254.A4 400254	£7.99	£9.59
21 - CIRCLIP FSP-219855.A15 219855	£2.00	£2.40
22 - BALL BEARING FSP-789595.A25 789595	£8.79	£10.55
23 - SHAFT FSP-202845.A6 202845	£45.81	£54.97
24 - SHAFT FSP-202846.A11 202846	£41.41	£49.69
25 - BALL BEARING FSP-400467.A6 400467	£22.55	£27.06
26 - NUT M10 FSP-451484.A2 451484	£2.00	£2.40
27 - TOOTHED BELT WHEEL FSP-445880.A11 445880	£37.13	£44.56
28 - WASHER FSP-449203.A15 449203	£2.00	£2.40
29 - BALL BEARING FSP-789775.A14 789775	£9.65	£11.58
30 - SNAP RING FSP-771483.A41 771483	£2.00	£2.40
31 - GEAR FSP-491936.A6 491936	£31.83	£38.20
32 - SPINDLE STOP FSP-488150.A17 488150	£24.08	£28.90
33 - RAISED-HEAD SCREW M4 X 10 FSP-228582.A28 228582	£2.00	£2.40
34 - AIR DUCT FSP-446473.A6 446473	£7.99	£9.59
35 - RAISED-HEAD SCREW M4 X 16 FSP-219075.A65 219075	£2.00	£2.40
36 - FELT STRIPE FSP-447962.A8 447962	£2.00	£2.40
37 - TOOTHED BELT FSP-488135.A1 488135	£46.72	£56.07
38 - TOOTHED BELT FSP-445882.A2 445882	£27.79	£33.35
39 - TOOTHED BELT FSP-445881.A1 445881	£33.98	£40.78
40 - COVER FSP-447710.A15 447710	£6.64	£7.97
41 - RAISED-HEAD SCREW M4 X 16 FSP-219075.A66 219075	£2.00	£2.40
42 - TOOTHED BELT WHEEL FSP-445878.A6 445878	£36.32	£43.59
43 - DRIVING WASHER FSP-446937.A14 446937	£2.00	£2.40
44 - CHEESE HEAD SCREW FSP-401165.A1 401165	£2.00	£2.40
45 - MOTOR COVER FSP-446469.A11 446469	£8.18	£9.81
46 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-228584.A52 228584	£2.00	£2.40
47 - HOUSING FSP-488154.A17 488154	£21.42	£25.71
48 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-228584.A53 228584	£2.00	£2.40
49 - LIP RING FSP-447968.A11 447968	£2.00	£2.40
50 - MOTOR FSP-204904.A2 204904	£341.10	£409.32
51 - SEALING RING FSP-447750.A0 447750	£4.48	£5.38
52 - SPEED INDICATOR FSP-487467.A14 487467	£7.99	£9.59
53 - MOTOR HOUSING FSP-446309.A5 446309	£17.97	£21.56
54 - STATOR FSP-204882.A0 204882	£77.86	£93.43
55 - BEARING RING FSP-438613.A13 438613	£2.00	£2.40
56 - BALL BEARING FSP-228559.A100 228559	£4.06	£4.87
57 - ARMATURE 230 V FSP-493504.A5 493504	£166.02	£199.23
58 - AIR GUIDE WASHER FSP-469886.A2 469886	£2.00	£2.40
59 - RAISED-HEAD SCREW 5.0 X 80 MM FSP-400264.A13 400264	£2.00	£2.40
60 - FAN FSP-486880.A13 486880	£6.90	£8.28
61 - O-RING FSP-400488.A8 400488	£2.00	£2.40
62 - MOTOR FLANGE FSP-451454.A15 451454	£43.88	£52.66
63 - RAISED-HEAD SCREW 3.5 X 25 MM FSP-219068.A15 219068	£2.00	£2.40
64 - RAISED-HEAD SCREW M5 X 40 FSP-400255.A13 400255	£2.00	£2.40
65 - BALL BEARING FSP-219021.A15 219021	£11.22	£13.46
66 - SNAP RING FSP-771483.A40 771483	£2.00	£2.40
67 - TOOTHED BELT WHEEL FSP-445877.A11 445877	£16.48	£19.77
68 - HEXAGON NUT M8 FSP-200719.A27 200719	£2.00	£2.40
69 - BRUSH (PAIR) 230V FSP-488134.A15 488134	£38.81	£46.57
70 - BRUSH HOLDER (PAIR) 230V FSP-488136.A15 488136	£42.10	£50.52
101 - COVER FSP-10031143.A2 10031143	£59.67	£71.60
104 - O-RING FSP-400320.A1 400320	£2.00	£2.40
105 - WASHER 6.4 MM FSP-228546.A20 228546	£2.00	£2.40
106 - WASHER FSP-208623.A3 208623	£2.00	£2.40
108 - BOLT FSP-10023698.A0 10023698	£2.00	£2.40
109 - TORSION SPRING FSP-10024820.A0 10024820	£2.00	£2.40
114 - BOLT FSP-10027491.A0 10027491	£2.00	£2.40
116 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-228584.A51 228584	£2.00	£2.40
117 - BOARD SEGMENT FSP-448081.A3 448081	£6.55	£7.86
118 - RAISED-HEAD SCREW 3.5 X 10 MM FSP-219031.A66 219031	£2.00	£2.40
119 - CHEESE HEAD SCREW M6 X 20 FSP-228612.A26 228612	£2.00	£2.40
120 - FLANGE BUSHING FSP-449159.A13 449159	£3.44	£4.13
121 - SQUARE NUT M6 FSP-228566.A67 228566	£2.00	£2.40
122 - PROTECTIVE COVER FSP-10023763.A0 10023763	£28.82	£34.59
123 - SPLINTER GUARD FSP-448695.A15 448695	£2.00	£2.40
124 - SEALING RING FSP-400271.A1 400271	£2.00	£2.40
125 - PLUG FSP-447770.A0 447770	£2.00	£2.40
126 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-228584.A48 228584	£2.00	£2.40
127 - SPLINTER GUARD FSP-448694.A4 448694	£3.00	£3.60
128 - CABLE CLAMP FSP-431899.A1 431899	£2.00	£2.40
129 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-228584.A49 228584	£2.00	£2.40
130 - EXTRACTOR CONNECTOR FSP-446588.A3 446588	£2.66	£3.19
131 - O-RING FSP-442413.A2 442413	£2.00	£2.40
132 - FILTER HOUSING FSP-447996.A8 447996	£7.86	£9.43
133 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-228584.A50 228584	£2.00	£2.40
134 - FILTER CARTRIDGE FSP-447995.A4 447995	£20.35	£24.42
135 - COVER FSP-447997.A4 447997	£3.62	£4.35
136 - SEALING RING FSP-449830.A11 449830	£2.00	£2.40
137 - ROTARY KNOB M6 X 22.5 FSP-10734068.A35 10734068	£2.00	£2.40
138 - PROTECTIVE PLATE FSP-10024034.A3 10024034	£6.50	£7.80
139 - WASHER FSP-615015.A4 615015	£2.00	£2.40
140 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-228584.A47 228584	£2.00	£2.40
141 - PROTECTIVE PLATE FSP-10024009.A0 10024009	£4.31	£5.17
142 - SPACER WEDGE HOLDER FSP-10031144.A1 10031144	£65.17	£78.20
143 - CHEESE HEAD SCREW M8 X 16 FSP-774346.A14 774346	£2.00	£2.40
144 - SPACER WEDGE PLATE FSP-445927.A7 445927	£6.30	£7.56
145 - SPACER WEDGE FSP-10023771.A3 10023771	£40.42	£48.50
146 - PRESSURE CLAMPING ELEMENT FSP-400287.A30 400287	£4.89	£5.87
147 - CHEESE HEAD SCREW M6 X 14 FSP-209354.A15 209354	£2.00	£2.40
148 - SPACER WEDGE HOLDER FSP-445926.A10 445926	£16.90	£20.28
149 - HEXAGON NUT M8 FSP-200719.A26 200719	£2.00	£2.40
150 - RAISED-HEAD SCREW M4 X 16 FSP-219075.A69 219075	£2.00	£2.40
151 - FLANGE BUSHING FSP-447555.A2 447555	£2.00	£2.40
152 - BOLT FSP-447358.A5 447358	£2.48	£2.97
153 - CONNECTING ROD FSP-446528.A15 446528	£2.00	£2.40
154 - WASHER FSP-447702.A9 447702	£2.00	£2.40
155 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-228584.A46 228584	£2.00	£2.40
156 - SNAP RING FSP-200615.A15 200615	£2.00	£2.40
157 - COVER FSP-488155.A0 488155	£40.58	£48.70
158 - RAISED-HEAD SCREW 3.5 X 25 MM FSP-219068.A14 219068	£2.00	£2.40
159 - CONTROL ELECTRONICS FSP-204905.A0 204905	£115.32	£138.39
160 - SET OF FLEXIBLE LEADS FSP-488440.A4 488440	£27.41	£32.89
201 - ROLLER FSP-488868.A12 488868	£44.02	£52.82
202 - ROLLER FSP-488867.A5 488867	£41.96	£50.35
203 - CYLINDER ROLLER FSP-488870.A16 488870	£31.50	£37.80
204 - HEXAGON NUT M8 FSP-200719.A25 200719	£2.00	£2.40
205 - CYLINDER PIN FSP-400260.A2 400260	£2.00	£2.40
206 - SUPPORT FSP-497196.A5 497196	£45.40	£54.48
207 - SQUARE NUT M6 FSP-228566.A68 228566	£2.00	£2.40
208 - SUPPORTING BEARING FSP-465449.A12 465449	£8.81	£10.57
209 - DRAW SPRING FSP-447263.A8 447263	£2.00	£2.40
210 - LEVER FSP-446671.A10 446671	£2.00	£2.40
211 - WASHER 4.3 MM FSP-228542.A27 228542	£2.00	£2.40
212 - RAISED-HEAD SCREW M4 X 16 FSP-219075.A68 219075	£2.00	£2.40
213 - INDICATOR FSP-446468.A4 446468	£2.00	£2.40
214 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-228584.A44 228584	£2.00	£2.40
215 - BEARING FSP-446470.A5 446470	£4.88	£5.85
216 - WASHER FSP-446472.A12 446472	£2.87	£3.44
217 - RAISED-HEAD SCREW 3.5 X 10 MM FSP-219031.A67 219031	£2.00	£2.40
218 - FLANGE FSP-488147.A0 488147	£28.07	£33.68
219 - RAISED-HEAD SCREW 4.0 X 20 MM FSP-228567.A65 228567	£2.00	£2.40
220 - WASHER FSP-447702.A11 447702	£2.00	£2.40
221 - RAISED-HEAD SCREW M4 X 16 FSP-219075.A71 219075	£2.00	£2.40
222 - GEAR FSP-446072.A5 446072	£3.56	£4.27
223 - RAISED-HEAD SCREW M4 X 16 FSP-219075.A72 219075	£2.00	£2.40
224 - ROLLER FSP-488869.A4 488869	£42.34	£50.81
225 - HEXAGON NUT M8 FSP-200719.A24 200719	£2.00	£2.40
226 - WASHER 8.4 MM FSP-228601.A17 228601	£2.00	£2.40
227 - SNAP RING FSP-200618.A5 200618	£2.00	£2.40
228 - CYLINDER ROLLER FSP-488870.A15 488870	£31.50	£37.80
229 - STRIPPER FSP-496820.A4 496820	£14.02	£16.83
230 - FELT INSERT FSP-451917.A5 451917	£2.00	£2.40
231 - LOCK WASHER FSP-447961.A10 447961	£2.00	£2.40
232 - STRIPPER FSP-496821.A13 496821	£19.81	£23.77
233 - FELT INSERT FSP-451918.A12 451918	£2.00	£2.40
234 - GRIP FSP-487555.A15 487555	£7.97	£9.57
235 - HEXAGON SCREW M8 X 60 FSP-400382.A12 400382	£2.00	£2.40
236 - CHEESE HEAD SCREW M6 X 40 FSP-228653.A9 228653	£2.00	£2.40
237 - RAISED-HEAD SCREW M4 X 25 FSP-400257.A3 400257	£2.00	£2.40
238 - CAR FRONT FSP-497195.A11 497195	£65.54	£78.65
239 - KNOB LEVER FSP-446063.A11 446063	£7.92	£9.51
240 - GRIP FSP-449869.A9 449869	£2.00	£2.40
241 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-228584.A45 228584	£2.00	£2.40
242 - DRAW SPRING FSP-447263.A7 447263	£2.00	£2.40
243 - END STOP FSP-449868.A8 449868	£7.31	£8.77
244 - WASHER FSP-447702.A10 447702	£2.00	£2.40
245 - CHEESE HEAD SCREW M5 X 18 FSP-202824.A38 202824	£2.00	£2.40
246 - RAISED-HEAD SCREW M4 X 16 FSP-219075.A73 219075	£2.00	£2.40
247 - ECCENTRIC NUT FSP-449928.A11 449928	£7.67	£9.20
248 - CRANK FSP-488159.A27 488159	£18.49	£22.19
249 - HEXAGON NUT M6 FSP-228541.A15 228541	£2.00	£2.40
250 - SPRING DISC FSP-200588.A4 200588	£2.00	£2.40
251 - WASHER 8.4 MM FSP-219049.A26 219049	£2.00	£2.40
252 - SPINDLE FSP-488271.A14 488271	£37.69	£45.23
253 - HEXAGON NUT M6 FSP-228541.A14 228541	£2.00	£2.40
301 - GRIP FSP-487569.A7 487569	£12.60	£15.12
302 - PULL ROD FSP-10028620.A1 10028620	-
303 - GUIDE FSP-488140.A17 488140	£34.68	£41.61
304 - PRESSURE CLAMPING ELEMENT FSP-400286.A11 400286	£4.56	£5.47
305 - LEVER FSP-446669.A7 446669	£3.78	£4.53
306 - SLEEVE FSP-449122.A4 449122	£2.00	£2.40
307 - DRAW SPRING FSP-447263.A6 447263	£2.00	£2.40
308 - GUIDE FSP-446675.A1 446675	£3.81	£4.57
309 - CHEESE HEAD SCREW M6 X 25 FSP-200128.A15 200128	£2.00	£2.40
310 - GRIP FSP-446974.A2 446974	£2.00	£2.40
311 - BUFFER FSP-447528.A3 447528	£2.00	£2.40
312 - DETENT LEVER FSP-702066.A14 702066	£5.68	£6.82
314 - HOLDING PLATE FSP-447789.A13 447789	£7.02	£8.43
315 - RUBBER FOOT (4 PCS.) FSP-492255.A14 492255	£17.98	£21.57
316 - SCREW M8 X 25 FSP-450683.A19 450683	£2.00	£2.40
317 - PORTAL FSP-462419.A11 462419	£137.92	£165.51
318 - SHEET METAL NUT FSP-448477.A12 448477	£2.00	£2.40
319 - SCALE FSP-488137.A0 488137	£15.60	£18.72
320 - RAISED-HEAD SCREW 2.5 X 8 MM FSP-400444.A2 400444	£2.00	£2.40
321 - SCALE FSP-488138.A17 488138	£19.35	£23.22
322 - CLIP FSP-400428.A16 400428	£3.56	£4.27
323 - HOLDER FSP-10024165.A0 10024165	£5.18	£6.22
324 - WASHER FSP-222490.A2 222490	£2.00	£2.40
325 - SHOCK ABSORBER FSP-488139.A0 488139	£39.74	£47.69
326 - PIPE FSP-459286.A11 459286	£55.66	£66.79
327 - RAISED-HEAD SCREW M4 X 16 FSP-219075.A70 219075	£2.00	£2.40
328 - CLIP FSP-458614.A12 458614	£2.00	£2.40
329 - BEARING SHEET FSP-448236.A25 448236	£2.00	£2.40
330 - AXLE TUBE FSP-459287.A3 459287	£53.54	£64.25
331 - PORTAL FSP-462420.A2 462420	£137.92	£165.51
332 - STICKER FSP-448251.A5 448251	£7.37	£8.84
333 - SQUARE NUT M6 FSP-228566.A69 228566	£2.00	£2.40
334 - STOP FSP-448118.A0 448118	£2.00	£2.40
335 - SCREW M6 X 12 FSP-449888.A39 449888	£2.00	£2.40
336 - SCREW M8 X 25 FSP-450683.A18 450683	£2.00	£2.40
337 - SWITCHING HOUSING FSP-703148.A2 703148	£39.50	£47.40
338 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-228663.A190 228663	£2.00	£2.40
339 - CLIP FSP-458614.A10 458614	£2.00	£2.40
340 - RUBBER RING FSP-458613.A16 458613	£2.00	£2.40
341 - CABLE CLAMP FSP-439288.A74 439288	£2.00	£2.40
342 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-228663.A191 228663	£2.00	£2.40
343 - SWITCH FSP-705171.A0 705171	£49.05	£58.86
344 - SWITCH COVER FSP-703149.A5 703149	£26.68	£32.02
345 - GASKET FSP-447768.A17 447768	£2.00	£2.40
346 - PUSHER FSP-500631.A6 500631	£30.91	£37.09
347 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-228663.A189 228663	£2.00	£2.40
348 - RAISED-HEAD SCREW M4 X 12 FSP-228509.A39 228509	£2.00	£2.40
349 - RUBBER RING FSP-458613.A17 458613	£2.00	£2.40
350 - FERRITE FSP-10044159.A1 10044159	£5.38	£6.45
351 - CABLE WITH PLUG FSP-10034007.A1 10034007	£25.08	£30.09
352 - TRAILING CABLE FSP-10032456.A2 10032456	£24.08	£28.90
353 - SQUARE NUT M6 FSP-228566.A65 228566	£2.00	£2.40
354 - SCREW M6 X 12 FSP-450682.A2 450682	£2.00	£2.40
355 - SPRING FSP-447262.A23 447262	£2.00	£2.40
356 - CLAMP FSP-449080.A14 449080	£2.00	£2.40
357 - CORNER PROFILE FSP-445867.A4 445867	£64.76	£77.71
358 - TABLE TOP INSERT FSP-10031145.A2 10031145	£58.70	£70.44
359 - PLATE SPRING FSP-448233.A5 448233	£2.00	£2.40
360 - SQUARE NUT M6 FSP-228566.A66 228566	£2.00	£2.40
361 - THREADED PIN M6 X 10 FSP-772405.A11 772405	£2.00	£2.40
362 - SPRING FSP-447262.A24 447262	£2.00	£2.40
364 - CLAMPING SUPPORT FSP-448234.A12 448234	£4.13	£4.96
365 - ROTARY KNOB FSP-482110.A27 482110	£2.32	£2.78
366 - STICKER FSP-10029836.A0 10029836	£16.72	£20.06
367 - FLAT PROFILE FSP-445866.A13 445866	£93.68	£112.41
369 - CLIP FSP-400428.A17 400428	£3.56	£4.27
370 - CABLE HOLDER FSP-449273.A2 449273	£2.71	£3.25
371 - RAM PROTECTION FSP-10042532.A1 10042532	£11.10	£13.32
372 - GUIDE FSP-10018211.A7 10018211	£2.00	£2.40
375 - RAISED-HEAD SCREW M4 X 12 FSP-228509.A38 228509	£2.00	£2.40
376 - CLIP FSP-458614.A11 458614	£2.00	£2.40
379 - SCREW M6 X 12 FSP-449888.A41 449888	£2.00	£2.40
401 - FOLDAWAY LEG FSP-10031146.A1 10031146	£85.18	£102.21
402 - LEG FSP-10020001.A0 10020001	£11.05	£13.26
403 - HEXAGON SCREW M8 X 110 FSP-400734.A13 400734	£2.00	£2.40
404 - WASHER 8.4 MM FSP-200579.A23 200579	£2.00	£2.40
405 - RUBBER FOOT FSP-465163.A21 465163	£3.12	£3.75
406 - REDUCTION FSP-10024830.A2 10024830	£2.00	£2.40
407 - SCREW FSP-10023530.A3 10023530	£2.00	£2.40
408 - WHEEL FSP-766488.A0 766488	£22.52	£27.02
409 - SNAP RING FSP-615477.A0 615477	£2.00	£2.40
410 - BOLT FSP-10024062.A0 10024062	£2.00	£2.40
411 - HOLDER FSP-10024831.A3 10024831	£2.00	£2.40
412 - NUT M8 FSP-618497.A1 618497	£2.00	£2.40
413 - UPPER SECTION OF PISTOL FSP-447534.A27 447534	£2.00	£2.40
414 - HEXAGON NUT M8 FSP-200735.A80 200735	£2.00	£2.40
415 - HEXAGON NUT FSP-400563.A3 400563	£2.00	£2.40
416 - LOWER SECTION OF PISTOL FSP-488523.A9 488523	£2.00	£2.40
417 - LEG FSP-10020002.A5 10020002	£11.05	£13.26
418 - HEXAGON SCREW M8 X 75 FSP-400309.A21 400309	£2.00	£2.40
419 - FOLDAWAY LEG FSP-499888.A1 499888	£79.78	£95.74
420 - HEXAGON SCREW M8 X 75 FSP-400309.A20 400309	£2.00	£2.40
421 - UPPER SECTION OF PISTOL FSP-447534.A28 447534	£2.00	£2.40
422 - HEXAGON NUT M8 FSP-200735.A81 200735	£2.00	£2.40
423 - HEXAGON NUT FSP-400563.A4 400563	£2.00	£2.40
424 - LOWER SECTION OF PISTOL FSP-488523.A8 488523	£2.00	£2.40
425 - RUBBER FOOT FSP-465163.A20 465163	£3.12	£3.75
426 - ADJUSTMENT FSP-448178.A19 448178	£2.00	£2.40
427 - FOOT FSP-465883.A3 465883	£13.48	£16.18
701 - PLATE FSP-465145.A3 465145	£2.00	£2.40
702 - BAG FSP-10032097.A4 10032097	£28.70	£34.44
703 - ROUND-HEAD SCREW M6 X 40 FSP-228534.A23 228534	£2.00	£2.40
704 - SPACER BUSH FSP-448066.A19 448066	£9.59	£11.51
705 - SCREW M6 X 12 FSP-449888.A40 449888	£2.00	£2.40
706 - GRIP FSP-487893.A15 487893	£7.24	£8.69
707 - CLAMP SUPPORT FSP-10031568.A14 10031568	£14.60	£17.52
708 - SLEEVE 6 X 36 MM FSP-400289.A16 400289	£2.00	£2.40
709 - PRESSURE SPRING FSP-448064.A22 448064	£2.00	£2.40
710 - TERMINAL FSP-204748.A4 204748	£39.55	£47.46
711 - WASHER 6.4 MM FSP-228546.A22 228546	£2.00	£2.40
712 - ROTARY KNOB M6 FSP-483350.A42 483350	£6.30	£7.56
713 - SUPPORT FSP-489181.A3 489181	£30.82	£36.99
714 - ROTARY KNOB FSP-440713.A1 440713	£2.64	£3.17
715 - STUD SCREW FSP-464525.A18 464525	£2.00	£2.40
716 - WASHER 6.4 MM FSP-228546.A21 228546	£2.00	£2.40
717 - ROTARY KNOB FSP-487755.A22 487755	£9.03	£10.84
718 - WASHER FSP-448471.A23 448471	£3.62	£4.34
719 - FLAT HEAD SCREW M4 X 8 FSP-219043.A42 219043	£2.00	£2.40
720 - FLAT HEAD SCREW FSP-448065.A22 448065	£3.81	£4.57
721 - SCALE FSP-488156.A39 488156	£25.04	£30.05
722 - SWIVELING SEGMENT FSP-448014.A22 448014	£34.26	£41.11
723 - SLEEVE 5 X 12 MM FSP-228692.A24 228692	£2.00	£2.40
724 - CLAMPING PLATE FSP-10023711.A16 10023711	£4.44	£5.33
725 - GUIDING PROFILE FSP-10023709.A4 10023709	-
726 - STOP PROFILE FSP-10023710.A3 10023710	£36.30	£43.56
727 - Y-PIECE FSP-450575.A24 450575	£25.45	£30.54
728 - HOSE 27 X 2 M FSP-459250.A20 459250	£38.39	£46.07
729 - HOSE 36 X 1.5 M FSP-459251.A4 459251	£38.39	£46.07
730 - CONNECTING SLEEVE FSP-577162.A1 577162	£16.25	£19.50
731 - REDUCING SLEEVE. ANTISTATIC FSP-452358.A12 452358	£26.08	£31.30
732 - WORKPIECE HOLDER FSP-10023700.A3 10023700	£8.48	£10.18
733 - SAFETY DEVICE FSP-10023759.A3 10023759	£43.63	£52.36
734 - CLAMP FSP-450158.A3 450158	£2.00	£2.40
735 - SLIDING GUIDE FSP-450031.A6 450031	£4.00	£4.80
736 - RAISED-HEAD SCREW 4.0 X 20 MM FSP-228567.A66 228567	£2.00	£2.40

Attribute Name	Value
Brand	Festool

There are currently no reviews of this product.

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Festool CS 70 EBG / 201434 Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Festool CS 70 EBG / 201434 Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
