Festool CS 70 EB 230V / 500694 Spare Parts

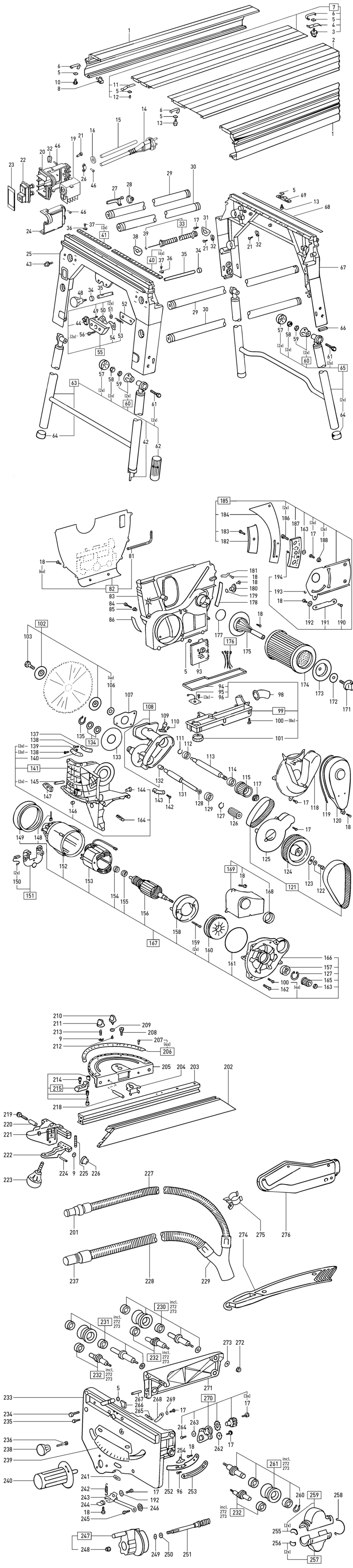

An exploded diagram and spare parts listing for the Festool CS 70 EB 230V / 500694

	Ex VAT	Inc VAT
1 - CORNER PROFILE FSP-445867.A7 445867	£64.76	£77.71
2 - FLAT PROFILE FSP-445866.A10 445866	£93.68	£112.41
3 - ROTARY KNOB FSP-482110.A38 482110	£2.32	£2.78
4 - CLAMPING SUPPORT FSP-448234.A15 448234	£4.13	£4.96
5 - SQUARE NUT M6 FSP-228566.A127 228566	£2.00	£2.40
6 - SPRING FSP-447262.A25 447262	£2.00	£2.40
7 - TABLE TOP INSERT FSP-488160.A4 488160	£70.28	£84.34
8 - CLAMP FSP-449080.A15 449080	£2.00	£2.40
9 - WASHER 6.4 MM FSP-228546.A50 228546	£2.00	£2.40
10 - SCREW M6 X 12 FSP-450682.A7 450682	£2.00	£2.40
11 - PLATE SPRING FSP-448233.A2 448233	£2.00	£2.40
12 - THREADED PIN M6 X 10 FSP-772405.A5 772405	£2.00	£2.40
13 - SCREW M6 X 12 FSP-449888.A21 449888	£2.00	£2.40
14 - CABLE WITH PLUG GB 240V FSP-706793.A1 706793	£50.70	£60.84
14 - CABLE WITH PLUG EU FSP-706789.A0 706789	£50.70	£60.84
15 - TRAILING CABLE FSP-706785.A2 706785	£23.19	£27.83
16 - RUBBER RING FSP-458613.A27 458613	£2.00	£2.40
17 - RAISED-HEAD SCREW M4 X 16 FSP-219075.A111 219075	£2.00	£2.40
18 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-228584.A2 228584	£2.00	£2.40
19 - SWITCH FSP-705171.A3 705171	£49.05	£58.86
20 - SWITCHING HOUSING FSP-703148.A1 703148	£39.50	£47.40
21 - RAISED-HEAD SCREW M4 X 12 FSP-228509.A63 228509	£2.00	£2.40
22 - PUSHER FSP-500631.A4 500631	£30.91	£37.09
23 - GASKET FSP-447768.A12 447768	£2.00	£2.40
24 - SWITCH COVER FSP-703149.A6 703149	£26.68	£32.02
25 - PORTAL FSP-462419.A6 462419	£137.92	£165.51
26 - CABLE CLAMP FSP-439288.A104 439288	£2.00	£2.40
27 - CABLE HOLDER FSP-449273.A8 449273	£2.71	£3.25
28 - CLIP FSP-400428.A15 400428	£3.56	£4.27
29 - PIPE FSP-459286.A7 459286	£55.66	£66.79
30 - AXLE TUBE FSP-459287.A7 459287	£53.54	£64.25
31 - BEARING SHEET FSP-448236.A36 448236	£2.00	£2.40
32 - CLIP FSP-458614.A0 458614	£2.00	£2.40
33 - SHOCK ABSORBER FSP-488139.A8 488139	£39.74	£47.69
34 - BUFFER FSP-447528.A0 447528	£2.00	£2.40
35 - PULL ROD FSP-487568.A11 487568	£50.70	£60.84
36 - SHEET METAL NUT FSP-448477.A8 448477	£2.00	£2.40
37 - RAISED-HEAD SCREW 2.5 X 8 MM FSP-400444.A17 400444	£2.00	£2.40
38 - BEARING SHEET FSP-448236.A13 448236	£2.00	£2.40
39 - WASHER FSP-222490.A29 222490	£2.00	£2.40
40 - SCALE FSP-488138.A9 488138	£19.35	£23.22
41 - SCALE FSP-488137.A8 488137	£15.60	£18.72
42 - ADJUSTMENT FSP-448178.A14 448178	£2.00	£2.40
43 - SCREW M8 X 25 FSP-450683.A10 450683	£2.00	£2.40
44 - GRIP FSP-446974.A14 446974	£2.00	£2.40
46 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-228663.A28 228663	£2.00	£2.40
48 - GRIP FSP-487569.A16 487569	£12.60	£15.12
49 - PRESSURE CLAMPING ELEMENT FSP-400286.A12 400286	£4.56	£5.47
50 - LEVER FSP-446669.A15 446669	£3.78	£4.53
51 - SLEEVE FSP-449122.A16 449122	£2.00	£2.40
52 - HOLDING PLATE FSP-447789.A8 447789	£7.02	£8.43
53 - DRAW SPRING FSP-447263.A47 447263	£2.00	£2.40
54 - DETENT LEVER FSP-702066.A7 702066	£5.68	£6.82
55 - GUIDE FSP-488140.A9 488140	£34.68	£41.61
56 - CHEESE HEAD SCREW M6 X 25 FSP-200128.A1 200128	£2.00	£2.40
57 - UPPER SECTION OF PISTOL FSP-447534.A8 447534	£2.00	£2.40
58 - HEXAGON NUT M8 FSP-200735.A27 200735	£2.00	£2.40
59 - HEXAGON NUT M8 FSP-200719.A93 200719	£2.00	£2.40
60 - LOWER SECTION OF PISTOL FSP-488523.A13 488523	£2.00	£2.40
61 - HEXAGON SCREW M8 X 75 FSP-400309.A9 400309	£2.00	£2.40
62 - FOOT FSP-465883.A30 465883	£13.48	£16.18
63 - FOLDAWAY LEG FSP-499888.A4 499888	£79.78	£95.74
64 - RUBBER FOOT FSP-465163.A35 465163	£3.12	£3.75
64 - RUBBER FOOT FSP-465163.A36 465163	£3.12	£3.75
65 - FOLDAWAY LEG FSP-499889.A4 499889	£72.20	£86.64
66 - RUBBER FOOT (4 PCS.) FSP-492255.A21 492255	£17.98	£21.57
67 - PORTAL FSP-462420.A11 462420	£137.92	£165.51
68 - STICKER FSP-448251.A10 448251	£7.37	£8.84
69 - STOP FSP-448118.A16 448118	£2.00	£2.40
81 - PIN KEY FSP-450935.A5 450935	£2.00	£2.40
82 - COVER FSP-488152.A6 488152	£49.29	£59.15
83 - PROTECTIVE COVER FSP-460737.A10 460737	£32.74	£39.29
84 - CHEESE HEAD SCREW M6 X 20 FSP-228612.A2 228612	£2.00	£2.40
85 - FLANGE BUSHING FSP-449159.A1 449159	£3.44	£4.13
86 - SPLINTER GUARD FSP-448695.A2 448695	£2.00	£2.40
93 - CONTROL ELECTRONICS 230 V FSP-487681.A6 487681	£117.06	£140.47
94 - SEALING FRAME FSP-447584.A2 447584	£5.31	£6.37
95 - POTI FSP-487466.A4 487466	£12.72	£15.27
96 - RAISED-HEAD SCREW 3.5 X 10 MM FSP-219031.A208 219031	£2.00	£2.40
98 - EXTRACTOR CONNECTOR FSP-446588.A16 446588	£2.66	£3.19
99 - COVER FSP-488155.A7 488155	£40.58	£48.70
100 - RAISED-HEAD SCREW 3.5 X 25 MM FSP-219068.A24 219068	£2.00	£2.40
101 - ADJUSTING KNOB FSP-447115.A2 447115	£4.44	£5.33
102 - CLAMPING FLANGE FSP-488151.A11 488151	£60.72	£72.86
103 - FLANGE BOLT M8 X 15 FSP-446370.A6 446370	£9.99	£11.99
106 - SPRING WASHER FSP-444235.A24 444235	£2.00	£2.40
107 - GLIDE PLATE FSP-450055.A16 450055	£4.02	£4.82
108 - ROCKER FSP-488149.A11 488149	£109.49	£131.39
109 - SPINDLE STOP FSP-488150.A6 488150	£24.08	£28.90
110 - RAISED-HEAD SCREW M4 X 10 FSP-228582.A16 228582	£2.00	£2.40
111 - CIRCLIP FSP-219855.A7 219855	£2.00	£2.40
112 - BALL BEARING FSP-789595.A14 789595	£8.79	£10.55
113 - SHAFT FSP-202845.A14 202845	£45.81	£54.97
114 - BALL BEARING FSP-400467.A10 400467	£22.55	£27.06
115 - TOOTHED BELT WHEEL FSP-445880.A6 445880	£37.13	£44.56
117 - NUT M10 FSP-451484.A11 451484	£2.00	£2.40
118 - AIR DUCT FSP-446473.A14 446473	£7.99	£9.59
119 - FELT STRIPE FSP-447962.A9 447962	£2.00	£2.40
120 - MOTOR COVER FSP-446469.A1 446469	£8.18	£9.81
121 - TOOTHED BELT FSP-488135.A9 488135	£46.72	£56.07
122 - SCREW FSP-401165.A20 401165	£2.00	£2.40
123 - DRIVING WASHER FSP-446937.A3 446937	£2.00	£2.40
124 - TOOTHED BELT WHEEL FSP-445878.A11 445878	£36.32	£43.59
125 - COVER FSP-447710.A0 447710	£6.64	£7.97
126 - GEAR FSP-491936.A11 491936	£31.83	£38.20
127 - SNAP RING FSP-771483.A20 771483	£2.00	£2.40
128 - WASHER FSP-449203.A2 449203	£2.00	£2.40
129 - BALL BEARING FSP-789775.A30 789775	£9.65	£11.58
131 - SHAFT FSP-202846.A3 202846	£41.41	£49.69
132 - NEEDLE BUSHING FSP-400254.A11 400254	£7.99	£9.59
133 - WASHER FSP-446474.A3 446474	£7.63	£9.16
134 - COMPENSATING WASHER FSP-488465.A2 488465	£12.99	£15.59
135 - SNAP RING FSP-200414.A16 200414	£2.00	£2.40
137 - SUPPORT PLATE FSP-446704.A5 446704	£7.99	£9.59
138 - CHEESE HEAD SCREW M5 X 18 FSP-202824.A4 202824	£2.00	£2.40
139 - HEXAGON NUT M5 FSP-200717.A26 200717	£2.00	£2.40
140 - BOARD SEGMENT FSP-446147.A11 446147	£6.55	£7.86
141 - SWIVELING SEGMENT FSP-488148.A6 488148	£95.98	£115.17
142 - RAISED-HEAD SCREW M4 X 16 FSP-219075.A43 219075	£2.00	£2.40
143 - TOOTH SEGMENT FSP-202847.A14 202847	£8.68	£10.42
144 - DU FLANGE BUSHING FSP-400253.A11 400253	£2.00	£2.40
145 - CYLINDER PIN FSP-400097.A5 400097	£2.00	£2.40
146 - DU FLANGE BUSHING FSP-400253.A10 400253	£2.00	£2.40
147 - CONNECTING MEMBER FSP-446146.A6 446146	£2.00	£2.40
148 - SPEED INDICATOR FSP-487467.A7 487467	£7.99	£9.59
149 - SEALING RING FSP-447750.A12 447750	£4.48	£5.38
150 - BRUSH (PAIR) 230V FSP-488134.A7 488134	£38.81	£46.57
151 - BRUSH HOLDER (PAIR) 230V FSP-488136.A7 488136	£42.10	£50.52
152 - MOTOR HOUSING FSP-446309.A15 446309	£17.97	£21.56
153 - FIELD ASSEMBLY 230 V FSP-493503.A0 493503	£77.86	£93.43
154 - BEARING RING FSP-438613.A48 438613	£2.00	£2.40
155 - BALL BEARING FSP-228559.A1 228559	£4.06	£4.87
156 - ARMATURE 230 V FSP-493504.A14 493504	£166.02	£199.23
157 - BALL BEARING FSP-219021.A22 219021	£11.22	£13.46
158 - AIR GUIDE WASHER FSP-469886.A11 469886	£2.00	£2.40
159 - RAISED-HEAD SCREW 5.0 X 80 MM FSP-400264.A6 400264	£2.00	£2.40
160 - FAN FSP-486880.A9 486880	£6.90	£8.28
161 - O-RING FSP-400488.A11 400488	£2.00	£2.40
162 - RAISED-HEAD SCREW M5 X 40 FSP-400255.A7 400255	£2.00	£2.40
163 - HEXAGON NUT M8 FSP-200719.A92 200719	£2.00	£2.40
164 - CLAMPING SLEEVE FSP-400259.A7 400259	£2.00	£2.40
165 - TOOTHED BELT WHEEL FSP-445877.A5 445877	£16.48	£19.77
166 - MOTOR FLANGE FSP-451454.A8 451454	£43.88	£52.66
167 - MOTOR 230 V FSP-488153.A7 488153	£341.10	£409.32
168 - LIP RING FSP-447968.A2 447968	£2.00	£2.40
169 - HOUSING FSP-488154.A5 488154	£21.42	£25.71
171 - ROTARY KNOB M6 X 22.5 FSP-10734068.A21 10734068	£2.00	£2.40
172 - SEALING RING FSP-449830.A1 449830	£2.00	£2.40
173 - COVER FSP-447997.A11 447997	£3.62	£4.35
174 - FILTER CARTRIDGE FSP-447995.A11 447995	£20.35	£24.42
175 - FILTER HOUSING FSP-447996.A1 447996	£7.86	£9.43
176 - SET OF FLEXIBLE LEADS FSP-488440.A15 488440	£27.41	£32.89
177 - O-RING FSP-442413.A26 442413	£2.00	£2.40
178 - SPLINTER GUARD FSP-448694.A16 448694	£3.00	£3.60
179 - NO LONGER AVAILABLE FSP-00000.A4075 00000	-
180 - NO LONGER AVAILABLE FSP-00000.A4076 00000	-
181 - CABLE CLAMP FSP-431899.A44 431899	£2.00	£2.40
182 - SPACER WEDGE PLATE FSP-445927.A8 445927	£6.30	£7.56
183 - CHEESE HEAD SCREW M8 X 16 FSP-774346.A28 774346	£2.00	£2.40
184 - SPACER WEDGE FSP-710662.A6 710662	£44.44	£53.33
185 - SPACER WEDGE HOLDER FSP-488158.A7 488158	£70.85	£85.02
186 - CHEESE HEAD SCREW M6 X 14 FSP-209354.A2 209354	£2.00	£2.40
187 - SPACER WEDGE HOLDER FSP-445926.A9 445926	£16.90	£20.28
188 - FLANGE BUSHING FSP-447555.A10 447555	£2.00	£2.40
190 - BOLT FSP-447358.A9 447358	£2.48	£2.97
191 - CONNECTING ROD FSP-446528.A1 446528	£2.00	£2.40
192 - WASHER FSP-447702.A33 447702	£2.00	£2.40
193 - SNAP RING FSP-200615.A8 200615	£2.00	£2.40
194 - PRESSURE CLAMPING ELEMENT FSP-400287.A16 400287	£4.89	£5.87
201 - CONNECTING SLEEVE FSP-577162.A78 577162	£16.25	£19.50
202 - STOP PROFILE CS 70 FSP-448141.A0 448141	£31.42	£37.71
203 - PROFILE CS 70 FSP-465708.A13 465708	£33.70	£40.44
204 - CLAMPING PLATE FSP-10023711.A29 10023711	£4.44	£5.33
205 - SWIVELING SEGMENT FSP-448014.A2 448014	£34.26	£41.11
206 - SCALE FSP-488156.A9 488156	£25.04	£30.05
207 - RAISED-HEAD SCREW M4 X 6 FSP-400348.A13 400348	£2.00	£2.40
208 - FLAT HEAD SCREW FSP-448065.A2 448065	£3.81	£4.57
209 - WASHER FSP-448471.A9 448471	£3.62	£4.34
210 - ROTARY KNOB FSP-487755.A9 487755	£9.03	£10.84
211 - ROTARY KNOB FSP-440713.A73 440713	£2.64	£3.17
212 - FLAT HEAD SCREW M4 X 8 FSP-219043.A24 219043	£2.00	£2.40
213 - STUD SCREW FSP-464525.A25 464525	£2.00	£2.40
214 - CHEESE HEAD SCREW M6 X 12 FSP-200684.A65 200684	£2.00	£2.40
215 - SUPPORT FSP-489181.A33 489181	£30.82	£36.99
218 - SLEEVE 5 X 12 MM FSP-228692.A58 228692	£2.00	£2.40
219 - ROUND-HEAD SCREW M6 X 40 FSP-228534.A14 228534	£2.00	£2.40
220 - SPACER BUSH FSP-448066.A39 448066	£9.59	£11.51
221 - CLAMPING ELEMENT FSP-488433.A19 488433	£43.88	£52.66
222 - CLAMP SUPPORT FSP-10031568.A9 10031568	£14.60	£17.52
223 - GRIP FSP-487893.A10 487893	£7.24	£8.69
224 - SLEEVE 6 X 36 MM FSP-400289.A8 400289	£2.00	£2.40
225 - PRESSURE SPRING FSP-448064.A36 448064	£2.00	£2.40
226 - ROTARY KNOB M6 FSP-483350.A31 483350	£6.30	£7.56
227 - HOSE 27 X 2 M FSP-459250.A1 459250	£38.39	£46.07
228 - HOSE 36 X 1.5 M FSP-459251.A23 459251	£38.39	£46.07
229 - Y-PIECE FSP-450575.A3 450575	£25.45	£30.54
230 - ROLLER FSP-488868.A7 488868	£44.02	£52.82
231 - ROLLER FSP-488867.A9 488867	£41.96	£50.35
231 - CYLINDER ROLLER FSP-488870.A9 488870	£31.50	£37.80
233 - CAR FRONT FSP-497195.A1 497195	£65.54	£78.65
234 - CHEESE HEAD SCREW M6 X 40 FSP-228653.A8 228653	£2.00	£2.40
235 - RAISED-HEAD SCREW M4 X 25 FSP-400257.A27 400257	£2.00	£2.40
236 - HEXAGON SCREW M8 X 60 FSP-400382.A14 400382	£2.00	£2.40
237 - REDUCING SLEEVE. ANTISTATIC FSP-452358.A8 452358	£26.08	£31.30
238 - GRIP FSP-487555.A29 487555	£7.97	£9.57
239 - SCALE FSP-446467.A1 446467	£16.05	£19.26
240 - KNOB LEVER FSP-446063.A8 446063	£7.92	£9.51
242 - DRAW SPRING FSP-447263.A46 447263	£2.00	£2.40
243 - END STOP FSP-449868.A16 449868	£7.31	£8.77
244 - GRIP FSP-449869.A1 449869	£2.00	£2.40
245 - CHEESE HEAD SCREW M5 X 18 FSP-202824.A3 202824	£2.00	£2.40
246 - ECCENTRIC NUT FSP-449928.A2 449928	£7.67	£9.20
247 - CRANK FSP-488159.A6 488159	£18.49	£22.19
248 - HEXAGON NUT M6 FSP-228541.A49 228541	£2.00	£2.40
249 - SPRING DISC FSP-200588.A34 200588	£2.00	£2.40
250 - SHIM RING FSP-400884.A22 400884	£2.00	£2.40
251 - SPINDLE FSP-488271.A7 488271	£37.69	£45.23
252 - BEARING FSP-446470.A15 446470	£4.88	£5.85
253 - WASHER FSP-446472.A2 446472	£2.87	£3.44
254 - INDICATOR FSP-446468.A14 446468	£2.00	£2.40
255 - FELT INSERT FSP-451917.A17 451917	£2.00	£2.40
256 - FELT INSERT FSP-451918.A0 451918	£2.00	£2.40
257 - STRIPPER FSP-496821.A0 496821	£19.81	£23.77
258 - LOCK WASHER FSP-447961.A9 447961	£2.00	£2.40
259 - STRIPPER FSP-496820.A17 496820	£14.02	£16.83
260 - SNAP RING FSP-200618.A13 200618	£2.00	£2.40
261 - ROLLER FSP-488869.A10 488869	£42.34	£50.81
262 - GEAR FSP-446072.A8 446072	£3.56	£4.27
263 - WASHER FSP-447702.A34 447702	£2.00	£2.40
264 - RAISED-HEAD SCREW 4.0 X 20 MM FSP-228567.A135 228567	£2.00	£2.40
265 - DRAW SPRING FSP-447263.A44 447263	£2.00	£2.40
266 - SUPPORTING BEARING FSP-465449.A18 465449	£8.81	£10.57
267 - CYLINDER PIN FSP-400260.A8 400260	£2.00	£2.40
268 - LEVER FSP-446671.A2 446671	£2.00	£2.40
269 - WASHER 4.3 MM FSP-228542.A16 228542	£2.00	£2.40
270 - FLANGE FSP-488147.A8 488147	£28.07	£33.68
271 - SUPPORT FSP-497196.A15 497196	£45.40	£54.48
272 - HEXAGON NUT M8 FSP-200719.A94 200719	£2.00	£2.40
273 - WASHER 8.4 MM FSP-228601.A34 228601	£2.00	£2.40
274 - WORKPIECE HOLDER FSP-450199.A21 450199	£6.29	£7.55
275 - CLAMP FSP-450158.A20 450158	£2.00	£2.40
276 - SAFETY DEVICE FSP-492132.A14 492132	£28.82	£34.59

Attribute Name	Value
Brand	Festool

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Festool CS 70 EB 230V / 500694 Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Festool CS 70 EB 230V / 500694 Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Festool CS 70 EB 230V / 500694 Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
