Festool CS 70 EB 230V / 489841 Spare Parts

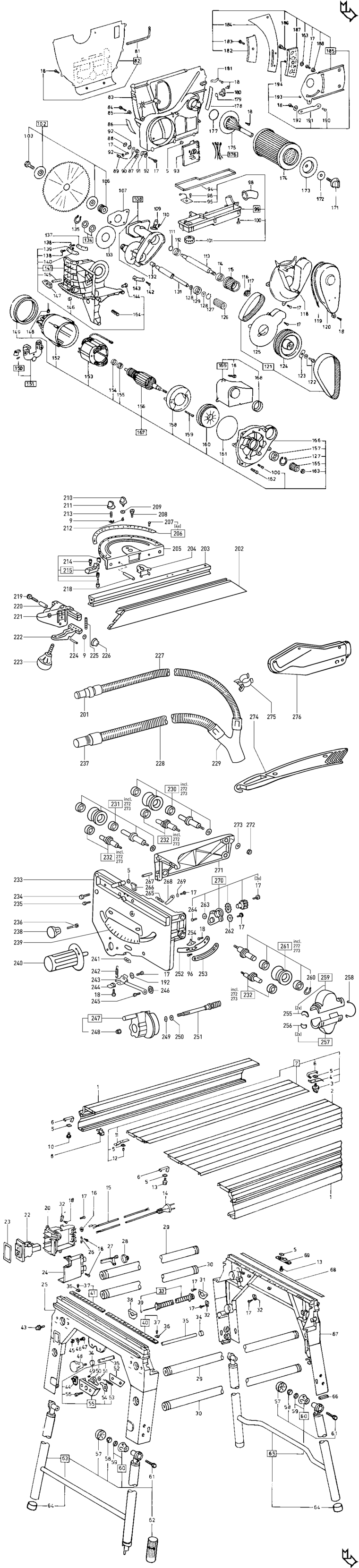

An exploded diagram and spare parts listing for the Festool CS 70 EB 230V / 489841

	Ex VAT	Inc VAT
1 - CORNER PROFILE FSP-445867.A15 445867	£64.76	£77.71
2 - FLAT PROFILE FSP-445866.A2 445866	£93.68	£112.41
3 - ROTARY KNOB FSP-482110.A19 482110	£2.32	£2.78
4 - CLAMPING SUPPORT FSP-448234.A0 448234	£4.13	£4.96
5 - SQUARE NUT M6 FSP-228566.A16 228566	£2.00	£2.40
6 - SPRING FSP-447262.A13 447262	£2.00	£2.40
7 - TABLE TOP INSERT FSP-488160.A12 488160	£70.28	£84.34
8 - CLAMP FSP-449080.A5 449080	£2.00	£2.40
9 - WASHER 6.4 MM FSP-228546.A139 228546	£2.00	£2.40
10 - SCREW M6 X 12 FSP-450682.A16 450682	£2.00	£2.40
11 - PLATE SPRING FSP-448233.A17 448233	£2.00	£2.40
12 - THREADED PIN M6 X 10 FSP-772405.A25 772405	£2.00	£2.40
13 - SCREW M6 X 12 FSP-449888.A11 449888	£2.00	£2.40
14 - CABLE WITH PLUG GB 240V FSP-469261.A1 469261	£25.58	£30.69
14 - CABLE EU FSP-458753.A5 458753	£25.58	£30.69
15 - TRAILING CABLE FSP-458756.A2 458756	£25.58	£30.69
16 - RUBBER RING FSP-458613.A3 458613	£2.00	£2.40
17 - RAISED-HEAD SCREW M4 X 16 FSP-219075.A8 219075	£2.00	£2.40
18 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-228584.A141 228584	£2.00	£2.40
20 - SWITCHING HOUSING FSP-447703.A4 447703	£8.42	£10.11
22 - SWITCH 230V FSP-447963.A0 447963	£129.92	£155.90
23 - GASKET FSP-447768.A2 447768	£2.00	£2.40
24 - SWITCH COVER FSP-447704.A11 447704	£4.75	£5.70
25 - NO LONGER AVAILABLE FSP-00000.A5747 00000	-
26 - CABLE CLAMP FSP-431899.A49 431899	£2.00	£2.40
27 - CABLE HOLDER FSP-449273.A10 449273	£2.71	£3.25
28 - CLIP FSP-400428.A2 400428	£3.56	£4.27
29 - NO LONGER AVAILABLE FSP-00000.A5749 00000	-
30 - NO LONGER AVAILABLE FSP-00000.A5750 00000	-
31 - BEARING SHEET FSP-448236.A5 448236	£2.00	£2.40
32 - NO LONGER AVAILABLE FSP-00000.A5748 00000	-
33 - SHOCK ABSORBER FSP-488139.A14 488139	£39.74	£47.69
34 - BUFFER FSP-447528.A16 447528	£2.00	£2.40
35 - PULL ROD FSP-487568.A4 487568	£50.70	£60.84
36 - SHEET METAL NUT FSP-448477.A1 448477	£2.00	£2.40
37 - RAISED-HEAD SCREW 2.5 X 8 MM FSP-400444.A10 400444	£2.00	£2.40
38 - BEARING SHEET FSP-448236.A4 448236	£2.00	£2.40
39 - WASHER FSP-222490.A18 222490	£2.00	£2.40
40 - SCALE FSP-488138.A3 488138	£19.35	£23.22
41 - SCALE FSP-488137.A15 488137	£15.60	£18.72
42 - ADJUSTMENT FSP-448178.A0 448178	£2.00	£2.40
43 - SCREW M8 X 25 FSP-450683.A3 450683	£2.00	£2.40
44 - GRIP FSP-446974.A9 446974	£2.00	£2.40
45 - SHEET METAL FSP-448888.A1 448888	£2.00	£2.40
46 - SPRING DISC FSP-200762.A0 200762	£2.00	£2.40
47 - RAISED-HEAD SCREW M4 X 16 FSP-219075.A0 219075	£2.00	£2.40
48 - GRIP FSP-487569.A12 487569	£12.60	£15.12
49 - PRESSURE CLAMPING ELEMENT FSP-400286.A20 400286	£4.56	£5.47
50 - LEVER FSP-446669.A9 446669	£3.78	£4.53
51 - SLEEVE FSP-449122.A11 449122	£2.00	£2.40
52 - HOLDING PLATE FSP-447789.A4 447789	£7.02	£8.43
53 - DRAW SPRING FSP-447263.A31 447263	£2.00	£2.40
54 - DETENT LEVER FSP-702066.A1 702066	£5.68	£6.82
55 - GUIDE FSP-488140.A2 488140	£34.68	£41.61
56 - CHEESE HEAD SCREW M6 X 25 FSP-200128.A8 200128	£2.00	£2.40
57 - UPPER SECTION OF PISTOL FSP-447534.A1 447534	£2.00	£2.40
58 - HEXAGON NUT M8 FSP-200735.A12 200735	£2.00	£2.40
59 - HEXAGON NUT M8 FSP-200719.A139 200719	£2.00	£2.40
60 - LOWER SECTION OF PISTOL FSP-488523.A26 488523	£2.00	£2.40
61 - HEXAGON SCREW M8 X 75 FSP-400309.A3 400309	£2.00	£2.40
62 - FOOT FSP-465883.A25 465883	£13.48	£16.18
63 - FOLDAWAY LEG FSP-499888.A9 499888	£79.78	£95.74
64 - RUBBER FOOT FSP-465163.A50 465163	£3.12	£3.75
64 - RUBBER FOOT FSP-465163.A51 465163	£3.12	£3.75
65 - FOLDAWAY LEG FSP-499889.A3 499889	£72.20	£86.64
66 - RUBBER FOOT FSP-701230.A10 701230	£4.62	£5.54
67 - NO LONGER AVAILABLE FSP-00000.A5744 00000	-
68 - STICKER FSP-448251.A16 448251	£7.37	£8.84
69 - STOP FSP-448118.A10 448118	£2.00	£2.40
81 - PIN KEY FSP-450935.A2 450935	£2.00	£2.40
82 - COVER FSP-488152.A0 488152	£49.29	£59.15
83 - PROTECTIVE COVER FSP-460737.A9 460737	£32.74	£39.29
84 - CHEESE HEAD SCREW M6 X 20 FSP-228612.A9 228612	£2.00	£2.40
85 - FLANGE BUSHING FSP-449159.A6 449159	£3.44	£4.13
86 - SPLINTER GUARD FSP-448695.A6 448695	£2.00	£2.40
87 - WASHER FSP-403100.A0 403100	£2.00	£2.40
88 - HEXAGON NUT M4 FSP-200715.A84 200715	£2.00	£2.40
89 - NO LONGER AVAILABLE FSP-00000.A5741 00000	-
90 - NO LONGER AVAILABLE FSP-00000.A5742 00000	-
91 - NO LONGER AVAILABLE FSP-00000.A5743 00000	-
92 - SPRING DISC FSP-200762.A1 200762	£2.00	£2.40
93 - CONTROL ELECTRONICS 230 V FSP-487681.A4 487681	£117.06	£140.47
94 - SEALING FRAME FSP-447584.A4 447584	£5.31	£6.37
95 - POTI FSP-487466.A8 487466	£12.72	£15.27
96 - RAISED-HEAD SCREW 3.5 X 10 MM FSP-219031.A257 219031	£2.00	£2.40
98 - EXTRACTOR CONNECTOR FSP-446588.A11 446588	£2.66	£3.19
99 - COVER FSP-488155.A9 488155	£40.58	£48.70
100 - RAISED-HEAD SCREW 3.5 X 25 MM FSP-219068.A31 219068	£2.00	£2.40
101 - ADJUSTING KNOB FSP-447115.A4 447115	£4.44	£5.33
102 - CLAMPING FLANGE FSP-488151.A16 488151	£60.72	£72.86
103 - FLANGE BOLT M8 X 15 FSP-446370.A3 446370	£9.99	£11.99
106 - SPRING WASHER FSP-444235.A19 444235	£2.00	£2.40
107 - GLIDE PLATE FSP-450055.A10 450055	£4.02	£4.82
108 - ROCKER FSP-488149.A16 488149	£109.49	£131.39
109 - SPINDLE STOP FSP-488150.A1 488150	£24.08	£28.90
110 - RAISED-HEAD SCREW M4 X 10 FSP-228582.A5 228582	£2.00	£2.40
111 - CIRCLIP FSP-219855.A1 219855	£2.00	£2.40
112 - BALL BEARING FSP-789595.A1 789595	£8.79	£10.55
113 - SHAFT FSP-202845.A12 202845	£45.81	£54.97
114 - BALL BEARING FSP-400467.A20 400467	£22.55	£27.06
115 - TOOTHED BELT WHEEL FSP-445880.A1 445880	£37.13	£44.56
117 - NUT M10 FSP-451484.A15 451484	£2.00	£2.40
118 - AIR DUCT FSP-446473.A12 446473	£7.99	£9.59
119 - FELT STRIPE FSP-447962.A16 447962	£2.00	£2.40
120 - MOTOR COVER FSP-446469.A5 446469	£8.18	£9.81
121 - TOOTHED BELT FSP-488135.A16 488135	£46.72	£56.07
122 - SCREW FSP-401165.A16 401165	£2.00	£2.40
123 - DRIVING WASHER FSP-446937.A7 446937	£2.00	£2.40
124 - TOOTHED BELT WHEEL FSP-445878.A16 445878	£36.32	£43.59
125 - COVER FSP-447710.A7 447710	£6.64	£7.97
126 - GEAR FSP-491936.A16 491936	£31.83	£38.20
127 - SNAP RING FSP-771483.A10 771483	£2.00	£2.40
128 - WASHER FSP-449203.A5 449203	£2.00	£2.40
129 - BALL BEARING FSP-789775.A44 789775	£9.65	£11.58
131 - SHAFT FSP-202846.A5 202846	£41.41	£49.69
132 - NEEDLE BUSHING FSP-400254.A17 400254	£7.99	£9.59
133 - WASHER FSP-446474.A5 446474	£7.63	£9.16
134 - COMPENSATING WASHER FSP-488465.A5 488465	£12.99	£15.59
135 - SNAP RING FSP-200414.A10 200414	£2.00	£2.40
137 - SUPPORT PLATE FSP-446704.A1 446704	£7.99	£9.59
138 - CHEESE HEAD SCREW M5 X 18 FSP-202824.A9 202824	£2.00	£2.40
139 - HEXAGON NUT M5 FSP-200717.A17 200717	£2.00	£2.40
140 - BOARD SEGMENT FSP-446147.A16 446147	£6.55	£7.86
141 - SWIVELING SEGMENT FSP-488148.A1 488148	£95.98	£115.17
142 - RAISED-HEAD SCREW M4 X 16 FSP-219075.A1 219075	£2.00	£2.40
143 - TOOTH SEGMENT FSP-202847.A12 202847	£8.68	£10.42
144 - DU FLANGE BUSHING FSP-400253.A1 400253	£2.00	£2.40
145 - CYLINDER PIN FSP-400097.A0 400097	£2.00	£2.40
146 - DU FLANGE BUSHING FSP-400253.A0 400253	£2.00	£2.40
147 - CONNECTING MEMBER FSP-446146.A1 446146	£2.00	£2.40
148 - SPEED INDICATOR FSP-487467.A0 487467	£7.99	£9.59
149 - SEALING RING FSP-447750.A13 447750	£4.48	£5.38
150 - BRUSH (PAIR) 230V FSP-488134.A0 488134	£38.81	£46.57
151 - BRUSH HOLDER (PAIR) 230V FSP-488136.A0 488136	£42.10	£50.52
152 - MOTOR HOUSING FSP-446309.A9 446309	£17.97	£21.56
153 - FIELD ASSEMBLY 230 V FSP-493503.A3 493503	£77.86	£93.43
154 - BEARING RING FSP-438613.A85 438613	£2.00	£2.40
155 - BALL BEARING FSP-228559.A29 228559	£4.06	£4.87
156 - ARMATURE 230 V FSP-493504.A11 493504	£166.02	£199.23
157 - BALL BEARING FSP-219021.A27 219021	£11.22	£13.46
158 - AIR GUIDE WASHER FSP-469886.A17 469886	£2.00	£2.40
159 - RAISED-HEAD SCREW 5.0 X 80 MM FSP-400264.A1 400264	£2.00	£2.40
160 - FAN FSP-486880.A0 486880	£6.90	£8.28
161 - O-RING FSP-400488.A13 400488	£2.00	£2.40
162 - RAISED-HEAD SCREW M5 X 40 FSP-400255.A0 400255	£2.00	£2.40
163 - HEXAGON NUT M8 FSP-200719.A138 200719	£2.00	£2.40
164 - CLAMPING SLEEVE FSP-400259.A1 400259	£2.00	£2.40
165 - TOOTHED BELT WHEEL FSP-445877.A0 445877	£16.48	£19.77
166 - MOTOR FLANGE FSP-451454.A3 451454	£43.88	£52.66
167 - MOTOR 230 V FSP-488153.A11 488153	£341.10	£409.32
168 - LIP RING FSP-447968.A5 447968	£2.00	£2.40
169 - HOUSING FSP-488154.A1 488154	£21.42	£25.71
171 - ROTARY KNOB M6 X 22.5 FSP-10734068.A7 10734068	£2.00	£2.40
172 - SEALING RING FSP-449830.A5 449830	£2.00	£2.40
173 - COVER FSP-447997.A7 447997	£3.62	£4.35
174 - FILTER CARTRIDGE FSP-447995.A7 447995	£20.35	£24.42
175 - FILTER HOUSING FSP-447996.A5 447996	£7.86	£9.43
176 - SET OF FLEXIBLE LEADS FSP-488440.A12 488440	£27.41	£32.89
177 - O-RING FSP-442413.A16 442413	£2.00	£2.40
178 - SPLINTER GUARD FSP-448694.A11 448694	£3.00	£3.60
179 - NO LONGER AVAILABLE FSP-00000.A5739 00000	-
180 - NO LONGER AVAILABLE FSP-00000.A5740 00000	-
181 - CABLE CLAMP FSP-431899.A48 431899	£2.00	£2.40
182 - SPACER WEDGE PLATE FSP-445927.A16 445927	£6.30	£7.56
183 - CHEESE HEAD SCREW M8 X 16 FSP-774346.A18 774346	£2.00	£2.40
184 - SPACER WEDGE FSP-710662.A0 710662	£44.44	£53.33
185 - SPACER WEDGE HOLDER FSP-488158.A13 488158	£70.85	£85.02
186 - CHEESE HEAD SCREW M6 X 14 FSP-209354.A8 209354	£2.00	£2.40
187 - SPACER WEDGE HOLDER FSP-445926.A1 445926	£16.90	£20.28
188 - FLANGE BUSHING FSP-447555.A17 447555	£2.00	£2.40
190 - BOLT FSP-447358.A11 447358	£2.48	£2.97
191 - CONNECTING ROD FSP-446528.A7 446528	£2.00	£2.40
192 - WASHER FSP-447702.A18 447702	£2.00	£2.40
193 - SNAP RING FSP-200615.A0 200615	£2.00	£2.40
194 - PRESSURE CLAMPING ELEMENT FSP-400287.A4 400287	£4.89	£5.87
202 - STOP PROFILE CS 70 FSP-448141.A11 448141	£31.42	£37.71
203 - PROFILE CS 70 FSP-465708.A2 465708	£33.70	£40.44
204 - CLAMPING PLATE FSP-10023711.A35 10023711	£4.44	£5.33
205 - SWIVELING SEGMENT FSP-448014.A13 448014	£34.26	£41.11
206 - SCALE FSP-488156.A1 488156	£25.04	£30.05
207 - RAISED-HEAD SCREW M4 X 6 FSP-400348.A2 400348	£2.00	£2.40
208 - FLAT HEAD SCREW FSP-448065.A13 448065	£3.81	£4.57
209 - WASHER FSP-448471.A1 448471	£3.62	£4.34
210 - ROTARY KNOB FSP-487755.A0 487755	£9.03	£10.84
211 - ROTARY KNOB M6 FSP-486202.A37 486202	£2.88	£3.45
212 - FLAT HEAD SCREW M4 X 8 FSP-219043.A12 219043	£2.00	£2.40
213 - KNOB FSP-449836.A3 449836	£2.00	£2.40
214 - CHEESE HEAD SCREW M6 X 12 FSP-200684.A36 200684	£2.00	£2.40
215 - SUPPORT FSP-489181.A28 489181	£30.82	£36.99
216 - PRESSURE SPRING FSP-444754.A17 444754	£2.00	£2.40
217 - PIN FSP-449837.A5 449837	£3.93	£4.72
218 - SLEEVE FSP-400288.A2 400288	£2.00	£2.40
219 - ROUND-HEAD SCREW M6 X 40 FSP-228534.A2 228534	£2.00	£2.40
220 - SPACER BUSH FSP-448066.A28 448066	£9.59	£11.51
221 - CLAMPING ELEMENT FSP-488433.A22 488433	£43.88	£52.66
222 - CLAMP SUPPORT FSP-10031568.A1 10031568	£14.60	£17.52
223 - GRIP FSP-487893.A1 487893	£7.24	£8.69
224 - SLEEVE 6 X 36 MM FSP-400289.A0 400289	£2.00	£2.40
225 - PRESSURE SPRING FSP-448064.A29 448064	£2.00	£2.40
226 - ROTARY KNOB M6 FSP-483350.A11 483350	£6.30	£7.56
227 - HOSE 27 X 2 M FSP-459250.A8 459250	£38.39	£46.07
228 - HOSE 36 X 1.5 M FSP-459251.A16 459251	£38.39	£46.07
229 - Y-PIECE FSP-450575.A8 450575	£25.45	£30.54
230 - ROLLER FSP-488868.A0 488868	£44.02	£52.82
231 - ROLLER FSP-488867.A16 488867	£41.96	£50.35
232 - CYLINDER ROLLER FSP-488870.A0 488870	£31.50	£37.80
233 - CAR FRONT FSP-497195.A3 497195	£65.54	£78.65
234 - CHEESE HEAD SCREW M6 X 40 FSP-228653.A1 228653	£2.00	£2.40
235 - RAISED-HEAD SCREW M4 X 25 FSP-400257.A45 400257	£2.00	£2.40
236 - HEXAGON SCREW M8 X 60 FSP-400382.A16 400382	£2.00	£2.40
238 - GRIP FSP-487555.A26 487555	£7.97	£9.57
239 - SCALE FSP-446467.A2 446467	£16.05	£19.26
240 - KNOB LEVER FSP-446063.A1 446063	£7.92	£9.51
242 - DRAW SPRING FSP-447263.A30 447263	£2.00	£2.40
243 - END STOP FSP-449868.A9 449868	£7.31	£8.77
244 - GRIP FSP-449869.A8 449869	£2.00	£2.40
245 - CHEESE HEAD SCREW M5 X 18 FSP-202824.A10 202824	£2.00	£2.40
246 - ECCENTRIC NUT FSP-449928.A8 449928	£7.67	£9.20
247 - CRANK FSP-488159.A0 488159	£18.49	£22.19
248 - HEXAGON NUT M6 FSP-228541.A80 228541	£2.00	£2.40
249 - SPRING DISC FSP-200588.A28 200588	£2.00	£2.40
250 - SHIM RING FSP-400884.A30 400884	£2.00	£2.40
251 - SPINDLE FSP-488271.A3 488271	£37.69	£45.23
252 - BEARING FSP-446470.A11 446470	£4.88	£5.85
253 - WASHER FSP-446472.A6 446472	£2.87	£3.44
254 - INDICATOR FSP-446468.A10 446468	£2.00	£2.40
255 - FELT INSERT FSP-451917.A9 451917	£2.00	£2.40
256 - FELT INSERT FSP-451918.A8 451918	£2.00	£2.40
257 - STRIPPER FSP-496821.A7 496821	£19.81	£23.77
258 - LOCK WASHER FSP-447961.A1 447961	£2.00	£2.40
259 - STRIPPER FSP-496820.A10 496820	£14.02	£16.83
260 - SNAP RING FSP-200618.A19 200618	£2.00	£2.40
261 - ROLLER FSP-488869.A17 488869	£42.34	£50.81
262 - GEAR FSP-446072.A16 446072	£3.56	£4.27
263 - WASHER FSP-447702.A17 447702	£2.00	£2.40
264 - RAISED-HEAD SCREW 4.0 X 20 MM FSP-228567.A197 228567	£2.00	£2.40
265 - DRAW SPRING FSP-447263.A29 447263	£2.00	£2.40
266 - SUPPORTING BEARING FSP-465449.A24 465449	£8.81	£10.57
267 - CYLINDER PIN FSP-400260.A14 400260	£2.00	£2.40
268 - LEVER FSP-446671.A9 446671	£2.00	£2.40
269 - WASHER 4.3 MM FSP-228542.A10 228542	£2.00	£2.40
270 - FLANGE FSP-488147.A16 488147	£28.07	£33.68
271 - SUPPORT FSP-497196.A12 497196	£45.40	£54.48
272 - HEXAGON NUT M8 FSP-200719.A140 200719	£2.00	£2.40
273 - WASHER 8.4 MM FSP-228601.A50 228601	£2.00	£2.40
274 - WORKPIECE HOLDER FSP-450199.A26 450199	£6.29	£7.55
275 - CLAMP FSP-450158.A15 450158	£2.00	£2.40
276 - SAFETY DEVICE FSP-492132.A18 492132	£28.82	£34.59

Attribute Name	Value
Brand	Festool

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Festool CS 70 EB 230V / 489841 Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Festool CS 70 EB 230V / 489841 Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Festool CS 70 EB 230V / 489841 Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
