Festool CS 70 EB / 487487 Spare Parts

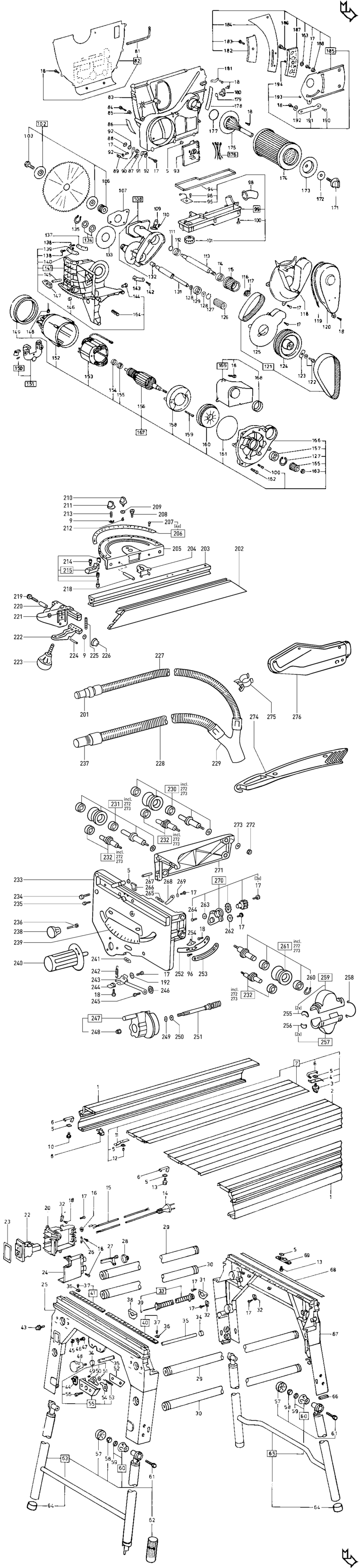

An exploded diagram and spare parts listing for the Festool CS 70 EB / 487487

	Ex VAT	Inc VAT
1 - CORNER PROFILE FSP-445867.A2 445867	£64.76	£77.71
2 - FLAT PROFILE FSP-445866.A15 445866	£93.68	£112.41
3 - ROTARY KNOB FSP-482110.A29 482110	£2.32	£2.78
4 - CLAMPING SUPPORT FSP-448234.A11 448234	£4.13	£4.96
5 - SQUARE NUT M6 FSP-228566.A61 228566	£2.00	£2.40
6 - SPRING FSP-447262.A21 447262	£2.00	£2.40
7 - TABLE TOP INSERT FSP-488160.A1 488160	£70.28	£84.34
8 - CLAMP FSP-449080.A12 449080	£2.00	£2.40
9 - WASHER 6.4 MM FSP-228546.A17 228546	£2.00	£2.40
10 - SCREW M6 X 12 FSP-450682.A4 450682	£2.00	£2.40
11 - PLATE SPRING FSP-448233.A6 448233	£2.00	£2.40
12 - THREADED PIN M6 X 10 FSP-772405.A10 772405	£2.00	£2.40
13 - SCREW M6 X 12 FSP-449888.A38 449888	£2.00	£2.40
14 - CABLE WITH PLUG GB 240V FSP-469261.A2 469261	£25.58	£30.69
14 - CABLE EU FSP-458753.A3 458753	£25.58	£30.69
15 - TRAILING CABLE FSP-458756.A6 458756	£25.58	£30.69
16 - RUBBER RING FSP-458613.A18 458613	£2.00	£2.40
17 - RAISED-HEAD SCREW M4 X 16 FSP-219075.A79 219075	£2.00	£2.40
18 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-228584.A33 228584	£2.00	£2.40
20 - SWITCHING HOUSING FSP-447703.A8 447703	£8.42	£10.11
22 - SWITCH 230V FSP-447963.A1 447963	£129.92	£155.90
23 - GASKET FSP-447768.A16 447768	£2.00	£2.40
24 - SWITCH COVER FSP-447704.A7 447704	£4.75	£5.70
25 - NO LONGER AVAILABLE FSP-00000.A2697 00000	-
26 - CABLE CLAMP FSP-431899.A2 431899	£2.00	£2.40
27 - CABLE HOLDER FSP-449273.A0 449273	£2.71	£3.25
28 - CLIP FSP-400428.A19 400428	£3.56	£4.27
29 - NO LONGER AVAILABLE FSP-00000.A2695 00000	-
30 - NO LONGER AVAILABLE FSP-00000.A2696 00000	-
31 - BEARING SHEET FSP-448236.A26 448236	£2.00	£2.40
32 - NO LONGER AVAILABLE FSP-00000.A2694 00000	-
33 - SHOCK ABSORBER FSP-488139.A2 488139	£39.74	£47.69
34 - BUFFER FSP-447528.A6 447528	£2.00	£2.40
35 - PULL ROD FSP-487568.A8 487568	£50.70	£60.84
36 - SHEET METAL NUT FSP-448477.A11 448477	£2.00	£2.40
37 - RAISED-HEAD SCREW 2.5 X 8 MM FSP-400444.A0 400444	£2.00	£2.40
38 - BEARING SHEET FSP-448236.A27 448236	£2.00	£2.40
39 - WASHER FSP-222490.A3 222490	£2.00	£2.40
40 - SCALE FSP-488138.A15 488138	£19.35	£23.22
41 - SCALE FSP-488137.A2 488137	£15.60	£18.72
42 - ADJUSTMENT FSP-448178.A18 448178	£2.00	£2.40
43 - SCREW M8 X 25 FSP-450683.A16 450683	£2.00	£2.40
44 - GRIP FSP-446974.A3 446974	£2.00	£2.40
45 - SHEET METAL FSP-448888.A2 448888	£2.00	£2.40
46 - SPRING DISC FSP-200762.A13 200762	£2.00	£2.40
47 - RAISED-HEAD SCREW M4 X 16 FSP-219075.A78 219075	£2.00	£2.40
48 - GRIP FSP-487569.A4 487569	£12.60	£15.12
49 - PRESSURE CLAMPING ELEMENT FSP-400286.A10 400286	£4.56	£5.47
50 - LEVER FSP-446669.A4 446669	£3.78	£4.53
51 - SLEEVE FSP-449122.A7 449122	£2.00	£2.40
52 - HOLDING PLATE FSP-447789.A12 447789	£7.02	£8.43
53 - DRAW SPRING FSP-447263.A13 447263	£2.00	£2.40
54 - DETENT LEVER FSP-702066.A12 702066	£5.68	£6.82
55 - GUIDE FSP-488140.A14 488140	£34.68	£41.61
56 - CHEESE HEAD SCREW M6 X 25 FSP-200128.A16 200128	£2.00	£2.40
57 - UPPER SECTION OF PISTOL FSP-447534.A25 447534	£2.00	£2.40
58 - HEXAGON NUT M8 FSP-200735.A79 200735	£2.00	£2.40
59 - HEXAGON NUT M8 FSP-200719.A28 200719	£2.00	£2.40
60 - LOWER SECTION OF PISTOL FSP-488523.A5 488523	£2.00	£2.40
61 - HEXAGON SCREW M8 X 75 FSP-400309.A22 400309	£2.00	£2.40
62 - FOOT FSP-465883.A2 465883	£13.48	£16.18
63 - FOLDAWAY LEG FSP-499888.A8 499888	£79.78	£95.74
64 - RUBBER FOOT FSP-465163.A22 465163	£3.12	£3.75
64 - RUBBER FOOT FSP-465163.A23 465163	£3.12	£3.75
65 - FOLDAWAY LEG FSP-499889.A9 499889	£72.20	£86.64
66 - RUBBER FOOT FSP-701230.A0 701230	£4.62	£5.54
67 - NO LONGER AVAILABLE FSP-00000.A2698 00000	-
68 - STICKER FSP-448251.A4 448251	£7.37	£8.84
69 - STOP FSP-448118.A2 448118	£2.00	£2.40
81 - PIN KEY FSP-450935.A11 450935	£2.00	£2.40
82 - COVER FSP-488152.A13 488152	£49.29	£59.15
83 - PROTECTIVE COVER FSP-460737.A3 460737	£32.74	£39.29
84 - CHEESE HEAD SCREW M6 X 20 FSP-228612.A23 228612	£2.00	£2.40
85 - FLANGE BUSHING FSP-449159.A10 449159	£3.44	£4.13
86 - SPLINTER GUARD FSP-448695.A14 448695	£2.00	£2.40
87 - WASHER FSP-403100.A22 403100	£2.00	£2.40
88 - HEXAGON NUT M4 FSP-200715.A12 200715	£2.00	£2.40
89 - NO LONGER AVAILABLE FSP-00000.A2691 00000	-
90 - NO LONGER AVAILABLE FSP-00000.A2692 00000	-
91 - NO LONGER AVAILABLE FSP-00000.A2693 00000	-
92 - SPRING DISC FSP-200762.A14 200762	£2.00	£2.40
93 - CONTROL ELECTRONICS 230 V FSP-487681.A3 487681	£117.06	£140.47
94 - SEALING FRAME FSP-447584.A8 447584	£5.31	£6.37
95 - POTI FSP-487466.A0 487466	£12.72	£15.27
96 - RAISED-HEAD SCREW 3.5 X 10 MM FSP-219031.A71 219031	£2.00	£2.40
98 - EXTRACTOR CONNECTOR FSP-446588.A6 446588	£2.66	£3.19
99 - COVER FSP-488155.A2 488155	£40.58	£48.70
100 - RAISED-HEAD SCREW 3.5 X 25 MM FSP-219068.A13 219068	£2.00	£2.40
101 - ADJUSTING KNOB FSP-447115.A7 447115	£4.44	£5.33
102 - CLAMPING FLANGE FSP-488151.A2 488151	£60.72	£72.86
103 - FLANGE BOLT M8 X 15 FSP-446370.A9 446370	£9.99	£11.99
106 - SPRING WASHER FSP-444235.A0 444235	£2.00	£2.40
107 - GLIDE PLATE FSP-450055.A6 450055	£4.02	£4.82
108 - ROCKER FSP-488149.A2 488149	£109.49	£131.39
109 - SPINDLE STOP FSP-488150.A15 488150	£24.08	£28.90
110 - RAISED-HEAD SCREW M4 X 10 FSP-228582.A31 228582	£2.00	£2.40
111 - CIRCLIP FSP-219855.A12 219855	£2.00	£2.40
112 - BALL BEARING FSP-789595.A23 789595	£8.79	£10.55
113 - SHAFT FSP-202845.A3 202845	£45.81	£54.97
114 - BALL BEARING FSP-400467.A7 400467	£22.55	£27.06
115 - TOOTHED BELT WHEEL FSP-445880.A13 445880	£37.13	£44.56
117 - NUT M10 FSP-451484.A5 451484	£2.00	£2.40
118 - AIR DUCT FSP-446473.A4 446473	£7.99	£9.59
119 - FELT STRIPE FSP-447962.A6 447962	£2.00	£2.40
120 - MOTOR COVER FSP-446469.A13 446469	£8.18	£9.81
121 - TOOTHED BELT FSP-488135.A2 488135	£46.72	£56.07
122 - SCREW FSP-401165.A15 401165	£2.00	£2.40
123 - DRIVING WASHER FSP-446937.A12 446937	£2.00	£2.40
124 - TOOTHED BELT WHEEL FSP-445878.A4 445878	£36.32	£43.59
125 - COVER FSP-447710.A12 447710	£6.64	£7.97
126 - GEAR FSP-491936.A3 491936	£31.83	£38.20
127 - SNAP RING FSP-771483.A43 771483	£2.00	£2.40
128 - WASHER FSP-449203.A16 449203	£2.00	£2.40
129 - BALL BEARING FSP-789775.A16 789775	£9.65	£11.58
131 - SHAFT FSP-202846.A14 202846	£41.41	£49.69
132 - NEEDLE BUSHING FSP-400254.A6 400254	£7.99	£9.59
133 - WASHER FSP-446474.A13 446474	£7.63	£9.16
134 - COMPENSATING WASHER FSP-488465.A15 488465	£12.99	£15.59
135 - SNAP RING FSP-200414.A7 200414	£2.00	£2.40
137 - SUPPORT PLATE FSP-446704.A12 446704	£7.99	£9.59
138 - CHEESE HEAD SCREW M5 X 18 FSP-202824.A40 202824	£2.00	£2.40
139 - HEXAGON NUT M5 FSP-200717.A57 200717	£2.00	£2.40
140 - BOARD SEGMENT FSP-446147.A3 446147	£6.55	£7.86
141 - SWIVELING SEGMENT FSP-488148.A15 488148	£95.98	£115.17
142 - RAISED-HEAD SCREW M4 X 16 FSP-219075.A77 219075	£2.00	£2.40
143 - TOOTH SEGMENT FSP-202847.A3 202847	£8.68	£10.42
144 - DU FLANGE BUSHING FSP-400253.A19 400253	£2.00	£2.40
145 - CYLINDER PIN FSP-400097.A8 400097	£2.00	£2.40
146 - DU FLANGE BUSHING FSP-400253.A18 400253	£2.00	£2.40
147 - CONNECTING MEMBER FSP-446146.A14 446146	£2.00	£2.40
148 - SPEED INDICATOR FSP-487467.A12 487467	£7.99	£9.59
149 - SEALING RING FSP-447750.A2 447750	£4.48	£5.38
150 - BRUSH (PAIR) 230V FSP-488134.A13 488134	£38.81	£46.57
151 - BRUSH HOLDER (PAIR) 230V FSP-488136.A13 488136	£42.10	£50.52
152 - MOTOR HOUSING FSP-446309.A7 446309	£17.97	£21.56
153 - FIELD ASSEMBLY 230 V FSP-493503.A10 493503	£77.86	£93.43
154 - BEARING RING FSP-438613.A12 438613	£2.00	£2.40
155 - BALL BEARING FSP-228559.A102 228559	£4.06	£4.87
156 - ARMATURE 230 V FSP-493504.A2 493504	£166.02	£199.23
157 - BALL BEARING FSP-219021.A11 219021	£11.22	£13.46
158 - AIR GUIDE WASHER FSP-469886.A5 469886	£2.00	£2.40
159 - RAISED-HEAD SCREW 5.0 X 80 MM FSP-400264.A16 400264	£2.00	£2.40
160 - FAN FSP-486880.A15 486880	£6.90	£8.28
161 - O-RING FSP-400488.A2 400488	£2.00	£2.40
162 - RAISED-HEAD SCREW M5 X 40 FSP-400255.A16 400255	£2.00	£2.40
163 - HEXAGON NUT M8 FSP-200719.A5 200719	£2.00	£2.40
164 - CLAMPING SLEEVE FSP-400259.A15 400259	£2.00	£2.40
165 - TOOTHED BELT WHEEL FSP-445877.A14 445877	£16.48	£19.77
166 - MOTOR FLANGE FSP-451454.A11 451454	£43.88	£52.66
167 - MOTOR 230 V FSP-488153.A2 488153	£341.10	£409.32
168 - LIP RING FSP-447968.A13 447968	£2.00	£2.40
169 - HOUSING FSP-488154.A12 488154	£21.42	£25.71
171 - ROTARY KNOB M6 X 22.5 FSP-10734068.A33 10734068	£2.00	£2.40
172 - SEALING RING FSP-449830.A10 449830	£2.00	£2.40
173 - COVER FSP-447997.A3 447997	£3.62	£4.35
174 - FILTER CARTRIDGE FSP-447995.A3 447995	£20.35	£24.42
175 - FILTER HOUSING FSP-447996.A9 447996	£7.86	£9.43
176 - SET OF FLEXIBLE LEADS FSP-488440.A6 488440	£27.41	£32.89
177 - O-RING FSP-442413.A1 442413	£2.00	£2.40
178 - SPLINTER GUARD FSP-448694.A3 448694	£3.00	£3.60
179 - NO LONGER AVAILABLE FSP-00000.A1932 00000	-
180 - NO LONGER AVAILABLE FSP-00000.A1933 00000	-
181 - CABLE CLAMP FSP-431899.A8 431899	£2.00	£2.40
182 - SPACER WEDGE PLATE FSP-445927.A3 445927	£6.30	£7.56
183 - CHEESE HEAD SCREW M8 X 16 FSP-774346.A12 774346	£2.00	£2.40
184 - SPACER WEDGE FSP-710662.A12 710662	£44.44	£53.33
185 - SPACER WEDGE HOLDER FSP-488158.A3 488158	£70.85	£85.02
186 - CHEESE HEAD SCREW M6 X 14 FSP-209354.A12 209354	£2.00	£2.40
187 - SPACER WEDGE HOLDER FSP-445926.A14 445926	£16.90	£20.28
188 - FLANGE BUSHING FSP-447555.A7 447555	£2.00	£2.40
190 - BOLT FSP-447358.A0 447358	£2.48	£2.97
191 - CONNECTING ROD FSP-446528.A10 446528	£2.00	£2.40
192 - WASHER FSP-447702.A12 447702	£2.00	£2.40
193 - SNAP RING FSP-200615.A12 200615	£2.00	£2.40
194 - PRESSURE CLAMPING ELEMENT FSP-400287.A35 400287	£4.89	£5.87
202 - STOP PROFILE CS 70 FSP-448141.A22 448141	£31.42	£37.71
203 - PROFILE CS 70 FSP-465708.A23 465708	£33.70	£40.44
204 - CLAMPING PLATE FSP-10023711.A19 10023711	£4.44	£5.33
205 - SWIVELING SEGMENT FSP-448014.A24 448014	£34.26	£41.11
206 - SCALE FSP-488156.A34 488156	£25.04	£30.05
207 - RAISED-HEAD SCREW M4 X 6 FSP-400348.A22 400348	£2.00	£2.40
208 - FLAT HEAD SCREW FSP-448065.A24 448065	£3.81	£4.57
209 - WASHER FSP-448471.A22 448471	£3.62	£4.34
210 - ROTARY KNOB FSP-487755.A26 487755	£9.03	£10.84
211 - ROTARY KNOB M6 FSP-486202.A2 486202	£2.88	£3.45
212 - FLAT HEAD SCREW M4 X 8 FSP-219043.A38 219043	£2.00	£2.40
213 - KNOB FSP-449836.A1 449836	£2.00	£2.40
214 - CHEESE HEAD SCREW M6 X 12 FSP-200684.A31 200684	£2.00	£2.40
215 - SUPPORT FSP-489181.A1 489181	£30.82	£36.99
216 - PRESSURE SPRING FSP-444754.A63 444754	£2.00	£2.40
217 - PIN FSP-449837.A7 449837	£3.93	£4.72
218 - SLEEVE FSP-400288.A0 400288	£2.00	£2.40
219 - ROUND-HEAD SCREW M6 X 40 FSP-228534.A29 228534	£2.00	£2.40
220 - SPACER BUSH FSP-448066.A17 448066	£9.59	£11.51
221 - CLAMPING ELEMENT FSP-488433.A1 488433	£43.88	£52.66
222 - CLAMP SUPPORT FSP-10031568.A20 10031568	£14.60	£17.52
223 - GRIP FSP-487893.A18 487893	£7.24	£8.69
224 - SLEEVE 6 X 36 MM FSP-400289.A18 400289	£2.00	£2.40
225 - PRESSURE SPRING FSP-448064.A18 448064	£2.00	£2.40
226 - ROTARY KNOB M6 FSP-483350.A34 483350	£6.30	£7.56
227 - HOSE 27 X 2 M FSP-459250.A24 459250	£38.39	£46.07
228 - HOSE 36 X 1.5 M FSP-459251.A0 459251	£38.39	£46.07
229 - Y-PIECE FSP-450575.A20 450575	£25.45	£30.54
230 - ROLLER FSP-488868.A14 488868	£44.02	£52.82
231 - ROLLER FSP-488867.A3 488867	£41.96	£50.35
232 - CYLINDER ROLLER FSP-488870.A18 488870	£31.50	£37.80
233 - CAR FRONT FSP-497195.A16 497195	£65.54	£78.65
234 - CHEESE HEAD SCREW M6 X 40 FSP-228653.A15 228653	£2.00	£2.40
235 - RAISED-HEAD SCREW M4 X 25 FSP-400257.A1 400257	£2.00	£2.40
236 - HEXAGON SCREW M8 X 60 FSP-400382.A6 400382	£2.00	£2.40
238 - GRIP FSP-487555.A9 487555	£7.97	£9.57
239 - SCALE FSP-446467.A12 446467	£16.05	£19.26
240 - KNOB LEVER FSP-446063.A16 446063	£7.92	£9.51
242 - DRAW SPRING FSP-447263.A20 447263	£2.00	£2.40
243 - END STOP FSP-449868.A2 449868	£7.31	£8.77
244 - GRIP FSP-449869.A15 449869	£2.00	£2.40
245 - CHEESE HEAD SCREW M5 X 18 FSP-202824.A45 202824	£2.00	£2.40
246 - ECCENTRIC NUT FSP-449928.A17 449928	£7.67	£9.20
247 - CRANK FSP-488159.A21 488159	£18.49	£22.19
248 - HEXAGON NUT M6 FSP-228541.A81 228541	£2.00	£2.40
249 - SPRING DISC FSP-200588.A26 200588	£2.00	£2.40
250 - SHIM RING FSP-400884.A29 400884	£2.00	£2.40
251 - SPINDLE FSP-488271.A4 488271	£37.69	£45.23
252 - BEARING FSP-446470.A12 446470	£4.88	£5.85
253 - WASHER FSP-446472.A5 446472	£2.87	£3.44
254 - INDICATOR FSP-446468.A12 446468	£2.00	£2.40
255 - FELT INSERT FSP-451917.A11 451917	£2.00	£2.40
256 - FELT INSERT FSP-451918.A6 451918	£2.00	£2.40
257 - STRIPPER FSP-496821.A8 496821	£19.81	£23.77
258 - LOCK WASHER FSP-447961.A3 447961	£2.00	£2.40
259 - STRIPPER FSP-496820.A9 496820	£14.02	£16.83
260 - SNAP RING FSP-200618.A18 200618	£2.00	£2.40
261 - ROLLER FSP-488869.A16 488869	£42.34	£50.81
262 - GEAR FSP-446072.A15 446072	£3.56	£4.27
263 - WASHER FSP-447702.A22 447702	£2.00	£2.40
264 - RAISED-HEAD SCREW 4.0 X 20 MM FSP-228567.A195 228567	£2.00	£2.40
265 - DRAW SPRING FSP-447263.A24 447263	£2.00	£2.40
266 - SUPPORTING BEARING FSP-465449.A25 465449	£8.81	£10.57
267 - CYLINDER PIN FSP-400260.A16 400260	£2.00	£2.40
268 - LEVER FSP-446671.A8 446671	£2.00	£2.40
269 - WASHER 4.3 MM FSP-228542.A9 228542	£2.00	£2.40
270 - FLANGE FSP-488147.A15 488147	£28.07	£33.68
271 - SUPPORT FSP-497196.A14 497196	£45.40	£54.48
272 - HEXAGON NUT M8 FSP-200719.A142 200719	£2.00	£2.40
273 - WASHER 8.4 MM FSP-228601.A48 228601	£2.00	£2.40
274 - WORKPIECE HOLDER FSP-450199.A25 450199	£6.29	£7.55
275 - CLAMP FSP-450158.A16 450158	£2.00	£2.40
276 - SAFETY DEVICE FSP-492132.A19 492132	£28.82	£34.59

Attribute Name	Value
Brand	Festool

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Festool CS 70 EB / 487487 Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Festool CS 70 EB / 487487 Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Festool CS 70 EB / 487487 Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
