Festool CS 70 E 230V / 500695 Spare Parts

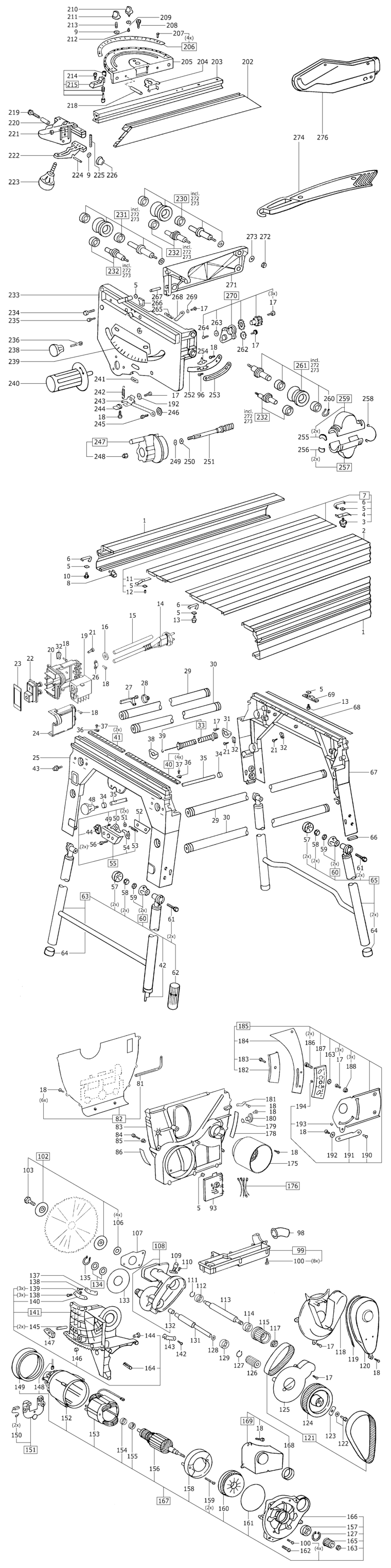

An exploded diagram and spare parts listing for the Festool CS 70 E 230V / 500695

	Ex VAT	Inc VAT
1 - CORNER PROFILE FSP-445867.A13 445867	£64.76	£77.71
2 - FLAT PROFILE FSP-445866.A4 445866	£93.68	£112.41
3 - ROTARY KNOB FSP-482110.A23 482110	£2.32	£2.78
4 - CLAMPING SUPPORT FSP-448234.A6 448234	£4.13	£4.96
5 - SQUARE NUT M6 FSP-228566.A25 228566	£2.00	£2.40
6 - SPRING FSP-447262.A9 447262	£2.00	£2.40
7 - TABLE TOP INSERT FSP-488160.A11 488160	£70.28	£84.34
8 - CLAMP FSP-449080.A7 449080	£2.00	£2.40
9 - WASHER 6.4 MM FSP-228546.A133 228546	£2.00	£2.40
10 - SCREW M6 X 12 FSP-450682.A13 450682	£2.00	£2.40
11 - PLATE SPRING FSP-448233.A11 448233	£2.00	£2.40
12 - THREADED PIN M6 X 10 FSP-772405.A19 772405	£2.00	£2.40
13 - SCREW M6 X 12 FSP-449888.A19 449888	£2.00	£2.40
14 - CABLE WITH PLUG GB 240V FSP-706793.A0 706793	£50.70	£60.84
14 - CABLE WITH PLUG EU FSP-706789.A1 706789	£50.70	£60.84
15 - TRAILING CABLE FSP-706785.A0 706785	£23.19	£27.83
16 - RUBBER RING FSP-458613.A8 458613	£2.00	£2.40
17 - RAISED-HEAD SCREW M4 X 16 FSP-219075.A20 219075	£2.00	£2.40
18 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-228584.A170 228584	£2.00	£2.40
19 - SWITCH FSP-705171.A6 705171	£49.05	£58.86
20 - SWITCHING HOUSING FSP-703148.A6 703148	£39.50	£47.40
21 - RAISED-HEAD SCREW M4 X 12 FSP-228509.A10 228509	£2.00	£2.40
22 - PUSHER FSP-500631.A3 500631	£30.91	£37.09
23 - GASKET FSP-447768.A1 447768	£2.00	£2.40
24 - SWITCH COVER FSP-703149.A1 703149	£26.68	£32.02
25 - PORTAL FSP-462419.A5 462419	£137.92	£165.51
26 - CABLE CLAMP FSP-439288.A7 439288	£2.00	£2.40
27 - CABLE HOLDER FSP-449273.A14 449273	£2.71	£3.25
28 - CLIP FSP-400428.A6 400428	£3.56	£4.27
29 - PIPE FSP-459286.A3 459286	£55.66	£66.79
30 - AXLE TUBE FSP-459287.A11 459287	£53.54	£64.25
31 - BEARING SHEET FSP-448236.A6 448236	£2.00	£2.40
32 - CLIP FSP-458614.A19 458614	£2.00	£2.40
33 - SHOCK ABSORBER FSP-488139.A13 488139	£39.74	£47.69
34 - BUFFER FSP-447528.A12 447528	£2.00	£2.40
35 - PULL ROD FSP-487568.A5 487568	£50.70	£60.84
36 - SHEET METAL NUT FSP-448477.A5 448477	£2.00	£2.40
37 - RAISED-HEAD SCREW 2.5 X 8 MM FSP-400444.A13 400444	£2.00	£2.40
38 - BEARING SHEET FSP-448236.A7 448236	£2.00	£2.40
39 - WASHER FSP-222490.A15 222490	£2.00	£2.40
40 - SCALE FSP-488138.A4 488138	£19.35	£23.22
41 - SCALE FSP-488137.A13 488137	£15.60	£18.72
42 - ADJUSTMENT FSP-448178.A4 448178	£2.00	£2.40
43 - SCREW M8 X 25 FSP-450683.A6 450683	£2.00	£2.40
44 - GRIP FSP-446974.A13 446974	£2.00	£2.40
46 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-228663.A79 228663	£2.00	£2.40
48 - GRIP FSP-487569.A9 487569	£12.60	£15.12
49 - PRESSURE CLAMPING ELEMENT FSP-400286.A23 400286	£4.56	£5.47
50 - LEVER FSP-446669.A12 446669	£3.78	£4.53
51 - SLEEVE FSP-449122.A12 449122	£2.00	£2.40
52 - HOLDING PLATE FSP-447789.A0 447789	£7.02	£8.43
53 - DRAW SPRING FSP-447263.A34 447263	£2.00	£2.40
54 - DETENT LEVER FSP-702066.A5 702066	£5.68	£6.82
55 - GUIDE FSP-488140.A4 488140	£34.68	£41.61
56 - CHEESE HEAD SCREW M6 X 25 FSP-200128.A9 200128	£2.00	£2.40
57 - UPPER SECTION OF PISTOL FSP-447534.A6 447534	£2.00	£2.40
58 - HEXAGON NUT M8 FSP-200735.A17 200735	£2.00	£2.40
59 - HEXAGON NUT M8 FSP-200719.A116 200719	£2.00	£2.40
60 - LOWER SECTION OF PISTOL FSP-488523.A25 488523	£2.00	£2.40
61 - HEXAGON SCREW M8 X 75 FSP-400309.A4 400309	£2.00	£2.40
62 - FOOT FSP-465883.A29 465883	£13.48	£16.18
63 - FOLDAWAY LEG FSP-499888.A6 499888	£79.78	£95.74
64 - RUBBER FOOT FSP-465163.A54 465163	£3.12	£3.75
64 - RUBBER FOOT FSP-465163.A55 465163	£3.12	£3.75
65 - FOLDAWAY LEG FSP-499889.A0 499889	£72.20	£86.64
66 - RUBBER FOOT (4 PCS.) FSP-492255.A24 492255	£17.98	£21.57
67 - PORTAL FSP-462420.A7 462420	£137.92	£165.51
68 - STICKER FSP-448251.A13 448251	£7.37	£8.84
69 - STOP FSP-448118.A12 448118	£2.00	£2.40
81 - PIN KEY FSP-450935.A1 450935	£2.00	£2.40
82 - COVER FSP-488152.A2 488152	£49.29	£59.15
83 - PROTECTIVE COVER FSP-460737.A8 460737	£32.74	£39.29
84 - CHEESE HEAD SCREW M6 X 20 FSP-228612.A13 228612	£2.00	£2.40
85 - FLANGE BUSHING FSP-449159.A5 449159	£3.44	£4.13
86 - SPLINTER GUARD FSP-448695.A5 448695	£2.00	£2.40
93 - ELECTRONIC 230 V FSP-488262.A0 488262	£117.06	£140.47
96 - RAISED-HEAD SCREW 3.5 X 10 MM FSP-219031.A271 219031	£2.00	£2.40
98 - EXTRACTOR CONNECTOR FSP-446588.A14 446588	£2.66	£3.19
99 - COVER FSP-490424.A1 490424	£40.03	£48.04
100 - RAISED-HEAD SCREW 3.5 X 25 MM FSP-219068.A33 219068	£2.00	£2.40
102 - CLAMPING FLANGE FSP-488151.A14 488151	£60.72	£72.86
103 - FLANGE BOLT M8 X 15 FSP-446370.A0 446370	£9.99	£11.99
106 - SPRING WASHER FSP-444235.A21 444235	£2.00	£2.40
107 - GLIDE PLATE FSP-450055.A12 450055	£4.02	£4.82
108 - ROCKER FSP-488149.A14 488149	£109.49	£131.39
109 - SPINDLE STOP FSP-488150.A3 488150	£24.08	£28.90
110 - RAISED-HEAD SCREW M4 X 10 FSP-228582.A2 228582	£2.00	£2.40
111 - CIRCLIP FSP-219855.A2 219855	£2.00	£2.40
112 - BALL BEARING FSP-789595.A2 789595	£8.79	£10.55
113 - SHAFT FSP-202845.A9 202845	£45.81	£54.97
114 - BALL BEARING FSP-400467.A18 400467	£22.55	£27.06
115 - TOOTHED BELT WHEEL FSP-445880.A4 445880	£37.13	£44.56
117 - NUT M10 FSP-451484.A17 451484	£2.00	£2.40
118 - AIR DUCT FSP-446473.A11 446473	£7.99	£9.59
119 - FELT STRIPE FSP-447962.A15 447962	£2.00	£2.40
120 - MOTOR COVER FSP-446469.A8 446469	£8.18	£9.81
121 - TOOTHED BELT FSP-488135.A13 488135	£46.72	£56.07
122 - SCREW FSP-401165.A26 401165	£2.00	£2.40
123 - DRIVING WASHER FSP-446937.A4 446937	£2.00	£2.40
124 - TOOTHED BELT WHEEL FSP-445878.A13 445878	£36.32	£43.59
125 - COVER FSP-447710.A6 447710	£6.64	£7.97
126 - GEAR FSP-491936.A15 491936	£31.83	£38.20
127 - SNAP RING FSP-771483.A6 771483	£2.00	£2.40
128 - WASHER FSP-449203.A8 449203	£2.00	£2.40
129 - BALL BEARING FSP-789775.A43 789775	£9.65	£11.58
131 - SHAFT FSP-202846.A8 202846	£41.41	£49.69
132 - NEEDLE BUSHING FSP-400254.A15 400254	£7.99	£9.59
133 - WASHER FSP-446474.A6 446474	£7.63	£9.16
134 - COMPENSATING WASHER FSP-488465.A8 488465	£12.99	£15.59
135 - SNAP RING FSP-200414.A11 200414	£2.00	£2.40
137 - SUPPORT PLATE FSP-446704.A4 446704	£7.99	£9.59
138 - CHEESE HEAD SCREW M5 X 18 FSP-202824.A17 202824	£2.00	£2.40
139 - HEXAGON NUT M5 FSP-200717.A22 200717	£2.00	£2.40
140 - BOARD SEGMENT FSP-446147.A13 446147	£6.55	£7.86
141 - SWIVELING SEGMENT FSP-488148.A4 488148	£95.98	£115.17
142 - RAISED-HEAD SCREW M4 X 16 FSP-219075.A24 219075	£2.00	£2.40
143 - TOOTH SEGMENT FSP-202847.A9 202847	£8.68	£10.42
144 - DU FLANGE BUSHING FSP-400253.A4 400253	£2.00	£2.40
145 - CYLINDER PIN FSP-400097.A1 400097	£2.00	£2.40
146 - DU FLANGE BUSHING FSP-400253.A3 400253	£2.00	£2.40
147 - CONNECTING MEMBER FSP-446146.A4 446146	£2.00	£2.40
148 - SPEED INDICATOR FSP-487467.A2 487467	£7.99	£9.59
149 - SEALING RING FSP-447750.A15 447750	£4.48	£5.38
150 - BRUSH (PAIR) 230V FSP-488134.A4 488134	£38.81	£46.57
151 - BRUSH HOLDER (PAIR) 230V FSP-488136.A4 488136	£42.10	£50.52
152 - MOTOR HOUSING FSP-446309.A13 446309	£17.97	£21.56
153 - FIELD ASSEMBLY 230 V FSP-493503.A6 493503	£77.86	£93.43
154 - BEARING RING FSP-438613.A75 438613	£2.00	£2.40
155 - BALL BEARING FSP-228559.A20 228559	£4.06	£4.87
156 - ARMATURE 230 V FSP-493504.A8 493504	£166.02	£199.23
157 - BALL BEARING FSP-219021.A26 219021	£11.22	£13.46
158 - AIR GUIDE WASHER FSP-469886.A15 469886	£2.00	£2.40
159 - RAISED-HEAD SCREW 5.0 X 80 MM FSP-400264.A4 400264	£2.00	£2.40
160 - FAN FSP-486880.A4 486880	£6.90	£8.28
161 - O-RING FSP-400488.A15 400488	£2.00	£2.40
162 - RAISED-HEAD SCREW M5 X 40 FSP-400255.A2 400255	£2.00	£2.40
163 - HEXAGON NUT M8 FSP-200719.A120 200719	£2.00	£2.40
164 - CLAMPING SLEEVE FSP-400259.A2 400259	£2.00	£2.40
165 - TOOTHED BELT WHEEL FSP-445877.A4 445877	£16.48	£19.77
166 - MOTOR FLANGE FSP-451454.A2 451454	£43.88	£52.66
167 - MOTOR 230 V FSP-488153.A10 488153	£341.10	£409.32
168 - LIP RING FSP-447968.A6 447968	£2.00	£2.40
169 - HOUSING FSP-488154.A2 488154	£21.42	£25.71
175 - PROTECTIVE CAP FSP-459077.A4 459077	£3.88	£4.65
176 - SET OF FLEXIBLE LEADS FSP-488440.A9 488440	£27.41	£32.89
178 - SPLINTER GUARD FSP-448694.A14 448694	£3.00	£3.60
179 - SEALING RING FSP-400271.A3 400271	£2.00	£2.40
180 - PLUG FSP-447770.A5 447770	£2.00	£2.40
181 - CABLE CLAMP FSP-431899.A61 431899	£2.00	£2.40
182 - SPACER WEDGE PLATE FSP-445927.A14 445927	£6.30	£7.56
183 - CHEESE HEAD SCREW M8 X 16 FSP-774346.A23 774346	£2.00	£2.40
184 - SPACER WEDGE FSP-710662.A1 710662	£44.44	£53.33
185 - SPACER WEDGE HOLDER FSP-488158.A9 488158	£70.85	£85.02
186 - CHEESE HEAD SCREW M6 X 14 FSP-209354.A3 209354	£2.00	£2.40
187 - SPACER WEDGE HOLDER FSP-445926.A3 445926	£16.90	£20.28
188 - FLANGE BUSHING FSP-447555.A14 447555	£2.00	£2.40
190 - BOLT FSP-447358.A14 447358	£2.48	£2.97
191 - CONNECTING ROD FSP-446528.A6 446528	£2.00	£2.40
192 - WASHER FSP-447702.A32 447702	£2.00	£2.40
193 - SNAP RING FSP-200615.A6 200615	£2.00	£2.40
194 - PRESSURE CLAMPING ELEMENT FSP-400287.A3 400287	£4.89	£5.87
202 - STOP PROFILE CS 70 FSP-448141.A10 448141	£31.42	£37.71
203 - PROFILE CS 70 FSP-465708.A6 465708	£33.70	£40.44
204 - CLAMPING PLATE FSP-10023711.A38 10023711	£4.44	£5.33
205 - SWIVELING SEGMENT FSP-448014.A19 448014	£34.26	£41.11
206 - SCALE FSP-488156.A7 488156	£25.04	£30.05
207 - RAISED-HEAD SCREW M4 X 6 FSP-400348.A6 400348	£2.00	£2.40
208 - FLAT HEAD SCREW FSP-448065.A19 448065	£3.81	£4.57
209 - WASHER FSP-448471.A7 448471	£3.62	£4.34
210 - ROTARY KNOB FSP-487755.A7 487755	£9.03	£10.84
211 - ROTARY KNOB FSP-440713.A99 440713	£2.64	£3.17
212 - FLAT HEAD SCREW M4 X 8 FSP-219043.A8 219043	£2.00	£2.40
213 - STUD SCREW FSP-464525.A35 464525	£2.00	£2.40
214 - CHEESE HEAD SCREW M6 X 12 FSP-200684.A35 200684	£2.00	£2.40
215 - SUPPORT FSP-489181.A21 489181	£30.82	£36.99
218 - SLEEVE 5 X 12 MM FSP-228692.A36 228692	£2.00	£2.40
219 - ROUND-HEAD SCREW M6 X 40 FSP-228534.A7 228534	£2.00	£2.40
220 - SPACER BUSH FSP-448066.A22 448066	£9.59	£11.51
221 - CLAMPING ELEMENT FSP-488433.A26 488433	£43.88	£52.66
222 - CLAMP SUPPORT FSP-10031568.A5 10031568	£14.60	£17.52
223 - GRIP FSP-487893.A2 487893	£7.24	£8.69
224 - SLEEVE 6 X 36 MM FSP-400289.A2 400289	£2.00	£2.40
225 - PRESSURE SPRING FSP-448064.A25 448064	£2.00	£2.40
226 - ROTARY KNOB M6 FSP-483350.A15 483350	£6.30	£7.56
230 - ROLLER FSP-488868.A3 488868	£44.02	£52.82
231 - ROLLER FSP-488867.A13 488867	£41.96	£50.35
232 - CYLINDER ROLLER FSP-488870.A8 488870	£31.50	£37.80
233 - CAR FRONT FSP-497195.A8 497195	£65.54	£78.65
234 - CHEESE HEAD SCREW M6 X 40 FSP-228653.A6 228653	£2.00	£2.40
235 - RAISED-HEAD SCREW M4 X 25 FSP-400257.A43 400257	£2.00	£2.40
236 - HEXAGON SCREW M8 X 60 FSP-400382.A19 400382	£2.00	£2.40
238 - GRIP FSP-487555.A23 487555	£7.97	£9.57
239 - SCALE FSP-446467.A6 446467	£16.05	£19.26
240 - KNOB LEVER FSP-446063.A3 446063	£7.92	£9.51
241 - STICKER FSP-447577.A2 447577	£2.00	£2.40
242 - DRAW SPRING FSP-447263.A40 447263	£2.00	£2.40
243 - END STOP FSP-449868.A15 449868	£7.31	£8.77
244 - GRIP FSP-449869.A2 449869	£2.00	£2.40
245 - CHEESE HEAD SCREW M5 X 18 FSP-202824.A18 202824	£2.00	£2.40
246 - ECCENTRIC NUT FSP-449928.A1 449928	£7.67	£9.20
247 - CRANK FSP-488159.A8 488159	£18.49	£22.19
248 - HEXAGON NUT M6 FSP-228541.A45 228541	£2.00	£2.40
249 - SPRING DISC FSP-200588.A35 200588	£2.00	£2.40
250 - SHIM RING FSP-400884.A23 400884	£2.00	£2.40
251 - SPINDLE FSP-488271.A9 488271	£37.69	£45.23
252 - BEARING FSP-446470.A16 446470	£4.88	£5.85
253 - WASHER FSP-446472.A1 446472	£2.87	£3.44
254 - INDICATOR FSP-446468.A15 446468	£2.00	£2.40
255 - FELT INSERT FSP-451917.A15 451917	£2.00	£2.40
256 - FELT INSERT FSP-451918.A2 451918	£2.00	£2.40
257 - STRIPPER FSP-496821.A2 496821	£19.81	£23.77
258 - LOCK WASHER FSP-447961.A7 447961	£2.00	£2.40
259 - STRIPPER FSP-496820.A15 496820	£14.02	£16.83
260 - SNAP RING FSP-200618.A15 200618	£2.00	£2.40
261 - ROLLER FSP-488869.A8 488869	£42.34	£50.81
262 - GEAR FSP-446072.A10 446072	£3.56	£4.27
263 - WASHER FSP-447702.A35 447702	£2.00	£2.40
264 - RAISED-HEAD SCREW 4.0 X 20 MM FSP-228567.A137 228567	£2.00	£2.40
265 - DRAW SPRING FSP-447263.A42 447263	£2.00	£2.40
266 - SUPPORTING BEARING FSP-465449.A16 465449	£8.81	£10.57
267 - CYLINDER PIN FSP-400260.A10 400260	£2.00	£2.40
268 - LEVER FSP-446671.A0 446671	£2.00	£2.40
269 - WASHER 4.3 MM FSP-228542.A18 228542	£2.00	£2.40
270 - FLANGE FSP-488147.A10 488147	£28.07	£33.68
271 - SUPPORT FSP-497196.A17 497196	£45.40	£54.48
272 - HEXAGON NUT M8 FSP-200719.A88 200719	£2.00	£2.40
273 - WASHER 8.4 MM FSP-228601.A33 228601	£2.00	£2.40
274 - WORKPIECE HOLDER FSP-450199.A24 450199	£6.29	£7.55
276 - SAFETY DEVICE FSP-492132.A12 492132	£28.82	£34.59

Attribute Name	Value
Brand	Festool

There are currently no reviews of this product.

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (1) £9.12

Festool CS 70 E 230V / 500695 Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (1) £9.12

Information

Festool CS 70 E 230V / 500695 Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
