Festool CS 50 EG GB 110V / 201431 Spare Parts

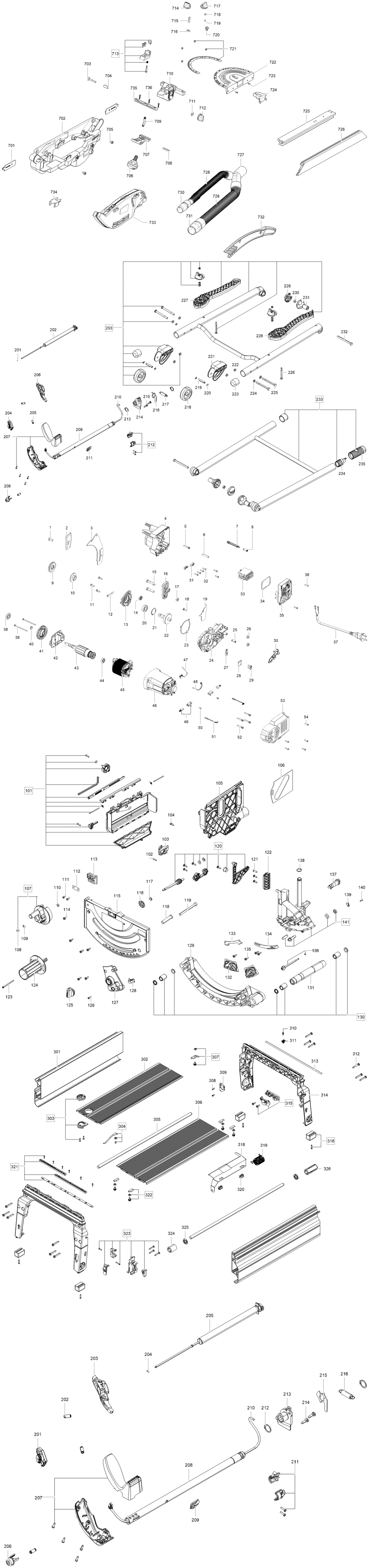

An exploded diagram and spare parts listing for the Festool CS 50 EG GB 110V / 201431

	Ex VAT	Inc VAT
1 - CHEESE HEAD SCREW M8 X 16 FSP-774346.A6 774346	£2.00	£2.40
2 - SPACER WEDGE PLATE FSP-463751.A5 463751	£2.82	£3.38
3 - SPACER WEDGE FSP-10023701.A0 10023701	£40.21	£48.25
4 - HOUSING FSP-470102.A3 470102	£11.63	£13.96
5 - SCREW FSP-401038.A13 401038	£2.00	£2.40
6 - CONTACT SPRING FSP-469925.A0 469925	£2.00	£2.40
7 - TAPPET FSP-463934.A1 463934	£2.00	£2.40
8 - PRESSURE SPRING FSP-463590.A13 463590	£2.00	£2.40
9 - CLAMPING NUT FSP-465326.A0 465326	£48.12	£57.74
10 - FLANGE FSP-463195.A8 463195	£7.68	£9.21
11 - SCREW FSP-400709.A42 400709	£2.00	£2.40
12 - CONTACT SPRING FSP-466698.A3 466698	£2.00	£2.40
13 - GEAR COVER FSP-202487.A1 202487	£31.36	£37.63
14 - BALL BEARING FSP-401518.A10 401518	£8.12	£9.74
15 - CHEESE HEAD SCREW FSP-400735.A3 400735	£2.00	£2.40
16 - SPACER WEDGE HOLDER FSP-492010.A9 492010	£19.45	£23.34
17 - HEXAGON NUT M8 FSP-200719.A44 200719	£2.00	£2.40
18 - SCREW FSP-400709.A43 400709	£2.00	£2.40
19 - PROTECTIVE PLATE FSP-10023706.A0 10023706	£3.12	£3.75
20 - BALL BEARING FSP-789595.A30 789595	£8.79	£10.55
21 - SNAP RING FSP-401246.A21 401246	£2.00	£2.40
22 - GEAR SHAFT FSP-465606.A5 465606	£53.77	£64.52
23 - GASKET FSP-463990.A1 463990	£2.00	£2.40
24 - GEAR HOUSING FSP-492321.A4 492321	£75.03	£90.04
25 - PRESSURE SPRING FSP-463590.A12 463590	£2.00	£2.40
26 - HEXAGON NUT M8 FSP-200719.A43 200719	£2.00	£2.40
27 - ADJUSTMENT BRACKET FSP-492307.A5 492307	£16.90	£20.28
28 - GLIDE PLATE FSP-463197.A1 463197	£2.00	£2.40
29 - SCREW FSP-400709.A41 400709	£2.00	£2.40
30 - LEVER FSP-470064.A4 470064	£2.00	£2.40
31 - CABLE CLAMP FSP-761618.A33 761618	£2.00	£2.40
32 - RAISED-HEAD SCREW 4.0 X 16 MM FSP-228713.A119 228713	£2.00	£2.40
33 - PROTECT SWITCH 120V FSP-465225.A1 465225	£34.39	£41.27
34 - GASKET FSP-463933.A8 463933	£2.00	£2.40
35 - ELECTRONIC FSP-493627.A0 493627	£115.32	£138.39
36 - RAISED-HEAD SCREW 4.0 X 16 MM FSP-228713.A118 228713	£2.00	£2.40
37 - CABLE WITH PLUG GB 110V FSP-465232.A1 465232	£22.70	£27.24
38 - BALL BEARING FSP-401576.A27 401576	£7.86	£9.43
39 - RAISED-HEAD SCREW 4.0 X 70 MM FSP-442415.A45 442415	£2.00	£2.40
40 - SNAP RING FSP-200619.A43 200619	£2.00	£2.40
41 - FAN FSP-463280.A4 463280	£4.41	£5.29
42 - AIR DUCT FSP-463512.A9 463512	£2.66	£3.19
43 - ARMATURE 120V FSP-492290.A0 492290	£108.95	£130.74
44 - BALL BEARING FSP-400626.A7 400626	£5.98	£7.18
45 - FIELD ASSEMBLY 110 - 120V FSP-491745.A0 491745	£58.13	£69.76
46 - MOTOR HOUSING FSP-463199.A8 463199	£12.54	£15.05
47 - SPEED INDICATOR FSP-493567.A3 493567	£18.18	£21.81
48 - PTC RESISTOR FSP-491722.A12 491722	£20.22	£24.26
49 - BRUSH (PAIR) 100-120V FSP-492014.A0 492014	£17.85	£21.42
50 - RAISED-HEAD SCREW 3.5 X 8 MM FSP-219047.A94 219047	£2.00	£2.40
51 - SET OF FLEXIBLE LEADS 110V USA FSP-491727.A2 491727	£20.72	£24.86
52 - SCREW FSP-401038.A12 401038	£2.00	£2.40
53 - HOUSING COVER FSP-463200.A1 463200	£8.62	£10.34
54 - RAISED-HEAD SCREW 4.0 X 16 MM FSP-228713.A121 228713	£2.00	£2.40
101 - FLAP FSP-10030844.A2 10030844	£37.00	£44.40
102 - RAISED-HEAD SCREW 4.0 X 16 MM FSP-228713.A120 228713	£2.00	£2.40
103 - SLIDE FSP-463350.A1 463350	£3.19	£3.83
104 - SCREW FSP-400709.A40 400709	£2.00	£2.40
105 - HOOD FSP-10023702.A3 10023702	£15.85	£19.02
106 - PROTECTION FSP-463300.A0 463300	£2.00	£2.40
107 - CRANK FSP-488159.A15 488159	£18.49	£22.19
108 - HEXAGON NUT M6 FSP-228541.A20 228541	£2.00	£2.40
109 - WASHER 6.4 MM FSP-200578.A49 200578	£2.00	£2.40
110 - WASHER FSP-447790.A0 447790	£2.00	£2.40
111 - RAISED-HEAD SCREW M4 X 14 FSP-445566.A3 445566	£2.00	£2.40
112 - SHEET METAL FSP-463299.A9 463299	£2.00	£2.40
113 - SUPPORTING BEARING FSP-465449.A5 465449	£8.81	£10.57
114 - SCREW FSP-400709.A38 400709	£2.00	£2.40
115 - SCREEN FSP-10023855.A1 10023855	£25.20	£30.24
116 - GEAR FSP-463179.A4 463179	£6.75	£8.10
117 - WASHER 8.4 MM FSP-200579.A16 200579	£2.00	£2.40
118 - SLEEVE FSP-463400.A0 463400	£9.86	£11.83
119 - HEXAGON SCREW M8 X 110 FSP-400734.A9 400734	£2.00	£2.40
120 - DEPTH ADJUSTER FSP-492253.A3 492253	£33.57	£40.28
121 - SCREW FSP-400709.A39 400709	£2.00	£2.40
122 - GUIDE RAIL FSP-463189.A6 463189	£2.00	£2.40
123 - RAISED-HEAD SCREW 4.0 X 70 MM FSP-442415.A46 442415	£2.00	£2.40
124 - KNOB LEVER FSP-463178.A5 463178	£11.18	£13.42
125 - ROTARY KNOB M8 FSP-483162.A14 483162	£5.30	£6.36
126 - RAISED-HEAD SCREW 4.0 X 16 MM FSP-228713.A122 228713	£2.00	£2.40
127 - COVER FSP-491925.A4 491925	£8.05	£9.66
128 - INDICATOR FSP-463181.A3 463181	£2.00	£2.40
129 - SUPPORT FSP-202485.A1 202485	£84.30	£101.16
130 - BEARING SLEEVE FSP-492251.A6 492251	£66.90	£80.28
131 - GUIDE TUBE FSP-202486.A8 202486	£39.50	£47.40
132 - NUTENSTEIN FSP-463176.A4 463176	£2.00	£2.40
133 - CLAMPING PLATE FSP-463251.A9 463251	£2.00	£2.40
134 - END STOP FSP-463281.A5 463281	£4.06	£4.87
135 - SCREW FSP-400709.A36 400709	£2.00	£2.40
136 - PUSHER FSP-492248.A4 492248	£23.65	£28.38
137 - CLOSURE FSP-463725.A4 463725	£3.07	£3.68
138 - SNAP RING FSP-400788.A1 400788	£2.00	£2.40
139 - CLIP FSP-458614.A3 458614	£2.00	£2.40
140 - RAISED-HEAD SCREW 4.0 X 12 MM FSP-400691.A6 400691	£2.00	£2.40
141 - SWIVELING SEGMENT FSP-492322.A5 492322	£91.53	£109.84
201 - WASHER FSP-222490.A11 222490	£2.00	£2.40
202 - SHOCK ABSORBER FSP-491760.A5 491760	£35.90	£43.08
203 - LEG FSP-10030845.A1 10030845	£92.23	£110.68
204 - SWITCH MODUL FSP-492274.A5 492274	£49.05	£58.86
205 - PRESSURE SPRING FSP-463590.A14 463590	£2.00	£2.40
206 - SWITCH MECHANISM FSP-492117.A7 492117	£6.46	£7.75
207 - GRIP FSP-492250.A3 492250	£17.12	£20.55
208 - BUTTON FSP-463673.A6 463673	£2.00	£2.40
209 - PIPE FSP-10023867.A2 10023867	£46.72	£56.07
210 - TRAILING CABLE FSP-10176889.A2 10176889	£41.70	£50.04
211 - CONNECTING MEMBER FSP-463918.A1 463918	£15.44	£18.53
212 - CLAMPING FSP-204745.A1 204745	£7.62	£9.14
213 - SNAP RING FSP-200352.A6 200352	£2.00	£2.40
214 - FLANGE FSP-463260.A0 463260	£4.62	£5.54
215 - SCREW FSP-400709.A37 400709	£2.00	£2.40
216 - SHEET METAL FSP-464030.A8 464030	£2.00	£2.40
217 - DRAW SPRING FSP-464031.A1 464031	£3.16	£3.79
218 - WHEEL FSP-766488.A2 766488	£22.52	£27.02
219 - BOLT FSP-10024062.A3 10024062	£2.00	£2.40
220 - SNAP RING FSP-615477.A5 615477	£2.00	£2.40
221 - HOLDER FSP-10024831.A2 10024831	£2.00	£2.40
222 - NUT M8 FSP-618497.A3 618497	£2.00	£2.40
223 - RUBBER FOOT FSP-465163.A5 465163	£3.12	£3.75
224 - WASHER 8.4 MM FSP-200579.A17 200579	£2.00	£2.40
225 - HEXAGON SCREW FSP-10029228.A1 10029228	£2.00	£2.40
226 - SCREW FSP-10023530.A6 10023530	£2.00	£2.40
227 - LEG FSP-10020001.A3 10020001	£11.05	£13.26
228 - LEG FSP-10020002.A2 10020002	£11.05	£13.26
229 - UPPER SECTION OF PISTOL FSP-447534.A32 447534	£2.00	£2.40
230 - HEXAGON NUT M8 FSP-200735.A67 200735	£2.00	£2.40
231 - LOWER SECTION OF PISTOL FSP-492148.A0 492148	£4.72	£5.66
232 - HEXAGON SCREW FSP-464713.A10 464713	£2.00	£2.40
233 - FOLDAWAY LEG FSP-10198251.A4 10198251	£75.93	£91.12
234 - ADJUSTMENT FSP-448178.A39 448178	£2.00	£2.40
235 - FOOT FSP-465883.A9 465883	£13.48	£16.18
301 - SIDE WALL FSP-463205.A0 463205	£87.80	£105.36
302 - TABLE TOP INSERT FSP-10045447.A3 10045447	£46.09	£55.31
303 - TURN LOCK FASTENER FSP-492257.A2 492257	£20.34	£24.41
304 - SPRING FSP-492259.A2 492259	£15.91	£19.09
305 - AXLE FSP-705620.A1 705620	£44.10	£52.92
306 - PLATE FSP-10007882.A1 10007882	£59.78	£71.73
307 - SPRING FSP-492258.A7 492258	£15.78	£18.93
308 - RAISED-HEAD SCREW 4.0 X 12 MM FSP-400691.A7 400691	£2.00	£2.40
309 - BEARING SHEET FSP-448236.A33 448236	£2.00	£2.40
310 - RAISED-HEAD SCREW 4.0 X 12 MM FSP-219071.A24 219071	£2.00	£2.40
311 - CLAMP SHOE FSP-467630.A5 467630	£2.00	£2.40
312 - RAISED-HEAD SCREW FSP-401137.A12 401137	£2.00	£2.40
313 - STICKER FSP-463724.A7 463724	£3.50	£4.20
314 - PORTAL FSP-10029970.A1 10029970	£76.14	£91.37
315 - CLAMPING FSP-492262.A4 492262	£16.63	£19.96
316 - RUBBER PEDAL FSP-204747.A2 204747	£32.59	£39.11
318 - RAM PROTECTION FSP-10024406.A1 10024406	£18.97	£22.76
319 - DRAW SPRING FSP-465456.A5 465456	£11.52	£13.83
320 - GUIDE FSP-10018211.A6 10018211	£2.00	£2.40
321 - SCALE FSP-492256.A7 492256	£29.84	£35.81
322 - SPRING FSP-10030842.A2 10030842	£9.04	£10.85
323 - SWITCH FSP-10030843.A1 10030843	£47.80	£57.36
324 - SLEEVE FSP-464027.A8 464027	£2.00	£2.40
325 - SHOCK ABSORBER FSP-465528.A4 465528	£2.00	£2.40
326 - SLEEVE FSP-464028.A1 464028	£2.00	£2.40
327 - SPRING WASHER FSP-832605.A0 832605	£2.00	£2.40
701 - PLATE FSP-465145.A5 465145	£2.00	£2.40
702 - BAG FSP-10032097.A0 10032097	£28.70	£34.44
703 - ROUND-HEAD SCREW M6 X 40 FSP-228534.A45 228534	£2.00	£2.40
704 - SPACER BUSH FSP-448066.A9 448066	£9.59	£11.51
705 - SCREW M6 X 12 FSP-449888.A25 449888	£2.00	£2.40
706 - GRIP FSP-487893.A33 487893	£7.24	£8.69
707 - CLAMP SUPPORT FSP-10031568.A25 10031568	£14.60	£17.52
708 - SLEEVE 6 X 36 MM FSP-400289.A29 400289	£2.00	£2.40
709 - PRESSURE SPRING FSP-448064.A9 448064	£2.00	£2.40
710 - TERMINAL FSP-204748.A2 204748	£39.55	£47.46
711 - WASHER 6.4 MM FSP-228546.A34 228546	£2.00	£2.40
712 - ROTARY KNOB M6 FSP-483350.A57 483350	£6.30	£7.56
713 - SUPPORT FSP-489181.A18 489181	£30.82	£36.99
714 - ROTARY KNOB FSP-440713.A22 440713	£2.64	£3.17
715 - STUD SCREW FSP-464525.A7 464525	£2.00	£2.40
716 - WASHER 6.4 MM FSP-228546.A35 228546	£2.00	£2.40
717 - ROTARY KNOB FSP-487755.A31 487755	£9.03	£10.84
718 - WASHER FSP-448471.A30 448471	£3.62	£4.34
719 - FLAT HEAD SCREW M4 X 8 FSP-219043.A51 219043	£2.00	£2.40
720 - FLAT HEAD SCREW FSP-448065.A32 448065	£3.81	£4.57
721 - SCALE FSP-488156.A20 488156	£25.04	£30.05
722 - SWIVELING SEGMENT FSP-448014.A29 448014	£34.26	£41.11
723 - SLEEVE 5 X 12 MM FSP-228692.A19 228692	£2.00	£2.40
724 - CLAMPING PLATE FSP-10023711.A2 10023711	£4.44	£5.33
725 - GUIDING PROFILE FSP-10023709.A2 10023709	-
726 - STOP PROFILE FSP-10023710.A5 10023710	£36.30	£43.56
727 - Y-PIECE FSP-450575.A17 450575	£25.45	£30.54
728 - HOSE 27 X 2 M FSP-459250.A12 459250	£38.39	£46.07
729 - HOSE 36 X 1.5 M FSP-459251.A12 459251	£38.39	£46.07
730 - CONNECTING SLEEVE FSP-577162.A42 577162	£16.25	£19.50
731 - REDUCING SLEEVE. ANTISTATIC FSP-452358.A20 452358	£26.08	£31.30
732 - WORKPIECE HOLDER FSP-10023700.A6 10023700	£8.48	£10.18
733 - SAFETY DEVICE FSP-10023759.A5 10023759	£43.63	£52.36
734 - CLAMP FSP-450158.A11 450158	£2.00	£2.40
735 - SLIDING GUIDE FSP-450031.A3 450031	£4.00	£4.80
736 - RAISED-HEAD SCREW 4.0 X 20 MM FSP-228567.A19 228567	£2.00	£2.40

Attribute Name	Value
Brand	Festool
