Festool Trimming attachment KA-UG-R / 497352 Spare Parts

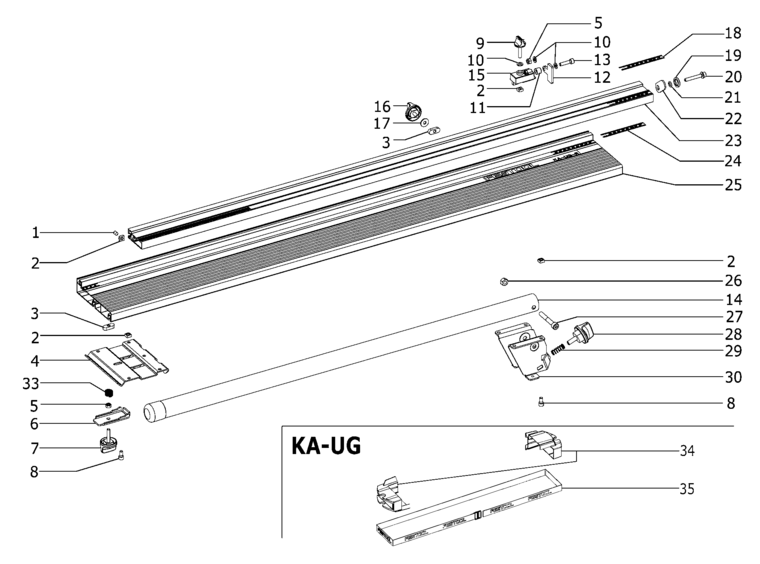

An exploded diagram and spare parts listing for the Festool Trimming attachment KA-UG-R / 497352

	Ex VAT	Inc VAT
1 - THREADED PIN M6 X 10 FSP-772440.A2 772440	£2.00	£2.40
2 - SQUARE NUT M6 FSP-228566.A35 228566	£2.00	£2.40
3 - FEATHER KEY FSP-451630.A9 451630	£4.23	£5.08
4 - SUPPORTING PLATE FSP-479734.A2 479734	£15.55	£18.66
5 - HEXAGON NUT M6 FSP-228541.A57 228541	£2.00	£2.40
6 - LUG SUPPORT FSP-10020256.A1 10020256	£15.46	£18.55
7 - ROTARY KNOB M6 FSP-486202.A27 486202	£2.88	£3.45
8 - CHEESE HEAD SCREW M6 X 12 FSP-200684.A57 200684	£2.00	£2.40
9 - ROTARY KNOB M6 X 28 FSP-436420.A17 436420	£2.00	£2.40
10 - WASHER 6.4 MM FSP-200578.A97 200578	£2.00	£2.40
11 - BUSH FSP-474741.A5 474741	£3.56	£4.27
12 - LIMIT PLATE FSP-700184.A2 700184	£3.92	£4.70
13 - CHEESE HEAD SCREW M6 X 25 FSP-400477.A9 400477	£2.00	£2.40
14 - SUPPORT FOOT FSP-498166.A1 498166	£33.85	£40.62
15 - STOP SUPPORT FSP-474734.A5 474734	£2.48	£2.97
16 - ROTARY KNOB FSP-482098.A20 482098	£2.00	£2.40
17 - WASHER 6.4 MM FSP-228546.A104 228546	£2.00	£2.40
18 - SCALE FSP-479806.A2 479806	£13.56	£16.27
19 - SPACER BUSH FSP-479755.A1 479755	£7.51	£9.01
20 - RAISED-HEAD SCREW FSP-401137.A10 401137	£2.00	£2.40
21 - O-RING FSP-200053.A2 200053	£2.00	£2.40
22 - LIMIT PLATE FSP-479738.A1 479738	£2.00	£2.40
24 - SCALE FSP-479211.A1 479211	£13.62	£16.35
25 - SUPPORT FSP-497738.A4 497738	£102.90	£123.48
26 - HEXAGON NUT M8 FSP-200735.A39 200735	£2.00	£2.40
27 - SCREW FSP-479747.A3 479747	£2.00	£2.40
28 - ROTARY KNOB FSP-484280.A2 484280	£4.72	£5.66
29 - PRESSURE SPRING FSP-471026.A7 471026	£2.00	£2.40
30 - BEARING SHEET FSP-10001420.A4 10001420	£24.95	£29.94
31 - SCALE FSP-479749.A1 479749	£13.56	£16.27
32 - SCALE FSP-479748.A3 479748	£13.62	£16.35
33 - PRESSURE SPRING FSP-207813.A10 207813	£2.00	£2.40
34 - PROTECTIVE CAP FSP-700176.A3 700176	£20.79	£24.95
35 - BELT FSP-700549.A3 700549	£22.93	£27.52
36 - WASHER 6 X 12 X 0.1 MM FSP-400643.A5 400643	£2.00	£2.40
37 - SHIM RING FSP-400884.A14 400884	£2.00	£2.40

Attribute Name	Value
Brand	Festool
