Festool KS 120 EB GB 240V / 495776 Spare Parts

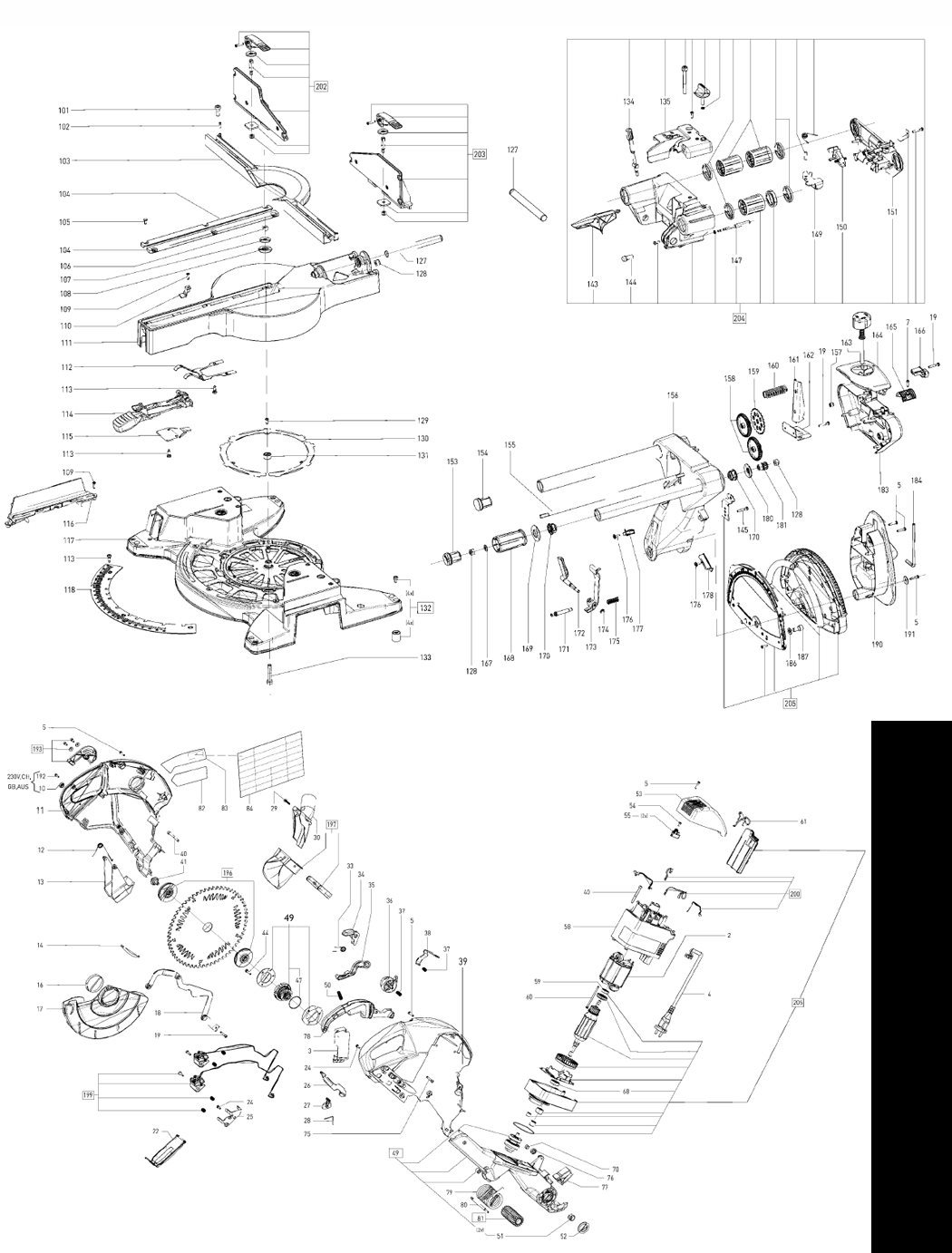

An exploded diagram and spare parts listing for the Festool KS 120 EB GB 240V / 495776

	Ex VAT	Inc VAT
2 - FIELD ASSEMBLY 120V-230V FSP-494970.A0 494970	£78.62	£94.35
3 - SWITCH MODUL FSP-204244.A0 204244	£49.05	£58.86
4 - MAINS CABLE GB 240V FSP-471528.A3 471528	£25.08	£30.09
5 - RAISED-HEAD SCREW 4.0 X 20 MM FSP-228567.A212 228567	£2.00	£2.40
7 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-400468.A16 400468	£2.00	£2.40
10 - COVER FSP-471820.A18 471820	£2.00	£2.40
11 - PISTOL STOCK FSP-10801592.A11 10801592	£24.83	£29.80
12 - LEG SPRING FSP-470772.A1 470772	£2.64	£3.17
13 - DUST EXTRACTION ATTACHMENT FSP-10037680.A9 10037680	£6.91	£8.29
14 - DRAW SPRING FSP-709050.A10 709050	£2.38	£2.86
16 - BAND FSP-473432.A17 473432	£2.00	£2.40
17 - PROTECTIVE COVER FSP-10037697.A14 10037697	£17.18	£20.61
18 - SWIVEL LEVER FSP-497504.A14 497504	£22.83	£27.40
19 - RAISED-HEAD SCREW M4 X 25 FSP-400928.A11 400928	£2.00	£2.40
22 - LENS FSP-470717.A1 470717	£2.86	£3.43
24 - RAISED-HEAD SCREW M4 X 10 FSP-228738.A59 228738	£2.00	£2.40
25 - HOLDING PLATE FSP-471209.A0 471209	£3.62	£4.35
26 - BRACKET FSP-470647.A13 470647	£2.66	£3.19
27 - CATCH FSP-473479.A16 473479	£2.00	£2.40
28 - PLATE SPRING FSP-473480.A7 473480	£2.00	£2.40
29 - RAISED-HEAD SCREW 4.0 X 25 MM FSP-400695.A73 400695	£2.00	£2.40
30 - EXTRACTOR CONNECTOR FSP-494307.A7 494307	£9.65	£11.58
31 - APRON FSP-471316.A14 471316	£8.86	£10.63
32 - CLAMP FSP-471315.A0 471315	£3.45	£4.14
33 - TORSION SPRING FSP-470762.A1 470762	£2.00	£2.40
34 - LOCK-OUT MECHANISM FSP-470646.A10 470646	£2.00	£2.40
35 - LEVER FSP-471448.A17 471448	£2.00	£2.40
36 - ROTARY KNOB FSP-470648.A10 470648	£2.00	£2.40
37 - PRESSURE SPRING FSP-470978.A11 470978	£2.00	£2.40
38 - DETENT LEVER FSP-470767.A22 470767	£8.42	£10.11
39 - PISTOL STOCK FSP-10035246.A21 10035246	£20.88	£25.06
40 - CHEESE HEAD SCREW M5 X 50 FSP-219057.A13 219057	£2.00	£2.40
41 - SPECIAL SCREW FSP-10015550.A11 10015550	£13.60	£16.32
44 - RAISED-HEAD SCREW M4 X 20 FSP-228569.A58 228569	£2.00	£2.40
47 - O-RING FSP-470760.A22 470760	£2.00	£2.40
49 - GEAR HOUSING FSP-205177.A8 205177	£164.42	£197.30
50 - PRESSURE SPRING FSP-474284.A1 474284	£2.00	£2.40
51 - BUSH FSP-400994.A48 400994	£2.00	£2.40
52 - CLAMP FSP-475620.A5 475620	£2.00	£2.40
53 - CAP FSP-470652.A13 470652	£7.95	£9.54
54 - RAISED-HEAD SCREW 3.5 X 8 MM FSP-219047.A0 219047	£2.00	£2.40
55 - BRUSH HOLDER WITH BRUSHES (PAIR) FSP-494785.A8 494785	£25.96	£31.15
58 - MOTOR HOUSING FSP-470650.A10 470650	£18.95	£22.74
59 - BALL BEARING FSP-401525.A17 401525	£4.72	£5.66
60 - RAISED-HEAD SCREW 4.0 X 70 MM FSP-442415.A26 442415	£2.00	£2.40
61 - PUSHER FSP-470649.A6 470649	£2.00	£2.40
68 - BALL BEARING FSP-789575.A54 789575	£5.99	£7.19
70 - BEARING SLEEVE FSP-478302.A12 478302	£2.88	£3.46
75 - RAISED-HEAD SCREW 3.5 X 12 MM FSP-454296.A2 454296	£2.00	£2.40
76 - ROLLER FSP-10018118.A21 10018118	£5.00	£6.00
77 - BUFFER FSP-470776.A1 470776	£2.00	£2.40
78 - PUSHER FSP-470645.A13 470645	£5.17	£6.20
79 - LEG SPRING FSP-10009631.A18 10009631	-
80 - BOLT FSP-471428.A6 471428	£3.45	£4.14
81 - DISTANCE BUSH FSP-200001.A18 200001	£23.21	£27.85
82 - LABEL 230V. CH. GB. AUS FSP-471450.A2 471450	£2.98	£3.58
83 - LABEL FSP-706973.A0 706973	£4.92	£5.91
84 - WARNING PLATE FSP-706974.A13 706974	£2.00	£2.40
101 - CHEESE HEAD SCREW M8 X 20 FSP-774347.A7 774347	£2.00	£2.40
102 - CHEESE HEAD SCREW M3 X 10 FSP-400934.A1 400934	£2.00	£2.40
103 - STOP FSP-10030558.A16 10030558	£60.04	£72.05
104 - TABLE TOP INSERT FSP-470657.A10 470657	£4.75	£5.70
105 - RAISED-HEAD SCREW M4 X 10 FSP-228733.A15 228733	£2.00	£2.40
106 - HEXAGON NUT M8 FSP-200719.A151 200719	£2.00	£2.40
107 - WASHER 8.4 MM FSP-400996.A5 400996	£2.00	£2.40
108 - SPRING WASHER FSP-479669.A21 479669	£2.00	£2.40
109 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-228584.A98 228584	£2.00	£2.40
110 - INDICATOR FSP-470660.A13 470660	£2.00	£2.40
111 - BASE FSP-494968.A17 494968	£189.85	£227.82
112 - CATCH FSP-470664.A1 470664	£15.97	£19.16
113 - SCREW FSP-400709.A26 400709	£2.00	£2.40
114 - LEVER FSP-10607946.A21 10607946	£17.89	£21.47
115 - SPRING PLATE FSP-470665.A22 470665	£8.93	£10.72
116 - COVER FSP-471318.A0 471318	£4.81	£5.77
117 - FRAME FSP-10027727.A6 10027727	£181.97	£218.36
118 - SCALE FSP-470663.A22 470663	£36.32	£43.59
127 - BOLT FSP-10016971.A9 10016971	£14.22	£17.07
128 - HEXAGON NUT M8 FSP-200735.A4 200735	£2.00	£2.40
130 - GLIDE PLATE FSP-470662.A1 470662	£2.66	£3.19
131 - BUSH FSP-473215.A12 473215	£2.00	£2.40
132 - BUFFER (4 PCS.) FSP-494780.A13 494780	£38.18	£45.81
133 - HEXAGON SCREW M8 X 45 FSP-400937.A12 400937	£2.00	£2.40
134 - DEPTH STOP FSP-495266.A16 495266	£16.48	£19.78
135 - CLAMPING PLATE FSP-470640.A11 470640	£3.93	£4.72
143 - END STOP FSP-473656.A8 473656	£3.45	£4.14
144 - KNOB FSP-470639.A13 470639	£2.00	£2.40
147 - PIN FSP-470514.A17 470514	£6.39	£7.67
149 - DEPTH STOP FSP-470509.A19 470509	£6.68	£8.01
150 - PUSHER FSP-470631.A8 470631	£2.00	£2.40
151 - COVER FSP-470630.A11 470630	£6.64	£7.97
153 - PLUG FSP-471192.A8 471192	£3.45	£4.14
154 - PLUG FSP-501549.A19 501549	£2.00	£2.40
155 - THREADED ROD FSP-470561.A18 470561	£13.42	£16.11
156 - SWIVEL ARM FSP-495778.A7 495778	£164.72	£197.67
157 - PRESSURE CLAMPING ELEMENT FSP-400287.A9 400287	£4.89	£5.87
158 - GEAR FSP-470886.A12 470886	£2.93	£3.52
159 - ADJUSTING KNOB FSP-471313.A13 471313	£2.94	£3.53
160 - PRESSURE SPRING FSP-471024.A15 471024	£2.00	£2.40
161 - BRAKE LEVER FSP-470508.A4 470508	£5.43	£6.52
162 - BEARING SHEET FSP-470510.A3 470510	£4.37	£5.24
163 - ROTARY KNOB FSP-494172.A8 494172	£15.67	£18.80
164 - CLAMPING LEVER FSP-470634.A12 470634	£7.94	£9.53
165 - CABLE CLAMP FSP-470641.A11 470641	£2.00	£2.40
166 - HOLDER FSP-470636.A11 470636	£3.53	£4.24
167 - WASHER FSP-471193.A10 471193	£2.00	£2.40
168 - KNOB LEVER FSP-470632.A5 470632	£4.75	£5.70
169 - SPRING WASHER FSP-469785.A18 469785	£2.00	£2.40
170 - BUSH FSP-470560.A4 470560	£2.00	£2.40
171 - LOCKING BOLT FSP-470515.A0 470515	£6.39	£7.67
172 - SWIVEL LEVER FSP-494171.A8 494171	£9.15	£10.98
173 - HOOK FSP-470518.A14 470518	£7.99	£9.59
174 - WASHER FSP-208623.A17 208623	£2.00	£2.40
175 - PRESSURE SPRING FSP-471026.A13 471026	£2.00	£2.40
176 - ROUND-HEAD SCREW 3.5 X 14 MM FSP-400981.A14 400981	£2.00	£2.40
177 - INDICATOR FSP-470627.A7 470627	£2.00	£2.40
178 - INDICATOR FSP-470628.A16 470628	£2.00	£2.40
180 - SPRING WASHER FSP-761692.A16 761692	£2.00	£2.40
181 - PINION FSP-470885.A2 470885	£6.39	£7.67
183 - COVER FSP-470635.A12 470635	£11.01	£13.21
184 - PIN KEY FSP-439274.A62 439274	£3.56	£4.27
186 - WASHER 8.4 MM FSP-228601.A40 228601	£2.00	£2.40
187 - CHEESE HEAD SCREW M8 X 16 FSP-200201.A0 200201	£2.00	£2.40
190 - CABLE HOLDER FSP-470642.A12 470642	£22.02	£26.42
191 - WASHER FSP-400929.A9 400929	£2.00	£2.40
192 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-228584.A99 228584	£2.00	£2.40
196 - FLANGE FSP-200210.A11 200210	£67.52	£81.03
197 - APRON FSP-200215.A6 200215	£24.21	£29.05
198 - SHAFT USE 49 GEAR HOUSING FSP-495627.A1 495627	-
199 - LASER FSP-200200.A5 200200	£51.18	£61.42
200 - FLEXIBLE LEAD FSP-200203.A0 200203	£38.82	£46.58
202 - STOP FSP-204073.A11 204073	£59.67	£71.60
203 - STOP FSP-204074.A16 204074	£53.04	£63.65
204 - CART FSP-200199.A3 200199	£148.52	£178.22
205 - SWIVELING SEGMENT FSP-200202.A8 200202	£71.93	£86.32
206 - RETROFIT KIT FSP-205565.A4 205565	£126.03	£151.24
