Festool PSB 300 Q / 489584 Spare Parts

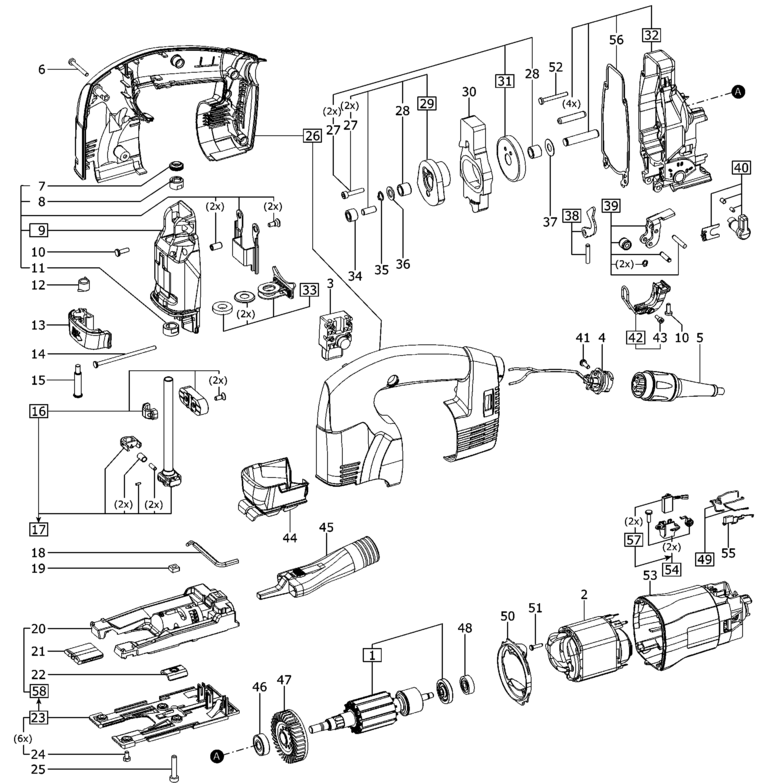

An exploded diagram and spare parts listing for the Festool PSB 300 Q / 489584

	Ex VAT	Inc VAT
1 - ARMATURE 230 V FSP-491854.A0 491854	£57.96	£69.55
2 - FIELD ASSEMBLY 230 V FSP-491855.A1 491855	£36.42	£43.71
3 - SWITCH ATTACHMENT FSP-486317.A66 486317	£15.47	£18.56
4 - SOCKET HOUSING 230-240V FSP-489924.A1 489924	£7.74	£9.29
5 - PLUG IT-CABLE FSP-203924.A72 203924	£24.16	£28.99
5 - PLUG IT-CABLE FSP-203914.A22 203914	-
6 - RAISED-HEAD SCREW 3.5 X 30 MM FSP-400669.A11 400669	£2.00	£2.40
7 - STRIPPER FSP-451796.A6 451796	£3.14	£3.77
8 - BUSH FSP-451371.A3 451371	£2.00	£2.40
9 - GEAR COVER FSP-490207.A3 490207	£59.45	£71.34
10 - RAISED-HEAD SCREW M4 X 12 FSP-228509.A4 228509	£2.00	£2.40
11 - BUSH FSP-451372.A5 451372	£3.93	£4.72
12 - BENDING SPRING FSP-451366.A3 451366	£2.00	£2.40
13 - CLAMPING LEVER FSP-451367.A5 451367	£4.82	£5.78
14 - RAISED-HEAD SCREW 3.5 X 70 MM FSP-400565.A7 400565	£2.00	£2.40
15 - FLANGE BOLT FSP-457337.A4 457337	£2.00	£2.40
16 - CONNECTING MEMBER FSP-490209.A3 490209	£23.34	£28.01
17 - LIFTER ROD FSP-490210.A5 490210	£58.41	£70.09
18 - SCREWDRIVER FSP-461987.A2 461987	£8.55	£10.26
19 - SQUARE NUT M5 FSP-228520.A20 228520	£2.00	£2.40
20 - BASE FSP-10029350.A5 10029350	£14.35	£17.22
21 - SPLINTER GUARD FSP-490120.A5 490120	£6.18	£7.41
22 - LUG SUPPORT FSP-453082.A3 453082	£2.00	£2.40
23 - PLASTIC BASE FSP-490212.A6 490212	£24.21	£29.05
24 - CHEESE HEAD SCREW M4 X 7 FSP-400062.A8 400062	£2.00	£2.40
25 - CHEESE HEAD SCREW M5 X 25 FSP-400526.A16 400526	£2.00	£2.40
26 - NO LONGER AVAILABLE FSP-00000.A3900 00000	-
27 - CHEESE HEAD SCREW M4 X 20 FSP-400535.A3 400535	£2.00	£2.40
28 - NEEDLE SLEEVE FSP-400008.A5 400008	£3.58	£4.29
29 - CAM FSP-490213.A2 490213	£36.58	£43.89
30 - WEIGHT FSP-10005928.A6 10005928	£15.72	£18.87
31 - GEAR FSP-490214.A6 490214	£37.18	£44.62
32 - GEAR HOUSING FSP-490208.A4 490208	£61.79	£74.15
33 - GASKET FSP-490215.A1 490215	£18.09	£21.71
34 - BEARING FSP-10184323.A27 10184323	£15.97	£19.16
35 - SNAP RING FSP-200617.A25 200617	£2.00	£2.40
36 - SUPPORTING RING FSP-400009.A30 400009	£2.00	£2.40
37 - WASHER FSP-457043.A20 457043	£2.00	£2.40
38 - PENDULUM DRIVE FSP-490216.A7 490216	£20.72	£24.86
39 - HOLDER FSP-490217.A1 490217	£28.32	£33.99
40 - PENDULUM CONTROL LEVER FSP-490218.A7 490218	£22.96	£27.55
41 - RAISED-HEAD SCREW 3.5 X 10 MM FSP-219031.A216 219031	£2.00	£2.40
42 - HOLDER FSP-499559.A5 499559	£37.42	£44.90
43 - CHEESE HEAD SCREW M3 X 8 FSP-400678.A10 400678	£2.00	£2.40
44 - CHIP GUARD FSP-453491.A4 453491	£2.82	£3.39
45 - EXTRACTOR CONNECTOR FSP-10027974.A5 10027974	£6.19	£7.43
46 - BALL BEARING FSP-400626.A20 400626	£5.98	£7.18
47 - FAN FSP-457383.A0 457383	£2.00	£2.40
48 - BALL BEARING FSP-228672.A7 228672	£4.41	£5.29
49 - SET OF FLEXIBLE LEADS FSP-491530.A0 491530	£40.42	£48.50
50 - AIR GUIDE WASHER FSP-458964.A4 458964	£2.00	£2.40
51 - RAISED-HEAD SCREW 3.0 X 12 MM FSP-219069.A16 219069	£2.00	£2.40
52 - RAISED-HEAD SCREW 3.5 X 30 MM FSP-400524.A1 400524	£2.00	£2.40
53 - MOTOR HOUSING FSP-449640.A2 449640	£11.18	£13.42
54 - BRUSH HOLDER WITH BRUSHES (PAIR) 230V FSP-490224.A1 490224	£10.17	£12.20
55 - NO LONGER AVAILABLE FSP-00000.A3901 00000	-
56 - GASKET FSP-451354.A5 451354	£3.38	£4.05
57 - BRUSH (PAIR) FSP-490223.A1 490223	£10.17	£12.20
58 - TABLE INCLUDING FOOT FSP-494166.A3 494166	£31.32	£37.58
