Festool PS 300 EQ 230V / 205224 Spare Parts

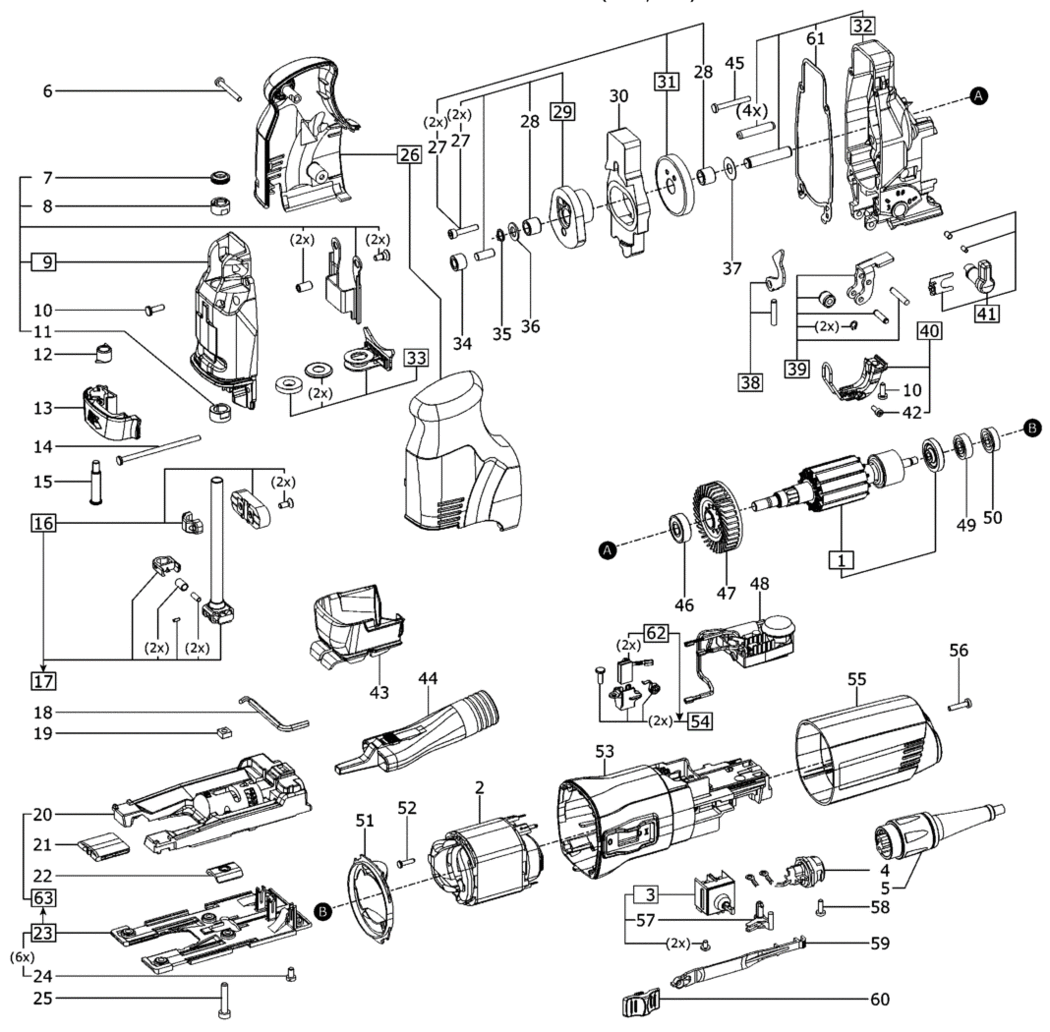

An exploded diagram and spare parts listing for the Festool PS 300 EQ 230V / 205224

	Ex VAT	Inc VAT
1 - ARMATURE 230-240V FSP-491851.A0 491851	£48.58	£58.30
2 - FIELD ASSEMBLY 230-240V FSP-491767.A3 491767	£31.68	£38.02
3 - SWITCH FSP-490200.A11 490200	£16.33	£19.60
4 - SOCKET HOUSING 230V FSP-489927.A5 489927	£7.92	£9.51
6 - RAISED-HEAD SCREW 3.5 X 30 MM FSP-400669.A14 400669	£2.00	£2.40
7 - STRIPPER FSP-451796.A3 451796	£3.14	£3.77
8 - BUSH FSP-451371.A0 451371	£2.00	£2.40
9 - GEAR COVER FSP-490207.A0 490207	£59.45	£71.34
10 - RAISED-HEAD SCREW M4 X 12 FSP-228509.A0 228509	£2.00	£2.40
11 - BUSH FSP-451372.A8 451372	£3.93	£4.72
12 - BENDING SPRING FSP-451366.A0 451366	£2.00	£2.40
13 - CLAMPING LEVER FSP-451367.A8 451367	£4.82	£5.78
14 - RAISED-HEAD SCREW 3.5 X 70 MM FSP-400565.A3 400565	£2.00	£2.40
15 - FLANGE BOLT FSP-457337.A0 457337	£2.00	£2.40
16 - CONNECTING MEMBER FSP-490209.A0 490209	£23.34	£28.01
17 - LIFTER ROD FSP-490210.A8 490210	£58.41	£70.09
18 - SCREWDRIVER FSP-461987.A5 461987	£8.55	£10.26
19 - SQUARE NUT M5 FSP-228520.A15 228520	£2.00	£2.40
20 - BASE FSP-10029350.A8 10029350	£14.35	£17.22
21 - SPLINTER GUARD FSP-490120.A0 490120	£6.18	£7.41
22 - LUG SUPPORT FSP-453082.A0 453082	£2.00	£2.40
23 - PLASTIC BASE FSP-490212.A3 490212	£24.21	£29.05
24 - CHEESE HEAD SCREW M4 X 7 FSP-400062.A3 400062	£2.00	£2.40
25 - CHEESE HEAD SCREW M5 X 25 FSP-400526.A11 400526	£2.00	£2.40
26 - HOOD FSP-489686.A2 489686	£10.37	£12.44
27 - CHEESE HEAD SCREW M4 X 20 FSP-400535.A8 400535	£2.00	£2.40
28 - NEEDLE SLEEVE FSP-400008.A0 400008	£3.58	£4.29
29 - CAM FSP-490213.A5 490213	£36.58	£43.89
30 - WEIGHT FSP-10005928.A3 10005928	£15.72	£18.87
31 - GEAR FSP-490214.A3 490214	£37.18	£44.62
32 - GEAR HOUSING FSP-490208.A8 490208	£61.79	£74.15
33 - GASKET FSP-490215.A5 490215	£18.09	£21.71
34 - BEARING FSP-10184323.A21 10184323	£15.97	£19.16
35 - SNAP RING FSP-200617.A18 200617	£2.00	£2.40
36 - SUPPORTING RING FSP-400009.A39 400009	£2.00	£2.40
37 - WASHER FSP-457043.A14 457043	£2.00	£2.40
38 - PENDULUM DRIVE FSP-490216.A3 490216	£20.72	£24.86
39 - HOLDER FSP-490217.A5 490217	£28.32	£33.99
40 - HOLDER FSP-499559.A0 499559	£37.42	£44.90
41 - PENDULUM CONTROL LEVER FSP-490218.A5 490218	£22.96	£27.55
42 - CHEESE HEAD SCREW M3 X 8 FSP-400678.A12 400678	£2.00	£2.40
43 - CHIP GUARD FSP-453491.A0 453491	£2.82	£3.39
44 - EXTRACTOR CONNECTOR FSP-10027974.A8 10027974	£6.19	£7.43
45 - RAISED-HEAD SCREW 3.5 X 30 MM FSP-400524.A5 400524	£2.00	£2.40
46 - BALL BEARING FSP-400626.A17 400626	£5.98	£7.18
47 - FAN FSP-457383.A5 457383	£2.00	£2.40
48 - ELECTRONIC FSP-721029.A0 721029	£66.71	£80.05
49 - BALL BEARING FSP-228672.A9 228672	£4.41	£5.29
50 - SOLENOID RING FSP-444018.A49 444018	£2.00	£2.40
51 - AIR GUIDE WASHER FSP-458964.A3 458964	£2.00	£2.40
52 - RAISED-HEAD SCREW 3.0 X 12 MM FSP-219069.A13 219069	£2.00	£2.40
53 - MOTOR HOUSING FSP-474364.A4 474364	£11.42	£13.70
54 - BRUSH HOLDER WITH BRUSHES (PAIR) 230V FSP-490220.A7 490220	£17.85	£21.42
55 - CAP FSP-451346.A6 451346	£6.29	£7.55
56 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-400584.A31 400584	£2.00	£2.40
57 - LEVER FSP-453490.A6 453490	£2.00	£2.40
58 - RAISED-HEAD SCREW 3.5 X 10 MM FSP-219031.A219 219031	£2.00	£2.40
59 - SWITCH LINKAGE FSP-465089.A9 465089	£2.00	£2.40
60 - SLIDE SWITCH FSP-451347.A4 451347	£2.00	£2.40
61 - GASKET FSP-451354.A4 451354	£3.38	£4.05
62 - BRUSH (PAIR) FSP-490219.A3 490219	£17.85	£21.42
63 - TABLE INCLUDING FOOT FSP-494166.A7 494166	£31.32	£37.58
